Ultimate Guide For CNC V-Grooving Metal Sheet Machine

CNC V-grooving metal sheet machine

A CNC V-grooving metal sheet machine is a specialized tool designed to create precise V-shaped grooves in metal sheets. These grooves serve various functions, including bending, folding, and welding. CNC V-grooving machines are predominantly utilized within the manufacturing industry, but their applications extend to other sectors such as automotive and aerospace.

1.Types of CNC V-Grooving Machines

Two primary categories of CNC V-grooving machines exist: horizontal and vertical.

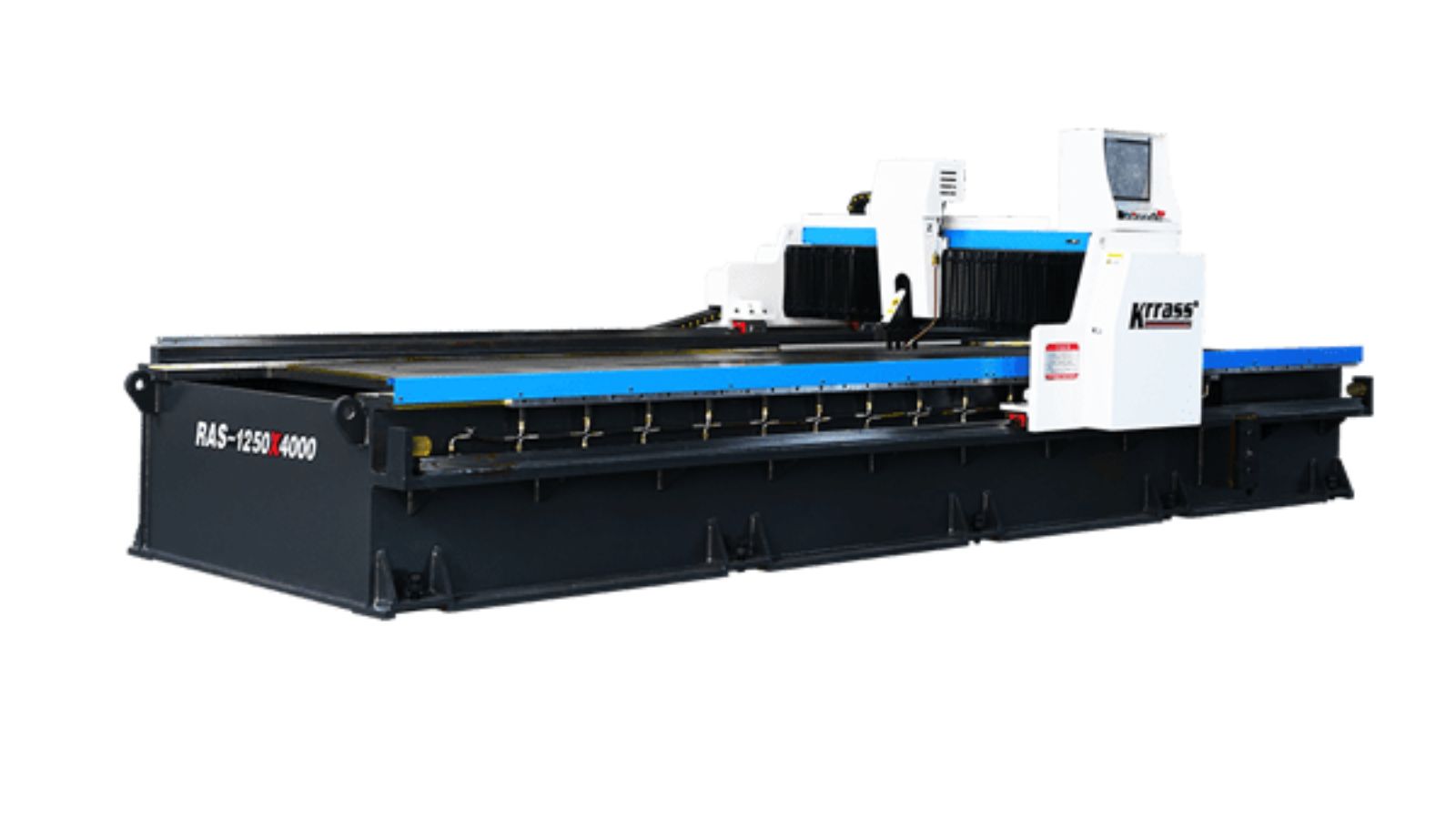

  • Horizontal CNC V-Grooving Machines: This configuration represents the most common type. It features a rotating spindle that holds a cutting tool, which traverses across the metal sheet to create the V-shaped groove.
Horizontal CNC V-Grooving Machines

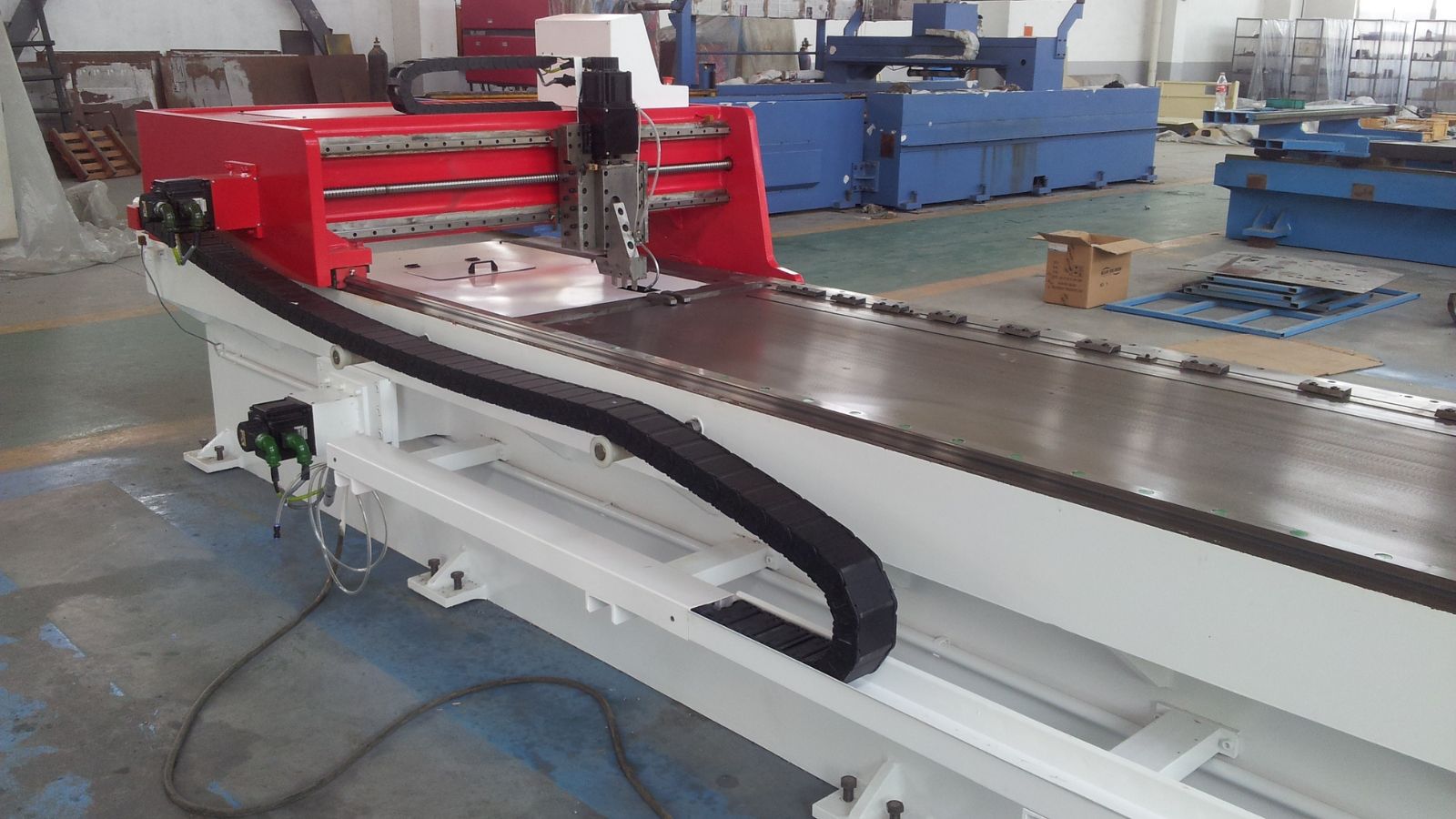

  • Vertical CNC V-Grooving Machines: In this configuration, the spindle moves vertically, while the metal sheet remains stationary on the worktable. This type is often employed for thicker metal sheets.

2.Key Features of CNC V-Grooving Machines

CNC V-grooving machines typically incorporate the following key features:

  • CNC Controller: This component enables precise programming of the machine to create V-shaped grooves with high accuracy.
  • Spindle: The spindle rotates the cutting tool at high speeds, facilitating efficient material removal.
  • Worktable: The worktable provides a sturdy platform for securing the metal sheet during the grooving process.
  • Coolant System: This system ensures optimal cooling and lubrication of the cutting tool, extending its lifespan and improving machining performance.

3.Advantages of Utilizing CNC V-Grooving Machines

CNC V-grooving machines offer a multitude of advantages, including:

  • Precision: The ability to create precise V-shaped grooves with high dimensional accuracy and repeatability.
  • Efficiency: Rapid and efficient grooving of metal sheets, resulting in increased productivity.
  • Versatility: The ability to process a wide range of metal sheet materials, including steel, aluminum, and stainless steel.
  • Safety: Advanced safety features minimize the risk of operator injury during operation.

4.Applications of CNC V-Grooving Machines

CNC V-grooving machines find extensive application across various industries, including:

  • Manufacturing: V-shaped grooves are essential for numerous manufactured products, such as appliances, automobiles, and furniture. CNC V-grooving machines play a critical role in the production of these components.
  • Automotive: The automotive industry relies on V-grooved metal sheets for the construction of cars, trucks, and other vehicles. CNC V-grooving machines are instrumental in ensuring the precise and efficient production of these components.
  • Aerospace: The aerospace industry utilizes V-grooved metal sheets in the construction of aircraft and spacecraft. The high precision and efficiency offered by CNC V-grooving machines are critical for meeting the stringent requirements of this sector.

5.Choosing a CNC V-Grooving Machine

When selecting a CNC V-grooving machine, it is important to consider the following factors:

  • Processing capacity: The processing capacity of the machine, including the processing size, processing accuracy, and processing speed, should be considered.
  • Material compatibility: Whether the machine can process the required metal sheet materials, such as steel, aluminum, or stainless steel, is crucial.
  • Features and configuration: Consider the machine’s functionalities and configuration, such as the number of axes, tool changers, and available tooling options.
  • Safety features: Ensure the machine incorporates essential safety features to minimize the risk of operator injury during operation.
  • Budget: The initial investment cost and ongoing maintenance costs should be factored into the decision.

6. Operating a CNC V-Grooving Machine

Operating a CNC V-grooving machine typically involves these steps:

  1. Securing the metal sheet onto the worktable.
  2. Selecting the appropriate machining program.
  3. Inputting the processing parameters, such as groove depth, width, and path.
  4. Initiating the machining process.
  5. Monitoring the process for any potential issues.
  6. Once complete, removing the metal sheet from the worktable.

7.Maintaining a CNC V-Grooving Machine

Regular maintenance is essential to ensure the optimal performance and longevity of your CNC V-grooving machine. This includes:

  • Cleaning the machine regularly to remove debris and metal chips.
  • Checking and lubricating the machine’s moving parts.
  • Inspecting the cutting tools for wear and tear, and replacing them as needed.
  • Calibrating the machine’s axes and sensors to maintain accuracy.
  • Following the manufacturer’s recommended maintenance schedule.


CNC V-grooving machines offer a versatile and efficient solution for creating precise V-shaped grooves in metal sheets. Their diverse applications across various industries, coupled with the benefits of precision, efficiency, and versatility, make them a valuable asset in modern manufacturing processes. By carefully considering factors like processing capacity, material compatibility, and features, manufacturers can select the most suitable CNC V-grooving machine to meet their specific requirements.
