Back Gauge Modification

FAST & ACCURATE WITH HEAVY-DUTY CONSTRUCTION

The BGA series offer 2, 4 and 6 axes support brackets to help with all your bending needs – let us help you configure the best solution for your press brake needs.

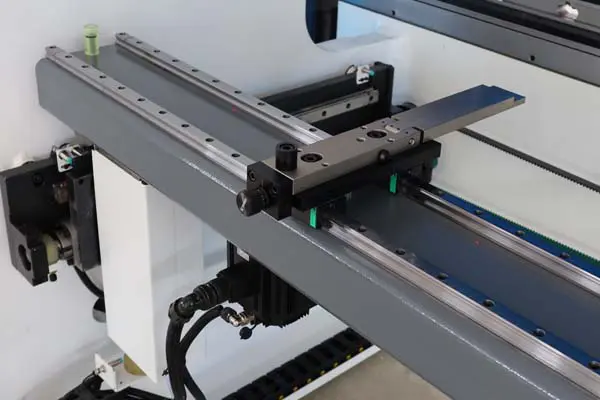

BGA-2 BackGauge

KRRASS BGA-2 BackGauge

Press Brake 2-Axis CNC BackGauge With X, R-Axis

The DA-53T touch CNC control provides a modern compact and versatile solution for a wide range of press brake applications without compromising machine functionality.

  • Ball screws and linear guide on X, R-axis
  • Axis X speed 500 mm/s
  • Manual Z1, Z2-axis with HIWIN linear guide
  • Mechanical accuracy ± 0.03 mm
  • Fingers with double stop and micrometric adjustment

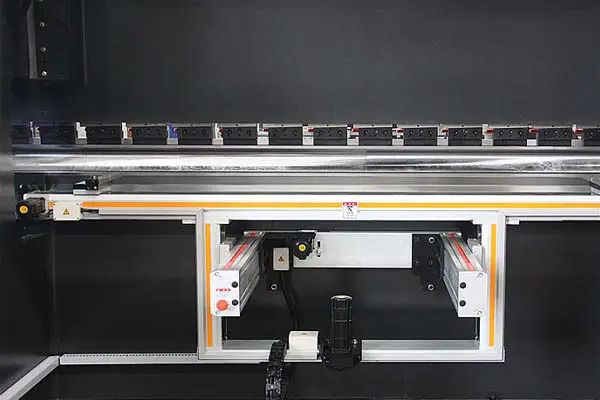

4-axis-backgauge

KRRASS BGA-4 BackGauge

Press Brake 4-Axis CNC BackGauge With X, R, Z1, Z2-Axis

  • Ball screws and linear guide on X, R-axis
  • Precision belts and YYC rack on axes Z1‐Z2
  • Fingers with double stop and micrometric adjustment
  • Mechanical accuracy ± 0.03 mm
  • Axes Z1‐Z2 speed 1000 mm/s
  • Axis X speed 500 mm/s

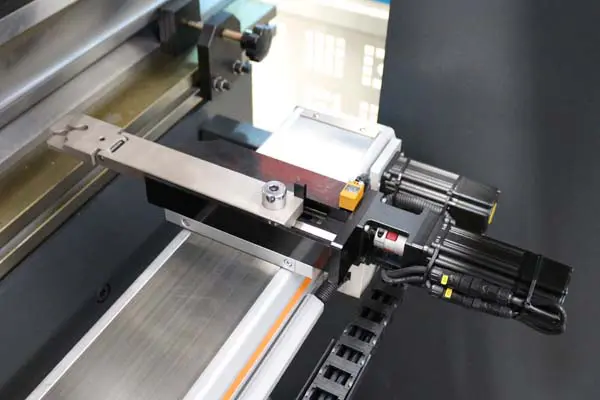

BGA-5 BackGauge

KRRASS BGA-5 BackGauge

Press Brake 5-Axis CNC BackGauge With X, R, Z1, Z2, Prime (Delta) X1-Axis

  • Ball screws and linear guide on X, R-axis
  • Precision belts and YYC rack on axes Z1‐Z2
  • Fingers with double stop and micrometric adjustment
  • Mechanical accuracy ± 0.03 mm
  • Axes Z1‐Z2 speed 1000 mm/s
  • Axis X speed 500 mm/s
  • Axis Delta X speed 500 mm/s
  • X1 Prime(Delta)100mm front and rear

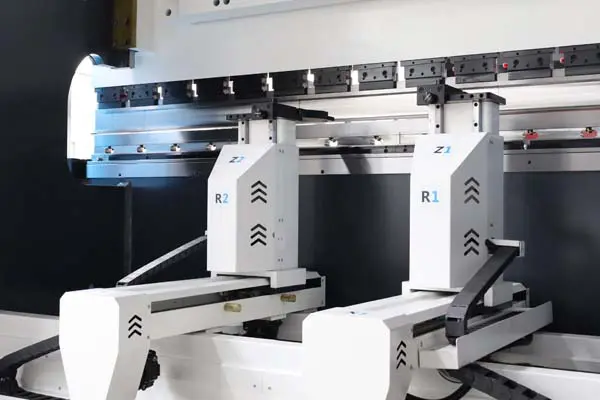

BGA-6 BackGauge

KRRASS BGA-6 BackGauge

Press Brake 6-Axis CNC BackGauge With X1, X2, R1, R2, Z1, Z2-Axis

  • Ball screws and linear guide on X, R-axis
  • Precision belts and YYC rack on axes Z1‐Z2
  • Fingers with double stop and micrometric adjustment
  • Mechanical accuracy ± 0.03 mm
  • Axes R1‐R2 speed 500 mm/s
  • Axes X1‐X2 speed 600 mm/s. (1000 mm/s optional)
  • Axes Z1‐Z2 speed 1100 mm/s
