Working Principle of V Grooving Machine: Complete Guide

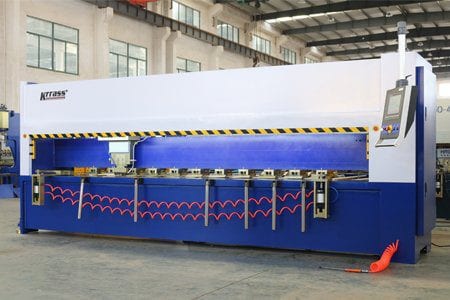

Vertical-v-groove-machine

This article offers a detailed journey through the workings, applications, and importance of V Grooving technology in modern manufacturing. Discover the precision and efficiency that these machines bring to the metal fabrication industry, and understand why they are a cornerstone in advanced manufacturing processes.

  1. What is V Grooving Machines
  2. Overview of V Grooving Technology
  3. The Anatomy of a V Grooving Machine
  4. The Working Principle of V Grooving Machines
  5. Cutting Tools and Techniques
  6. Material Compatibility and Handling
  7. Applications and Uses
  8. Comparative Analysis with Other Technologies
  9. Maintenance and Longevity
  10. Global Market and Export Potential
  11. How to Choose a Right V Grooving Machine

What is V Grooving Machines

When we delve into the world of precision sheet metal fabrication, one of the standout innovations is the V Grooving machine. At its core, a V Grooving machine, also commonly known as a V Groover, is a unique and powerful tool designed to make precise grooves in a variety of metal sheets. Why is this important? Well, in the realm of metalworking, the accuracy and depth of these grooves directly influence the bendability and aesthetic quality of the final product.

The principle behind these machines is fairly straightforward yet highly effective. They use a set of rotary cutting tools which carve a ‘V’ shaped groove into the metal sheet. The depth and angle of this groove are meticulously controlled, allowing for precise bending of the metal along these grooves. This process not only enhances the precision of the bend but also allows for creating sharp and clean angles, something highly sought after in industries like architectural metalworking and high-end cabinetry.

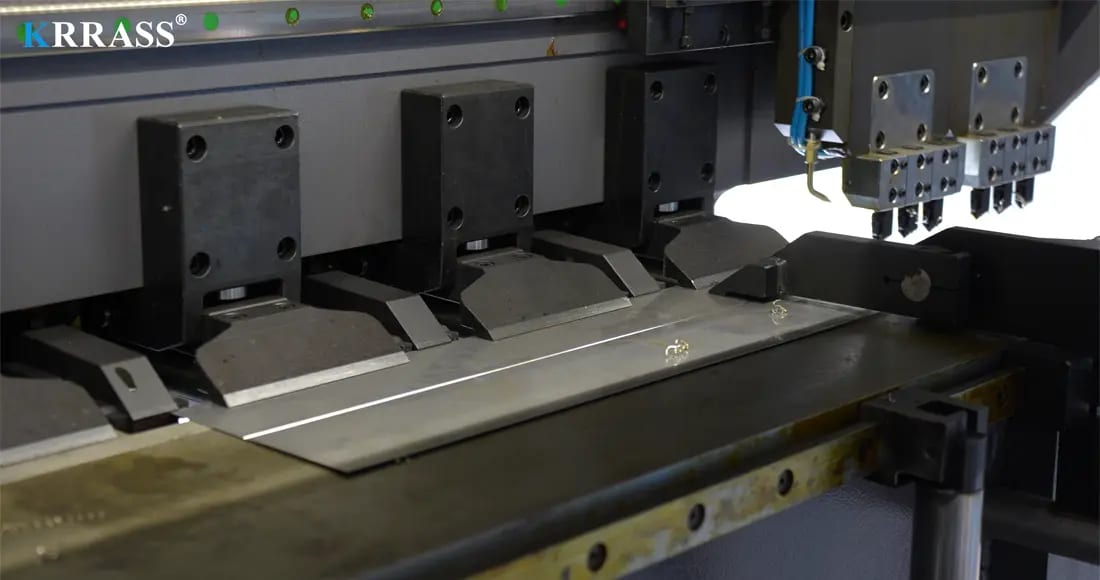

Operation process of vertical V grooving machine
Operation process of vertical V grooving machine

Overview of V Grooving Technology

The technology behind V Grooving is a fascinating blend of engineering ingenuity and practical application. Essentially, V Grooving technology revolves around creating precise, pre-programmed cuts in metal sheets. These cuts, or grooves, follow a predetermined ‘V’ shape, which is essential for subsequent metal bending and forming processes. This technology has revolutionized the way we approach sheet metal fabrication, offering both efficiency and precision.

At the heart of this technology lies the CNC (Computer Numerical Control) system. This advanced system allows for the automation of the grooving process, ensuring each cut is made with exact precision. The CNC system controls the cutting tools, often made of high-speed steel or carbide, to perform consistent and accurate grooves on various metal sheets, including stainless steel, aluminum, and copper.

Another key aspect of V Grooving technology is its ability to minimize material deformation. Traditional bending methods can often lead to unwanted warping or bulging in the metal. However, with the precise and localized cuts made by a V Groover, the material maintains its integrity, resulting in a cleaner, sharper bend. This is especially crucial in applications requiring high aesthetic standards, such as decorative panels and architectural features.

The Anatomy of a V Grooving Machine

A. Key Components and Their Functions

Cutting Tools: The cutting tools are the heart of the V Grooving machine. Made from durable materials like high-speed steel or carbide, these tools are designed to make precise and clean ‘V’ shaped cuts in metal sheets. Their robust construction ensures longevity and consistent performance under rigorous use.

Control Systems: The control systems, often based on CNC (Computer Numerical Control) technology, are what make the V Grooving machine a modern marvel. These systems allow for precise programming of the cutting process, ensuring each groove is executed with exact precision and consistency.

Feed Mechanism: The feed mechanism is responsible for moving the metal sheet through the machine. This component ensures smooth, consistent motion, which is crucial for achieving uniform grooves across the entire length of the metal sheet.

B. Material Construction and Design

The construction and design of V Grooving machines focus on durability and precision. Typically, the frame and major components are constructed from high-grade steel or cast iron, offering stability and reducing vibrations during operation. The design of these machines also emphasizes user safety and ease of maintenance, ensuring long-term, reliable operation.

C. Types of V Grooving Machines

V Grooving machines come in various types to cater to different industrial needs. The most common types include manual, semi-automatic, and fully automatic machines. Manual machines are more labor-intensive but offer flexibility for custom jobs. Semi-automatic machines balance manual intervention with some automated features, while fully automatic machines are best for high-volume, consistent production needs. Each type has its unique advantages, depending on the specific requirements of the task at hand.

The Working Principle of V Grooving Machines

A. Basic Operational Mechanism

The basic operational mechanism of a V Grooving machine is centered around its ability to create precise, controlled, and uniform grooves in metal sheets. This is achieved through a synchronized interaction between its cutting tools and the CNC control system. The machine operates on a principle where the metal sheet remains stationary while the cutting tools move along the designated path to create the ‘V’ shaped grooves.

B. Step-by-Step Process

Material Feeding: The process begins with the feeding of the metal sheet into the machine. This step is crucial as it sets the stage for precise grooving. The material is positioned and clamped securely to ensure stability during the cutting process.

Groove Cutting: Once the metal is in place, the CNC system guides the cutting tools to carve the ‘V’ shaped grooves. The depth, angle, and length of the grooves are controlled precisely, adhering to the pre-programmed specifications.

Material Removal: After the grooving is complete, the metal sheet is unclamped and removed from the machine. This final step marks the completion of the grooving process, with the metal now ready for further fabrication steps, such as bending or assembling.

C. Control and Precision Aspects

Control and precision are the hallmarks of V Grooving technology. The CNC system plays a pivotal role in this, allowing for precise control over the cutting process. Factors like groove depth, angle, and spacing are programmed into the CNC system, ensuring high levels of accuracy and repeatability. This precision is essential for applications where consistency and quality are paramount, such as in architectural metalwork or aerospace components.

v grooving

Cutting Tools and Techniques

A. Types of Cutting Tools Used

The effectiveness of a V Grooving machine largely depends on the type of cutting tools it utilizes. Commonly, these machines use high-speed steel or carbide-tipped tools. High-speed steel tools are renowned for their durability and resistance to high temperatures, making them suitable for extensive use. Carbide-tipped tools, on the other hand, are prized for their hardness and precision, providing cleaner and more accurate cuts, especially in tougher materials.

B. Selection Criteria for Cutting Tools

Selecting the right cutting tool for a V Grooving machine involves several considerations. The material of the tool is of utmost importance; it should match the type and thickness of the metal being grooved. Other factors include the tool’s cutting speed, feed rate, and the desired finish on the groove. The choice of tool also depends on the specific application – for instance, intricate designs might require finer, more precise tools, whereas bulk operations might favor tools that prioritize durability and speed.

C. Maintenance and Care of Cutting Tools

Proper maintenance and care are crucial for the longevity and performance of cutting tools. This includes regular cleaning to remove any metal chips or debris, checking for signs of wear or damage, and ensuring that the tools are correctly aligned and sharpened. Storing the tools in a clean, dry environment is also important to prevent rust and corrosion. Regular maintenance not only extends the life of the tools but also ensures consistent quality in the grooving process.

Material Compatibility and Handling

A. Suitable Materials for V Grooving

V Grooving machines are versatile tools compatible with a variety of materials. The most commonly grooved materials include stainless steel, aluminum, brass, copper, and certain plastic composites. Each material has unique properties that affect the grooving process, such as hardness, malleability, and thermal conductivity. Stainless steel, for example, is highly popular due to its strength and resistance to corrosion, making it ideal for both functional and aesthetic applications.

B. Material Preparation and Setup

Proper preparation of materials is critical for efficient and precise V Grooving. This includes ensuring the material is clean, free from any coatings or debris, and cut to the correct size. The setup process also involves securing the material in place to prevent movement during grooving. This stability is crucial for achieving consistent groove depths and angles, particularly in complex or large-scale projects.

C. Handling and Safety Measures

Safety is paramount when operating V Grooving machines. Operators should be trained in proper handling techniques and aware of the risks associated with each type of material. Protective gear, such as gloves and eye protection, is essential. Additionally, ensuring the work area is well-ventilated and free from obstructions can help prevent accidents. Regular machine maintenance and safety checks are also vital to ensure a safe working environment.

Applications and Uses

A. Industrial Applications

The versatility of V Grooving machines shines in their wide range of industrial applications. They are essential in sectors such as aerospace, automotive, and construction, where precision metalwork is critical. In aerospace, for example, V Groovers are used to fabricate parts that require exact bends and folds, contributing to the overall aerodynamic efficiency and safety of aircraft. In the construction industry, they play a pivotal role in creating architectural elements like decorative panels and metal cladding, which require both structural integrity and aesthetic appeal.

B. Customization and Special Uses

Beyond standard industrial applications, V Grooving machines are also highly valued for their customization capabilities. They enable the creation of intricate designs and patterns in metalwork, which are often used in custom furniture, signage, and art installations. This ability to tailor metal sheets to specific designs opens up endless possibilities for designers and artists, allowing them to experiment with various shapes, textures, and finishes. The precision and flexibility of V Grooving machines make them an indispensable tool for bespoke projects and special applications where creativity and precision must go hand in hand.

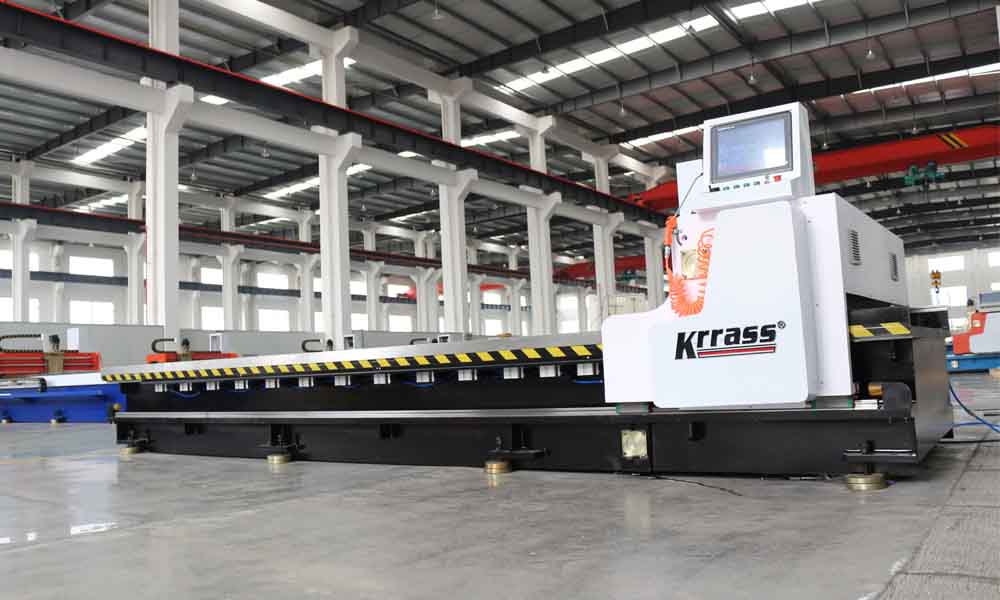

V grooving machine

Comparative Analysis with Other Technologies

A. V Grooving vs. Traditional Grooving Methods

V Grooving technology stands apart from traditional grooving methods in several key ways. Traditional methods often involve manual processes or less advanced machinery, which can lead to inconsistencies and limitations in the depth and precision of the grooves. V Grooving, with its CNC technology, offers unparalleled precision and consistency. This method also allows for more complex and intricate grooving patterns, which are challenging to achieve with traditional methods.

B. Advantages and Limitations

The advantages of V Grooving machines are numerous. They offer high precision, consistent quality, and the ability to handle a variety of materials and thicknesses. This technology also reduces material wastage and improves the aesthetic finish of the final product. However, it’s important to acknowledge certain limitations, such as the initial investment cost and the need for skilled operators to manage the CNC systems effectively.

C. Choosing the Right Technology

Choosing between V Grooving and other grooving technologies depends on several factors. Key considerations include the specific requirements of the project, such as the precision needed, the type of materials being used, and the production volume. For projects requiring high precision and intricate designs, V Grooving is often the preferred choice. However, for simpler tasks or where budget constraints are a concern, traditional methods may still be viable. It’s essential to evaluate the specific needs of each project to determine the most appropriate grooving technology.

Maintenance and Longevity

A. Routine Maintenance Tips

Proper routine maintenance is crucial for the efficient operation of V Grooving machines. This includes regular cleaning to remove any metal shavings or debris, checking for wear and tear on the cutting tools, and ensuring all moving parts are well-lubricated. It’s also important to routinely check and calibrate the CNC system to maintain precision in the grooving process.

B. Long-Term Care Strategies

Long-term care of V Grooving machines involves more than just routine maintenance. It includes periodic checks of the electrical systems, updating or upgrading software and hardware as needed, and potentially replacing parts that are subject to wear and tear. Implementing a regular maintenance schedule and keeping detailed records of any services or repairs can help in identifying potential issues before they become major problems.

C. Extending Machine Life

Extending the life of a V Grooving machine requires a comprehensive approach to maintenance and care. This includes training operators to use the machine correctly, avoiding overloading the machine, and using the right tools and settings for different materials. Proper environmental conditions, such as maintaining a clean and controlled workspace, also play a significant role in preserving the machine’s condition. By adhering to these practices, the lifespan of V Grooving machines can be significantly extended, ensuring a long-term return on investment.

Global Market and Export Potential

A. Market Dynamics

The global market for V Grooving machines is influenced by various factors including industrial growth, technological advancements, and the expanding demand in sectors like construction, automotive, and aerospace. Rapid industrialization in emerging economies and increasing adoption of automation technologies in manufacturing are also significant contributors to market growth. The demand for high-precision and efficient metal fabrication solutions is a key driver in the expanding market for these machines.

B. Export Opportunities

Export opportunities for V Grooving machines are vast, especially in countries experiencing industrial growth. Manufacturers who can offer high-quality, reliable, and technologically advanced machines are likely to find significant markets overseas. The ability to meet varying international standards and regulations is also crucial for successful export ventures. Growing economies in regions like Asia-Pacific, Middle East, and Africa present promising export destinations.

C. Competitive Landscape

The competitive landscape of the V Grooving machine market is characterized by both global and regional players. Competition is based on factors like product innovation, technology integration, after-sales service, and pricing strategies. Manufacturers that consistently invest in research and development to improve their products and adapt to changing market needs are more likely to maintain and enhance their market position. Building strong relationships with clients and understanding the specific needs of different markets are also key factors in staying competitive in the global arena.

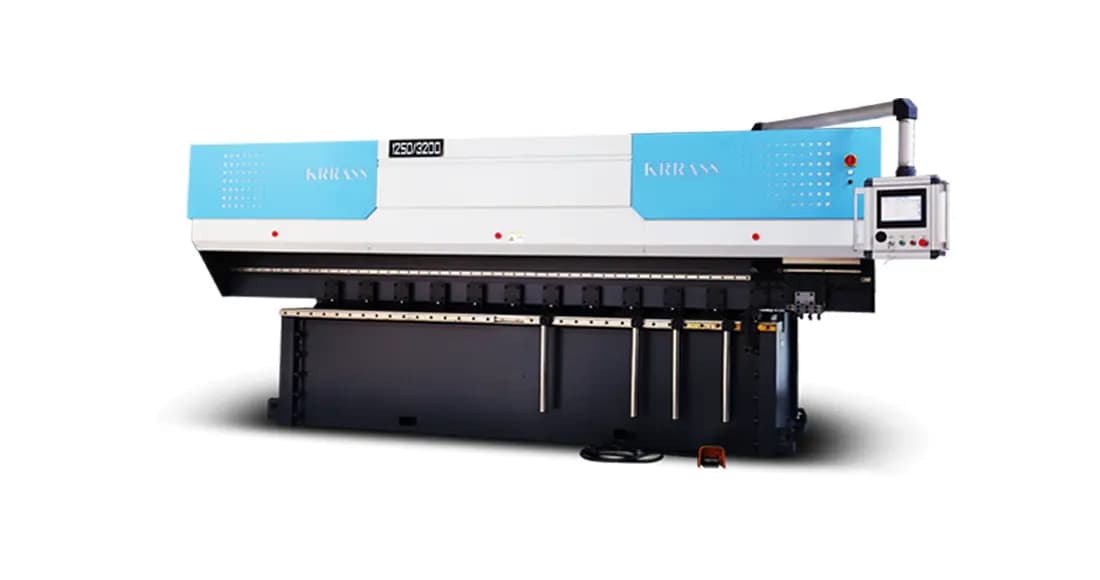

Vertical V Groover Machine

How to Choose the Right V Grooving Machine

Selecting the right V Grooving machine for your needs involves careful consideration of several key factors. Understanding these aspects will help ensure that you invest in a machine that not only meets your current requirements but also adapts to future projects and technological advancements.

1. Material Compatibility: Assess the types of materials you plan to work with. Different machines are optimized for different materials, and choosing one that best suits your primary material can significantly impact efficiency and quality.

2. Machine Size and Capacity: Consider the size of the machine and its capacity. This includes the maximum sheet size it can handle and the depth of grooving it can achieve. Ensure that the machine’s specifications align with your typical project requirements.

3. Precision and Control: Look for machines with advanced control systems like CNC for higher precision and consistency in grooving. The ability to program and replicate precise grooves is essential for high-quality work.

4. Durability and Construction Quality: The build quality of the machine determines its longevity and reliability. Opt for machines constructed with high-grade materials that can withstand regular use and the rigors of a demanding work environment.

5. After-Sales Support: Good after-sales support, including customer service, availability of spare parts, and maintenance services, is crucial. This ensures that your machine remains operational and productive over the long term.

6. Budget and Cost-Effectiveness: While budget is an important consideration, it’s also essential to weigh the long-term cost-effectiveness of the machine. A more expensive model might offer greater efficiency and lower maintenance costs in the long run.

By considering these factors, you can make an informed decision on which V Grooving machine is the best fit for your operational needs and future growth.

Conclusion

In conclusion, the evolution and capabilities of V Grooving machines signify a monumental leap in metal fabrication. As industries continue to evolve, the demand for precision and efficiency makes V Grooving technology indispensable. Leading this innovation is Krrass, a premier Chinese manufacturer of V Grooving machines. Explore their state-of-the-art offerings and learn how they can elevate your manufacturing processes at https://www.krrass.com/. Embrace the future of metal fabrication with Krrass – where precision meets innovation.
