The world of manufacturing revolves around powerful machinery, and at the heart of many production lines is the press machine. Once a workpiece has been designed, operators use press machines to manufacture it. These machines work by applying pressure to bend and press the sheet metal. Offering diverse applications across numerous industries, press machines are pivotal to shaping, forging, and stamping raw materials into final products. Press machines come in various types, including hydraulic, pneumatic, and mechanical, and are differentiated based on their power system, capacity, and other factors. Whether you’re new to the sector or looking to optimize your production line, understanding the intricacies of different types of press machines can make all the difference. Dive into our comprehensive guide to unravel the wonders of these machines and their myriad applications.
- Importance of Press Machines in Various Industries
- Key Components of Press Machine
- Functioning Principles of Press Machine
- Mechanical Press Machines
- Hydraulic Press Machines
- Pneumatic Press Machines
- High-Speed Press Machines
- Forging Press Machines
- Punch Press Machines
- Stamping Press Machine
- Factors to Consider When Choosing a Press Machine
The realm of industrialization has witnessed incredible advancements over the years, and press machines stand out as one of its shining stars. When we discuss manufacturing, shaping, and molding, press machines are invariably at the core of these processes. Let’s dive deeper into their significance in various sectors. In essence, a press machine is a device designed to shape or mold metals or other materials by applying force. Think of it as a giant’s hand, expertly shaping materials with precision and care. But why are they so crucial?
A Catalyst for Efficiency
In the high-paced world of manufacturing, efficiency is key. Press machines expedite the shaping and molding processes, making them indispensable for industries aiming for high productivity. Instead of relying on manual labor, which can be time-consuming and inconsistent, press machines deliver fast and uniform results, ensuring every product meets the desired standards.
Versatility Across Industries
From the automotive sector to the world of electronics, press machines prove their worth across a myriad of industries. Whether it’s forming car parts or creating intricate circuit boards, these machines offer the flexibility and precision that modern industries crave. Their adaptability is a testament to their design and functionality, making them a staple in various production lines.
Beyond the obvious production advantages, press machines are economically savvy investments. Their longevity and ability to produce high volumes mean companies can achieve better returns on investment. Coupled with reduced labor costs and minimal wastage, these machines are a win-win for businesses looking to optimize their bottom line. In conclusion, press machines are not just pieces of machinery; they are the beating heart of numerous industries, driving efficiency, versatility, and economic value. As we continue to push the boundaries of manufacturing and production, the role of press machines becomes even more pronounced, solidifying their importance in the modern industrial landscape.
The efficiency and functionality of press machines owe much to their intricate design and the synchronization of their key components. Understanding these components not only offers insights into the working of the machine but also underscores the sophistication of modern manufacturing equipment. Let’s dissect the core components of a press machine.
The frame serves as the machine’s skeletal structure, providing stability and support. Typically made of cast iron or steel, it withstands the intense pressures exerted during operations, ensuring the machine’s longevity and consistency.
Acting as the machine’s main sliding component, the ram delivers the necessary force to shape or cut the workpiece. It’s the moving part that interacts directly with the material, making its precision crucial to the end product’s quality.
The bed of a press machine is the stationary part upon which the workpiece is placed. It needs to be robust and stable, offering a flat surface for even force distribution during pressing operations.
4. Bolster Plate
Situated on the bed, the bolster plate provides a solid base for die assembly. It plays a crucial role in ensuring that the die remains in the correct position during operations.
5. Drive Mechanism
The drive mechanism powers the machine, converting energy into the movements needed for pressing. Whether powered by a motor or manual effort, the drive mechanism ensures smooth operation and efficient energy transfer.

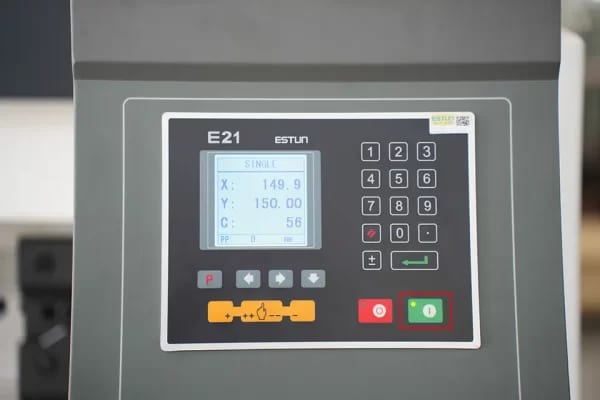

6. Control Panel
Modern press machines come with advanced control panels, allowing operators to set parameters, monitor operations, and ensure safety. From adjusting pressure to setting timers, the control panel is the brain of the machine, dictating its every move.
At a glance, a press machine might seem like a straightforward device. Yet, behind its seamless operation lies a series of well-coordinated principles and mechanisms. Understanding these principles is pivotal for those keen on maximizing the efficiency and safety of these devices. Let’s unravel the fundamental functioning principles of press machines.
1. Conversion of Energy
The primary operation begins with the conversion of electrical or mechanical energy into kinetic energy. The drive mechanism, often powered by a motor, facilitates this energy transformation, ensuring a continuous supply to power the pressing actions.
2. Application of Force
The kinetic energy, when channeled through the ram, results in the application of force on the workpiece. This force, both directed and controlled, ensures that the material undergoes the desired transformation, whether it’s cutting, shaping, or molding.
3. Controlled Motion
Press machines don’t simply smash down on materials. The movement of the ram is meticulously controlled, often facilitated by hydraulic or pneumatic systems. This control ensures precision and consistency in the final product.
4. Interaction with Die
A press machine’s operation isn’t complete without the die. The workpiece, sandwiched between the ram and the die, takes the shape of the latter under applied pressure. The type and design of the die play a significant role in the machine’s final output.
5. Feedback and Adjustments
Modern press machines are equipped with sensors and control panels that offer real-time feedback. This feedback allows operators to make on-the-fly adjustments, ensuring optimal performance and reducing the risk of errors or malfunctions.
Mechanical press machines have been the stalwarts of the manufacturing industry, offering reliability, speed, and efficiency. While they all operate on the core principle of converting rotational motion into linear motion to exert force, there are various types, each tailored for specific applications and advantages. Let’s delve into some of the prominent mechanical press types.
4.1. OBI (Open Back Inclinable) Press
The OBI Press, recognizable by its distinctive open back and ability to be inclined, offers flexibility and versatility in operations. Ideal for smaller workspaces, its design allows for easy material feeding and part ejection, making it a favorite for high-speed stamping tasks.
- Compact design suitable for space-constrained environments.
- Optimized for rapid operations and high production runs.
- Easy access for tooling adjustments and maintenance.

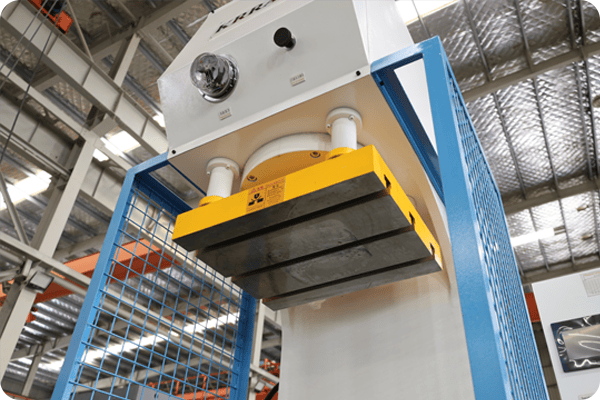

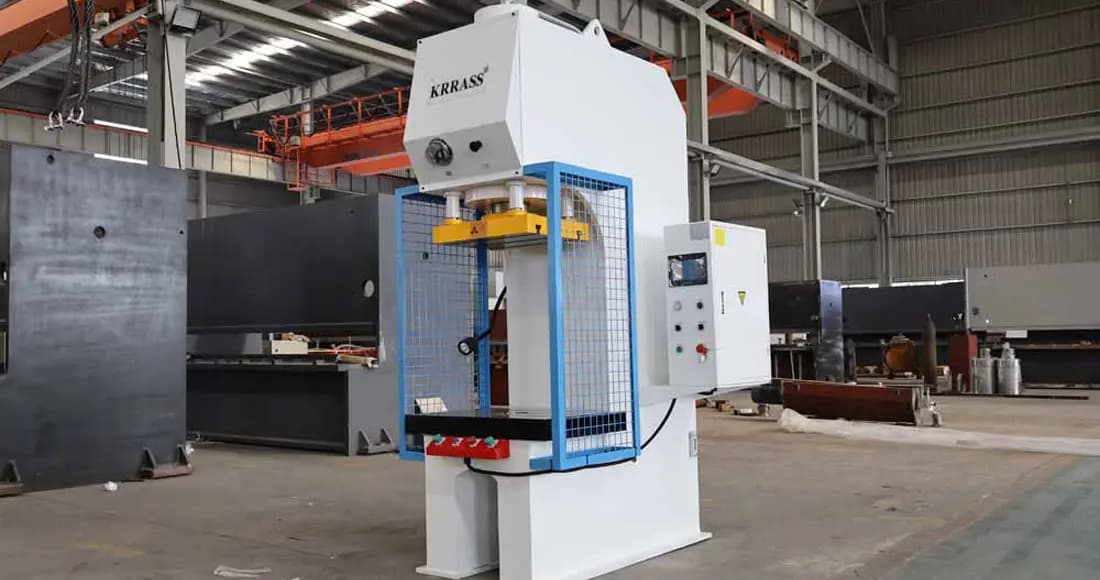

4.2. Gap Frame Presses
Also known as C-frame presses due to their distinctive shape, Gap Frame Presses are popular for their adaptability. Their open sides allow for material to be fed from multiple directions, facilitating a range of operations from forming to coining.
- Provides excellent access to the work area.
- Suitable for deep draw operations due to its frame design.
- Ideal for both short and long production runs.

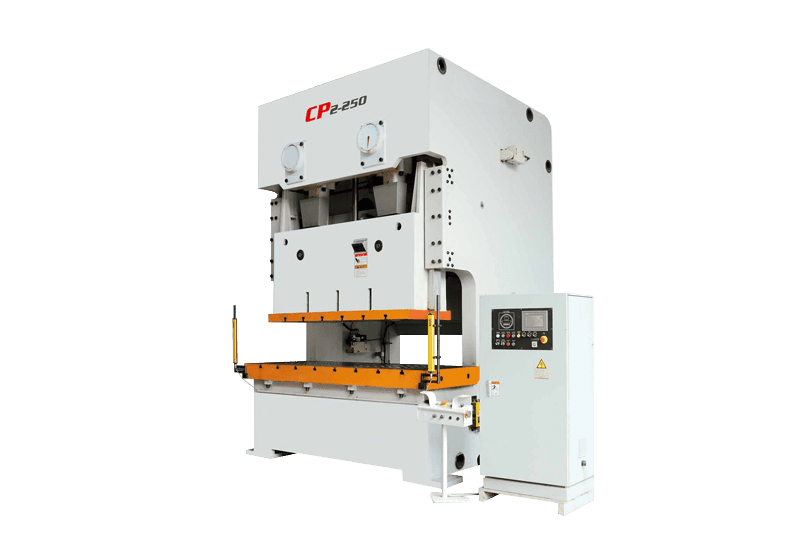

4.3. Straight Side Presses
Characterized by their vertical, parallel columns, Straight Side Presses are built for precision and power. Their rigid frame reduces deflection, making them ideal for tasks requiring high accuracy, such as progressive die applications.
- Offers superior alignment and precision.
- Minimized lateral deflection, ensuring consistent results.
- Optimal for heavy-duty applications and large workpieces.

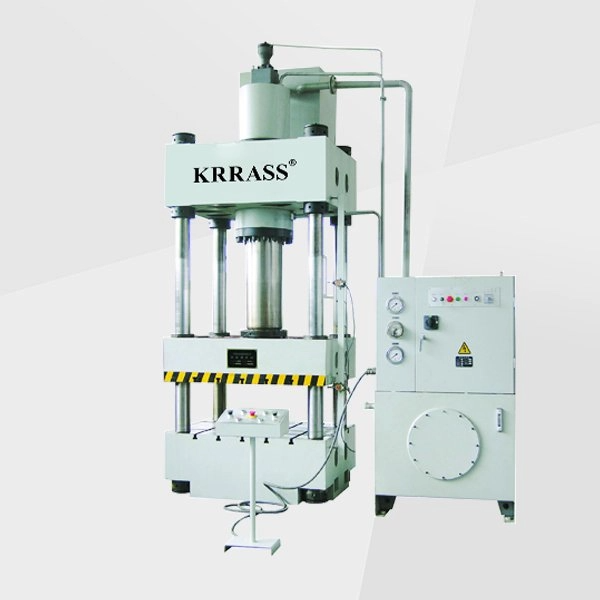

Hydraulic press machines, distinct in their function, use the principles of hydraulics to generate a compressive force. Employing fluid to achieve mechanical advantage, these machines provide uniform pressure across the workpiece and have become indispensable in various industrial operations. But what advantages do they offer over their mechanical counterparts, and where are they most commonly applied?
5.1. Advantages Over Mechanical Presses
While both mechanical and hydraulic presses have their unique strengths, several advantages make hydraulic presses stand out:
- Uniform Pressure Distribution: Unlike mechanical presses, hydraulic machines can distribute force evenly across the workpiece. This ensures consistent and high-quality results.
- Versatility: Hydraulic presses can be adjusted to deliver varying levels of force, accommodating a wide range of materials and thicknesses.
- Safety: These machines typically have built-in overload protection, minimizing potential damage to the press and workpiece during malfunctions.
- Compact Design: With fewer moving parts, hydraulic presses often require less space than equivalent mechanical presses.
- Low Maintenance: Given their design, hydraulic presses tend to have longer intervals between maintenance checks and are less wear-prone.
5.2. Common Applications
Thanks to their inherent qualities, hydraulic presses find use in a multitude of industrial applications:
- Metal Forming: From bending to blanking, these presses provide the force necessary to shape metals without warping or distortion.
- Molding: In industries like plastics and rubber manufacturing, hydraulic presses offer the precision needed to produce consistent molds.
- Laminating: Their ability to apply uniform pressure makes them ideal for laminating processes, ensuring evenly bonded layers.
- Compression: Used widely in the production of car parts, electronic components, and more, these presses compress materials into desired shapes and densities.
- Forging: Hydraulic presses play a pivotal role in forging metals, especially for intricate designs and patterns.

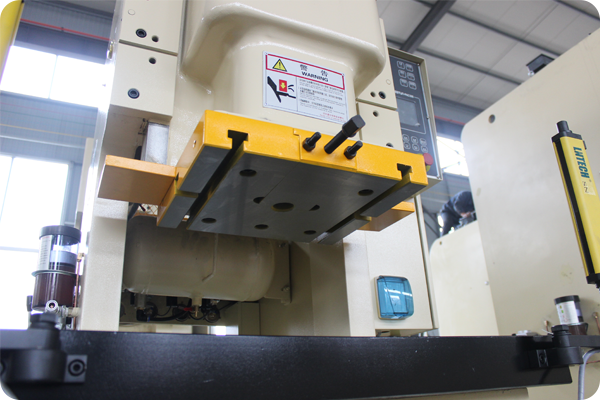

Pneumatic press machines operate by harnessing the power of compressed air. Lighter, faster, and often more energy-efficient than their hydraulic counterparts, these machines have carved a niche in several specific industrial applications. But what are the unique features and benefits they bring to the table, and where do they truly shine?
6.1. Distinct Features and Benefits
Pneumatic press machines come with a suite of features that make them stand out:
- Rapid Cycle Times: Thanks to the efficiency of compressed air, pneumatic presses can achieve faster cycle times compared to many other press types.
- Energy Efficiency: Operating without the need for power-hungry motors or pumps, these machines often consume less energy, leading to reduced operational costs.
- Clean Operation: Given that they use air, pneumatic presses operate cleanly, making them ideal for industries where contamination is a concern.
- Simplicity and Reliability: With fewer components and the absence of hydraulic fluids, maintenance becomes straightforward, and the risk of leaks or spills is virtually eliminated.
- Adjustable Force: The force exerted can be easily adjusted by varying the air pressure, providing a range of operation flexibility.
6.2. Ideal Use Cases
Given their distinct advantages, pneumatic press machines are well-suited for certain applications:
- Assembly Operations: Their rapid cycle times and adjustable force make them ideal for tasks like inserting, crimping, and joining components.
- Cleanroom Environments: In industries such as semiconductors and pharmaceuticals, where cleanliness is paramount, the contamination-free operation of pneumatic presses is a boon.
- Sheet Metal Work: For operations like piercing, bending, or notching, these presses provide the speed and adaptability needed.
- Stamping: Light stamping tasks, where rapid operations are crucial, benefit from pneumatic press capabilities.
In the manufacturing cosmos, speed often translates to productivity and efficiency. High-speed press machines are the epitome of this principle, built to accommodate the ever-growing demand for faster production rates without compromising on quality. Let’s navigate their high-paced world and understand what makes them so invaluable.
7.1. The Need for Speed in Manufacturing
Speed is more than just a luxury in modern manufacturing; it’s a necessity. Here’s why:
- Higher Production Rates: As industries expand, the demand for products surges. High-speed presses enable faster turnover, meeting market demands in real-time.
- Competitive Edge: In a market where timely delivery can set a brand apart, having machinery that boosts production speed can be a distinct advantage.
- Cost Efficiency: Faster production often translates to lower per-unit production costs, maximizing profitability.
- Adaptable Manufacturing: High-speed machines can swiftly shift between tasks, accommodating varying production needs and short runs.
7.2. Popular Brands and Models
While several brands have ventured into high-speed press production, some have etched their mark more profoundly:
- AIDA: Renowned for their NC1 Series, these presses are a favorite for precision stamping tasks.
- Komatsu: Their H2W series stands out for its efficiency and reliability in high-speed operations.
- Seyi: The SN1 series, known for its speed and adaptability, is popular among manufacturers across various industries.
- Schuler: The MC 125 series is favored for its precision and capacity to handle diverse tasks at remarkable speeds.
7.3. Limitations and Considerations
While high-speed press machines offer a plethora of benefits, they come with their set of limitations and considerations:
- Wear and Tear: Running machines at high speeds can result in accelerated wear, demanding frequent maintenance checks.
- Energy Consumption: They often require significant energy, leading to heightened operational costs if not managed properly.
- Training: Handling these machines requires skilled operators, emphasizing the need for proper training.
- Cost: High-speed press machines, given their features, can be a significant investment. Thus, a thorough cost-benefit analysis is crucial before procurement.
Forging press machines play a pivotal role in the manufacturing landscape, transforming metal into desired shapes with utmost precision and strength. The world of forging is vast, with techniques and materials tailored to meet specific industry requirements. Let’s embark on a journey to discover more about these remarkable machines and the art they perform.
8.1. The Art of Forging
Forging is more than just a manufacturing process; it’s an art form that has been perfected over centuries. By applying compressive force, forging press machines manipulate metal to achieve the desired shape, grain structure, and enhanced strength. This process not only grants manufacturers the freedom to design intricate shapes but also ensures the resulting products are of impeccable quality and durability.
8.2. Hot vs. Cold Forging Presses
When it comes to forging, the temperature at which metal is manipulated plays a crucial role. Let’s delve into the distinction between hot and cold forging:
- Hot Forging: Conducted at temperatures above the metal’s recrystallization point, hot forging allows for easier deformation and greater flexibility in shaping. It’s ideal for complex shapes and larger components. However, it may lead to surface oxidation, which requires post-process finishing.
- Cold Forging: Performed at room temperature, cold forging results in a smoother surface finish and enhanced strength due to strain hardening. Best suited for smaller parts, it offers tighter tolerances but requires more substantial force than hot forging.
8.3. Specialty Alloys and Their Applications
With the diversity of applications, forging press machines often work with specialty alloys tailored to meet specific needs:
- Titanium Alloys: Renowned for their high strength-to-weight ratio, these alloys are ideal for aerospace components where weight and strength are critical factors.
- Nickel-based Super Alloys: Perfect for high-temperature applications, these alloys resist oxidation and maintain their structural integrity in extreme conditions, making them a favorite in the jet engine and power generation industries.
- Stainless Steels: With excellent corrosion resistance, these alloys are used in a myriad of applications, from kitchenware to medical instruments and beyond.
- Copper Alloys: Offering superb electrical and thermal conductivity, these alloys are essential for electrical components and heat exchangers.

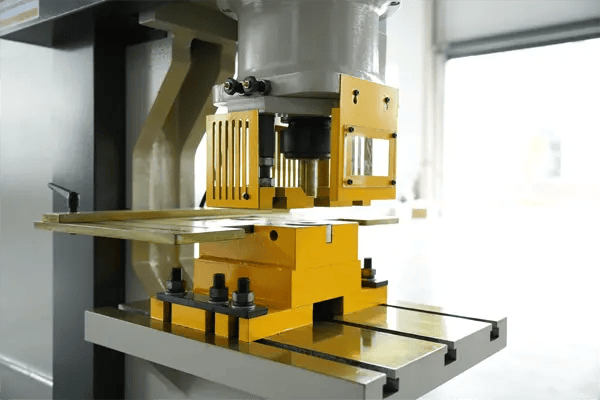

Punch Press Machines, iconic and indispensable, have been synonymous with metalworking for generations. These powerful tools have transformed industries, enabling precise and efficient production of a plethora of items we use daily. But what exactly is a Punch Press Machine, and why is it so paramount?
Introduction to Punch Press Machines
At its core, a Punch Press Machine is a device that uses a combination of a punch and a die to form shapes in a workpiece, typically sheet metal. Think of it like a robust paper hole puncher, but on a grander scale and for metal. Its mechanism employs significant force, and thanks to advancements in technology, modern punch presses deliver this force with unparalleled precision and repeatability.
The heart of any Punch Press Machine lies in its main components:
- Punch: This is the tool that presses or forces its way into the material to create a specific shape or design.
- Die: Working in tandem with the punch, the die provides the shape that the material will be forced into. It’s like a mold that the material adopts when the punch applies pressure.
- Bed/Table: This is where the workpiece is placed. Modern tables often have systems in place for precise positioning of the workpiece.
- Clamp: Holds the workpiece securely during the punching process to ensure accurate results.
Applications & Importance
Punch Press Machines find utility in a diverse range of industries. From manufacturing parts for vehicles and aircraft to producing items like kitchen sinks and metal cabinets, the possibilities are endless. Their precision ensures that products meet strict standards, while the efficiency they bring aids in mass production scenarios, making them a darling of industries that prioritize both quality and quantity.
With the evolution of metalworking, the need for intricate designs and precise manufacturing led to the advent of the Stamping Press Machine. These machines, driven by power and precision, have redefined the boundaries of metal shaping. But, what is a Stamping Press Machine, and what makes it unique?
Introduction to Stamping Press Machines
A Stamping Press Machine, as the name suggests, is a device employed to stamp or shape metal sheets by applying high-pressure force. Unlike a simple punch, these machines can carry out multiple tasks like punching, blanking, bending, and embossing, all in one go. Imagine a sculptor, meticulously crafting his art, but here, it’s the machine sculpting the metal with absolute perfection.
Like every masterpiece, the excellence of the Stamping Press Machine is in its components:
- Slide/Ram: The moving part that carries the stamping tool and delivers the force.
- Die Set: Comprises of the punch and die. This pair is responsible for the desired shaping.
- Bolster Plate: The workstation. It holds the die set in place and is often equipped with mechanisms for quick die changes.
- Clutch: Activates the slide or ram, initiating the stamping process.
Applications & Significance
Stamping Press Machines are pivotal in numerous industries, especially in sectors that require detailed metal components. From the automobile industry, producing parts like chassis and body panels, to electronics, crafting delicate connectors and switches, their contribution is paramount. Their capacity to produce high volumes with consistent quality makes them indispensable in modern manufacturing.
The decision to invest in a Press Machine is a significant one, impacting both immediate operational capacity and long-term growth prospects. As with any machinery, it’s crucial to align its capabilities with the specific needs of the operation. So, what are the primary factors to consider?
Every material, be it steel, aluminum, brass, or any other metal alloy, has unique properties that dictate how it should be processed.
- Material Thickness: Different press machines can handle varying thicknesses. It’s essential to choose a machine that aligns with your most common material specifications.
- Type of Metal: Some metals are more malleable than others, affecting the type of press machine required. For instance, a machine perfect for aluminum might not be ideal for stainless steel.
Production Volume and Speed
Your production targets play a pivotal role in the type of press machine you should consider.
- Batch vs. Continuous Production: For high-volume, continuous production, consider machines that can operate at high speeds without compromising on quality. Conversely, for lower volume or batch production, a versatile machine that can handle various tasks might be more appropriate.
- Automation Needs: If speed is a priority, then automation features, like robotic arms or feeders, can significantly ramp up production rates.
Budget and Maintenance Costs
Finally, the financial aspect cannot be ignored. Beyond the initial investment, there are ongoing costs to factor in.
- Initial Cost: While high-end machines might offer more features, it’s essential to evaluate if you genuinely need all of them. Sometimes, a more affordable machine can meet your needs just as effectively.
- Maintenance and Repairs: Some machines, especially those with advanced features, might have higher maintenance costs. It’s crucial to factor in these ongoing expenses when calculating the machine’s total cost of ownership.
In conclusion, the right press machine can be a game-changer for any business, but it’s imperative to choose wisely. By considering the material requirements, production goals, and budgetary constraints, businesses can invest in machinery that truly drives growth.
In the ever-evolving world of manufacturing, choosing the right press machine is paramount for any operation’s success. With a myriad of options available, the key lies in understanding the specific needs of your business and aligning them with the best machinery. And when it comes to top-notch press machines and sheet metal equipment, Krrass stands out as a leading manufacturer. Renowned for its exceptional quality, innovation, and expertise, Krrass has been the trusted choice of many. So, whether you’re starting your journey or scaling up, remember to invest in the best, and let Krrass lead the way! Read More:
