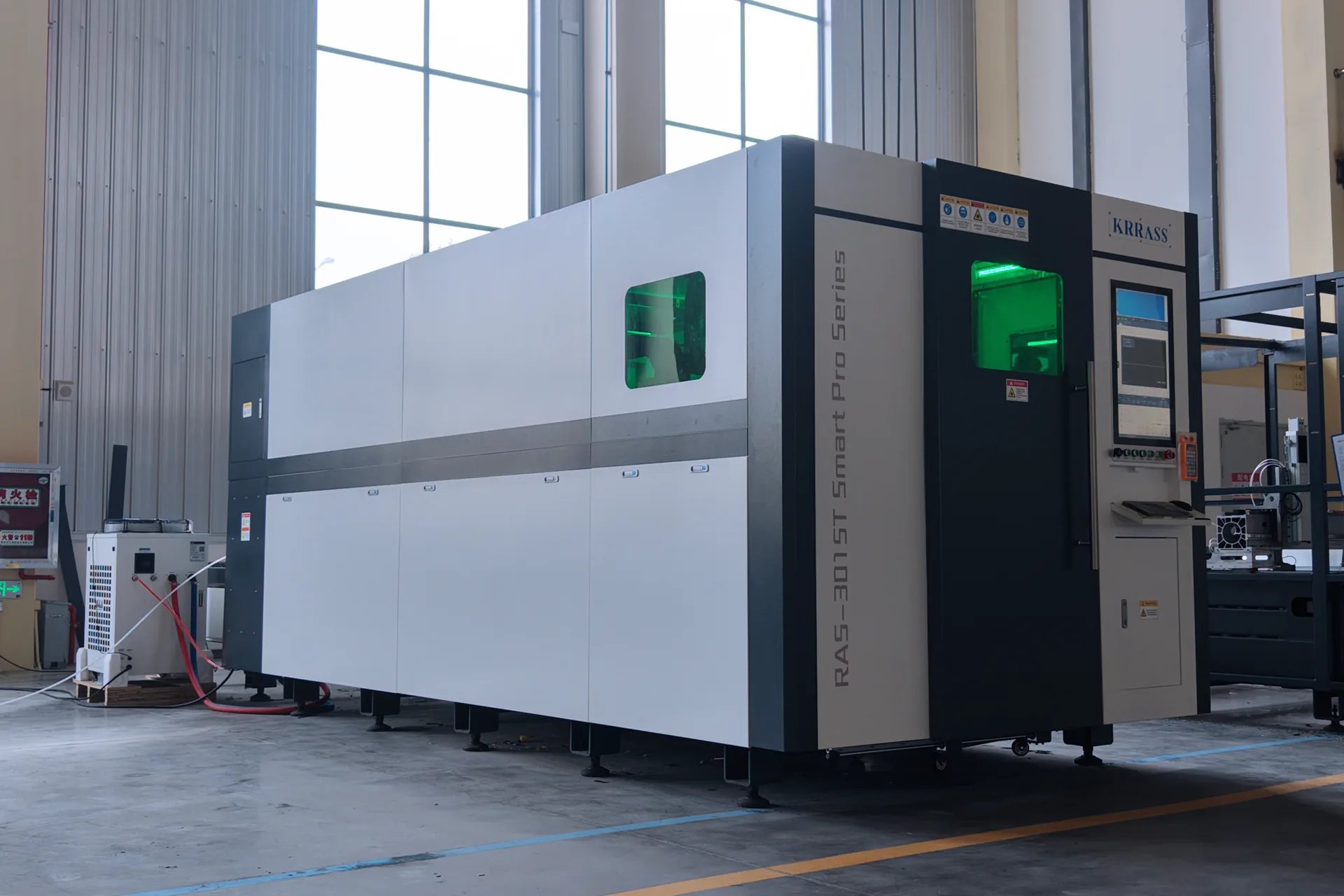

Fully Enclosed 6000W Laser Cutter with Exchange Table
Original price was: $35,000.00.$31,500.00Current price is: $31,500.00.
Model: RAS-3015T Smart Pro 6000W
Category: Fiber Laser Cutting Machine
Brand Name: KRRASS
Laser Source: Max China
Laser Head: BLT421S
Control system: FSCUT4000E
Working Area: 3000mm * 1500mm
HS Code: 8456110090
Application: Designed for safe, continuous high-volume production, this fully enclosed 6000W laser cutter with exchange table is ideal for heavy machinery, automotive, and sheet metal fabrication, effortlessly processing thick carbon steel, stainless steel, aluminum, and titanium.
Technologyies
| Laser Source: | Max China MFSC 6000W |
| Laser Head: | BLT421S |
| Control system: | FSCUT4000E |
| Working Area: | 3000mm * 1500mm |
| Operating Voltage: | 380V 50Hz, 220V 60Hz |
| Power: | 6000W |
| Length* Width* Height: | 9000mm * 2265mm * 2250mm |
Configurations
Main Feature
The RAS-3015T Smart Pro 6000W laser cutter with exchange table is engineered for non-stop metal fabrication. Its fully enclosed protective design ensures maximum operator safety, while the rapid dual-pallet system eliminates loading downtime. Effortlessly processing steel, aluminum, titanium, and various alloys, this heavy-duty 6kW powerhouse—part of our versatile 1.5kW-40kW series—maximizes your continuous production efficiency, backed by KRRASS’s world-class global support.
Upgraded Matrix Machine Bed with Level-up Rigidity
Engineered to support the heavy-duty demands of an automated dual-pallet system, the upgraded matrix-welded machine bed features an optimized cross-sectional design. This advanced structure maximizes overall rigidity and effectively absorbs high-speed cutting vibrations. By drastically minimizing thermal deformation and mechanical stress, it guarantees rock-solid stability and uncompromising long-term precision during continuous 6kW high-power operations.

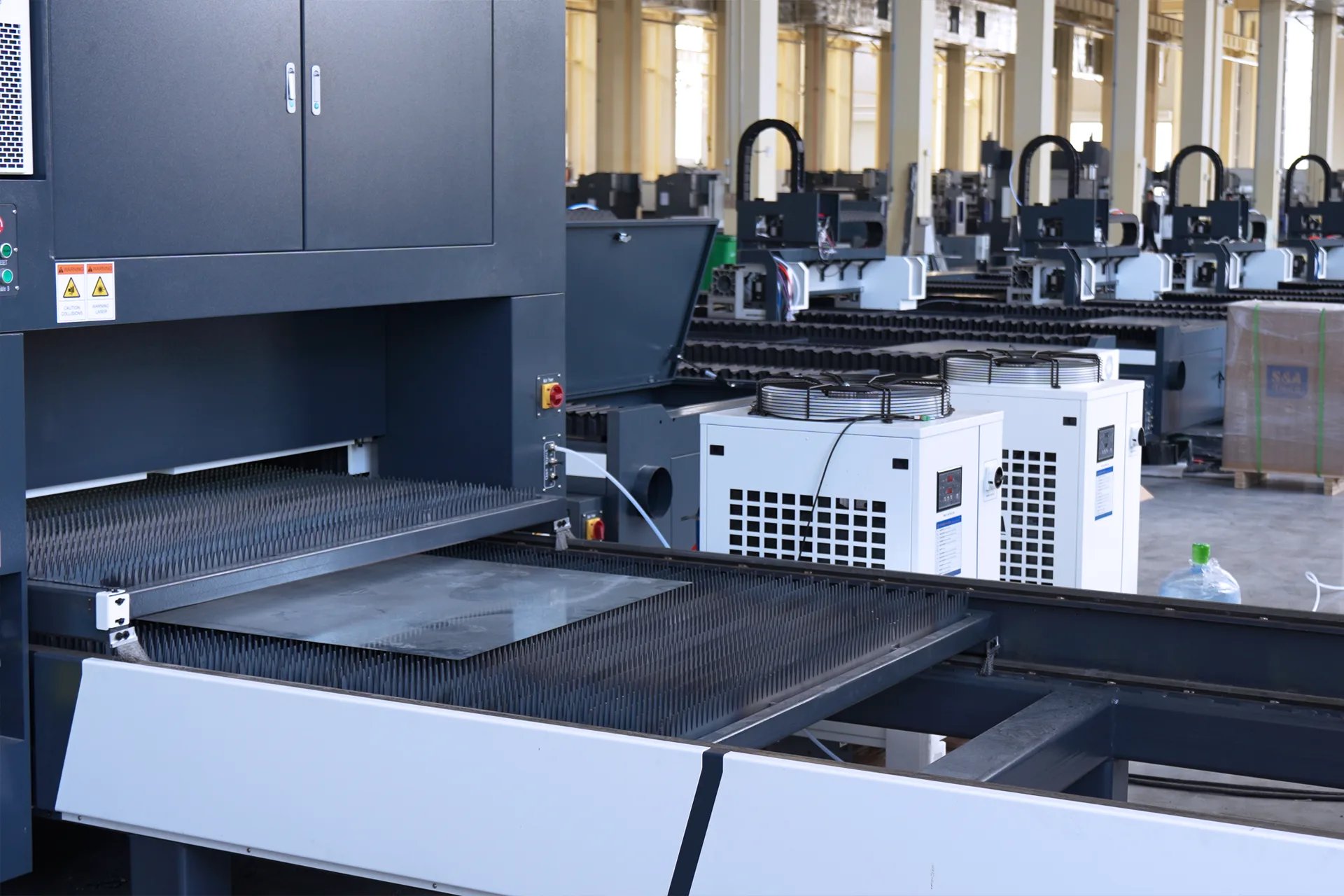

High-Speed Parallel Shuttle Table
Engineered for zero downtime, this automated shuttle table features a heavy-duty six-sided steel track and precision-inlaid pulleys for ultra-smooth operation. Secured by a powerful pneumatic tightening system, it achieves lightning-fast pallet exchanges in just 10 seconds. This rapid transition perfectly complements the 6kW enclosed system, eliminating loading delays and maximizing your continuous heavy-duty production.

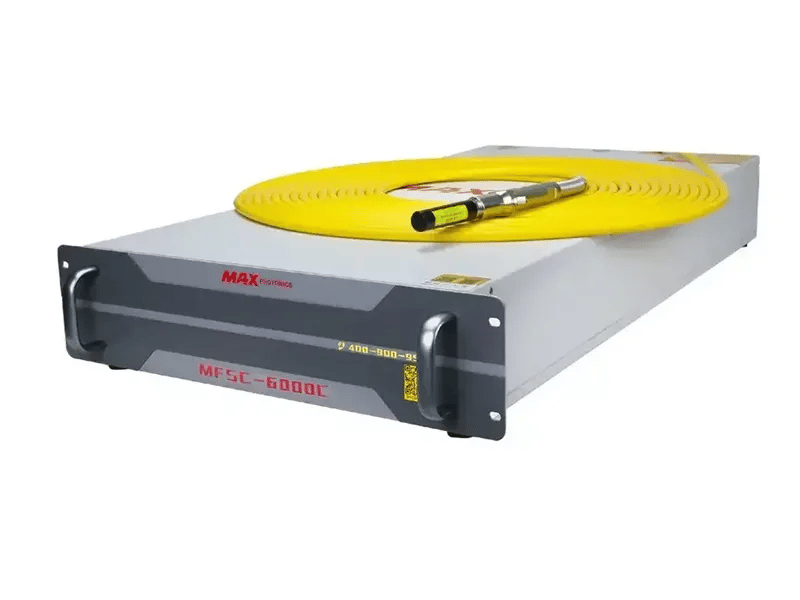

Max China MFSC 6000W Laser Source
Powering this heavy-duty system is the highly reliable MAX MFSC 6000W Single-Module Fiber Laser. Built on an advanced modular design, this compact, water-cooled unit delivers exceptional beam quality and rock-solid stability. Featuring continuously adjustable power and standard QBH fiber transmission, it guarantees flawless, high-speed cutting. Perfectly integrated with the machine's CNC system, it ensures continuous, peak performance for demanding metal fabrication in the automotive, aerospace, and heavy equipment sectors.

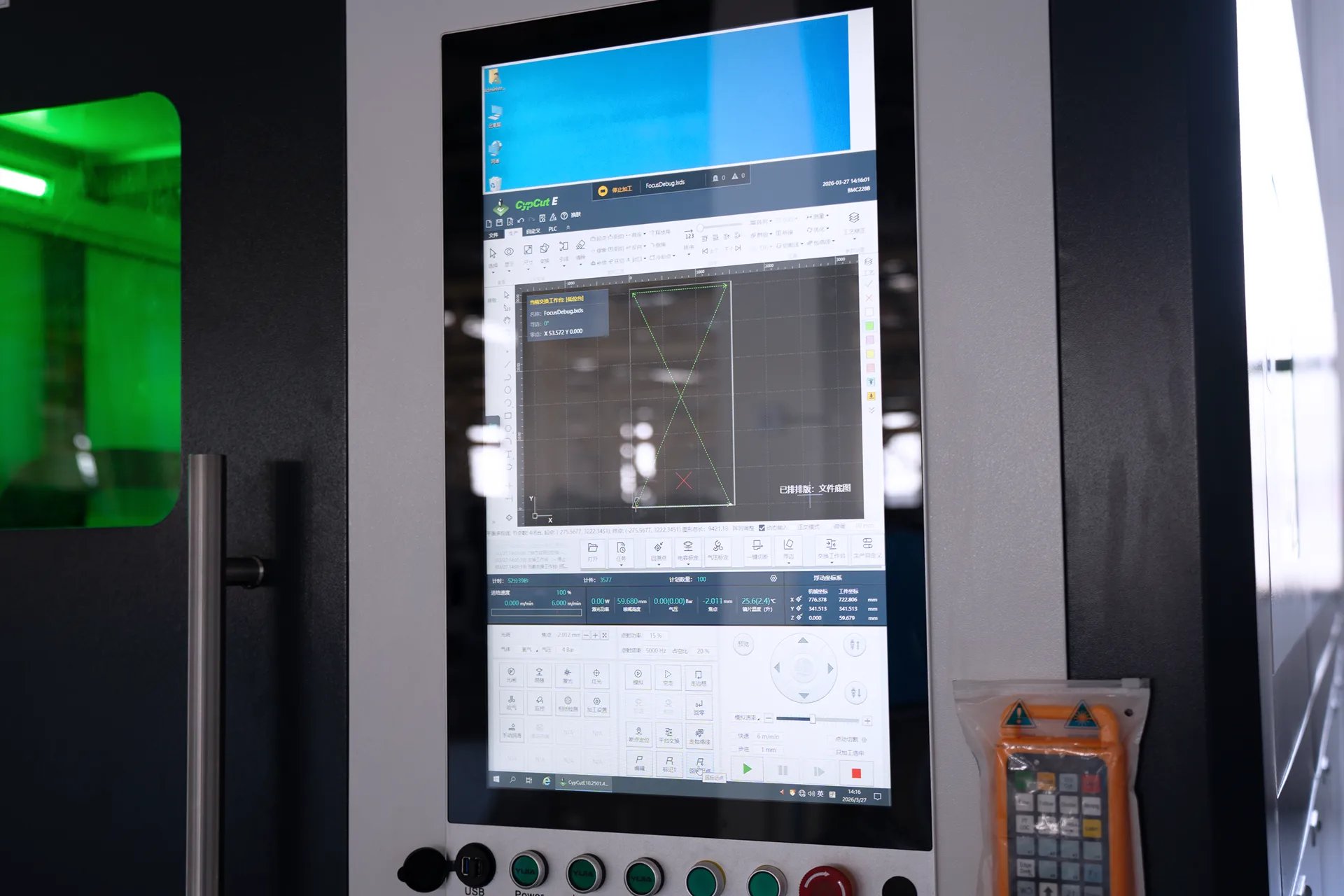

Bus Control System FSCUT4000E
At the core of this machine is the advanced FSCUT4000E EtherCAT bus control system, ensuring lightning-fast data transmission and exceptional operational stability. Perfectly tailored to seamlessly manage rapid dual-pallet exchanges, its highly intuitive, feature-rich interface simplifies complex tasks. This empowers even entry-level operators to effortlessly achieve flawless, high-precision cuts with minimal training.

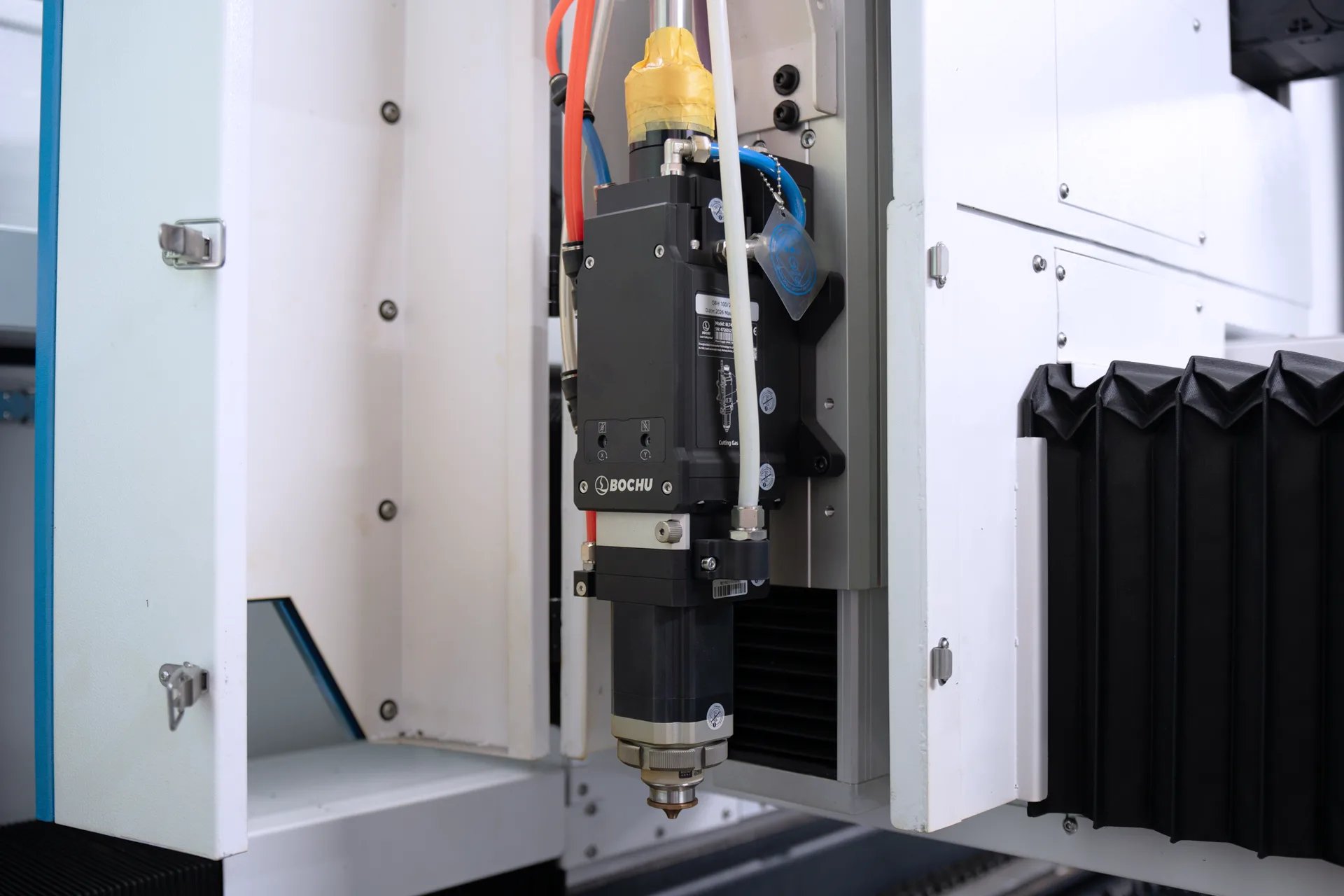

BOCHU BLT421S Smart Cutting Heads
Engineered for high-power stability, the BOCHU BLT421S smart cutting head combines rapid auto-focusing with precise capacitive height following. To ensure uninterrupted production, it features real-time monitoring of gas pressure and lens temperature to actively prevent window damage. Furthermore, integrated mechanical collision protection and an anti-corrosion water-cooling system guarantee exceptional durability and consistent precision during heavy-duty operations.
EtherCAT Controller FSCUT4000E
Perfectly tailored for high-power applications up to 8kW, the FSCUT4000E EtherCAT controller seamlessly synchronizes the machine's rapid motion, laser output, and automated pallet exchanges. This high-efficiency system is an industry favorite for high-volume metal fabrication and heavy equipment manufacturing. Paired with the robust BCL4568E terminal board, it ensures rock-solid signal processing and flawless execution during continuous, complex cutting operations.

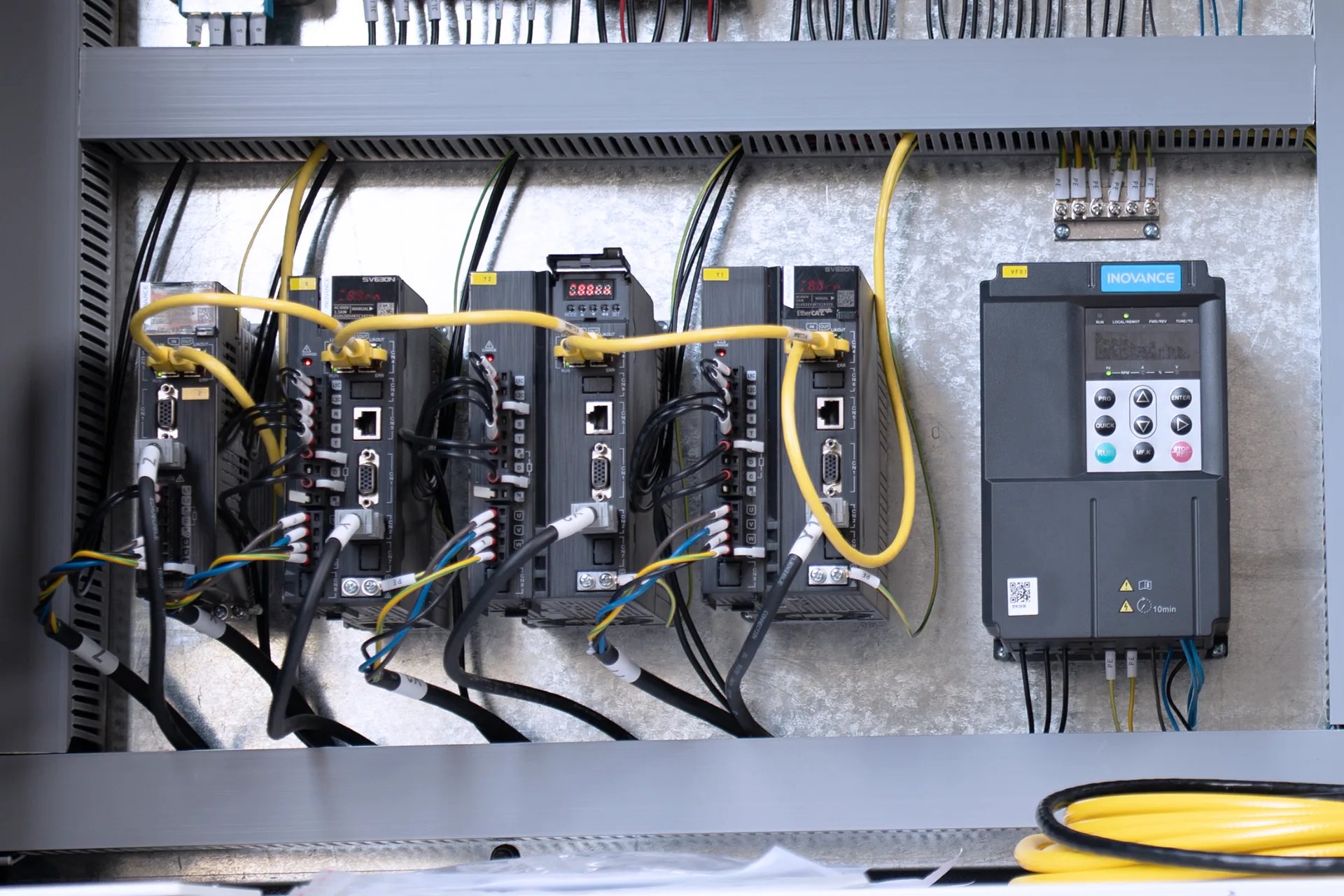

High Speed Servo Motor And Drive
Powered by premium INOVANCE high-speed servo motors, this robust motion system delivers the rapid acceleration essential for 6kW continuous production. These high-dynamic drives offer exceptional responsiveness and unmatched stability under heavy-duty loads. Featuring advanced closed-loop feedback for real-time positioning, they guarantee pinpoint accuracy and minimal mechanical downtime, effortlessly driving complex, high-speed metal fabrication tasks around the clock.

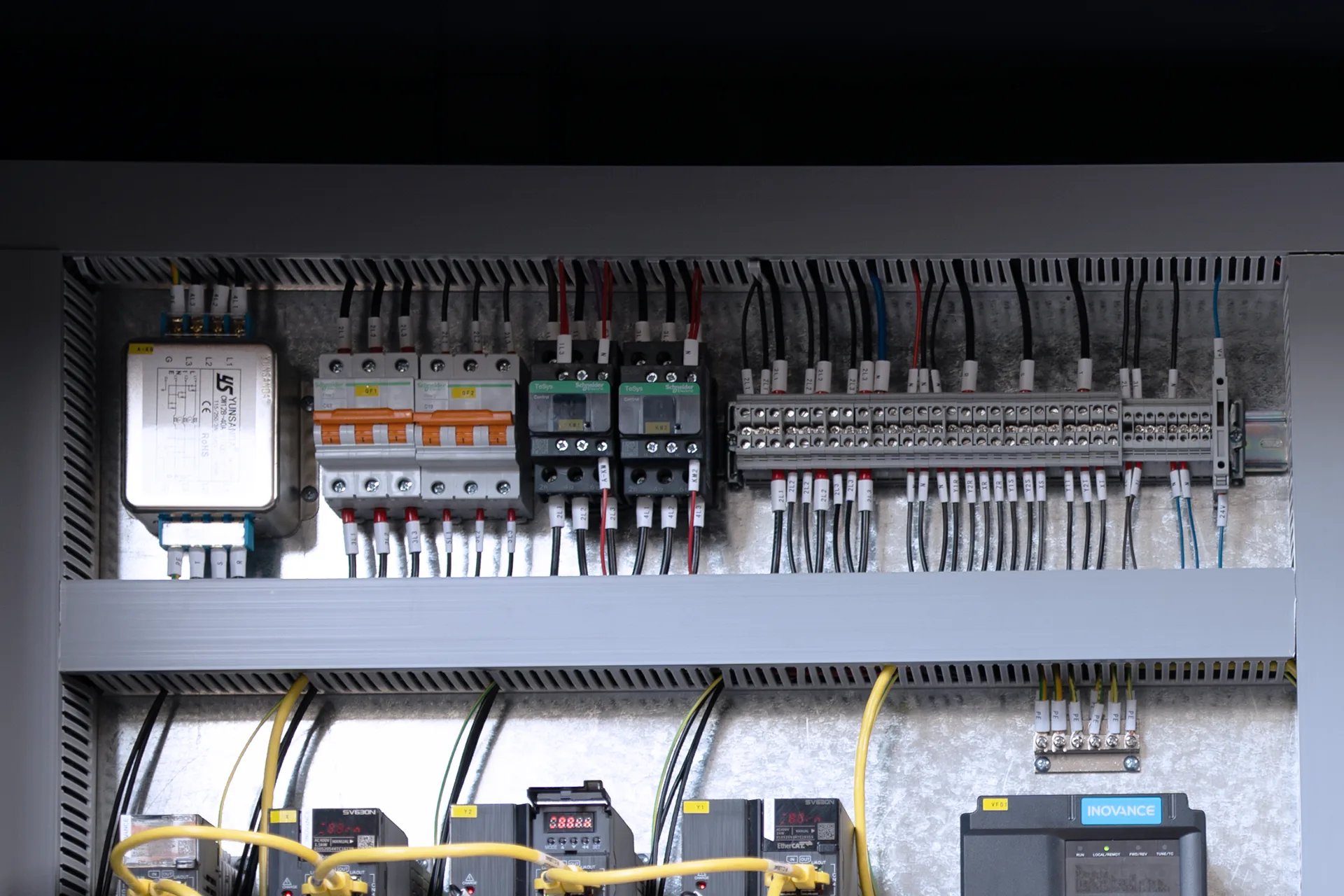

Genuine Schneider Electrical System
Fully equipped with genuine Schneider components, the electrical cabinet guarantees maximum safety and uninterrupted 6kW operations. These premium parts deliver rock-solid stability, protecting core systems against power fluctuations. Furthermore, utilizing this globally recognized brand allows for effortless, local sourcing of replacement parts worldwide, drastically minimizing maintenance downtime and keeping your heavy-duty production firmly on track.

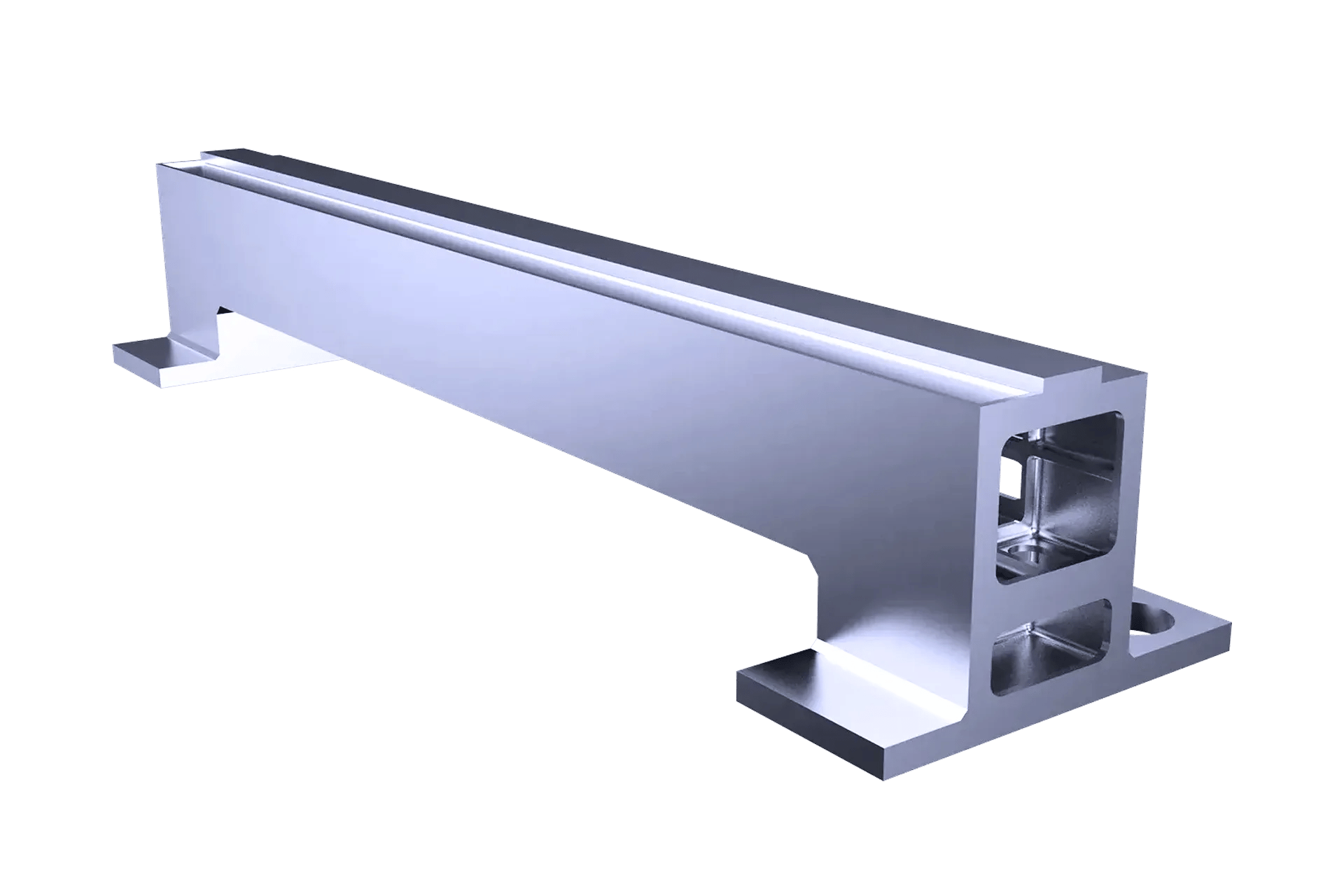

Fifth-Generation 6-Series Aluminum Beam
Engineered from premium 6-series aluminum, this fifth-generation transverse beam is 20% lighter yet provides 15% greater torsional resistance than previous models. This highly optimized, lightweight structure significantly enhances the machine's dynamic performance, enabling rapid acceleration and maximum processing efficiency during continuous heavy-duty operations.

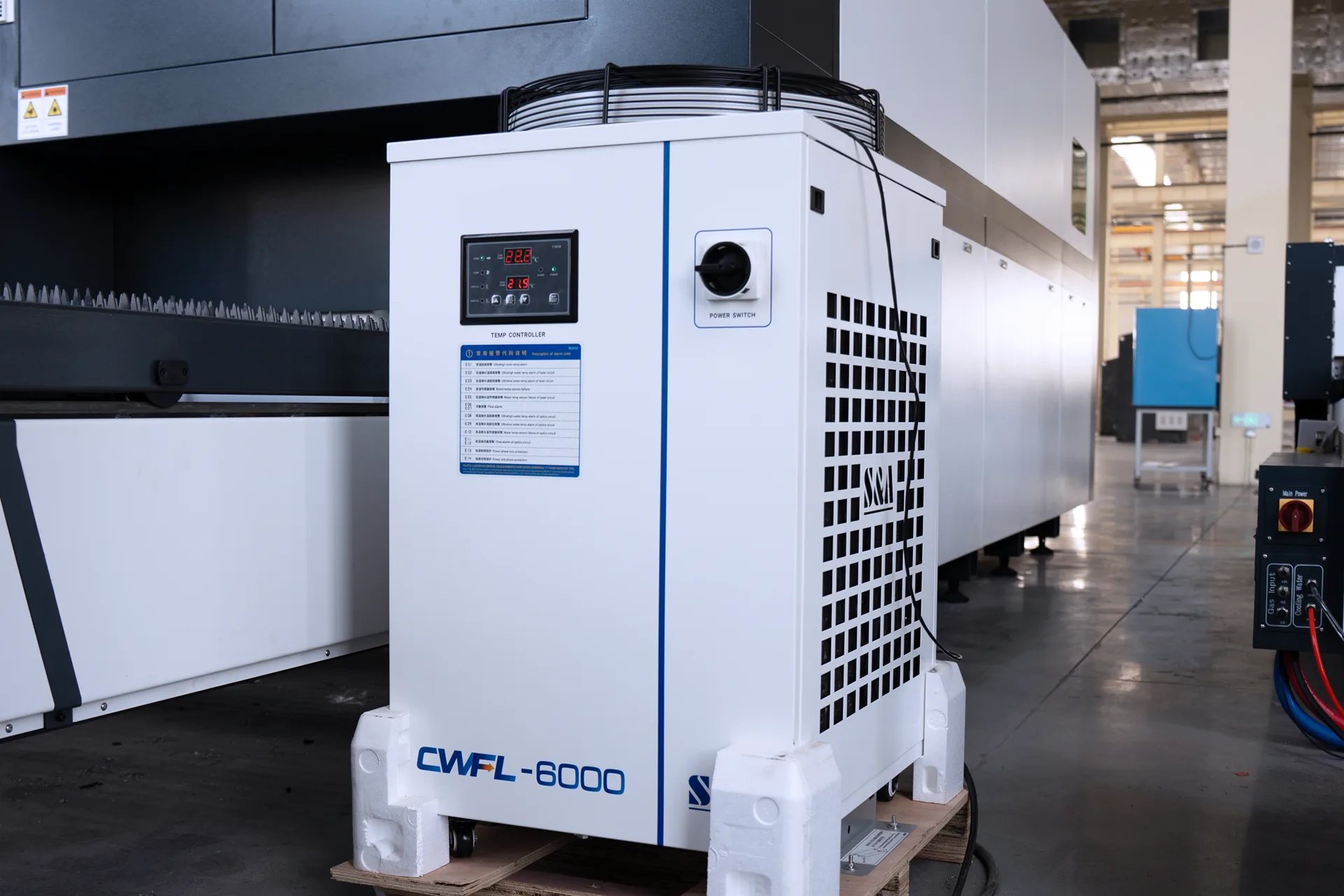

Advanced Industrial Water Cooling System
To maintain peak efficiency, our dual-circuit water cooling system precisely regulates the temperature of both the laser source and cutting optics. Actively preventing heat buildup during high-intensity operations ensures stable laser output and protects sensitive components from thermal stress. This consistent thermal management is vital for flawless cutting quality and extending the machine's longevity. Equipped with intelligent temperature control and automatic alarms, it provides a reliable cooling solution for continuous, 24/7 industrial production without the risk of overheating.
Air Conditioning for Electrical Cabinets
In order to ensure the stability of the temperature and humidity of the efficient laser cutting machine light source, we have equipped its electrical cabinet with a dedicated air conditioner to ensure that the laser light source can work for a long time in a constant temperature and humidity environment.

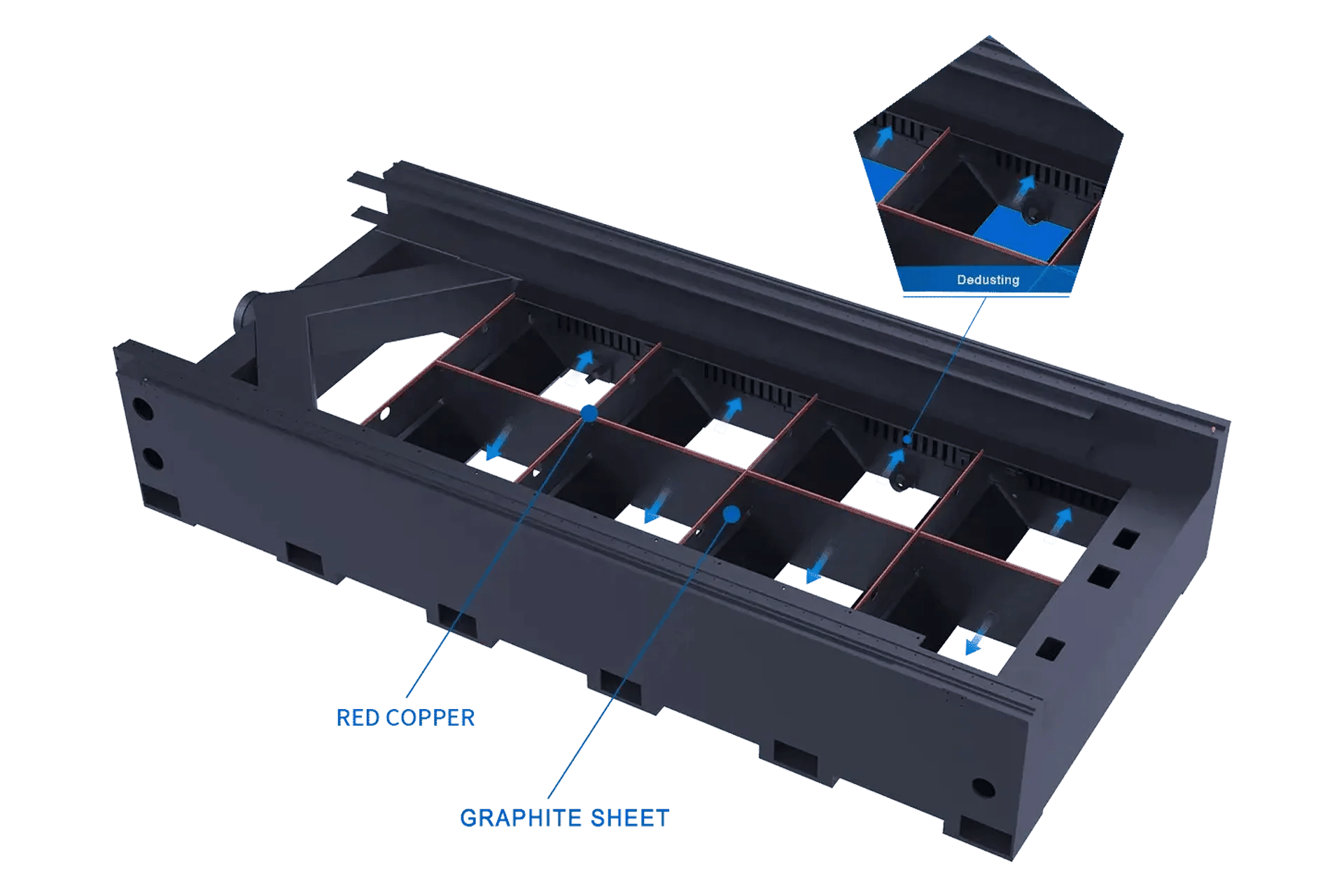

Intelligent Spiral Vacuum Dust Removal [Optional]
Perfectly complementing the machine's fully enclosed design, this optional time-sharing vacuum system features automatic sectional air exhaust. By synchronizing with the cutting zone, it efficiently extracts smoke and fumes through the bottom sealing structure, ensuring a clean, eco-friendly workshop and maximum operator safety. (Note: Additional graphite and copper bed protection is available for upgrades to 8kW and above).
6000W Laser Cutter with Exchange Table Material Thickness
| Thickness（mm） | Speed（m/min） | Focus position | Cutting height（mm） | Gas | Nozzle type | Pressure（bar） | |
|---|---|---|---|---|---|---|---|
| Carbon steel (Q235B) | 1 | 25-32 | 0 | 1 | N2 | Single: 1.5 | 12 |
| 2 | 20-27 | -1 | 1 | Single: 2.0 | 12 | ||
| 3 | 12-15 | -1.5 | 0.5 | Single: 2.0 | 14 | ||
| 4 | 7-8.5 | -2 | 0.5 | Single: 2.0 | 14 | ||
| 5 | 5.7-6.8 | -2.5 | 0.5 | Single: 3.0 | 16 | ||
| 3 | 3.6-4.2 | +5 | 0.8 | O2 | Double: 1.2 | 0.6 | |
| 4 | 3.3-3.8 | +5 | 0.8 | Double: 1.2 | 0.6 | ||
| 5 | 3-3.6 | +5 | 0.8 | Double: 1.2 | 0.6 | ||
| 6 | 2.7-3.2 | +5 | 0.8 | Double: 1.2 | 0.6 | ||
| 8 | 2.2-2.5 | +6 | 0.8 | Double: 1.2 | 0.6 | ||
| 10 | 2.0-2.3 | +7.5 | 0.8 | Double: 1.2 | 0.6 | ||
| 12 | 1.9-2.1 | +7.5 | 0.8 | Double: 1.2 | 0.6 | ||
| 14 | 1.4-1.7 | +9 | 1 | Double: 1.4 | 0.6 | ||
| 16 | 1.2-1.4 | +9 | 1 | Double: 1.4 | 0.6 | ||
| 18 | 0.7-0.8 | +12 | 0.3 | Single: 1.4 | 0.8 | ||
| 20 | 0.5-0.6 | +4 | 0.8 | Double: 5.0 | 0.6 | ||
| 20 | 0.6-0.7 | +13 | 0.3 | Single: 1.4 | 0.8 | ||
| 22 | 0.45-0.5 | +4 | 0.8 | Double: 5.0 | 0.6 | ||
| 22 | 0.5-0.6 | +13 | 0.3 | Single: 1.5 | 1 | ||
| 25 | 0.4-0.5 | +14 | 0.3 | Single: 1.5 | 1 | ||
| Stainless steel (SUS304) | 1 | 35-45 | 0 | 0.8 | N2 | Single: 1.5 | 10 |
| 2 | 23-32 | -1 | 0.5 | Single: 2.0 | 12 | ||
| 3 | 15-18 | -1.5 | 0.5 | Single: 2.5 | 12 | ||
| 4 | 9-13 | -2 | 0.5 | Single: 2.5 | 14 | ||
| 5 | 7-8.5 | -2.5 | 0.5 | Single: 3.0 | 14 | ||
| 6 | 4-5.5 | -3 | 0.5 | Single: 3.0 | 15 | ||
| 8 | 3-3.8 | -4 | 0.5 | Single: 3.0 | 15 | ||
| 10 | 1.8-2.1 | -6 | 0.5 | Single: 4.0 | 15 | ||
| 12 | 1-1.3 | -7.5 | 0.5 | Single: 5.0 | 16 | ||
| 14 | 0.85-1.1 | -9 | 0.5 | Single: 5.0 | 16 | ||
| 16 | 0.6 | -10.5 | 0.3 | Single: 5.0 | 18 | ||
| 18 | 0.5 | -12 | 0.3 | Single: 5.0 | 20 | ||
| 20 | 0.3 | -14 | 0.3 | Single: 6.0 | 20 | ||
| Aluminum (6061) | 1 | 30-37 | 0 | 1 | N2 | Single: 1.5 | 12 |
| 2 | 22-27 | -1 | 0.5 | Single: 2.0 | 12 | ||
| 3 | 13-18 | -1.5 | 0.5 | Single: 2.5 | 14 | ||
| 4 | 9-11 | -2 | 0.5 | Single: 2.5 | 14 | ||
| 5 | 5-6.5 | -3 | 0.5 | Single: 3.0 | 14 | ||
| 6 | 3.6-4.2 | -3 | 0.5 | Single: 3.0 | 16 | ||
| 8 | 1.8-2.1 | -4 | 0.5 | Single: 3.0 | 16 | ||
| 10 | 1-1.3 | -4.5 | 0.5 | Single: 3.5 | 18 | ||
| 12 | 0.7-1 | -5 | 0.5 | Single: 4.0 | 18 | ||
| 14 | 0.5 | -5 | 0.3 | Single: 4.0 | 18 | ||
| 16 | 0.4 | -8 | 0.3 | Single: 6.0 | 20 | ||
| Brass | 1 | 25-32 | 0 | 1 | N2 | Single: 1.5 | 12 |
| 2 | 17-21 | -1 | 0.5 | Single: 2.0 | 12 | ||
| 3 | 12-15 | -1 | 0.5 | Single: 2.5 | 14 | ||
| 4 | 8-9.3 | -1.5 | 0.5 | Single: 3.0 | 14 | ||
| 5 | 4.5-5.5 | -2 | 0.5 | Single: 3.0 | 14 | ||
| 6 | 3.2-4 | -3.5 | 0.5 | Single: 3.0 | 16 | ||
| 8 | 1.5-2 | -5 | 0.5 | Single: 3.5 | 16 | ||
| 10 | 1 | -6 | 0.5 | Single: 3.5 | 16 | ||
| 12 | 0.7 | -8 | 0.3 | Single: 4.0 | 18 | ||
| Copper | 1 | 20-27 | -0.5 | 1 | O2 | 2.0S | 8 |
| 2 | 10-13 | -1 | 0.5 | 2.0S | 8 | ||
| 3 | 7-9 | -2 | 0.5 | 2.0S | 8 | ||
| 4 | 4-5.2 | -2 | 0.5 | 2.0S | 8 | ||
| 5 | 3 | -3 | 0.5 | 2.5S | 8 | ||
| 6 | 2 | -4 | 0.5 | 2.5S | 8 |
What is this Machine Used for?
Warranty
30-DAY MONEY BACK GUARANTEE
You should feel completely satisfied with your KRRASS Fiber Laser Cutting Machine purchase, and your peace of mind is a significant part of that process. We want you to feel the same confidence in your new KRRASS machine that we do, which is why every Press Brake purchase includes our Hassle-Free KRRASS 30-Day Return option in order to fully experience and evaluate their new KRRASS machine. It allows you to return or exchange your KRRASS purchase, for any reason, within 30 days of initial purchase. Refunds are simple and are issued once the original machine and all accompanying accessories have been returned. The refund or exchange will be issued minus the 15% restocking fee for items & accessories, 25% KRRASS Fiber Laser Cutting Machine Series customization fee, and shipping or handling costs are not included. Click here for details
2-YEAR LIMITED MACHINE WARRANTY
2 years Bumper to Bumper machine warranty for all machine mechanical and electrical components. (Except consumables parts) The Company represents and warrants that the KRRASS All Series of products will perform according to the warranty policy stated above from date of invoice. Products will be free from defects in materials and workmanship under normal use and service for the stated period. KRRASS has the responsibility to offer a timely solution and/or repair if deemed inoperable or defective by KRRASS Repair & Support Specialists. Clients are obligated to show proof of any such claims of machine parts or operational defects. Click here for details
