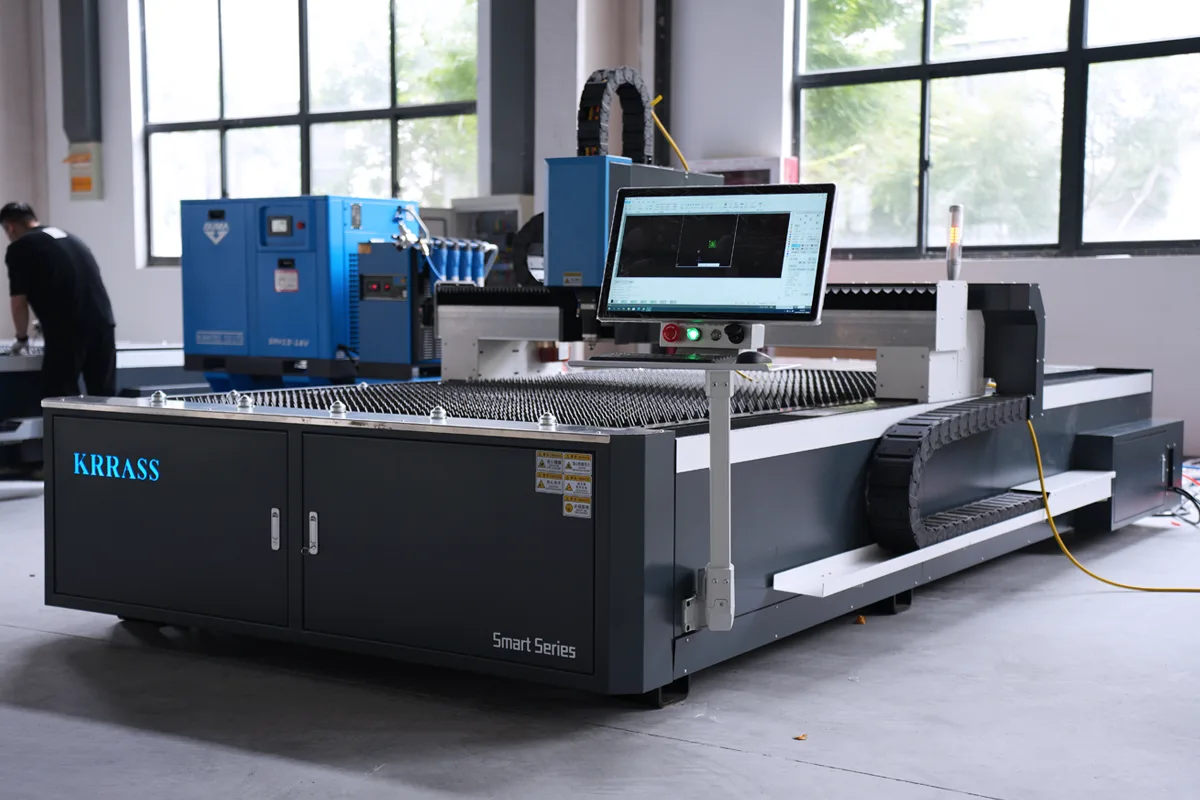

6KW Fiber Laser Cutting Machine, 6000W Sheet Metal Laser Cutting Machine Price
Original price was: $36,500.00.$32,800.00Current price is: $32,800.00.
Model: RAS-3015-Smart 6000W
Category: Fiber Laser Cutting Machine
Brand Name: KRRASS
Laser Source: Max China
Laser Head: BLT421
Control system: FSCUT4000E
Working Area: 3000mm * 1524mm
HS Code: 8456110090
Application: 6KW Fiber Laser Cutting Machine, 6000W Sheet Metal Laser Cutting Machine Price
Technologyies
| Laser Source: | Max China MFSC 6000W |
| Laser Head: | BLT421 |
| Control system: | FSCUT4000E |
| Working Area: | 3000mm * 1524mm |
| Operating Voltage: | 380V 50Hz |
| Power: | 6000W |
| Length* Width* Height: | 4500mm * 2265mm * 1900mm |
Configurations
Main Feature
KRRASS’s top-rated 6000W Sheet Metal Laser Cutting Machine is for metal fabrication, including steel designed, aluminum, titanium, alloy, brass, copper, and iron, with different laser powers (1500W, 2000W, 3000W, 4000W, 6000W, 12000W, 20KW, 30KW, 40KW). The affordable 6000W fiber laser cutting machine is for sale at a low price, with the best fiber laser-cutting system service and support.

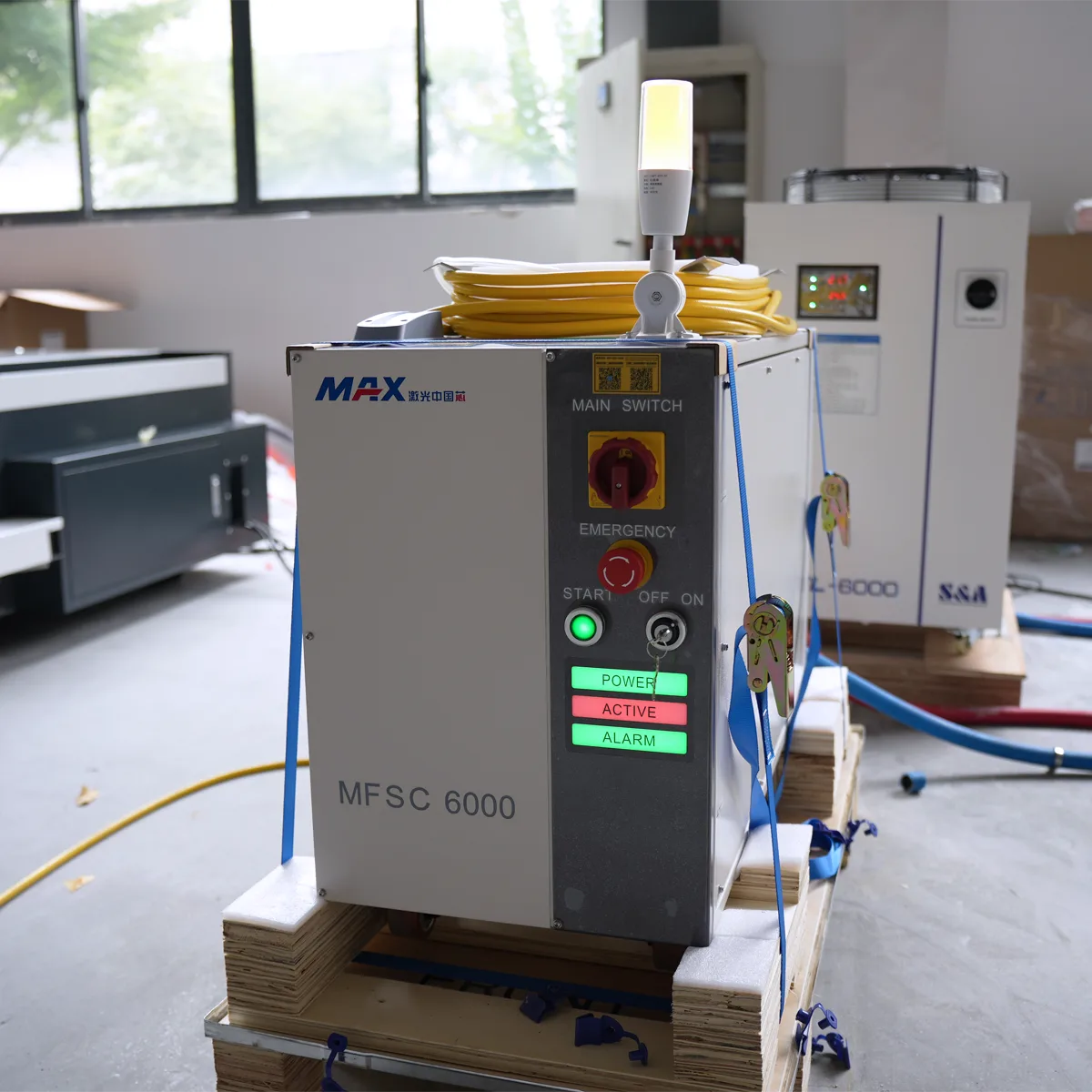

Max China MFSC 6000W Laser Source
6000W SINGLE MODULE CW FIBER LASER is a high-power fiber laser with high electro-optical conversion efficiency, compact size, good beam quality and maintenance-free. Wide fiber core diameter range from 100~600um, can be customized from 800um~1000um. Mainly used in metal welding and cladding and other fields such as new energy, 3C, precision machining.

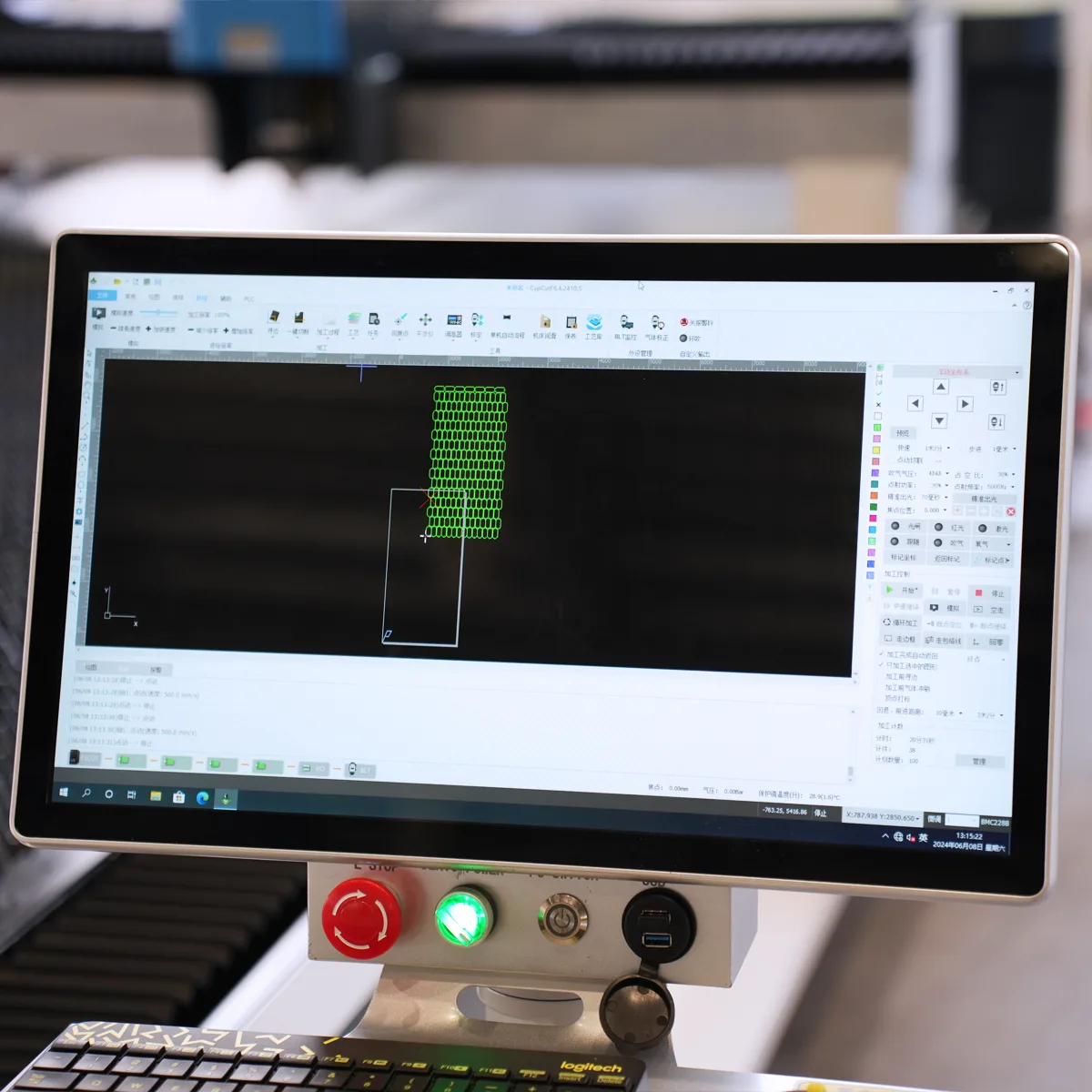

Bus Control System FSCUT4000E
It enables data transmission via EtherCAT bus and features fast speed and stability. This system is easy to be operated and rich in functions. Even green hands can cut high-quality samples.

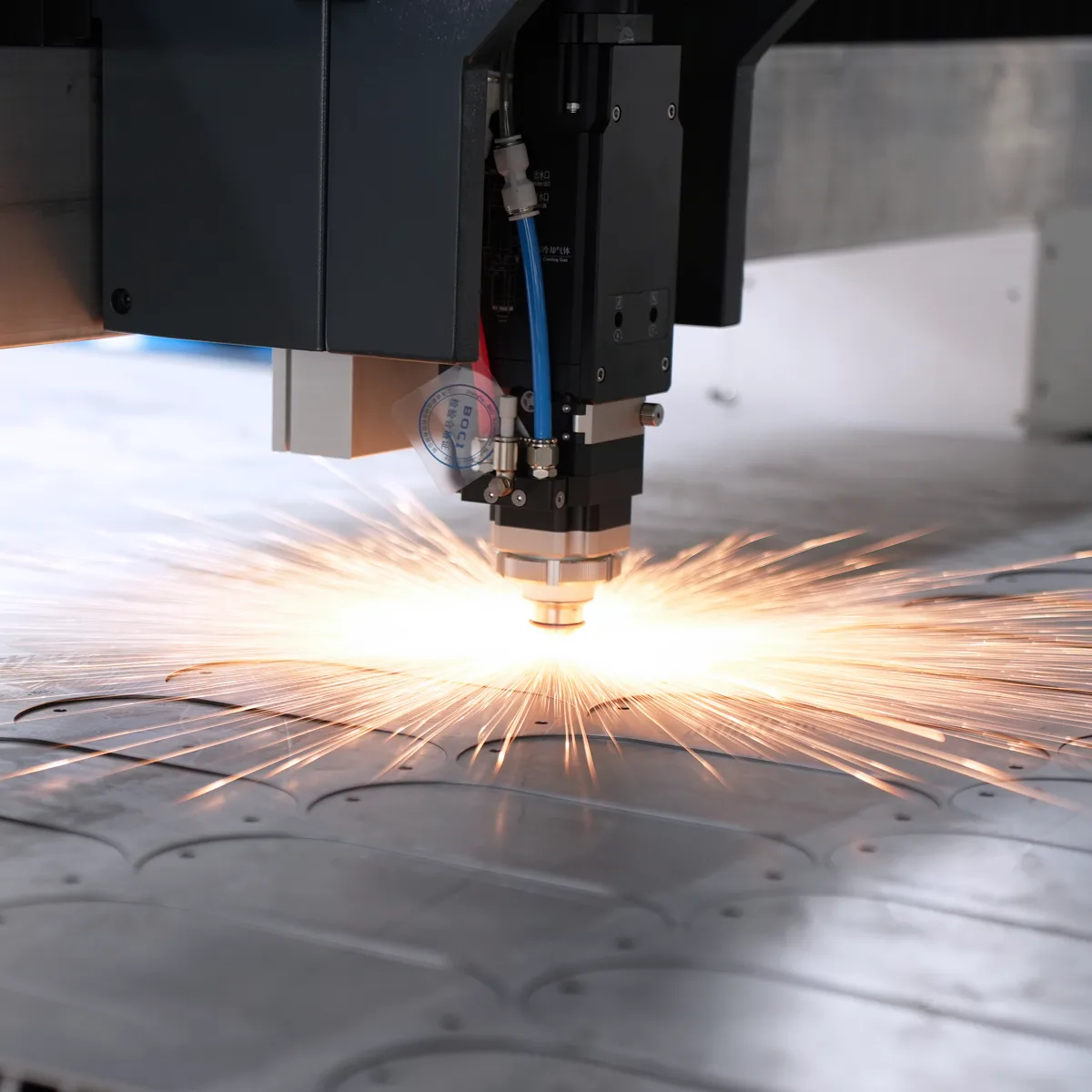

BOCHU BLT421 Smart Cutting Heads
BOCHU BLT421 cutting heads are quite cost-effective smart cutting heads designed for the laser cutting. Being impact and lightweight, it still integrates multiple sets of intelligent sensors, which ensure real-time closed-loop monitoring to give rapid diagnosis and instant warning.
EtherCAT Controller FSCUT4000E
FSCUT4000E is a cost-effective laser control system applies to 1.5-8kW power cutting, realizes control of motion, laser, and cutting gas, common used in sheet metal, kitchen ware, and light fixture.
Terminal board model: BCL4568E
High Speed Servo Motor And Drive
High-speed servo motors and drives in laser cutting machines provide precise control and rapid movement, enhancing accuracy and efficiency. They offer high responsiveness, stability, and reliability, ensuring consistent performance and reduced downtime. Feedback systems enable real-time monitoring for precise operations, making them ideal for complex cutting tasks.
Schneider Electric
High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement anywhere in the word.
The Fifth-generation Aviation Aluminum Alloy Beam
The T6 heat treatment process processes the laser cutter machine’s full beam to make the shaft obtain the highest strength. Solution treatment improves the strength and plasticity of the beam, optimizes and reduces its weight, and speeds up the movement.
Water Cooler
A water cooler in the 6000W Sheet Metal Laser Cutting Machine regulates the temperature of the laser and components, preventing overheating and ensuring optimal performance and longevity.
6KW Fiber Laser Cutting Material Thickness
| Thickness（mm） | Speed（m/min） | Focus position | Cutting height（mm） | Gas | Nozzle type | Pressure（bar） | |
|---|---|---|---|---|---|---|---|
| Carbon steel (Q235B) | 1 | 25-32 | 0 | 1 |
N2 |
Single: 1.5 | 12 |
| 2 | 20-27 | -1 | 1 | Single: 2.0 | 12 | ||
| 3 | 12-15 | -1.5 | 0.5 | Single: 2.0 | 14 | ||
| 4 | 7-8.5 | -2 | 0.5 | Single: 2.0 | 14 | ||
| 5 | 5.7-6.8 | -2.5 | 0.5 | Single: 3.0 | 16 | ||
| 3 | 3.6-4.2 | +5 | 0.8 |
O2 |
Double: 1.2 | 0.6 | |
| 4 | 3.3-3.8 | +5 | 0.8 | Double: 1.2 | 0.6 | ||
| 5 | 3-3.6 | +5 | 0.8 | Double: 1.2 | 0.6 | ||
| 6 | 2.7-3.2 | +5 | 0.8 | Double: 1.2 | 0.6 | ||
| 8 | 2.2-2.5 | +6 | 0.8 | Double: 1.2 | 0.6 | ||
| 10 | 2.0-2.3 | +7.5 | 0.8 | Double: 1.2 | 0.6 | ||
| 12 | 1.9-2.1 | +7.5 | 0.8 | Double: 1.2 | 0.6 | ||
| 14 | 1.4-1.7 | +9 | 1 | Double: 1.4 | 0.6 | ||
| 16 | 1.2-1.4 | +9 | 1 | Double: 1.4 | 0.6 | ||
| 18 | 0.7-0.8 | +12 | 0.3 | Single: 1.4 | 0.8 | ||
| 20 | 0.5-0.6 | +4 | 0.8 | Double: 5.0 | 0.6 | ||
| 20 | 0.6-0.7 | +13 | 0.3 | Single: 1.4 | 0.8 | ||
| 22 | 0.45-0.5 | +4 | 0.8 | Double: 5.0 | 0.6 | ||
| 22 | 0.5-0.6 | +13 | 0.3 | Single: 1.5 | 1 | ||
| 25 | 0.4-0.5 | +14 | 0.3 | Single: 1.5 | 1 | ||
| Stainless steel (SUS304) | 1 | 35-45 | 0 | 0.8 |
N2 |
Single: 1.5 | 10 |
| 2 | 23-32 | -1 | 0.5 | Single: 2.0 | 12 | ||
| 3 | 15-18 | -1.5 | 0.5 | Single: 2.5 | 12 | ||
| 4 | 9-13 | -2 | 0.5 | Single: 2.5 | 14 | ||
| 5 | 7-8.5 | -2.5 | 0.5 | Single: 3.0 | 14 | ||
| 6 | 4-5.5 | -3 | 0.5 | Single: 3.0 | 15 | ||
| 8 | 3-3.8 | -4 | 0.5 | Single: 3.0 | 15 | ||
| 10 | 1.8-2.1 | -6 | 0.5 | Single: 4.0 | 15 | ||
| 12 | 1-1.3 | -7.5 | 0.5 | Single: 5.0 | 16 | ||
| 14 | 0.85-1.1 | -9 | 0.5 | Single: 5.0 | 16 | ||
| 16 | 0.6 | -10.5 | 0.3 | Single: 5.0 | 18 | ||
| 18 | 0.5 | -12 | 0.3 | Single: 5.0 | 20 | ||
| 20 | 0.3 | -14 | 0.3 | Single: 6.0 | 20 | ||
| Aluminum (6061) | 1 | 30-37 | 0 | 1 |
N2 |
Single: 1.5 | 12 |
| 2 | 22-27 | -1 | 0.5 | Single: 2.0 | 12 | ||
| 3 | 13-18 | -1.5 | 0.5 | Single: 2.5 | 14 | ||
| 4 | 9-11 | -2 | 0.5 | Single: 2.5 | 14 | ||
| 5 | 5-6.5 | -3 | 0.5 | Single: 3.0 | 14 | ||
| 6 | 3.6-4.2 | -3 | 0.5 | Single: 3.0 | 16 | ||
| 8 | 1.8-2.1 | -4 | 0.5 | Single: 3.0 | 16 | ||
| 10 | 1-1.3 | -4.5 | 0.5 | Single: 3.5 | 18 | ||
| 12 | 0.7-1 | -5 | 0.5 | Single: 4.0 | 18 | ||
| 14 | 0.5 | -5 | 0.3 | Single: 4.0 | 18 | ||
| 16 | 0.4 | -8 | 0.3 | Single: 6.0 | 20 | ||
| Brass | 1 | 25-32 | 0 | 1 |
N2 |
Single: 1.5 | 12 |
| 2 | 17-21 | -1 | 0.5 | Single: 2.0 | 12 | ||
| 3 | 12-15 | -1 | 0.5 | Single: 2.5 | 14 | ||
| 4 | 8-9.3 | -1.5 | 0.5 | Single: 3.0 | 14 | ||
| 5 | 4.5-5.5 | -2 | 0.5 | Single: 3.0 | 14 | ||
| 6 | 3.2-4 | -3.5 | 0.5 | Single: 3.0 | 16 | ||
| 8 | 1.5-2 | -5 | 0.5 | Single: 3.5 | 16 | ||
| 10 | 1 | -6 | 0.5 | Single: 3.5 | 16 | ||
| 12 | 0.7 | -8 | 0.3 | Single: 4.0 | 18 | ||
| Copper | 1 | 20-27 | -0.5 | 1 |
O2 |
2.0S | 8 |
| 2 | 10-13 | -1 | 0.5 | 2.0S | 8 | ||
| 3 | 7-9 | -2 | 0.5 | 2.0S | 8 | ||
| 4 | 4-5.2 | -2 | 0.5 | 2.0S | 8 | ||
| 5 | 3 | -3 | 0.5 | 2.5S | 8 | ||
| 6 | 2 | -4 | 0.5 | 2.5S | 8 |
What is this Machine Used for?
Warranty
30-DAY MONEY BACK GUARANTEE
You should feel completely satisfied with your KRRASS Fiber Laser Cutting Machine purchase, and your peace of mind is a significant part of that process. We want you to feel the same confidence in your new KRRASS machine that we do, which is why every Press Brake purchase includes our Hassle-Free KRRASS 30-Day Return option in order to fully experience and evaluate their new KRRASS machine. It allows you to return or exchange your KRRASS purchase, for any reason, within 30 days of initial purchase. Refunds are simple and are issued once the original machine and all accompanying accessories have been returned. The refund or exchange will be issued minus the 15% restocking fee for items & accessories, 25% KRRASS Fiber Laser Cutting Machine Series customization fee, and shipping or handling costs are not included. Click here for details
2-YEAR LIMITED MACHINE WARRANTY
2 years Bumper to Bumper machine warranty for all machine mechanical and electrical components. (Except consumables parts) The Company represents and warrants that the KRRASS All Series of products will perform according to the warranty policy stated above from date of invoice. Products will be free from defects in materials and workmanship under normal use and service for the stated period. KRRASS has the responsibility to offer a timely solution and/or repair if deemed inoperable or defective by KRRASS Repair & Support Specialists. Clients are obligated to show proof of any such claims of machine parts or operational defects. Click here for details
-
Boa máquina. Corta bem. 6000W MAX é a melhor escolha.
-
هذه آلة القطع بالليزر دقيقة للغاية وأنا راضٍ جدًا.
-
La máquina de corte por láser que he elegido ahora es muy precisa y estoy muy satisfecho
-
Я очень люблю волоконно-лазерную резку KRRASS RAS3015 – 6000W, техническая поддержка KRRASS очень хорошая, что сэкономило мне много времени
-
I bought the RAS3015-6000W half year ago. The cutting speed is realy good.
Now I use this machine to do the AD boards
