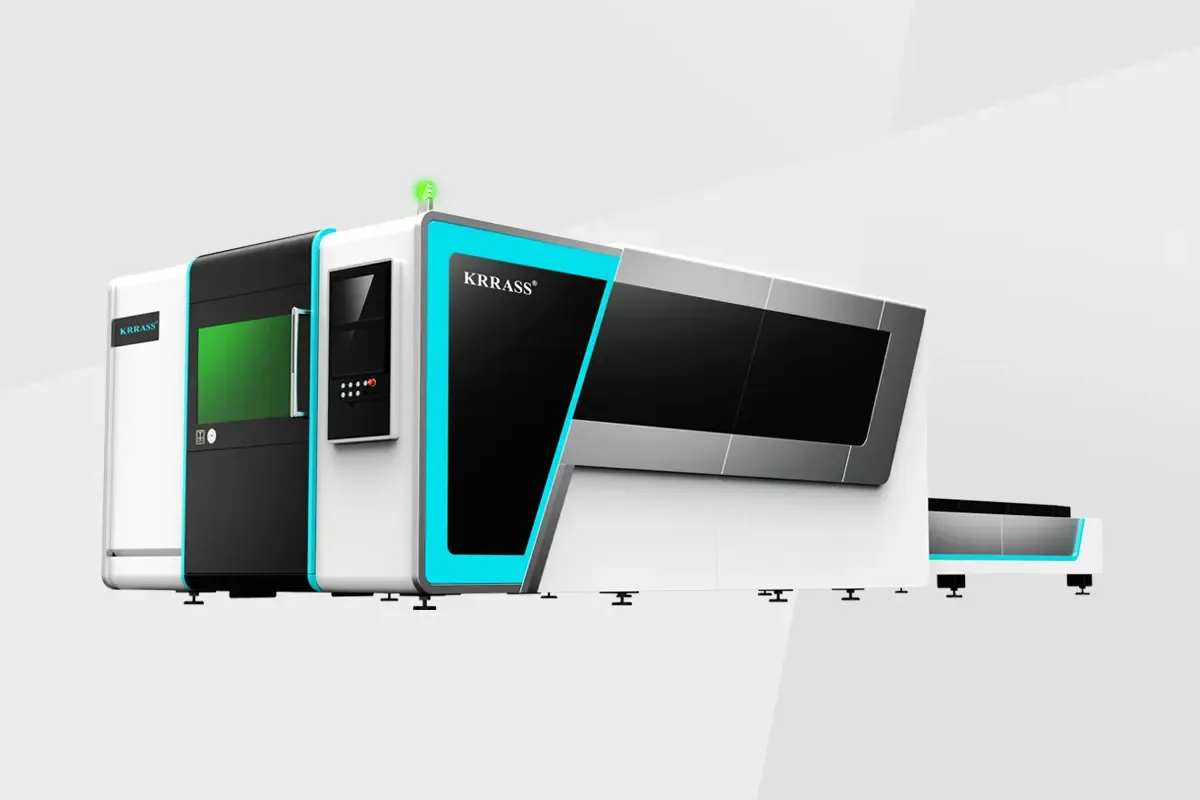

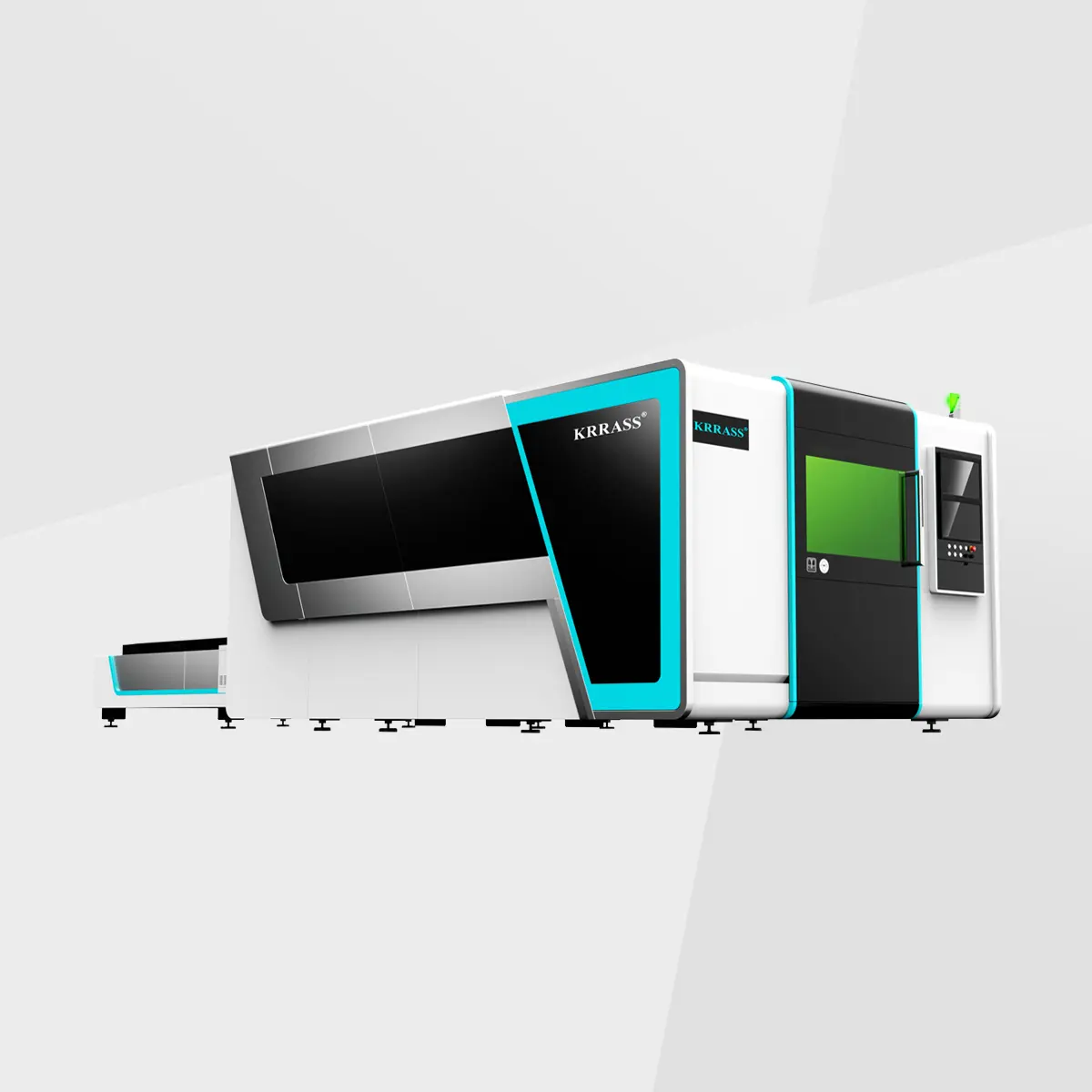

12000W Fiber Laser Cutting Machine For Metal

Original price was: $98,499.00.Current price is: $95,699.00.

Model: RAS-6020T

Category: Fiber Laser Cutting Machine

Brand Name: KRRASS

Laser Power: 12000KW

Working Area: 6050*2020mm

HS Code: 8456110090

Application: Best 12000w fiber laser cutting machine, 12kw fiber laser cutting machine for metal, 12000w fiber laser cutting machine for sale

Technologyies

Working Area(mm):6050*2020
Laser Power(kw):12000W
Maximum Speed(m/min):80
Maximum Acceleration(g):0.8
X/Y Axis Positioning Accuracy(mm/m):±0.05
X/Y Axis repeated positioning accuracy(mm):± 0.02

Configurations

Table Construction & Highlights

  • 6.5ft x 13ft cut dimensions
  • MAXphotonics laser source
  • Frame 5/8″ welded steel tube
  • Aviation grade aluminum gantry
  • Blade knife table surface
  • X, Y axis – stainless steel ball screw transmission
  • HiWin linear high precision stainless steel guide rails & bearings
  • 22,000 lbs combined table weight
  • 40 ton pressed 6061 laser car gantry material

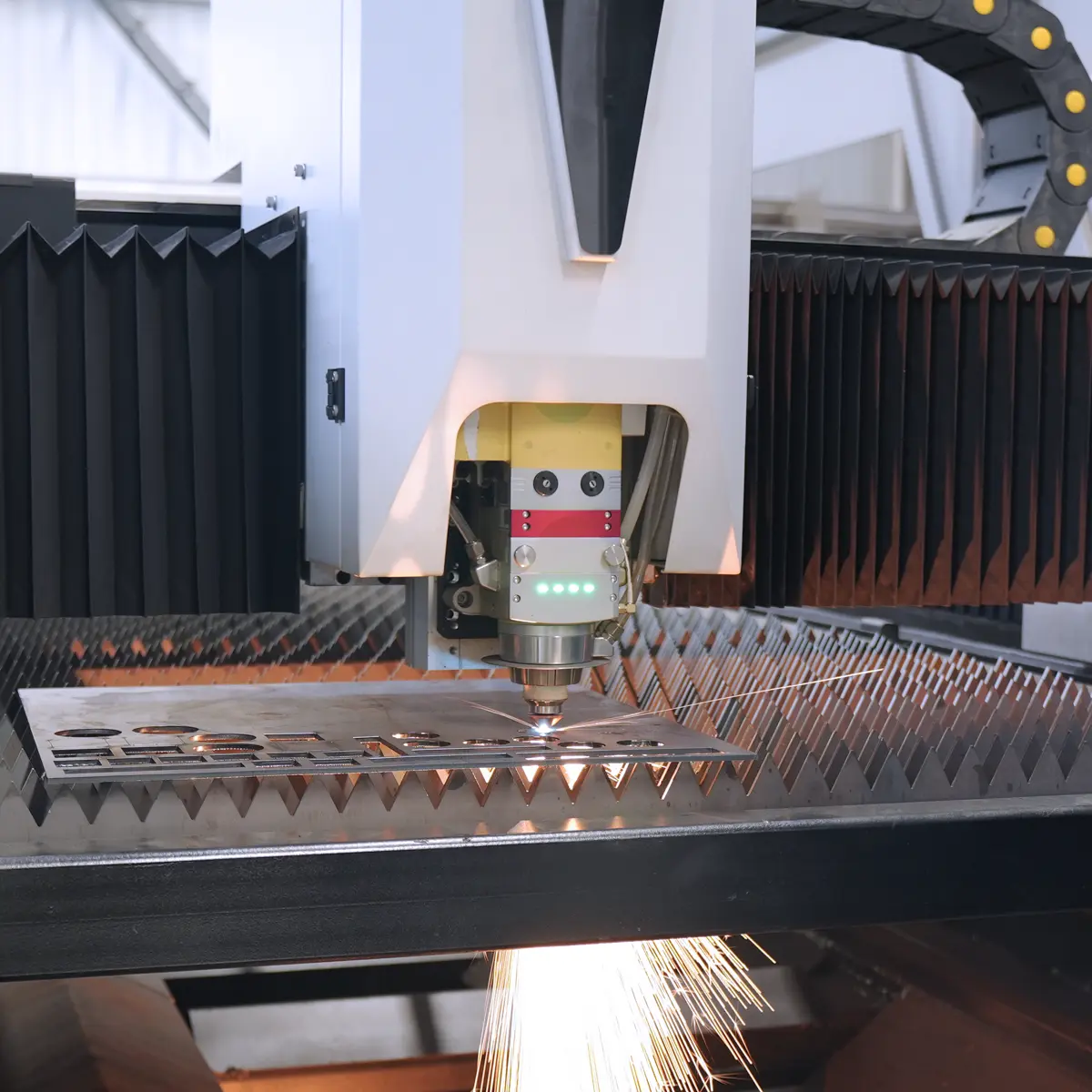

MAX photonics Laser Head

The laser cutter machine’s auto-focusing optical fiber cutting head has a built-in motor drive unit. A linear mechanism automatically drives the focus lens to change the position within the specified range. The program can set the continuous focus to complete the rapid perforation of thick plates and automatically cut plates of different thicknesses and materials.

12000W MAX Fiber Laser Souce

12KW High Power Fiber Laser Souce adopt water cooling and modular design.The compact design, highly-integrated system, free of maintenance, high reliability, high beam quality and high beam stability are the ideal laser source for laser cutting, laser welding,laser cladding, surface heat treatment,etc.

12KW Fiber Laser Cutting Machine Chiller

Specially designed for fiber laser equipment, compatible with various brands of lasers; supports a full range of environmentally friendly refrigerants; laboratory verification, quality assurance; stable and reliable performance, low failure rate, energy saving.

Heavy-load Thermal Isolated Hollow Bed

The heavy-duty heat-insulating hollow bed of the metal laser cutting machine is welded with high-quality steel plates and pipes. After welding, stress relief annealing, secondary aging treatment, and precision machining, super-large gantry milling machines ensure that the bed has sufficient structural stability and shock resistance. The mattress will not deform after long-term use, which improves the service life of the equipment.

Intelligent Spiral Vacuum Dust Removal

Intelligent spiral vacuum dust removal is a time-sharing system with an automatic air outlet switch and sectional air exhaust. It can cooperate with the back-shaped sealing structure design at the bottom of the base to realize smokeless cutting.8kw or higher power machine has graphite and copper protection.

The Fifth-generation Aviation Aluminum Alloy Beam

The T6 heat treatment process processes the full beam of the laser metal cutting machine to make the shaft obtain the highest strength. Solution treatment improves the strength and plasticity of the beam, optimizes and reduces its weight, and speeds up the movement.

Cypcut Intelligent Control System

“CypCut plane cutting” software is a set of software specially developed for the deep customization of the laser cutter machine industry. Easy to use, rich in functions, and suitable for various processing occasions.

Parallel Shuttle Table

The laser cutting machine is equipped with a six-sided steel track, the pulley and the track are inlaid tightly, powerful pneumatic tightening, and the built-in pulley runs smoothly. The fastest can achieve a complete exchange in 10s.

You Choose The Power of The Laser

1KW - 20KW POWERCUTTING CAPABILITIES REFENCE CHART

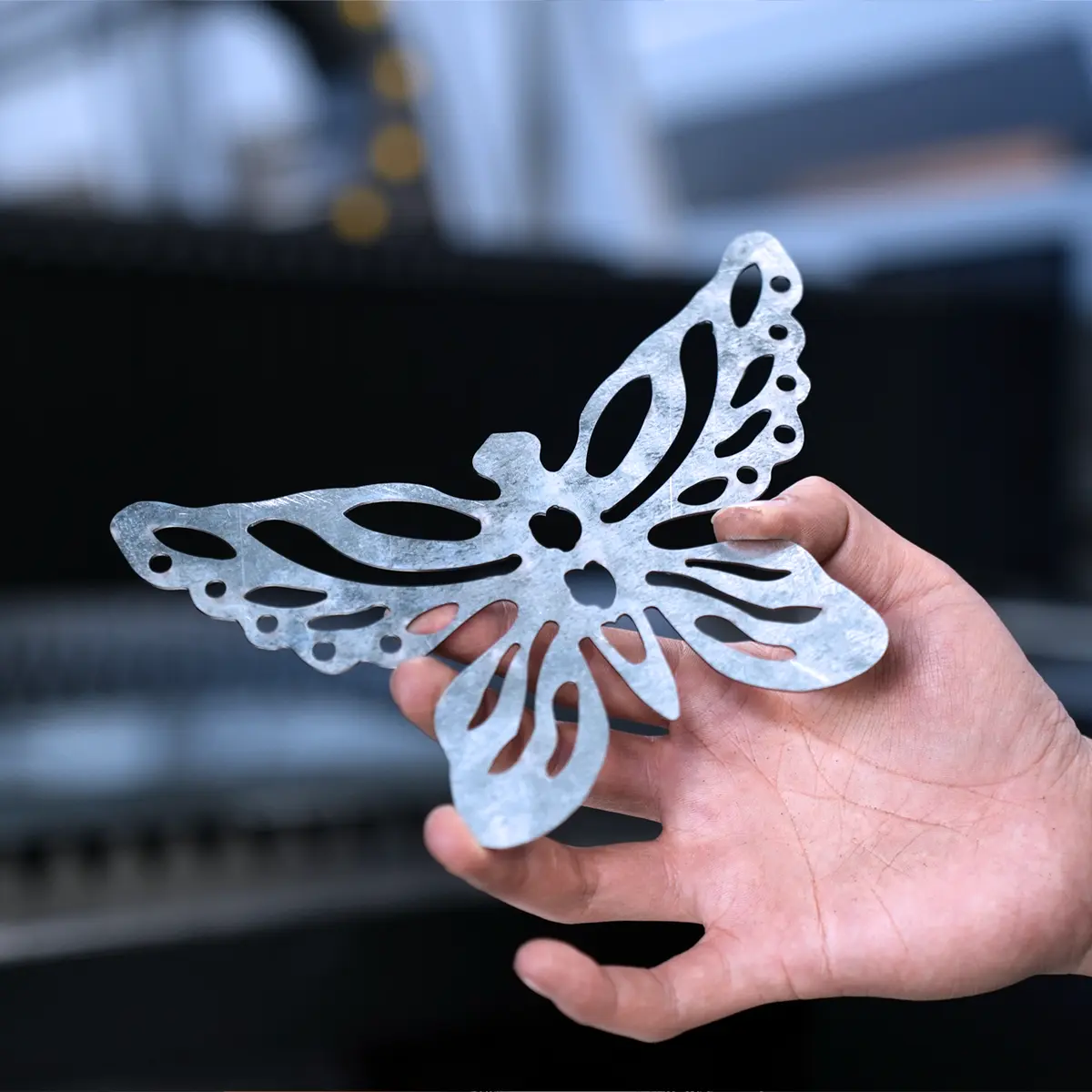

What is this Machine Used for?

stainless-steel
Stainless Steel
Carbon Steel
Carbon Steel
Brass
Brass
Aluminum
Aluminum

Warranty

30-DAY MONEY BACK GUARANTEE

You should feel completely satisfied with your KRRASS Fiber Cutter Machine purchase, and your peace of mind is a significant part of that process. We want you to feel the same confidence in your new KRRASS machine that we do, which is why every Fiber Cutter Machine purchase includes our Hassle-Free KRRASS 30-Day Return option in order to fully experience and evaluate their new KRRASS machine. It allows you to return or exchange your KRRASS purchase, for any reason, within 30 days of initial purchase. Refunds are simple and are issued once the original machine and all accompanying accessories have been returned. The refund or exchange will be issued minus the 15% restocking fee for items & accessories, 25% KRRASS Fiber Cutter Machine Series customization fee, and shipping or handling costs are not included. Click here for details

krrass-30day-guarantee
krrass-2year-warranty

2-YEAR LIMITED MACHINE WARRANTY

2 years Bumper to Bumper machine warranty for all machine mechanical and electrical components. (Except consumables parts) The Company represents and warrants that the KRRASS All Series of products will perform according to the warranty policy stated above from date of invoice. Products will be free from defects in materials and workmanship under normal use and service for the stated period. KRRASS has the responsibility to offer a timely solution and/or repair if deemed inoperable or defective by KRRASS Repair & Support Specialists. Clients are obligated to show proof of any such claims of machine parts or operational defects. Click here for details
