Understanding the Capabilities of a 50 Ton Press Brake

Understanding the capabilities of a 50 ton press brake is essential for any metalworking professional looking to enhance their workshop's efficiency and productivity. A press brake of this capacity offers a balance between power and precision, making it suitable for a wide range of bending applications. Whether you're working with light gauge materials or need to handle heavier, more robust metals, a 50 ton press brake can provide the necessary force to achieve accurate and consistent bends. In this article, we'll explore the key features, applications, and benefits of using a 50 ton press brake, as well as important considerations when choosing the right machine for your needs.

What Is A Press Brake

A press brake is a machine tool used to bend sheet metal or other materials into a desired shape. It consists of a stationary lower die or "bed" and a movable upper die or "punch" that presses the material into the lower die, creating the bend. Press brakes are commonly used in sheet metal fabrication, metalworking, and manufacturing industries to produce a variety of bent metal parts and components.

What Materials Can A Press Brake Bend

Press brake bending is compatible with a wide range of materials, including various metals and alloys. The key consideration for material selection is its ductility, or the ability to deform under applied stress without fracturing. Some common materials that can be effectively bent using a press brake include:

Mild Steel: Mild steel is a popular choice for hydraulic press brake bending due to its excellent formability and affordability. It can be bent to various angles and shapes without significant cracking or deformation.

Stainless Steel: Stainless steel, known for its corrosion resistance and strength, can also be successfully bent using a press brake. However, stainless steel tends to have higher springback, requiring careful consideration of bend allowances and tooling adjustments.

Aluminum: Aluminum is a lightweight and highly malleable material that is widely used in various industries. It can be easily bent using a press brake, providing versatility in design and manufacturing.

Copper and Brass: Copper and brass are ductile materials commonly used in electrical and decorative applications. They can be efficiently bent using a press brake, enabling intricate and precise forming.

Press brake bending provides remarkable flexibility in shaping and forming sheet metal components. The maximum thickness that can be effectively bent is influenced by the machine’s tonnage, the material's properties, and the desired bend radius. By carefully evaluating these factors, manufacturers can select the appropriate hydraulic press brake and optimize their production processes.

Moreover, press brake bending is suitable for a variety of materials, including mild steel, stainless steel, aluminum, copper, and brass. Understanding the capabilities of press brake bending in terms of thickness and material compatibility is crucial for achieving precise, efficient, and high-quality metal fabrication results.

What's the Maximum Thickness for Press Brake Bending

The maximum thickness that can be bent using a press brake depends on several factors, including the machine’s capacity, the material’s properties, and the desired bend radius. While press brakes are capable of handling a wide range of sheet metal thicknesses, it is essential to consider the machine’s tonnage and bending capacity.

The tonnage of a hydraulic press brake refers to its force output and determines the maximum thickness it can effectively bend. Press brakes are available in various tonnages, ranging from a few tons to several hundred tons. Machines with higher tonnage can handle thicker materials. However, it is crucial to consult the manufacturer’s specifications and guidelines to ensure that the press brake is suitable for the desired thickness of the material.

Additionally, the bend radius plays a crucial role in determining the maximum thickness for press brake bending. As the material thickness increases, the required bend radius also needs to be larger to prevent cracking or distortion. It is vital to consider the material’s ductility and the machine’s capabilities to achieve the desired bend radius while maintaining the integrity of the metal.

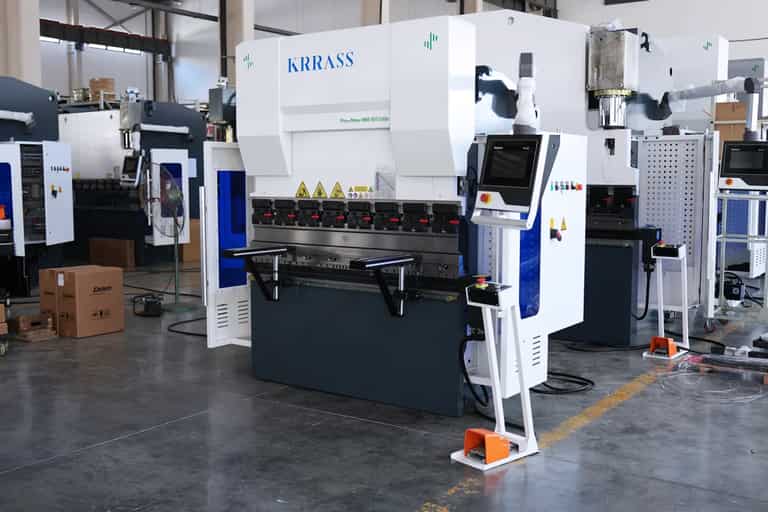

Introduction to the Samll 50 Ton Press Brake

Definition and Basic Functionality

A 50 ton press brake is a type of machine used in metal fabrication to bend and shape sheet metal. The "50-ton" designation refers to the maximum amount of force the machine can exert, which is 50 tons (or 100,000 pounds). This force allows the press brake to handle a wide range of materials and thicknesses, providing precise bends for various applications. The basic functionality of a press brake involves clamping the metal workpiece between a matching punch and die, then applying force to create a bend at the desired angle.

Key Components

Frame

The main structure that supports the entire machine. It must be sturdy and rigid to withstand the high forces involved in bending operations.

Ram

The moving part of the press brake that holds the upper tool (punch) and moves up and down to apply force to the workpiece.

Bed

The stationary part of the press brake where the lower tool (die) is mounted. It provides a stable surface for the metal to rest on during bending.

Punch and Die

The tools that actually form the bend in the metal. The punch is the upper tool that presses down into the die, the lower tool, which has a complementary shape.

Back Gauge

A positioning tool that helps ensure consistent bends by precisely locating the workpiece relative to the punch and die. It can be manually adjusted or controlled by a CNC system.

Hydraulic System

Provides the necessary force to move the ram and apply pressure to the workpiece. This system typically includes hydraulic cylinders, pumps, and valves.

Control System

Can be a simple manual control or an advanced CNC (Computer Numerical Control) system. CNC controls allow for precise and repeatable bends, complex shapes, and automation of the bending process.

Safety Features

Modern press brakes include various safety mechanisms such as light curtains, safety mats, and emergency stop buttons to protect operators from injury.

Specification

Tonnage: 50 tons (100,000 pounds of force)

Bending Length: Varies, typically ranging from 4 to 10 feet (1.2 to 3 meters)

Stroke Length: The distance the ram can move up and down, affecting the maximum bend depth

Open Height: The maximum distance between the ram and the bed when the ram is fully raised

Throat Depth: The distance from the centerline of the ram to the frame, affecting the size of the workpiece that can be accommodated

Advantages of Small Ton Press Brake

Small press brakes are ideal for bending both small, intricate parts and larger-sized components, providing the versatility needed for various applications. By delivering precise and accurate bends, these machines help reduce material waste and minimize rejections, ensuring high-quality outcomes with every operation.

With the ability to handle a wide range of materials, from mild steel to aluminum and brass, small press brakes can produce diverse parts using a single set of punch and die. This versatility simplifies the tooling process and reduces the need for multiple sets of dies, leading to significant cost savings. Additionally, the precision of small press brakes extends the lifespan of bending dies by minimizing wear and tear, further lowering operational expenses.

Overall, small press brakes offer an efficient and cost-effective solution for metal fabrication, enabling manufacturers to achieve consistent, high-quality results while optimizing resource usage and reducing costs.

Bending Capability of 50 Ton Press Brake

The bending capability of a 50 ton press brake depends on the type of bending and the material's thickness. Here's an expanded look at the different bending methods:

Air Bending:

Requires the least tonnage and can be done effectively with a 50-ton press brake.

Example: A 50-ton press brake can air bend 12 feet of 3/8-inch thick A36 steel (maximum yield strength of 45,000 psi).

Bottom Bending:

Requires at least twice the tonnage of air bending.

Example: Bottom bending 10 feet of 1/4-inch thick material would need approximately 600 tons.

Coining:

Demands the highest tonnage, typically 5 to 10 times more than air bending.

Coining involves deeper penetration of the punch into the die, resulting in greater precision and higher force requirements.

Here are some 50 ton press brake models and their specifications:

SWAG 50" Press Brake DIY Builder KitCan bend steel up to 49 in wide, but the maximum bending width and thickness depends on the hydraulic press it fits intoBaileigh Industrial Hydraulic Brake Press (BP-5078CNC)Has 50 tons of bending pressure over its entire 78 in length and can hold 40 programs with 25 bends per programChicago 1012L Press BrakeHas a 4 in bed width, 34 in from the floor to the top of the bed, and an overall length of 12 ftBetenbender 10 foot Press Brake

Has a working length of 120 in, 66 in per minute strokes, and weighs 11,000 lbs

How to Determine Required Tonnage

How much tonnage is required? The following factors impact the tonnage required for any bending application:

 Material thickness

• Material type

• Material length

• Method of bending

• Tooling selection

In general, the thicker the material the more tonnage or force required to form it. The type of material also plays a large role in this equation. Yield strength varies tremendously for different materials. For example, forming soft brass or copper requires much less tonnage than the same thickness of mild steel, and forming stainless steel requires much more tonnage than forming mild steel.

Keep in mind that tonnage ratings incorporate a length component. For example, a rating of 30 tons/ft. equates to 2.5 tons/in. If an application calls for a force of 50 tons across a 10-in.-long form, that equates to 5 tons/in. or 60 tons/ft. Some applications require that a large amount of tonnage be placed in a small area. The press brake may have the overall tonnage required to achieve the form, but if the tonnage must be concentrated in one location (known as isolated tonnage), then the tonnage rating of the tooling and holders also must be considered.

The method of bending also plays a role. Air bending, bottom bending and coining all require various amounts of force. Air bending requires the least amount of tonnage, followed by bottom bending then coining, which requires the greatest amount of force. Each bending method has benefits and limitations, but in general, bottom bending requires at least twice the tonnage of air bending, and coining 5 to 10 times the tonnage of air bending.

Top Features to Look for in a Small Press Brake

Compact Size: Essential for small workshops with limited space.

Ease of Use: Intuitive controls and user-friendly interfaces to reduce operator training time.

Precision and Accuracy: Advanced backgauge systems and precision tooling for consistent results.

Tonnage Capacity: Suitable tonnage to handle typical materials used in your projects.

Versatility: Ability to perform a variety of bends and accommodate different materials.

Durability and Build Quality: Sturdy construction to withstand regular use and extend machine lifespan.

Automation and CNC Controls: Automated functions and CNC control for increased efficiency and repeatability. Energy Efficiency: Low power consumption and eco-friendly operation.

Safety Features: Essential safety mechanisms like light curtains and emergency stop functions.

Cost-effectiveness: Balance between price and features to ensure good value for money.

Conclusion
