Ultimate Guide For Sheet Metal Press Brake – 2024 Version

sheet metal press brake

Nowadays, the sheet metal press brake has become an indispensable machine in the manufacturing industry. It not only improves production efficiency but also saves costs. However, many people still do not understand many things about the bending machine, such as how to buy it and the price, how to choose the controller, etc. Next, please follow my steps to understand the bending machine in an all-round way.

Description

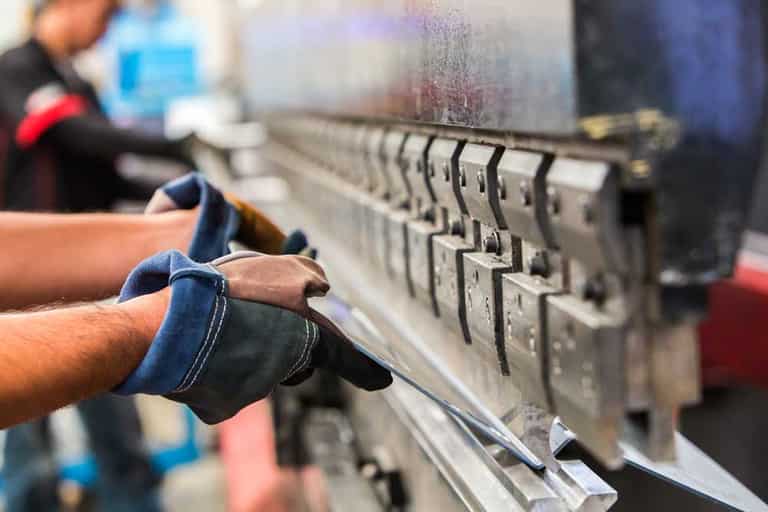

A sheet metal press brake is a machine tool used to bend and form sheet metal into various shapes and configurations. It is a critical piece of equipment in metal fabrication and manufacturing. A press brake works by sandwiching a metal plate between a punch (located on the upper beam) and a die (mounted on the lower bed). A press brake applies force to the sheet metal to bend it to the desired angle or shape.

Components

Table of Contents

Ram: This is the moving part of the press brake and is used to hold the punch. It exerts downward force on the sheet metal to bend it.

Lower Bed: Also called lower beam or bed, it provides support for the mold. During the bending process, the sheet metal is placed on the lower bed.

Punch: The punch is mounted on the upper beam and applies pressure to the sheet metal to bend it. The shape and size of the punch determines the bending angle and geometry.

Mold: The mold is installed on the lower bed and is used as a support for the sheet metal during the bending process. It determines the final shape of the bend.

Backgauge: The backgauge is an adjustable stop that helps accurately position sheet metal for repeated bends, ensuring consistent bending positions.

Control system: Modern bending machines often use computer numerical control (CNC) systems that can precisely control the bending process. CNC bending machines can store bending programs, control bending angles, and automate many aspects of the bending operation.

Sheet metal press brakes come in a variety of sizes and configurations to accommodate different sheet metal sizes, thicknesses and bending requirements. They are widely used in industries such as automotive, aerospace, construction, electronics and appliance manufacturing to produce components such as brackets, panels, enclosures and chassis with precise bends and angles.

Bending Methods

Due to the different materials, thicknesses, lengths, and widths of plates and the different shapes and angles that need to be formed, there are bending machines with different tonnage and size pressure equipment, equipped with upper and lower dies of different heights, shapes, and V-width sizes. Special molds for special shapes. ​
Sheet metal bending refers to the processing of changing the angle of the plate or plate. There are usually two bending methods: mold bending and press brake bending.

Mold bending

It is used for sheet metal structures with complex structures, small volumes, and mass processing. Refers to using a mold with a specific shape to apply pressure on the sheet, causing the sheet to bend to form the desired shape. The main advantage of mold bending is that it enables precise, repeatable bends, making it easy and efficient to produce large numbers of parts of the same shape. Our common V-bends, U-bends, and Z-bends can all be realized through mold bending.

Press brake bending

It is used to process sheet metal structures that have relatively large structural dimensions or whose output is not too large. Bending machines are divided into two types: NC bending machines and CNC bending machines. Sheet metals with high precision requirements and irregular bending shapes are generally bent with a CNC bending machine. The basic principle is to use the bending knife (upper die) and V-shaped groove (lower die) of the bending machine. Sheet metal parts are bent and formed. Press brake bending is usually used to manufacture various metal parts and components, such as boxes, casings, pallets, brackets, etc.

Classification

Classification by structure

Mechanical press brake:

Uses a mechanical transmission system to achieve bending operations, usually suitable for simpler bending tasks.

Hydraulic press brake:

The bending operation is performed through the pressure provided by the hydraulic system. It is suitable for various types and thicknesses of metal sheets and can achieve greater bending force and more complex bending shapes.

Electric press brake:

Uses an electric drive system to perform bending operations, usually with a higher degree of automation and precision.

Classification by working methods

Manual press brake:

The operator performs bending operations by manually controlling the machine, suitable for small batch production and simple bending tasks.
Semi-automatic bending machine: It has some automatic functions, such as automatic clamping and lifting, but the operator still needs to intervene in the control.
Fully automatic press brake:

A fully computer-controlled bending machine that can automatically load, bend and unload, and is suitable for mass production and complex bending tasks.

Classification by control methods

NC press brake:

The operator manually controls various parameters and operations of the machine, such as bending angle, bending force, etc.

CNC press brake:

The operation of the bending machine is controlled by a computer numerical control system, which can achieve highly precise bending and is suitable for complex parts and mass production.
Classification according to control method is the most common classification method. CNC bending machines have gradually become the mainstream choice of bending machines.

Advantages of CNC Press Brake Compared to NC Press Brake

In recent years, CNC press brake has become more and more popular due to its higher precision, versatility, efficiency and automation capabilities. However, many customers do not know the difference between NC and CNC when purchasing a bending machine. So compared with CNC press brake, what are the advantages of NC press brake?

NC Press Brake

  • Employs a torsion shaft to join two sides of the ram to travel up and down sequentially. Ram parallelism cannot be verified and changed by itself.
  • Uses the compulsive synchronous method manually. One must ensure manually that the production is error-free.
  • Does not contain a crowning system.
  • Cannot bend in different degrees in a single setup.
  • Can control only 2 Axis – X and Y
  • NC needs more skilled labour because of the need for manual precision.

CNC Press Brake

CNC is the current industry standard for press brakes where as NC is a dated method of production.

  • Two linear encoders are put on the equipment on both ends of the ram, and the controller may analyse the sequential state on both sides of the ram using data from both encoders.
  • If there is an error, the control system will automatically rectify it to keep the ram in sync.
  • Has more accuracy due to its back gauge and feedback systems.
  • Specifically designed for high-speed, synchronized Y1/Y2 press brakes.
  • Cost-efficient and energy efficient
  • Gives more opportunity for customising the production because of Computer Numerical controls.
  • More accuracy at a lower labour cost as little to no skilled labour is required for production based on machine machinery set up.

How to Choose the Right Press Brake Controller

The importance of the press brake control system to the bending machine is self-evident. It directly affects the accuracy, efficiency and flexibility of the bending process. In recent years, various CNC systems for bending machines have appeared on the market, such as the commonly used Dutch DELEM series, Swiss CYBELEC series and Italian ESA series.

Famous Controller Brands

Delem:
Delem is a well-established and respected brand in the world of press brake controllers. Known for their advanced CNC controllers, Delem offers a range of features that cater to the needs of the metalworking industry. Their controllers are recognized for their precision and reliability, making them a preferred choice for many metal fabrication professionals. Delem controllers often feature user-friendly interfaces and compatibility with various press brake models, allowing for seamless integration into existing workflows.

ESA:
ESA, or European Systems Automation, is another reputable brand that manufactures high-quality press brake controllers. ESA controllers are known for their innovation and flexibility. They offer a wide array of advanced features, including angle correction, collision avoidance, and network connectivity. These controllers are often chosen by manufacturers who require sophisticated capabilities and efficient production processes.

Cybelec:
Cybelec is a Swiss brand with a strong presence in the press brake controller market. Their controllers are widely recognized for their precision and adaptability. Cybelec offers solutions for both standard and complex bending applications. Their controllers often feature user-friendly interfaces and powerful programming capabilities, making them an excellent choice for a variety of metalworking needs.

Amada:
Amada, a renowned name in the manufacturing industry, also produces press brake controllers. Their controllers are known for their compatibility with Amada press brake machines, ensuring seamless integration and optimized performance. Amada controllers are engineered to provide accurate and efficient bending operations, reflecting the brand’s commitment to quality and innovation.

LVD:
LVD is a global manufacturer of press brake controllers, among other metalworking equipment. LVD controllers are designed to enhance the precision and productivity of press brake machines. They often come equipped with advanced features for programming, monitoring, and safety. LVD controllers are well-regarded for their contribution to the efficiency of metal fabrication processes.

Press Brake Controller Introduction

Generally speaking, the system selection of CNC and NC press brakes will be different.

Systems for NC Press Brake

ESTUN E21

  • The high-definition hydraulic display has two languages, Chinese and English, and one page displays programming parameters, making it faster and more convenient to write programs.
  • Intelligent positioning of X and Y axes can also be adjusted manually as required, eliminating the mechanical manual positioning device.
  • Built-in pressure holding time, unloading delay setting function, the operation is simpler, and there is no need for a time relay to reduce the cost.
  • With parameter one-key backup and restore function, parameters can be restored at any time as needed to reduce maintenance costs.
  • Support multi-process programming, complex workpieces can be processed at one time, improving production efficiency and processing accuracy.
  • All the buttons on the panel are micro switches, which have been strictly tested for EMC, high and bottom temperature, and vibration. Ensure product stability and service life.
  • Passed CE certification to meet the needs of overseas markets.

ESTUN E310P Control

  • 4 axes are supported, viz, X-axis, Y-axis, R-axis and C-axis.
  • The back gauge can be controlled in a high-accuracy since the servo systems control X-axis and R-axis.
  • Automatic calculation of the block position, according to the bending angle, material, thickness and mold parameters.
  • The back gauge can be controlled in a high-accuracy since the servo systems control X-axis and R-axis.
  • Optional hydraulic or mechanical to control the C-axis.
  • Program in absolute value or angle.
  • Materials and die informations are programable.
  • Language setting and unit setting.

Holland DELEM DA41T

  • Industrial-grade high-quality touch screen control
  • 7″ widescreen high resolution color TFT
  • Slider Y axis control
  • Backgauge X axis control
    R axis control
    Program memory for 100 programs
  • Angular programming
  • Tool programming
  • Manually move all axes
  • USB memory stick interface
  • 4.Switzerland Cybtouch 8
  • Large screen, high definition and contrast touch screen system.
  • Convenient interface, clear display and large icon buttons.
  • The EasyBend page is very convenient for single-step bending.
  • Perfect programming can improve the efficiency of batch multi-step bending.
  • Online help and pop-up prompts make the software interface very friendly.
  • Support multiple languages.
  • Use PC or laptop to upgrade and transfer data through wireless software

Systems for CNC Press Brake

Holland DELEM DA53T

  • “Hot-key” touch navigation
  • 10.1″ high resolution colour TFT
  • Up to 4 axes (Y1,Y2 + 2 aux. axes)
  • Crowning control
  • Tool / material / product library
  • Servo and frequency inverter control
  • Advanced Y-axis control algorithms for closed-loop as well as
    open-loop valves.
  • TandemLink (option)
  • USB memory stick interfacing
  • Profile-T offline software

Holland DELEM DA58T

  • 2D graphical touch screen programming
  • 15″ high resolution colour TFT
  • Bend sequence calculation
  • Crowning control
  • Servo and frequency inverter control
  • Advanced Y-axis control algorithms for closed-loop as well as open-loop valves.
  • USB, peripheral interfacing
  • Profile-T offline software

Holland DELEM DA66S

  • 2D graphical touch screen programming mode
  • 3D machine representation, in simulation and production
  • 24″ high resolution color TFT
  • Delem Modusys compatibility (module scalability and adaptivity)
  • USB, peripheral interfacing
  • User specific application support within the control’s multitasking environment
  • Sensor bending & correction interface
  • Profile-S2D offline software

Holland DELEM DA69S

  • 3D and 2D graphical touch screen programming mode
  • 3D visualization, including 3D machine representation, in simulation and production
  • 24″ high resolution color TFT
    Delem Modusys compatibility (module scalability and adaptivity)
  • USB, peripheral interfacing
  • User specific application support within the control’s multitasking environment
  • Sensor bending & correction interface
  • Profile-S3D offline software

Switzerland Cybtouch 12ps

  • Large, vivid and high-contrast fully touchscreen.
  • Simple pages, clear display, large keys.
  • Intuitive user-friendly interface.
  • Complete programming for efficient mass-production with multiple bends.
  • Easy single bends with
  • EasyBend page.
  • On-line help and interactive warning pop-ups.
  • Comfortable wireless data backup and software updating using PC or Notebook.
  • Large variety of languages available.

Switzerland Cybtouch 15ps

  • 15” modern streamlined glass surface touch screen that can be used with gloves.
  • User friendly HMI thanks to intuitive programming and easy to setup with dedicated wizards (autotuning).
  • 2D graphical profile drawing (Touch Profile) and precise 2D program creation.
  • Automatic bending sequence calculation.
  • Easy single bends thanks to the
  • EasyBend page.
  • Wide storage capacity.
  • Internal backup and restore functions.
  • Wireless communication for extended diagnostics and updates (with laptop).

Principles of Chooing Press Brake Controller

Accuracy and repeatability requirements:

If your production requires high accuracy and repeatability, then you should choose a control system with precision control capabilities. Ensure the control system enables precise angle control, length control and position control to meet your quality standards.

Functions and modes:

Consider your bending tasks and process requirements and choose a control system with the appropriate functions and modes. Some advanced features may include multi-step bending, auxiliary functions (such as chamfering, curling, etc.), multi-step processes, etc. Make sure the control system meets your specific production needs.

User interface:

Choose a control system with an intuitive, easy-to-operate user interface so operators can get up and running quickly. Consider the layout, graphical display and interaction of the interface to ensure that operators can easily program, set parameters and monitor the production process.

Programming functions:

Consider the programming functions of the control system, including manual programming and automatic programming. Make sure the control system can support the programming you require and provide flexible programming options to accommodate different types and shapes of parts.

Automation functions:

If you want to automate your production process, you should choose a control system with rich automation functions. This may include automatic mold changing, automatic adjustment, automatic correction and other functions to reduce manual intervention and improve production efficiency.

Diagnosis and maintenance functions:

Choose a control system with diagnostic and maintenance functions to detect and solve problems in time and ensure the normal operation of the equipment. Ensure that the control system can provide real-time monitoring, alarm prompts and fault diagnosis to reduce downtime and maintenance costs.

Upgradeability and compatibility:

Consider the upgradability and compatibility of the control system to cope with future production needs and technological developments. Choose a control system with modern technology and standard interfaces for system upgrades and integration of other equipment.

How To Choose Proper Sheet Metal Press Brake

Once you make an improper choice when purchasing a bending machine, production costs will rise, and the bending machine cannot be expected to recover the cost. Therefore, several factors must be weighed when making a decision.

Artifact

The first important thing to consider is the part you want to produce. The main point is to buy a machine that can complete the machining task with the shortest table and the smallest tonnage.
Carefully consider material grade and maximum processing thickness and length. If the majority of the work is mild steel with a thickness of 16 gauge and a maximum length of 10 feet (3.048 meters), then the free bending force need not be greater than 50 tons. However, if you are engaged in a large number of bottomed die forming, you may want to consider a 160-ton machine tool.
Assuming the thickest material is 1/4 inch, 10 feet of free bending requires 200 tons, while bottom die bending (corrected bending) requires at least 600 tons.

If most of the workpieces are 5 feet or shorter, the tonnage is almost halved, thus significantly reducing acquisition costs. Part length is very important in determining the specifications of a new machine.

Twist

Under the same load, the deflection of the 10-foot machine table and slider is four times that of the 5-foot machine. This means that shorter machines require fewer shim adjustments to produce acceptable parts. Reducing shim adjustments reduces setup time.
Material grade is also a key factor. Compared with mild steel, stainless steel typically requires about 50% more load, while most grades of soft aluminum require about 50% less load. You can always get a machine tonnage chart from your press brake manufacturer that shows an estimate of the tonnage required per foot of length for different thicknesses and different materials.

Bending Radius

When using free bending, the bending radius is 0.156 times the opening distance of the die. During the free bending process, the die opening distance should be 8 times the thickness of the metal material. For example, when forming 16 gauge mild steel using a 1/2-inch (0.0127-meter) opening distance, the part has a bend radius of about 0.078 inches. If the bending radius is almost as small as the material thickness, bottomed concave molding must be performed. However, the pressure required for bottomed die forming is about 4 times greater than free bending.
If the bending radius is smaller than the material thickness, a punch with a front-end fillet radius smaller than the material thickness must be used, and the impression bending method must be resorted to. In this way, 10 times the pressure of free bending is required.
In terms of free bending, the punch and die should be processed at 85° or less (smaller is better). When using this set of dies, pay attention to the gap between the punch and the die at the bottom of the stroke, and the excessive bending that is enough to compensate for springback and keep the material at about 90°.
Generally, the springback angle of the free bending die on the new bending machine is ≤2°, and the bending radius is equal to 0.156 times the opening distance of the die. For bottomed concave mold bending, the mold angle is generally 86 ~ 90°. At the bottom end of the stroke, there should be a gap slightly larger than the thickness of the material between the male and female dies. The forming angle is improved because the bottomed die bends at a larger tonnage (approximately 4 times that of free bending), reducing stresses within the bend radius that typically cause springback.
Imprint bending is the same as bottomed die bending, except that the front end of the punch is processed into the required bending radius, and the gap between the punch and die at the bottom of the stroke is smaller than the material thickness. Since sufficient pressure (about 10 times that of free bending) is applied to force the front end of the punch to contact the material, springback is basically avoided.
In order to select the lowest tonnage specification, it is best to plan for a bend radius greater than the thickness of the material and use free bending methods whenever possible. When the bending radius is large, it often does not affect the quality of the finished part and its future use.

Curvature

Bending accuracy requirements are a factor that needs to be carefully considered. It is this factor that determines whether to consider a CNC bending machine or a manual bending machine. If the bending accuracy requires ±1° and cannot be changed, you must focus on CNC machines.
The repeatability of the slider of the CNC bending machine is ±0.0004 inches. Forming precise angles requires the use of such accuracy and good molds. The repeatability of the slider of the manual bending machine is ±0.002 inches, and when a suitable mold is used, a deviation of ±2~3° will generally occur. In addition, CNC bending machines are ready for rapid mold setting, which is an unquestionable reason to consider when many low-volume parts need to be bent.

Mold

Even if you have a shelf full of molds, don’t think that these molds are suitable for the newly purchased machine. Each piece of mold must be checked for wear by measuring the length from the front of the punch to the shoulder and the length between the shoulders of the female mold.
For conventional molds, the deviation should be around ±0.001 inches per foot, and the total length deviation should be no greater than ±0.005 inches. As for precision ground dies, the accuracy should be ±0.0004 inches per foot and the total accuracy should not be greater than ±0.002 inches. It is best to use precision ground molds for CNC bending machines and conventional molds for manual bending machines.

Side length of bending part

Assuming a 90° bend along a 5-by-10-foot, 10-gauge mild steel plate, the press brake would have to apply an additional 7.5 tons of pressure to lift the plate, and the operator would have to be prepared for a 280-pound straight-edge drop. . Making the part may require several able-bodied workers or even a crane. Press brake operators often bend long-sided parts without realizing how strenuous their work is. [2]

Summary

Sheet metal bending machines play a vital role in modern manufacturing. It not only improves production efficiency and product quality, but also promotes innovation and development of product design, and is of great significance in promoting the development and progress of manufacturing.

As a leading Press Brake manufacturer and brand, KRRASS® is proud to present and supply our various types of high quality Press Brake Machine to customers worldwide. Harness the strength and precision of our high-quality bending machines, which is a testament to KRRASS®’s relentless pursuit of perfection. Backed by extensive cooperation with renowned global brands, and supported by innovative ideas at our headquarter R&D center, our bending machines embody the pinnacle of sheet metal processing technology.
