Types of Sheet Metal Bending Machines: Ultimate Guide

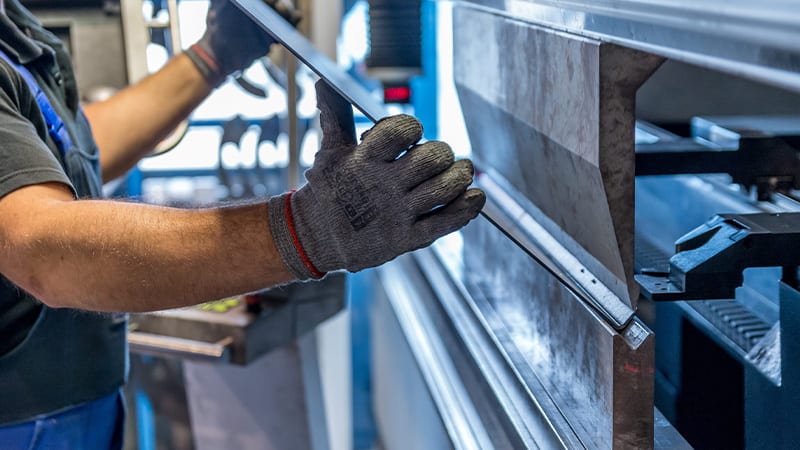

types of sheet metal bending machines

Bending machines are integral to the manufacturing industry and come in various types and sizes. With further classification based on features, characteristics, and applications, choosing the right tool for your business can be daunting. To aid in your decision-making process, we’ll explore six major types of sheet metal bending machines and their applications in modern manufacturing. Let’s dive in!

What Is a Sheet Metal Bending Machine

Bending machines are industrial tools used to shape metal parts at different angles. These machines apply pressure evenly, minimizing the risk of metal fatigue and breakage during the bending process. They are compatible with various materials, including steel, copper, aluminum, and even tougher ones like titanium.

The art of bending, a crucial technique in manufacturing, has been practiced since the early metal ages. From shaping basic tools to crafting intricate metal works, bending has remained a fundamental skill throughout history. Even today, metal bending machines are in high demand across aerospace, construction, and automotive industries.

According to FMI, sales of metal sheet bending machines are expected to grow to $1,344.60 million by 2034, up from the current valuation of $1,020.1 million in 2024.

In addition to major industries, bending machines are widely used in various applications, including hospital furnishings, boat and swimming pool equipment, road signs and posters, bathroom fixtures, taps and faucets, as well as prams and pushchairs.

types of sheet metal bending machines

What Are the Functions of a Sheet Metal Bending Machine?

A bending machine is basically a forging machinery that plays a key role in sheet metal processing, especially for large sheets. Its functions range from bending and stretching to rounding and punching metals. So you can imagine the possibilities it offers across industries- light industry, aviation, shipbuilding, metallurgy, instrumentation, and more!

The workbench, made up of a base and pressure plate, sits on the bracket. The base connects to the clamping plate through a hinge mechanism. Within the base, you’ll find essential parts like seat shell housing and coil structure that are covered with protective plates.

All these elements make sure that when metals are placed between them for bending purposes, they can be securely held in place while receiving force from the machine. When the wire is connected to the coil, it creates an attractive force on the pressure plate. This forces the thin plate to be clamped between the pressure plate and the base.

Because the system uses electromagnetic force binding, the pressure plate can be shaped to fit a variety of workpiece needs. It can also process pieces that have side walls. You can replace the bending machine mold and can meet your diverse demands.

Advantages of Sheet Metal Bending Machines

Precision and Accuracy: Sheet metal bending machines are designed to provide high levels of precision, ensuring that each bend is consistent and meets specified angles and dimensions. This accuracy is crucial in industries where tolerances are tight.

Versatility: These machines can bend various materials, including different types of metals like aluminum, steel, and copper. They can also handle a range of thicknesses, making them suitable for a wide array of applications.

Efficiency: Modern sheet metal bending machines are equipped with advanced technology that speeds up the bending process. This efficiency reduces production time and increases output, benefiting manufacturers in terms of productivity.

Reduced Material Waste: With precise bending capabilities, these machines minimize the risk of over-bending or under-bending, leading to less scrap material. This can result in significant cost savings over time.

Durability and Longevity: Built to withstand heavy use, sheet metal bending machines are made from high-quality materials that ensure durability. This longevity translates to a lower overall cost of ownership for businesses.

Improved Safety: Many modern bending machines come with safety features that protect operators during the bending process. This enhances workplace safety and reduces the risk of accidents.

Customization Options: Many bending machines offer customization features, allowing users to program specific bends and shapes. This flexibility is ideal for manufacturers who need to produce unique or complex designs.

Ease of Use: User-friendly interfaces and automation in many sheet metal bending machines simplify operation, allowing even less experienced operators to achieve quality results with minimal training.

Support for Automation: Some sheet metal bending machines can be integrated into automated production lines, enhancing overall workflow and efficiency. This capability is particularly advantageous for high-volume manufacturing.

Adaptability: These machines can be adapted to various industries, from automotive to aerospace, making them an essential tool for many manufacturing processes.

By leveraging these advantages, businesses can enhance their manufacturing capabilities, improve product quality, and reduce operational costs.

Main Components and Structure of the Bending Machine

We previously touched on the essential components of a bending machine when discussing its functions. Now, let’s delve deeper into these critical parts:

1. Bend Die

The bend die, also referred to as the bend form or radius die, is a vital component of rotary-draw bending machines. Its primary role is to shape the tube during the bending process, allowing it to achieve the desired curvature. Selecting the appropriate bend die is crucial, as it directly impacts how well the tubes adhere to specific radii. When working with applications that demand tight bends with small radii, choosing a high-quality bend die becomes even more critical.

2. Clamp Die

The clamp die secures the tube onto the bend die, preventing any slipping during the bending operation. This component is essential for providing stability and accuracy, which are necessary for achieving precise bends in metal tubes or pipes. For instance, when using a pipe bending machine to create intricate forms or angles on a stainless steel pipe, the clamp die firmly holds it against the bend die, minimizing movement that could lead to errors.

3. Pressure Die

The pressure die ensures that the tube or sheet metal accurately conforms to the contour of the bend die. This component applies consistent and even pressure throughout the bending process, resulting in precise bends. Think of it as a guiding hand, maintaining uniformity and accuracy with each bend.

4. Wiper Die

Located immediately after the bend die, the wiper die serves to prevent the formation of humps in the inner radius during the bending process. As the material becomes plastic and starts to deform, it can create wrinkles and larger deformations. Incorporating a wiper die after the bend die effectively mitigates these issues, resulting in smoother bends.

5. Mandrel

When bending steel and aluminum tubes, the mandrel plays a critical role in achieving satisfactory results. Its main function is to prevent the tube from collapsing during the bending operation, ensuring precise and consistent bends each time. The mandrel becomes particularly necessary for challenging tasks, such as bending small radii or working with thin tubes or harder materials. Without a mandrel, a delicate tube might collapse under pressure, jeopardizing the entire bending process. Therefore, this handy component is essential for successful tube bending operations.

Understanding these components is crucial for anyone involved in the bending process, as they collectively contribute to the machine's overall performance and the quality of the finished product.

Types Of Bending Machines Overview

Generally, bending machines are categorized into six main types, as listed below. However, they can also be further classified based on specific characteristics, features, or applications. For instance, there are wire-bending machines specialized for wire manipulation. We will discuss each type in detail in a later section.

  • Sheet Metal Bending Machine
  • Pipe Bending and Plate Bending Machine
  • Press Brake Machine
  • Plate Rolling Machines
  • Mechanical Bending Machine
  • Hydraulic Bending Machine

Common Types of Sheet Metal Bending Machine and Application

Pipe Bending Machine

A pipe bending machine is a valuable tool used for shaping metal pipes and profiles into different shapes. Typically, these machines are designed to work with square or rectangular profiles made of thick metals.

The process involves stretching the material using friction between the pipes and the bending tools. Pipe benders also perform operations like swaging, flaring, and crimping. To ensure smooth bending, drawing oil can be applied between the pipes and the tools. That’ll reduce friction and prolong the life of both.

It’s capable of handling different materials such as stainless steel, iron, copper, aluminum, titanium, and carbon steel. With this machine, you receive uniform curves without worrying about external collapses or internal folds. Pipe benders find extensive use in construction projects like buildings, highways, railways, bridges, etc.

Metal Sheet Bending Machine

It’s an incredibly versatile tool that’s used to shape sheet metal into specific profiles. When using this machine, the metal sheet is placed on the lower die of the workbench and pressed by punches. The power system drives the movement of the slider, causing the punch to move downwards. That results in precise bends!

This type of machine can bend not only metal sheets but also pipes at any desired angle. Sheet metal bending machines are ideal for processing larger workpieces that may be too challenging for other machines to handle. The clamping shaft securely holds each workpiece in place. At the same time, folding arms swing in an arc motion to achieve perfect flange angles.

Plate Rolling Machine

The pyramid-type mechanical marvel called the plate rolling machine is designed for bending and forming metal plates. It’s equipped with a motor and gear system, and the bottom roller powers its rotation. Meanwhile, the upper roller can be manually adjusted up and down to achieve the desired bending radius.

One notable feature of the steel plate bending machine is its double-sided pre-clamping device. It’s a unique structure that allows both bottom rollers to clamp the workpiece securely in place. Also, there are hydraulic cylinders that lock down the upper roller firmly via these two lower rollers.

Press Brake

When it comes to bending metal plates, the press brake is the go-to machine. It offers accuracy and speed while processing workpieces in bulk. You can find different types of press brakes available, and they are usually powered by hydraulic or mechanical systems.

The secret behind the precision lies within the three shafts of its rear gauge. They provide control over stroke length and bending angle. So whether you need precise bends for automotive parts or intricate shapes for architectural elements, a press brake can handle it all with ease.

Mechanical Bending Machine

A mechanical bending machine allows for precision customization according to your specifications. That’s because it does not use stationary dies like traditional bending machines.

The accuracy of a mechanical bending machine relies on factors such as material properties and the degree of bend required. With different types available, let’s explore two popular options:

  1. Sheet Metal Bending Machine: This type bends sheet metal based on radial length and width limitations determined by its length (L). Some models even have automated features that can calculate reduction amounts and pre-bend lower roll lengths.
  2. Hydraulic Press Brake: It utilizes hydraulic systems for upper die movement. Hydraulic press brakes save time and labor while offering versatility across various applications. Enjoy easy operation with safety measures like fully guarded footswitches!

Want to achieve optimal results? When choosing a mechanical bending machine, always ensure it aligns with your specific requirements.

Hydraulic Bending Machine

The hydraulic bending machine comprises several key components: a workbench, support structure, clamping plate, and pressure plate. The clamping action can be controlled either manually or automatically using a foot pedal. Within the machine's base, a movable coil is present, which is energized by a wire connected to a hydraulic cylinder.

One of the main advantages of hydraulic bending machines is their flexibility and portability. They provide a cost-effective alternative to traditional machines while efficiently handling both small and large pipes. These machines are highly valued in industries such as automotive and chemical production, where precision bending is essential due to their versatility.

Another variation of this technology is the hydraulic press brake, which employs mechanical blocks operated by hydraulic systems instead of coils. This design facilitates effortless bending of metal components.

What Are the Different Forms of Metal Bending?

  • Air Bending: It’s a way to shape things by pressing a punch into them.
  • Bottoming: In this process, a piece of sheet metal is pressed against a V-shaped bottom die.
  • Coining: During coining, the hole and the bottom of the object are on the die.
  • Three-point Bending: You need a movable die to do three-point bending, which is a fairly new way to bend metal.
  • Folding: This method changes the shape of sheet metal parts by cold forming them along straight lines across their whole length.
  • Rotary Draw Bending: In this cold bending method, the piece is clamped to a spinning bend die and pulled around it.
  • Compression Bending: One older way to bend is called compression bending. It is often used on building sites to bend rebar or electrical cables.
  • Elastomer Bending: In this process, a flat pad made of urethane or rubber is used instead of the bottom V-die. The urethane bends as the punch shapes the part, letting the material form around the punch.

Apart from these popular methods, there are wiping, roll bending, roll forming, and stretch bending that are handy and effective for specific roles!

Brief Overview of Different Bending Machine Types

Bending Machine TypeDescriptionApplications
Sheet Metal Bending MachineSpecifically designed for bending metal sheets of various thicknesses into intricate shapes. Common tasks include bending, curving, and folding metal plates at different angles.Automotive body panels, electronic enclosures, HVAC ducts
Pipe Bending MachineBends cylindrical or rectangular metal pipes, tubes, rods, or channels into desired shapes while maintaining consistent internal dimensions.Plumbing, HVAC tubing, exhaust pipes, handrails
Press Brake MachineBends industrial metal plates and sheets using punch and die components with powerful brakes. Allows for the creation of complex shapes and designs.Heavy machinery, construction, automotive body panels
Plate Rolling MachineBends thick metal plates using a system of rollers, allowing for the creation of large workpieces.Petrochemical tanks, aerospace components, mining equipment
Mechanical Bending MachineRelies on motors, wheels, pulleys, levers, and gears to bend metal sheets, pipes, and tubes.Small to medium-scale construction, automotive, plumbing
CNC Hydraulic Bending MachineUtilizes hydraulic actuation guided by CNC systems to transmit high force on workpieces, enabling precise and efficient bending.Aerospace, automotive, heavy equipment, shipbuilding

9 Factors to Consider When Selecting a Sheet Metal Bending Machine

Now that we’ve covered the basic types of bending machines let’s explore some essential factors to consider when choosing the best product for your business.

1. Bend Accuracy

Evaluate the machine’s ability to achieve precise bend angles and lengths for accurate part production. You can order sample products from the manufacturer.

2. Material Ductility

 Select a machine suitable for the material’s ductility to ease the bending process.

3. Number of Tool Stacks

Always select a machine with multiple tool stacks for increased flexibility and efficiency.

4. Production Volume

Consider the machine’s throughput and efficiency to meet production demands effectively.

5. Automation and Control

Assess the level of automation and control features for optimized operation and reduced setup time. However, higher automation levels also increase the upfront cost of the machine.

6. Maintenance and Support

Look into the machine’s maintenance requirements and the availability of support services to ensure smooth operation over time.

7. Warranty Specifics

Check the manufacturer’s warranty for coverage of essential components and common issues, ensuring peace of mind and investment protection. Inquire about the accidental damage policy during shipping.

8. Shipping Costs

Consider shipping expenses, especially for overseas purchases. Compare options and factor in additional fees to determine the total cost.

9. After-Sales Services

Evaluate the manufacturer’s reputation for helping with technical issues, having spare parts, and doing maintenance. Good support reduces downtime and makes the machine last longer.

Summary

Understanding the various types of sheet metal bending machines is essential for any industry involved in metal fabrication. From pipe bending machines to press brakes and plate rolling machines, each type is designed for a specific purpose, helping to create precise bends and shapes tailored to your needs.

At Fab-Line Machinery, we specialize in delivering high-quality sheet metal bending machines, including advanced press brakes, to meet the unique demands of your business. Our wide range of products ensures you can easily find the right solution for all your bending requirements.

Enhance your manufacturing process with cutting-edge types of sheet metal bending machines from Fab-Line Machinery. Contact us today or explore our website to discover how we can help you maximize efficiency and productivity with the best bending solutions!
