Troubleshooting Common Issues in Ironworker Machines


Ironworker machines are common critical equipment in manufacturing industries, used for cutting, punching, and bending operations on metal workpieces. However, like any mechanical equipment, ironworker machines may encounter various common issues. In this article, we will discuss several common faults of ironworker machines and provide solutions to help you quickly restore production and minimize downtime.

1. Tool Wear or Damage

Ironworker machines are the backbone of many manufacturing and construction industries, providing essential services such as cutting, punching, and bending of metal materials. However, like any mechanical equipment, they are prone to tool wear and damage, which can significantly impact their performance and the quality of work produced. Understanding the signs of wear and damage and knowing how to address them is crucial for maintaining the efficiency and longevity of these machines.

Identifying the Signs of Tool Wear

Tool wear is a gradual process that occurs over time as the machine performs its tasks. It’s important to recognize the early signs of wear to prevent further damage and maintain operational efficiency.

Early Indicators of Wear

  • Decreased Precision: As tools begin to wear, the precision of cuts and punches may decrease, leading to less accurate work.
  • Increased Operation Time: Worn tools may require more time to complete the same tasks, reducing overall productivity.
  • Excessive Force Requirement: Operators might need to apply more force to achieve the desired results, which can be a clear indicator of tool wear.

Advanced Wear Symptoms

  • Visible Deterioration: Tools may show visible signs of wear such as thinning, pitting, or flattening on the cutting edges.
  • Frequent Tool Breakage: An increase in the frequency of tool breakage can be a sign that the tools have worn beyond their functional limit.

Recognizing the Signs of Tool Damage

Tool damage, unlike wear, can occur suddenly and is often the result of accidents, misuse, or lack of maintenance.

Common Forms of Damage

  • Cracks and Chips: These can be caused by overloading the machine or using it for unsuitable materials.
  • Deformation: Tools may become bent or misshapen, often due to improper use or handling.
  • Breakage: Sudden tool breakage is a clear sign of damage, which can halt production and require immediate attention.

Implementing Solutions for Tool Wear and Damage

Once the signs of wear or damage have been identified, it’s important to take the necessary steps to rectify the issues.

Strategies for Mitigating Tool Wear

  1. Regular Inspections: Conduct thorough inspections of tools before and after each use to catch early signs of wear.
  2. Scheduled Replacements: Follow the manufacturer’s guidelines for tool replacement intervals to ensure tools are always in good condition.
  3. Proper Usage: Train operators on the correct use of ironworker machines to prevent premature wear and damage.

Approaches to Repairing Tool Damage

  • Immediate Action: Damaged tools should be taken out of service immediately to prevent further damage to the machine or materials.
  • Professional Repair or Replacement: Consult with a professional to determine whether a damaged tool can be repaired or if it needs to be replaced.

By proactively managing tool wear and damage, operators can ensure that their ironworker machines continue to operate at peak performance, contributing to the overall productivity and success of their operations. Remember, an ounce of prevention is worth a pound of cure, especially when it comes to maintaining industrial machinery.

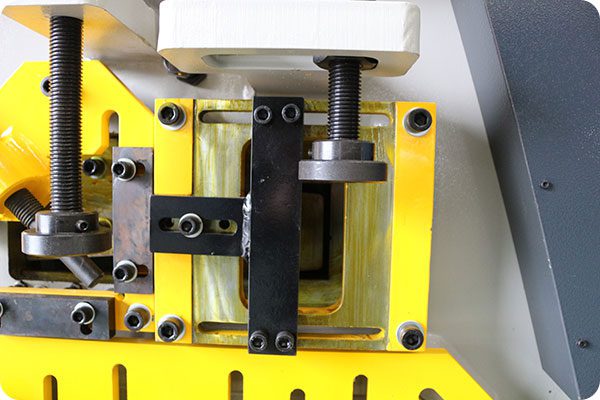

Hydraulic Ironworker Machine by KRRASS Machine Tool

2. Hydraulic System Failures

Ironworker machines are indispensable in metal fabrication, providing the muscle for heavy-duty tasks such as punching, shearing, and notching. The hydraulic system is the heart of these robust machines, driving their various functions with precision and force. However, hydraulic system failures can be a significant setback, affecting productivity and safety. Let’s delve into the common issues and their detailed solutions to maintain the operational integrity of ironworker machines.

Low Hydraulic Fluid Levels

Maintaining Optimal Fluid Levels Low hydraulic fluid levels are more than just a minor inconvenience; they are a critical issue that can lead to severe consequences like cavitation. This phenomenon occurs when the hydraulic fluid is insufficient to fill the pump’s intake, causing the formation of vapor cavities in the fluid. These cavities implode when compressed, causing shock waves that can damage the hydraulic components.

Preventive Measures and Solutions

  • Regular Monitoring: Implement a routine to check the hydraulic fluid levels at the start and end of each shift. This simple step can prevent unexpected downtimes.
  • Correct Refilling Procedures: When adding fluid, ensure that it matches the type specified by the manufacturer and fill it to the recommended level. Overfilling can be just as detrimental as low levels.
  • Cavitation Awareness Training: Educate machine operators on the signs of cavitation, such as erratic machine movements or unusual noises, to catch issues early.

Leaking Hydraulic Hoses

Combatting Hose Leaks Hydraulic hose leaks can lead to a drop in pressure, compromising the machine’s ability to perform its functions. These leaks are often due to the natural wear and tear of the hoses, abrasion from surrounding components, or improper installation that leads to undue stress on the hose.

Detailed Inspection and Maintenance

  • Visual Inspections: Conduct thorough visual inspections for any signs of wear, such as exposed reinforcement wires or significant scuffing.
  • Hose Management: Keep a log of hose installation dates and replace them proactively based on usage rather than waiting for a leak to occur.
  • Proper Installation Practices: Ensure that hoses are installed without twists and turns that can cause weak points, and use protective sleeves to guard against abrasion.

Contaminated Hydraulic Fluid

Ensuring Fluid Purity Contamination of hydraulic fluid is a silent killer for ironworker machines. Particles of dirt, debris, or water can enter the system, causing abrasion and corrosion of internal components, leading to a gradual decline in performance and eventual failure.

Contamination Control Strategies

  • Filtration Systems: Use high-quality filtration systems to remove particulate matter from the fluid. Regularly replace filters according to the maintenance schedule.
  • Fluid Analysis: Periodically send out hydraulic fluid samples for analysis to detect contamination levels and take corrective action before it leads to system failure.
  • Seal Integrity: Check the integrity of seals and gaskets regularly to prevent external contaminants from entering the hydraulic system.

By addressing these hydraulic system failures with thorough understanding and proactive measures, the reliability and efficiency of ironworker machines can be significantly enhanced. Regular maintenance, combined with vigilant monitoring, ensures that these powerful machines continue to operate smoothly, supporting the demanding tasks they are designed for. Remember, a well-maintained hydraulic system is the key to the longevity and peak performance of ironworker machines.

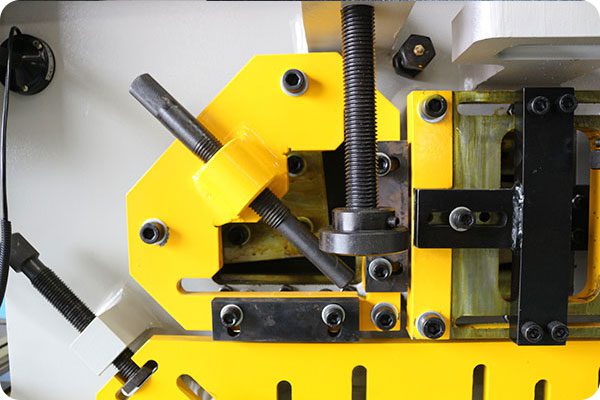

Hydraulic Ironworker Machine by KRRASS Machine Tool

3. Electrical Failures

Electrical problems in ironworker machines can lead to significant operational disruptions. These complex machines rely on a well-functioning electrical system to perform various tasks with high precision and efficiency. Addressing electrical issues promptly and effectively is crucial to maintaining the productivity and safety standards of the workplace.

Faulty Wiring Connections

Securing Electrical Integrity Faulty wiring connections can be a source of numerous electrical issues in ironworker machines. These problems may manifest as sporadic machine behavior, reduced performance, or even pose potential safety risks.

Expanding on Troubleshooting

  • Inspection Routines: Establish a routine inspection schedule to examine wiring connections for signs of wear, corrosion, or looseness.
  • Upkeep and Repair: Utilize contact cleaners and protective coatings to prevent corrosion and ensure good electrical contact.
  • Training for Maintenance Staff: Provide specialized training for maintenance staff to identify and rectify wiring issues, ensuring they are equipped with the right tools and knowledge.

Blown Fuses or Tripped Circuit Breakers

Protecting Against Overcurrent Blown fuses or tripped circuit breakers in ironworker machines are often indicators of deeper electrical issues that need immediate attention.

Delving into Preventive Measures

  • Load Management: Monitor the electrical load on the machine to prevent overcurrent situations that can lead to blown fuses or tripped breakers.
  • Regular Component Testing: Test electrical components regularly for signs of wear or damage that could contribute to electrical faults.
  • Up-to-Date Electrical Diagrams: Keep electrical diagrams and schematics up-to-date to assist in troubleshooting and identifying potential overload points.

Malfunctioning Control Panel

Ensuring Reliable Machine Control The control panel is the command center of ironworker machines, and any malfunction can impede the machine’s operation and the operator’s control.

Enhancing Control Panel Functionality

  • Interface Maintenance: Maintain the cleanliness and functionality of the control panel interface to prevent malfunctions.
  • Component Upgrades: Consider upgrading control panel components to more robust and reliable versions if malfunctions become frequent.
  • Technical Support: Develop a relationship with technical support providers who can offer quick and effective solutions when control panel issues arise.

By thoroughly understanding and addressing these electrical problems, operators and technicians can ensure that ironworker machines operate safely and efficiently. Proactive maintenance and timely troubleshooting are key to preventing minor issues from becoming major setbacks, keeping the machines—and the businesses that rely on them—running smoothly. Remember, electrical health is vital for the optimal performance of ironworker machines and the safety of those who operate them.

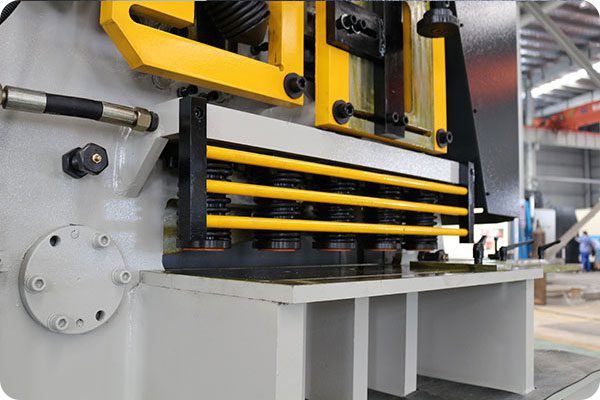

Hydraulic Ironworker Machine by KRRASS Machine Tool

4. Mechanical Problems

Mechanical problems in ironworker machines can significantly impact their efficiency and the quality of work. These robust machines are vital to the metalworking industry, and keeping them in top condition is essential for uninterrupted operation. Let’s explore the common mechanical issues in more detail and discuss the best practices for troubleshooting and maintenance.

Worn Punches and Dies

Extending the Life of Tooling Components Punches and dies are subject to intense forces during metal fabrication processes. Over time, this stress can lead to wear and damage, which, if not addressed, can compromise the integrity of the work produced.

Comprehensive Care for Punches and Dies

  • Regular Inspections: Implement a schedule for inspecting punches and dies for wear and damage. Look for signs such as chipping, cracking, or dullness that can affect performance.
  • Replacement Strategy: Keep a stock of replacement punches and dies that match the specifications required for your operations. This ensures minimal downtime when replacements are needed.
  • Quality Tooling: Invest in high-quality tooling that can withstand the demands of heavy use and provide longer service life.

Misalignment of Tooling

Achieving Precision in Metalworking Proper alignment of tooling is critical for precision in metalworking. Misalignment can cause a host of issues, from poor-quality cuts to increased wear on the machine.

Alignment Optimization Techniques

  • Precision Checks: Use precision instruments to check the alignment of punches, dies, and other tooling components regularly.
  • Alignment Corrections: Employ alignment tools or shims to make fine adjustments to the tooling to ensure that every punch and cut is accurate.
  • Operator Training: Train operators to recognize the signs of misalignment and to perform basic alignment checks as part of routine machine operation.

Lubrication Issues

Maintaining Smooth Operation Lubrication is the lifeblood of any mechanical system. In ironworker machines, proper lubrication is necessary to reduce friction and prevent wear on moving parts.

Lubrication Best Practices

  • Lubrication Schedule: Adhere to the manufacturer’s recommended schedule for lubricating the machine’s moving parts.
  • High-Quality Lubricants: Use lubricants that are designed to withstand the specific conditions of metalworking, such as high temperatures and heavy loads.
  • Regular Maintenance: Incorporate lubrication checks into regular maintenance routines. Ensure that all lubrication points are clean and free of debris before applying new lubricant.

5. Cooling System Malfunction

Ironworker machines are the stalwarts of the metalworking industry, but they are not immune to the heat they generate. A robust cooling system is essential to prevent overheating, which can lead to machine downtime or, worse, damage to critical components. Let’s delve deeper into the intricacies of cooling system malfunctions and the proactive measures needed to keep these machines running cool.

The Heat is On: Understanding Thermal Dynamics

The Thermal Challenges in Ironworking

  • Intense Operations: The sheer force required to punch, shear, and notch thick metal generates a significant amount of heat.
  • Continuous Use: During peak production times, ironworker machines may operate continuously, increasing the thermal load on the system.

Detecting Overheating: The Warning Signs

Keeping a Thermal Eye Open

  • Temperature Gauges: Keep an eye on temperature gauges; if they’re inching into the red, it’s a sign of trouble.
  • Material Discoloration: If the materials being worked on start showing unusual colors, it could be due to excessive heat affecting the metal’s properties.

Coolant: The Lifeblood of the Cooling System

Ensuring Optimal Coolant Performance

  • Coolant Composition: Regularly test the coolant for proper chemical balance to ensure it’s effectively absorbing and dissipating heat.
  • System Flushes: Periodically flush the system to remove any sediment or buildup that could impede coolant flow.

Troubleshooting 101: Cooling System Edition

Steps to Alleviate Overheating

  • Inspections: Conduct detailed inspections of the cooling system, looking for any signs of wear or damage to hoses, pumps, and radiators.
  • Airflow: Ensure there’s adequate airflow around the machine; sometimes, the solution is as simple as repositioning the machine or improving workshop ventilation.

Preventive Measures: Staying Cool Under Pressure

Proactive Cooling System Care

  • Scheduled Downtime: Plan for regular downtime to allow the machine to cool, especially after heavy use.
  • Upgrade Options: Explore options for upgrading the cooling system to a more advanced setup if your machine is consistently running hot.

By thoroughly understanding and maintaining the cooling system, you can ensure that your ironworker machines operate efficiently without the risk of overheating. Regular maintenance, combined with vigilant monitoring of the system’s performance, will help prevent cooling system malfunctions and extend the lifespan of your valuable equipment. Remember, a cool machine is a happy machine, and a happy machine means a productive and safe work environment. Stay vigilant, stay cool, and keep your ironworker machines in top shape.

6.Operator Skill Deficiency

In the world of metal fabrication, ironworker machines are a true test of skill and precision. However, even the most advanced machines are only as good as their operators. A deficiency in operator skill can lead to a cascade of issues, from minor errors to catastrophic failures. This section of our blog delves into the importance of skilled operation and how to address the skill gaps that may arise.

The Impact of Skill Deficiency

Recognizing the Risks

  • Increased Downtime: Incorrect operation can lead to frequent machine stoppages.
  • Safety Hazards: Untrained operators may inadvertently create safety risks for themselves and others.
  • Reduced Quality: Lack of skill can result in subpar work, affecting the overall quality of the output.

Building a Foundation of Knowledge

The Pillars of Proper Training

  • Comprehensive Onboarding: New operators should undergo a thorough introduction to the machines they will be working with.
  • Ongoing Education: Regular training sessions help operators stay up-to-date with the latest techniques and safety standards.

Crafting Expert Operators

Steps to Excellence

  • Hands-On Experience: There’s no substitute for actual time spent on the machine, learning its quirks and capabilities.
  • Mentorship Programs: Pairing less experienced operators with veterans can facilitate knowledge transfer and build confidence.
  • Certification Processes: Implementing a certification program can ensure a standardized level of competency among operators.

The Role of Management in Skill Development

Fostering a Culture of Continuous Improvement

  • Investment in Training: Allocating resources for training programs demonstrates a commitment to quality and safety.
  • Recognition and Rewards: Acknowledging skill development encourages operators to take ownership of their growth.
  • Feedback Mechanisms: Constructive feedback helps operators understand areas for improvement and how to address them.

By prioritizing operator skill development, we can ensure that ironworker machines are used to their fullest potential, reducing the likelihood of failures and maximizing productivity. Skilled operators are the backbone of any successful operation, and investing in their growth is investing in the future of the business. Remember, when operators thrive, the whole workshop thrives.

Conclusion

As we’ve explored throughout this blog, ironworker machines are complex beasts that require a keen understanding of their mechanical, electrical, and operational aspects to keep them running smoothly. From the heat of the cooling system malfunctions to the precision needed in aligning tooling components, each challenge has its unique set of solutions. We’ve seen how operator skill plays a pivotal role in the machine’s performance and the importance of regular maintenance to prevent mechanical wear and tear. Electrical problems, if left unchecked, can lead to safety hazards, while hydraulic system failures can bring operations to a grinding halt.

The key takeaway is that proactive troubleshooting and preventive maintenance are not just good practices—they are essential for the longevity and efficiency of ironworker machines. By equipping operators with the right training and knowledge, and by paying close attention to the machine’s needs, businesses can ensure that their ironworker machines continue to serve them well.

And for those in the market for a reliable and efficient ironworker, look no further than KRRASS. Our hydraulic ironworker machines are designed with the user in mind, providing top-notch performance and durability. Whether you’re punching, shearing, or notching, KRRASS ironworkers are the workhorses that won’t let you down. Looking for a capable ironworker? Our machines are the choice par excellence. Trust KRRASS to deliver the quality and reliability your operations demand.
