The main component of fiber laser cutting machine

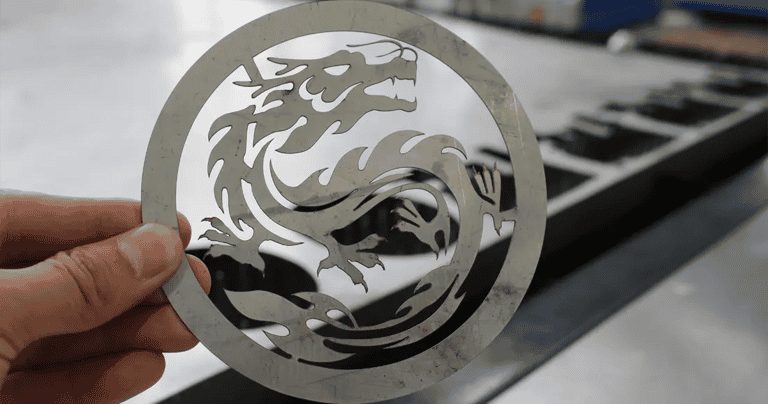

Fiber laser cutting machine sample display thumb

Fiber laser cutting machine emits laser beams from the laser device , laser passes through the optical path system, gathered into high temperature, pressure and density laser beam. The laser beam is irradiated on the surface of the object, which can make the object quickly reach the melting and boiling point. At the same time, the high-pressure gas produced by the laser can blow away the melted or vaporized material. The laser cutting machine can be used for cutting a variety of materials, it is widely used, and can be used for plate cutting, cloth, leather, graphic engraving, signs, badges, logos, educational toys, handicrafts, small toys, fitness equipment, medical equipment and so on.

Due to the different types of fiber laser cutting machines on the market, it can be difficult to decide which one is the best for your needs. But don’t worry, KRRASS are here to help!

Which parts are the laser cutting machine mainly composed of?

1. Mainframe

Fiber laser cutting machine table: used to control the working process of the entire cutting device, all the working instructions of the laser cutting machine are issued from the table. The machine tool part of the laser cutting machine realizes the movement of X, Y and Z axes. When the laser is cutting, the workpiece must be placed on the workbench first, and then the motor is driven, and the user can adjust the parameters of the laser according to their own needs.

2. Laser cutting head

Cutting head is the output device of laser cutting machine, which mainly includes cavity, nozzle, focusing lens, capacitive sensor and other parts. The laser cutting head will process the workpiece according to the cutting path set by the laser cutting machine.

3. Laser

Laser is the core component of laser cutting machine. It’s the motor of a beautiful machine. High-quality lasers have higher photoelectric efficiency, longer service life, and less maintenance costs.

4. Water cooler

The water cooler is the cooling device of the laser cutting machine, which can quickly cool the hot laser in the production process of the laser cutting machine. Now the function of the water cooler is more advanced and the performance is more stable.

5. Laser numerical control system

The machine tool part of the laser cutting machine realizes the movement of the X, Y and Z axes, and also controls the output power of the laser.

6. Gas bottle

The fiber laser cutting machine working medium gas bottle and auxiliary gas bottle are used to supplement the auxiliary gas used in the cutting head of the laser cutting machine.

7. Air cooling desiccant and filter

It can provide the laser with dry and clean air to maintain the normal operation of the path.

8. Gas supply system

The gas supply system of the fiber laser cutting machine includes an air source, a filter device and a pipeline. The main forms of gas cylinders are bottled gas, liquefied gas, compressed air.

9. Regulated power supply

A device that links the laser, CNC machine tool, and the power supply system. The main function is to prevent grid interference.

Above points are the key components of laser cutting machine, because of the different model and brand, its composition of the components are different. So, when choosing a fiber laser cutting machine, it is necessary to combine the production purposes and usage scene.

Which laser cutting machine is right for you?

If you need any questions answered or to discuss your fiber laser cutting machine requirements for your unique business, please contact us today on 0086 18952087956 or using our online contact form.

KRRASS Machine Tools mainly producing fiber laser cutting machine, plasma cutting machine, press brake, plate rolling machine, shearing machine and other related sheet metal processing and forming products.
