The Comprehensive Guide to Press Brake Operation Basics

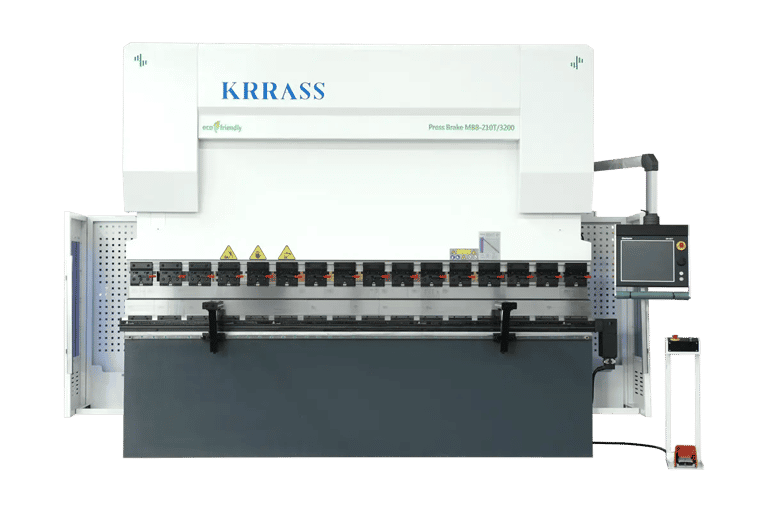

Press brake China CNC Press Brake Machine

In the ever-changing manufacturing industry, using a press brake to bend metal is a common metal forming method used to create finished products from metal materials. The job of bending metal may seem simple, but it actually requires a variety of skills and complex tools to perform correctly. The press brake is one such tool that is capable of bending even the largest sheet metal, making it an indispensable and critical piece of equipment in the sheet metal forming and shaping process. These machines offer extraordinary precision and versatility and are indispensable in a variety of industrial processes. However, a variety of press brakes exist to meet changing bending needs. This guide delves into the nature of press brakes, their evolution, and most importantly, their basic operation.

1. What Is a Press Brake?

Introduction to Press Brakes

A press brake is a metalworking machine designed primarily for bending sheet and plate material, typically made of metal. It forms predetermined bends by clamping the workpiece between a matching punch and die, delivering precise fabrication for various industries. The press brake is instrumental in metalworking, often used to produce components for vehicles, aircraft, and construction equipment.

The Rise of Hydraulic Press Brakes

The advent of better hydraulics and computer controls has made hydraulic press brakes the most popular choice today. These machines are controlled by either NC (Numeric Controlled) or CNC (Computer Numeric Controlled) systems. While pneumatic and servo-electric machines are suitable for lower tonnage applications, hydraulic brakes produce accurate, high-quality products and are safer due to their ability to stop the ram motion promptly in response to safety devices.

Advancements in Press Brake Technology

One recent improvement in press brakes is the back gauge, a device used to accurately position the workpiece. The back gauge ensures that bends are placed precisely, and it can be programmed to move between bends for complex part production. Early press brakes relied on tooling to determine bend angles, but modern back gauges enhance precision and repeatability.KRRASS CNC Press Brake with DA58T

2. Historical Evolution of Press Brakes

Press brakes, essential tools in metal fabrication, have a rich history that spans centuries. From their humble beginnings as manual devices to the sophisticated machinery we see today, press brakes have undergone significant transformations. Let’s explore this fascinating journey through time.

The Early Days: Mechanical Levers and Clutches

The roots of press brakes can be traced back to the 17th century. However, during those early years, they were far from the automatic marvels we know today. Most press brakes operated mechanically, relying on a combination of clutches, brakes, flywheels, and cranks. These rudimentary systems allowed operators to bend metal sheets, but the process was labor-intensive and lacked precision.

The Emergence of Hydraulic Power

In the early 1920s, the first true press brake emerged. Initially designed as a tool for crushing and pounding, it eventually became associated with metal bending. The term “brake” stuck, and the machine evolved into what we recognize as a press brake today. These early versions still relied on mechanical force, but they paved the way for more advanced developments.

The Hydraulic Revolution

The 1930s witnessed a significant breakthrough—the introduction of hydraulic press brakes. These machines replaced manual labor with hydraulic power, dramatically improving efficiency. Hydraulic systems allowed for smoother and more controlled bending, making them ideal for industrial applications. Suddenly, bending metal sheets became less about brute force and more about precision.

Expanding to All Four Wheels

Before hydraulic press brakes, braking was often a stroke of luck, especially at high speeds. However, the game-changer came when brakes were fitted to all four wheels. Duesenberg, in 1915, was the first to introduce a model equipped with brakes on all four corners. This shift significantly enhanced safety and control, making driving more predictable and reliable.

The Rise of CNC Technology

The 1980s brought another pivotal moment—the integration of Computer Numerical Control (CNC) technology into press brakes. CNC systems allowed for automated programming, precise bending, and seamless communication with CAD/CAM software. Suddenly, press brakes could execute complex bends with minimal human intervention. The marriage of precision engineering and digital control transformed the industry.

Intelligent Manufacturing and Personalization

As we entered the 21st century, press brakes continued to evolve. Intelligent manufacturing became the buzzword. These machines could now optimize bend parameters using artificial intelligence, tailoring each operation to specific requirements. Whether it’s adjusting for material thickness, bend angle, or part complexity, press brakes adapt intelligently, offering efficient and customized services.

Conclusion

From wooden blocks and ropes to CNC-controlled precision, the historical evolution of press brakes reflects our relentless pursuit of efficiency, safety, and innovation. Today, these machines play a vital role in shaping our world, bending metal sheets into intricate forms that drive industries forward.

As technology advances, we can only imagine what the next chapter in the press brake saga will bring—a future where intelligence and automation continue to redefine metal fabrication.

DA58T CNC press brake

3. Types of Press Brakes

The Versatility of Hydraulic Press Brakes

Hydraulic press brakes stand out in the metal fabrication industry for their versatility and precision. These machines use hydraulic cylinders to exert force on the ram, making them ideal for a variety of applications. They can be adjusted for pressure and speed, allowing for a smooth and controlled bending process. The adaptability of hydraulic press brakes to different metal thicknesses and their ability to perform complex bends make them a preferred choice for many fabricators. Despite being more expensive than mechanical press brakes, their superior performance justifies the investment.

Mechanical Press Brakes: The Traditional Choice

Mechanical press brakes have been the traditional go-to for many fabricators, especially those working with lightweight scale sheet materials. Their simple layout and speed are advantageous for high-speed applications. However, the mechanical press brake’s force is not easily adjustable, limiting its universality. Regular maintenance is required due to component wear, which is a notable drawback of this type of press brake.

The Rise of Servo-Electric Press Brakes

Servo-electric press brakes represent the cutting edge of press brake technology. They use an electric motor to drive a servo-controlled ball screw, which translates into precise control over the ram’s movement. These press brakes are energy-efficient, quieter, and offer high accuracy, making them suitable for precision bending applications. Although they may come with a higher initial investment cost, their faster response time, energy savings, and consistent bending force make them a compelling option for small-scale sheet materials.

CNC Press Brakes: The Pinnacle of Precision

CNC press brakes are the epitome of precision and customization in metal fabrication. By incorporating computer technology, these press brakes offer unparalleled accuracy and efficiency. The CNC system controls the ram strokes and back gauge, allowing the operator to input the required workpiece dimensions and bending angles. Advanced CNC press brakes use a water and electricity servo system and linear scale for closed-loop control, ensuring high control precision, bending precision, and repositioning precision. While the initial investment is high, the benefits of easy operation, high production efficiency, and labor savings make CNC press brakes a valuable asset for fabricating large-scale and complex-shaped sheet materials.

Manual Press Brakes: The Foundation of Bending

Manual press brakes, also known as metal sheet brakes, are the most common type of brake. They require manual adjustments for bending size and angle, making them suitable for mass production. The complexity of manual press brakes lies in their workbench, supports, and splints, which necessitate verification of bending size and angle before processing mass production. Continuous production requires further adjustments by the operator, making manual press brakes a more labor-intensive option.press brake

4. The Anatomy of a Press Brake

Press brakes are fundamental tools in metal fabrication, used to bend and shape metal sheets into desired forms. Understanding the components and principles of press brake bending is essential for anyone in the industry, from operators to engineers.

Core Components

At the heart of a press brake lies the ram, a vertical moving component that drives the punch to bend the material. The punch itself is the direct contact point with the metal, shaping it according to its design, which varies based on the required bending angle and radius. The die, typically fixed at the bottom, collaborates with the punch to complete the bending operation. The design of the die is crucial as it determines the bending angle and the final shape of the material.

Structural Integrity

The frame of the press brake, often C-shaped, is the backbone of the machine, providing the necessary support and stability to withstand the forces exerted during bending. The bed, a flat surface at the base, supports the metal sheet and often features a V-shaped groove to accommodate various bending tasks.

Precision and Control

A critical component for accuracy is the backgauge, an adjustable stop that positions the metal sheet precisely before bending. This ensures uniformity in the final product. The controller is the brain of the operation, adjusting the force generated by the ram and overseeing other aspects of the bending process.

Bending Principles

The bending process starts with the metal sheet freely placed on the bottom die. As the top die applies pressure, the bending force arm and radius of curvature decrease, causing the plate to conform to the V-groove of the lower die. At the end of the stroke, the upper and lower dies form a V-shape, completing the bend. Attention must be paid to the straightness and indentation of the bend, with adjustments made to the shoulder radius of the lower die or using anti-indentation measures to achieve a flawless finish.

Operational Dynamics

The ram moves downward during operation, exerting pressure on the metal sheet against the die. The backgauge positions the sheet accurately, while the controller fine-tunes the process, ensuring precision in every bend. Some systems include mechanical synchronization mechanisms like torque, swing arms, and spherical bearings for enhanced performance and accuracy.

Material Considerations

The material grade being formed significantly impacts the bending process. Harder materials exhibit more springback, while softer materials conform more easily to the die’s angle. Techniques like coining can offer precise bending, compensating for springback without resorting to bottom bending.

In summary, the press brake is a complex assembly of parts working in harmony to transform metal sheets into functional pieces. Each component, from the frame to the controller, plays a pivotal role in the machine’s operation, ensuring that every bend meets the exact specifications required. Understanding these components and principles is the first step towards mastering the art of press brake bending.

5. Operation and Safety Procedures

Basic Steps for Using a Press Brake

  1. Pre-Operation Checklist : Before engaging the press brake, it’s crucial to conduct a thorough inspection of the equipment. Verify that all components are functioning correctly without any signs of damage or abnormal conditions. Operators must be equipped with the appropriate safety gear, including protective goggles, gloves, and shoes, to minimize the risk of accidents.
  2. Die Selection and Installation : The choice of top and bottom dies is pivotal in achieving the desired bend. Select and install dies that match the specific requirements of the bending task at hand. This ensures that the metal sheet is shaped accurately and meets production standards.
  3. Setting Machine Parameters : Adjust the press brake’s parameters, such as pressure and speed, according to the material type, thickness, and the required bending angle. Precise parameter settings are essential for consistent and accurate bends.
  4. Positioning the Metal Sheet : Carefully place the metal sheet on the work table, utilizing a back gauge or other positioning tools to ensure correct and even bending. Proper alignment of the metal sheet is fundamental to the quality of the final product.
  5. Initiating the Bending Process : Once the metal sheet is correctly positioned, start the machine by pressing the start button, allowing the upper punch to descend and initiate the bending work. Continuous monitoring during the bending process is necessary to maintain even and correct bending.
  6. Post-Bending Procedures : After the bending process is complete, stop the machine and remove the bent metal sheet. Inspect the bending angle and precision to confirm that it aligns with production needs. Then, power down the press brake, clean the working area, and organize all tools and materials.

Safety Protocols

Safety is paramount when operating a press brake. Ensure that all operators are adequately trained and familiar with the machine’s operation procedures. Personal protective equipment must be worn at all times, and hands or other body parts should never be placed between the dies or on the workbench during operation.

Maintain a clean, tidy, and obstacle-free workspace. Loose clothing and accessories should be avoided to prevent entanglement with the machine. Regular maintenance checks are vital to keep the press brake in optimal condition, and adjustments or maintenance should never be performed while the machine is active.

Advanced Features for Enhanced Safety and Efficiency

Modern press brakes are equipped with features such as linear scale sensors that halt operation upon detecting personnel, ensuring immediate safety responses. They also possess capabilities for instant data collection and parameter adjustment, which contribute to the quality of the products.

Some press brakes integrate automatic plate mechanical arms and handling mechanisms, facilitating an automated production line. Remote monitoring via mobile applications and custom production settings allow for small-scale custom production and improved feeding efficiency. Additionally, pollution control measures like dust extraction systems create a safer and cleaner working environment for operators.

6. Tips for Effective Operation

Tips for Effective Operation: Mastering Your Press Brake

Operating a press brake efficiently and achieving high-quality results require a combination of knowledge, skill, and attention to detail. Whether you’re a seasoned professional or just starting, here are some essential tips to enhance your press brake operation:

Material Selection for Press Brake Operations

When it comes to press brake operations, the selection of material is not just a starting point but a pivotal decision that influences the entire bending process. The material chosen must align with the job’s requirements, considering its strength, ductility, and load capacity. For instance, while stainless steel offers durability and resistance to corrosion, it requires more force to bend compared to mild steel. Understanding the nuances of each material, such as aluminum’s tendency to spring back, allows operators to anticipate and compensate for these characteristics during the bending process.

Setting Up Your Press Brake Effectively

The setup of your press brake is a critical factor in achieving precision. This involves selecting the appropriate dies and tooling, adjusting back-gauges accurately, and ensuring that the machine is calibrated to the specifications of the task at hand. A well-maintained press brake, with all parts lubricated and in good working order, not only operates more efficiently but also reduces the risk of mishaps. Regular inspections can catch wear and tear before it leads to bigger issues, maintaining the integrity of the machine and the quality of the bends it produces.

Best Practices in Bending Techniques

Bending techniques such as air bending, coining, and bottom bending each have their place in press brake operations. Air bending, for example, allows for a variety of angles with the same tooling, making it a versatile choice for different jobs. Coining, while requiring more force, can achieve very accurate bends with minimal spring back. Bottom bending is similar to coining but uses less force, making it a middle ground between the two. Knowing when and how to apply these techniques is essential for optimal results.

Programming for Efficiency

Efficient programming of bend sequences can significantly reduce production times and enhance part quality. By planning the sequence of bends, operators can minimize the need for machine adjustments and avoid potential collisions between the part and tooling. This not only streamlines the process but also contributes to the consistency of the final product.

Handling Materials with Care

Proper material handling is crucial for safety and quality. Using the right lifting equipment and techniques prevents injuries and ensures that materials are not bent excessively, which could lead to distortions or deformities in the final product. Consistent handling practices contribute to the uniformity of bends across multiple pieces, a key aspect of professional press brake operation.

Utilizing Process Controls

Incorporating process controls such as angle measurement systems and press brake tooling sensors can greatly enhance the precision of bends. These controls provide real-time feedback, allowing operators to make adjustments on the fly and maintain high levels of accuracy throughout the production run. By identifying potential issues early, they prevent small inaccuracies from becoming major problems, ensuring that each bend meets the project’s specifications.

In conclusion, effective operation of a press brake involves a combination of careful material selection, proper machine setup and maintenance, mastery of bending techniques, thoughtful programming, diligent material handling, and the use of advanced process controls. By adhering to these principles, operators can ensure high-quality results that meet the demands of any press brake project. Remember, precision and efficiency are the hallmarks of excellent press brake work.

JINFANGYUAN Press Brake

7. Conclusion

The press brake stands as an indispensable piece of equipment in the modern metalworking industry. It not only enables businesses to efficiently process various metal parts but also ensures the precision and quality of products. Therefore, a comprehensive understanding of operation and maintenance is crucial for enhancing metalworking efficiency.

Throughout this guide, we’ve explored the definition, history, components, working principles, operational procedures, and basic guidelines of press brake machines. As we look to the future, with the advancement of industrial networks and artificial intelligence, press brakes are poised to achieve automated production and personalized customization.

Moreover, the introduction of new materials and processes promises to lead the industry towards a path of greater intelligence and sustainability. For individuals or businesses seeking to deepen their knowledge of press brakes, KRRASS remains an essential brand. Should you wish to discover more about our products, please feel free to contact us directly. We are committed to assisting you in navigating the intricacies of press brake operations and ensuring that your metalworking is both efficient and of the highest quality.
