In the metal fabrication industry, plate rolling machines are considered the cornerstone of manufacturing processes, capable of transforming flat metal plates into a myriad of shapes and sizes with remarkable precision. Achieving perfect curves with these machines, however, is no easy feat. It demands a deep understanding of the underlying principles, meticulous attention to detail, and the skillful manipulation of various factors.
In this article, we will embark on a journey to explore the art of precision plate rolling with Karrass machines, delving into the intricacies of the process and unveiling the secrets to achieving flawless results. We will also provide a detailed analysis of Karrass plate rolling machines, highlighting their superior features and benefits, and showcasing their application in real-world scenarios.
Table of Contents

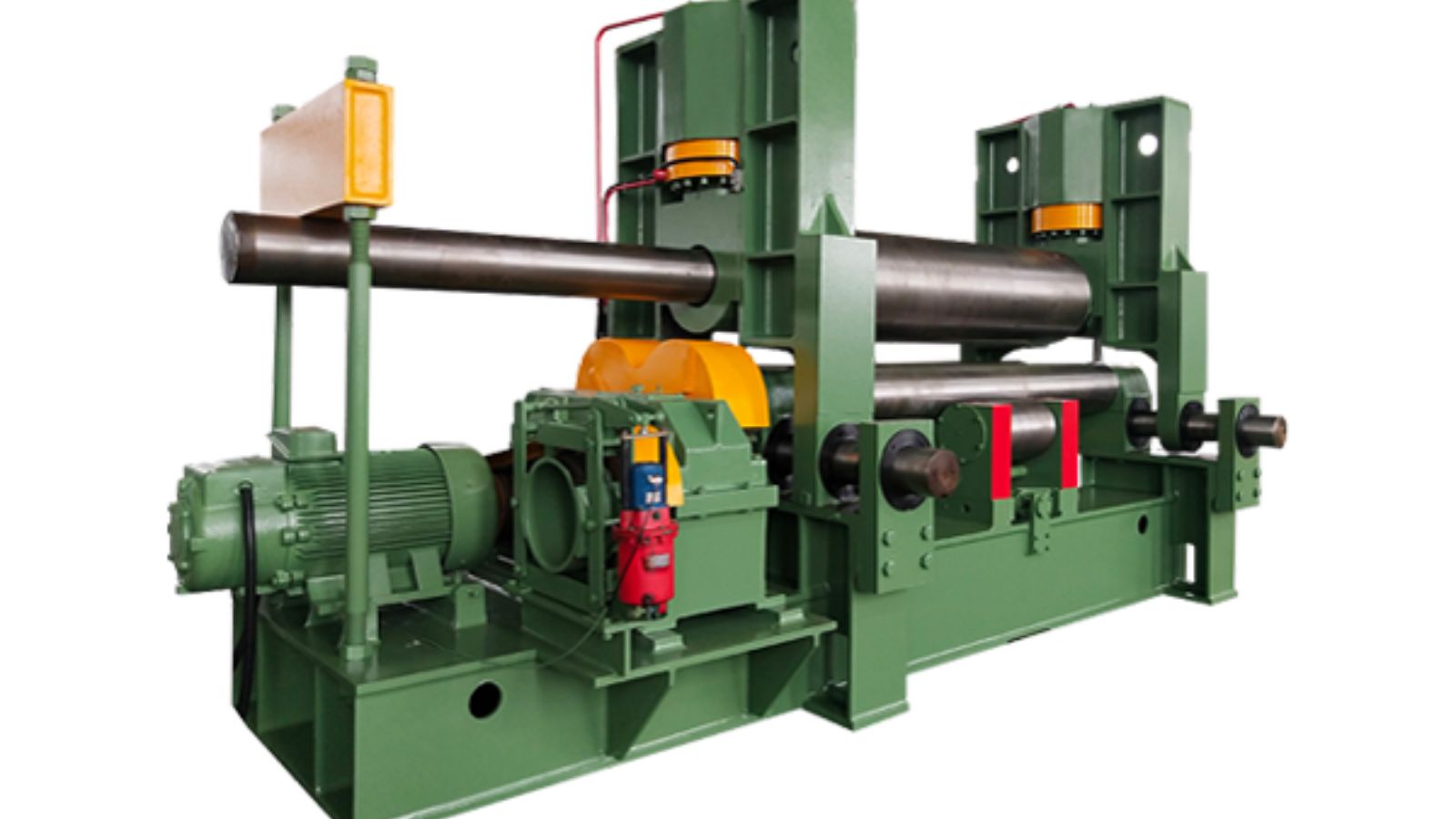

1.Karrass Plate Rolling Machines: A Benchmark for Precision
Karrass has been a leading manufacturer of plate rolling machines for over 50 years, renowned for their unwavering commitment to quality, innovation, and customer satisfaction. Their machines are engineered to deliver unparalleled precision, reliability, and performance, making them the preferred choice for metal fabricators across the globe.
2.Key Features of Karrass Plate Rolling Machines:
- Superior Construction: Robust frames and high-quality components ensure exceptional durability and long-lasting performance.
- Advanced Hydraulic Systems: State-of-the-art hydraulic systems provide precise control over the rolling process, resulting in consistent and accurate results.
- Intuitive User Interface: User-friendly control panels make the machines easy to operate, even for novice users.
- Versatile Functionality: Karrass machines offer a wide range of capabilities, including pre-bending, roll bending, and cone rolling, to meet the diverse needs of metal fabricators.
- Unmatched Safety Features: Comprehensive safety features protect operators and ensure a safe working environment.
3.Technical Specifications of Karrass Plate Rolling Machines:
| Model | Plate Thickness | Plate Width | Rolling Force | Machine Weight |
| KR-100 | 10 mm | 1000 mm | 100 tons | 10 tons |
| KR-200 | 20 mm | 2000 mm | 200 tons | 20 tons |
| KR-300 | 30 mm | 3000 mm | 300 tons | 30 tons |
4.Advanced Technologies for Enhanced Precision:
Karrass plate rolling machines incorporate cutting-edge technologies to ensure superior precision and efficiency in the bending process. Some of these technologies include:
Computer Numerical Control (CNC): CNC systems enable precise control over the movement of the rolls, allowing for automated rolling processes with exceptional repeatability and accuracy.
Finite Element Analysis (FEA): FEA software allows engineers to simulate the rolling process virtually, predicting material behavior and potential areas of stress concentration. This enables the optimization of rolling parameters, such as roller gap and force distribution, to achieve the desired bend with minimal risk of distortion or cracking.
Pre-bending Techniques: Pre-bending involves applying a slight initial curvature to the plate before the main rolling process. This helps to mitigate springback, a phenomenon where the plate partially returns to its original flat state after rolling. Pre-bending techniques can significantly improve the accuracy of the final bend, especially for tight curvatures.
Hydraulic Roll Crowning: Hydraulic roll crowning systems involve the use of adjustable rollers that can be slightly convexed during the rolling process. This compensates for the natural deflection of the rolls under pressure, ensuring uniform bending across the entire width of the plate and preventing edge variations.
5.Case Study: Achieving Flawless Curves for Aircraft Fuselage Panels
Karrass plate rolling machines play a critical role in the aerospace industry, enabling the fabrication of curved fuselage panels that form the aircraft’s body. Achieving precise curvature and maintaining the structural integrity of these panels are essential for ensuring the aircraft’s aerodynamic performance and safety.
One notable example is the use of Karrass machines by a leading aerospace manufacturer to produce fuselage panels for their latest commercial aircraft. The manufacturer required a solution that could deliver precise curvature with minimal deviation, while maintaining the high strength and durability of the aluminum alloy used.
Karrass engineers worked closely with the manufacturer to design and build a customized plate rolling machine that met their specific requirements. The machine featured advanced hydraulic systems, precise control mechanisms, and specialized tooling to ensure the accurate and consistent bending of the fuselage panels.
The results were impressive. The Karrass machine successfully produced fuselage panels with the desired curvature and structural integrity, meeting the stringent aerospace standards. The manufacturer was able to achieve significant production efficiency gains, reduce material waste, and enhance the overall quality of their aircraft.
6.Conclusion
Karrass plate rolling machines represent the pinnacle of precision engineering, empowering metal fabricators to achieve perfect curves with unmatched accuracy and efficiency. Their commitment to superior construction, advanced technologies, and a diverse range of functionalities make them the ideal solution for a wide variety of applications.
Benefits of Choosing Karrass Plate Rolling Machines:
- Unparalleled Precision: Achieve flawless curves with minimal deviation, ensuring consistent and high-quality results.
- Enhanced Efficiency: Advanced features like CNC and FEA optimize rolling processes, leading to faster production times and reduced waste.
- Versatility and Flexibility: A wide range of capabilities cater to diverse metal fabrication needs, from pre-bending to cone rolling.
- Durability and Reliability: Robust construction and high-quality components guarantee long-lasting performance and minimal downtime.
- Safety First: Comprehensive safety features prioritize operator well-being and create a safe working environment.
- Customer-Centric Approach: Karrass offers dedicated support and after-sales services to ensure customer satisfaction.
Investing in a Karrass plate rolling machine is not simply a purchase; it’s a strategic decision that empowers your business to achieve superior results, elevate efficiency, and gain a competitive edge.
Looking to elevate your metal fabrication capabilities? Contact Karrass today to discuss your specific requirements and discover how their industry-leading plate rolling machines can help you achieve perfect curves, every time.
