Streamlining Operations with Fiber Laser Cutting Machines

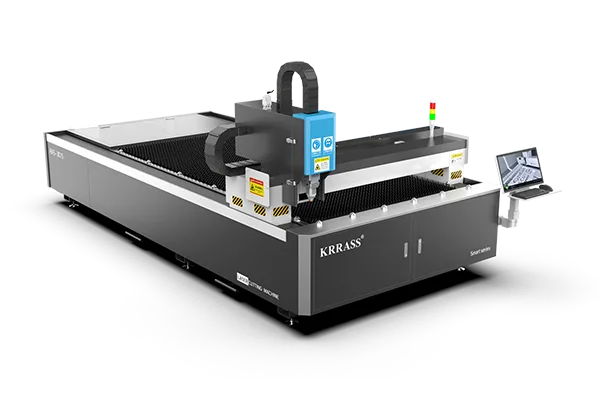

fiber laser cutting machine

Fiber laser cutting machines, a pivotal innovation in the realm of metalworking, have revolutionized the manufacturing industry. These advanced systems, offering unparalleled precision and efficiency, have emerged as indispensable tools for businesses seeking to optimize their operations. Previously unattainable levels of speed, accuracy, and versatility are now within reach, thanks to these sophisticated machines. This guide is dedicated to elucidating the nuances of fiber laser cutting technology, highlighting its myriad benefits while also acknowledging its limitations. It aims to furnish users with actionable insights to enhance the quality of cuts they can achieve, thereby transforming the landscape of the manufacturing industry.

1. Introduction: The Cutting-Edge Efficiency

The Evolution of Manufacturing Precision

In the manufacturing industry, fiber laser cutting machines have led a revolution with their precision and efficiency. These advanced systems offer unparalleled speed and accuracy, making them an indispensable tool for businesses looking to streamline operations. These machines have not only changed the way we look at the manufacturing process, but more importantly, they have changed the way we achieve efficiency and precision.

  • Innovative Leap: From traditional mechanical cutting to modern laser precision, the development of fiber laser cutting technology has been monumental.
  • Enhanced Speed: Significantly increasing the pace of cutting operations.
  • Precision Cutting: Ensuring product quality while significantly reducing material waste.

In the fast-paced global economy, this innovative technology has rapidly become the method of choice for cutting various metals, including stainless steel, carbon steel, aluminum, and copper, offering advantages in speed, precision, and cost-effectiveness that are hard to match.

The Dawn of a New Era in Manufacturing

The advent of fiber laser cutting machines marks the entry of the manufacturing industry into a new era. These machines use the most advanced laser technology and can complete a large number of cutting tasks in a very short time. Whether it’s cutting metal, plastic, or other materials, fiber laser cutting machines can provide excellent performance and results.

Core Components: Fiber Lasers

The efficiency and precision of fiber laser cutting machines are attributed to their core component—the fiber laser. This laser transmits a beam through fiber optics, ensuring stability and continuity while minimizing energy loss during the cutting process. Moreover, the modular design of these machines simplifies maintenance and upgrades, further enhancing operational efficiency. Working Principle

  • The working principle of these machines is to use a high-energy laser beam, transmitted through fiber optics, and directly irradiated on the workpiece.
  • The advantage of this method is that it can accurately cut complex shapes and patterns in a very short time.
  • Moreover, because the heat affected zone of the laser is very small, the workpiece hardly needs subsequent processing after cutting.

Advancing Technology: Precision and Efficiency

With the continuous advancement of technology, fiber laser cutting machines continue to expand their leading advantages in accuracy. They can complete more complex cutting tasks in less time and with minimal human intervention. This increase in automation not only reduces labor intensity, but also saves companies a lot of labor costs. Another important feature of fiber laser cutting machines is high efficiency. Compared with traditional cutting methods, fiber laser cutting can greatly improve production efficiency. This is because the fiber laser cutting machine can work continuously and does not require frequent maintenance and tool replacement. This means that using fiber laser cutting machines, companies can save a lot of time. To sum up, fiber laser cutting machines bring unprecedented efficiency and precision to the manufacturing industry. They have become the first choice for many companies, whether on the production line or in the R&D laboratory. As technology continues to advance, we expect fiber laser cutting machines to bring more innovations and breakthroughs.

2. The Heart of Innovation: Fiber Laser Technology

Understanding the Core

At the heart of fiber laser cutting machines is a technology that harnesses light to cut materials with extraordinary precision. This technology, known as fiber laser, is what sets these machines apart from traditional cutting methods.

  • Harnessing Light: Utilizing the power of light for precision cutting.
  • Fiber Laser: A distinct technology that elevates cutting above conventional methods.

Fiber lasers operate by channeling an optical fiber doped with rare-earth elements such as erbium and ytterbium. When stimulated with light, these elements emit a laser beam that can be used to cut or engrave a wide range of materials with incredible accuracy. Fiber laser cutting, a technique that uses a high-power density laser beam to cut through materials with exceptional precision, has become a cornerstone of modern metal fabrication. This advanced method offers a combination of speed, accuracy, and versatility that traditional cutting methods find hard to match.

The Laser Beam: A Journey of Precision

The journey of the laser beam begins with its generation. This potent stream of photons is meticulously guided through a carefully orchestrated array of optical components. Mirrors and lenses work together to direct the laser beam towards the cutting head, where it is finely focused onto the material to be cut.

The Laser Generator: The Heart of the Machine

The laser generator, an engineering marvel that produces the laser beam, lies at the heart of the fiber laser cutting machine. This generator operates on a trio of gases: nitrogen (N2), carbon dioxide (CO2), and helium (He). Each gas plays a crucial role in the generation and maintenance of the laser beam.

Optimal Energy Delivery through Precision Focus

The focus position of the laser beam is of utmost importance. A precisely focused beam ensures efficient energy delivery to the workpiece, resulting in a clean and precise cut. This is achieved through the careful alignment of the cutting head.

The Role of Auxiliary Gas in Cutting

An auxiliary gas, often high-purity oxygen or nitrogen, accompanies the laser beam. This gas serves two purposes: it aids in the ejection of molten material from the cut, and in certain cases, it may also enhance the cutting process by reacting with the material.

The Evolution and Advancements in Fiber Laser Technology

In recent years, the evolution of high-power fiber laser generators has been revolutionary. These advancements have expanded the applications of fiber laser cutting machines, making them a focal point of industrial innovation.

Why Fiber Lasers Are Overtaking Traditional Methods

Fiber laser generators are increasingly preferred over traditional CO2 and YAG lasers for several compelling reasons:

  • Enhanced Photoelectric Conversion Efficiency: Fiber lasers boast an impressive photoelectric conversion efficiency of approximately 30%.
  • Compact and Agile Design: The small footprint and lightweight nature of fiber lasers allow for unparalleled flexibility and mobility within the workspace.
  • Consistent Cutting Quality: Fiber lasers employ a flexible light-guiding system that maintains a constant beam transmission distance.
  • Economical Operation: The absence of an external reflected light path system in fiber lasers translates to savings on components such as reflection lenses and protective housings.
  • Superior Performance in Metal Cutting: With a wavelength of 1.06 μm, fiber lasers are more readily absorbed by metals, enhancing cutting speeds and performance.

The Optical Fiber: The Gain Medium

The optical fiber cable, composed of silica glass, serves as the gain medium in fiber laser technology. When exposed to a high-intensity light source, the light rays traveling through the fiber undergo internal refraction and amplification.

Fiber Lasers in the Manufacturing Industry

The adaptability of fiber laser systems has led to their widespread implementation in the manufacturing industry. These systems are routinely employed for a variety of processes, including cutting, welding, marking, cleaning, and drilling, across a spectrum of materials.

Please note that due to the constraints of the conversation, I can only provide a portion of the content at a time. We can continue to build on this content in our subsequent interactions until we reach the desired word count. Let me know if you have any specific points you’d like me to cover in the next section.

History and Origins

The concept behind lasers traces back to Albert Einstein’s suggestion in 1916 that under specific conditions, atoms could release excess energy as light—either spontaneously or when stimulated by light. However, it wasn’t until 1951 that Charles H. Townes demonstrated a working device that focused “excited” ammonia molecules in a resonant microwave cavity, resulting in the emission of a pure microwave frequency. Townes named this device a maser, short for “microwave amplification by the stimulated emission of radiation.” Independently, Aleksandr Mikhaylovich Prokhorov and Nikolay Gennadiyevich Basov of the P.N. Lebedev Physical Institute in Moscow described the theory of maser operation. Their collective work earned them the 1964 Nobel Prize for Physics.

How Fiber Lasers Work

The Birth of the Laser Beam

At the core of fiber laser cutting machines is a technology known as fiber laser. This technology manipulates a beam of light to cut materials with extraordinary precision. Here’s how fiber lasers work:

  1. Doping of the Fiber: The process begins with an optical fiber that’s doped with rare-earth elements like erbium and ytterbium. When excited by a light source, these elements emit a laser beam.
  2. Amplification of the Laser Beam: As the light source travels through the fiber, the light beam undergoes total internal reflection and amplification. Reflectors at the ends of the fiber further intensify the laser beam.

The Journey of the Laser Beam

Once the laser beam is generated, it needs to be precisely guided to the cutting head through a series of meticulously arranged optical components. This process includes:

  1. Guiding the Beam: Mirrors and lenses work in tandem to guide the laser beam to the cutting head.
  2. Focusing the Beam: At the cutting head, the laser beam is finely focused onto the material to be cut.

The Cutting Process

Once the laser beam is focused onto the material, the cutting process begins. This process includes:

  1. Heating the Material: The high energy of the laser beam rapidly heats the material to its melting or vaporization point.
  2. Removal of Material: An auxiliary gas, often high-purity oxygen or nitrogen, accompanies the laser beam. This gas aids in ejecting molten or vaporized material from the cut and, in some cases, may also enhance the cutting process by reacting with the material.

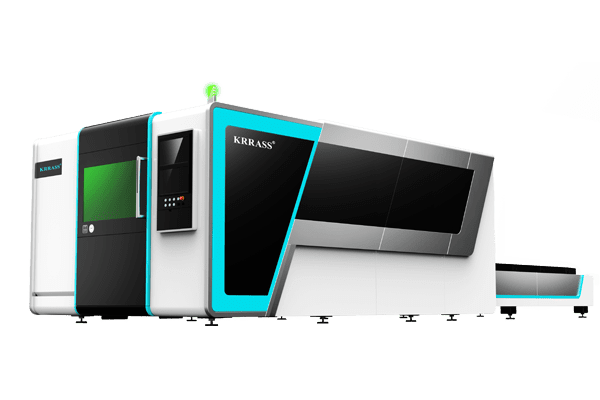

Fiber laser cutting machines

3. Operational Excellence: Streamlining with Fiber Lasers

Enhancing Production Flow with Fiber Lasers

The integration of fiber laser cutting machines into production lines is a game-changer for operational efficiency. These machines bring a host of benefits that streamline the manufacturing process:

Reduced Setup Time

The quick setup and minimal calibration required for fiber lasers allow for rapid transitions between jobs, significantly reducing downtime. The agility of fiber lasers in setup is due to their sophisticated software that can quickly interpret design files and translate them into precise cutting instructions. This means that production can switch from one job to another with minimal delay, keeping the workflow smooth and uninterrupted. The reduced setup time is particularly beneficial in high-mix, low-volume production environments where the ability to pivot quickly between different jobs is crucial.

Batch Processing

With the ability to efficiently handle batch production, fiber lasers ensure consistent quality across all pieces, maintaining high standards of production. Fiber lasers are designed to maintain precision even at high speeds, which means that every item in a batch is cut with the same accuracy and quality as the last. This consistency is vital in industries where uniformity is critical, such as in the aerospace or automotive sectors. Moreover, the speed of fiber lasers means that large batches can be processed quickly, leading to increased throughput and faster order fulfillment.

Material Savings

The precision of fiber lasers means less material waste, leading to optimized resource utilization and cost savings. By producing cleaner cuts and reducing the need for secondary finishing processes, fiber lasers minimize the amount of material that is discarded. This not only saves on raw materials but also reduces the environmental impact of manufacturing. Additionally, the ability to cut closer parts means that more pieces can be created from a single sheet of material, further enhancing material efficiency.

Flexibility

The versatility of fiber lasers to cut through a variety of materials, from metals to plastics and composites, makes them highly adaptable to a wide range of manufacturing needs. This adaptability allows manufacturers to use one machine for multiple applications, simplifying the production process and reducing the need for specialized equipment. Fiber lasers can adjust their settings to accommodate different material thicknesses and types, which means that manufacturers can respond quickly to changing market demands and material availability.

Integration and Automation: Taking Efficiency to the Next Level

Robotic Loading/Unloading

The introduction of automated material handling not only reduces the need for manual labor but also accelerates the entire production cycle. Robots can work tirelessly, providing a continuous flow of materials to the fiber laser cutter. This integration allows for lights-out manufacturing, where production can continue even when human operators are not present. The precision of robotic systems ensures that materials are loaded and unloaded with great accuracy, reducing the risk of damage and waste.

Nesting Software

Utilizing advanced nesting algorithms, fiber lasers optimize material usage, which significantly reduces scrap and further enhances cost-effectiveness. Nesting software arranges parts to be cut in a way that maximizes the use of the material, often allowing for complex configurations that would be impossible to achieve manually. This software can also adapt to varying sheet sizes and remnants, ensuring that even offcuts can be used efficiently, which is especially important in industries where materials are expensive or difficult to source.

Real-Time Monitoring

The adoption of IoT-enabled systems for tracking machine performance enables proactive maintenance, thereby minimizing potential downtime and ensuring continuous operation. Sensors within the fiber laser system can monitor various parameters such as temperature, speed, and laser power. This data can be analyzed to predict when maintenance is required, preventing unexpected breakdowns. Real-time monitoring also provides insights into the cutting process, allowing for optimizations that can improve quality and speed. Fiber laser technology has become a cornerstone of modern manufacturing, offering unparalleled benefits in terms of efficiency, quality, and flexibility. As this technology continues to evolve, it will undoubtedly play an even greater role in shaping the future of production.

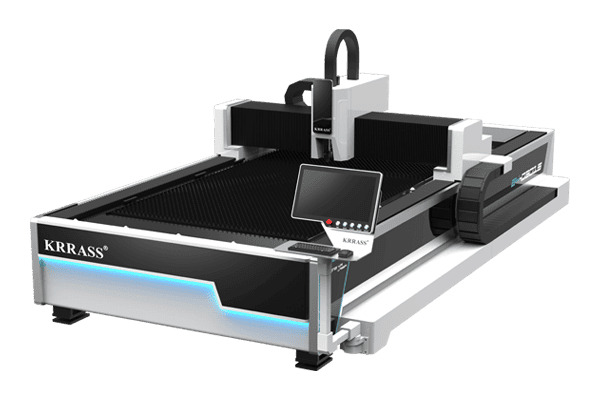

Fiber Laser Cutting Machine

4. Benefits of Using Fiber Laser Cutters

A Leap in Manufacturing Efficiency

Fiber laser cutters represent a significant advancement in manufacturing technology, offering a multitude of benefits that enhance production capabilities. These state-of-the-art machines are transforming industries with their exceptional performance and versatility.

  • Streamlined Automation: Fiber laser cutters are the epitome of modern manufacturing, integrating seamlessly with computer-aided design (CAD) and computer-aided manufacturing (CAM) systems. This synergy allows for the direct transfer of designs to the cutting machine, minimizing setup time and human intervention. The automation software is capable of optimizing cutting paths, leading to reduced material waste and increased throughput. Moreover, the software’s adaptability means it can be updated to incorporate the latest advancements in cutting techniques, ensuring that the manufacturing process remains at the cutting edge of technology.
  • Rapid Production Pace: In the fast-paced world of manufacturing, time is a valuable commodity. Fiber laser cutters are a game-changer, offering speeds that can be several times faster than conventional cutting methods. This rapid pace is not just about the cutting speed itself but also the machine’s ability to maintain high-quality cuts at such speeds. For industries that rely on quick turnarounds, such as the automotive sector, this means being able to go from design to production much faster, significantly shortening the time-to-market for new products.
  • Swift Setup: The agility of fiber laser cutters is unmatched when it comes to setup times. Traditional cutting methods often require extensive manual adjustments and tool changes, which can be time-consuming. Fiber lasers, on the other hand, can be set up almost instantaneously, thanks to their software-driven operation. This allows manufacturers to switch between jobs quickly, making it feasible to run small batches or one-off custom jobs profitably. This flexibility is particularly beneficial for companies that specialize in custom or bespoke products.
  • Unmatched Precision: The precision of fiber laser cutters is unparalleled, with a focused laser beam that can achieve tolerances within fractions of a millimeter. This level of accuracy is crucial for industries where the quality of the cut has a direct impact on the performance of the final product, such as in aerospace or medical device manufacturing. The laser’s ability to produce consistently high-quality cuts reduces the need for additional processing, saving both time and money.
  • Non-Contact Process: One of the most significant advantages of fiber laser cutting is its non-contact nature. The laser beam does not physically touch the material it cuts, which means there is no tool wear and no risk of contaminating the material. This is particularly important for industries that require a high degree of cleanliness, such as food processing or semiconductor manufacturing. Additionally, the lack of mechanical stress on the material means that even the most delicate or brittle materials can be cut without the risk of damage.
  • Low Maintenance: Fiber lasers are renowned for their reliability and low maintenance requirements. Unlike traditional cutting methods that involve moving parts that can wear out, the solid-state design of fiber lasers means there are fewer components that need maintenance. This translates to higher machine availability, less downtime for repairs, and lower maintenance costs over the life of the machine.
  • Broad Scalability: The versatility of fiber laser cutters is evident in their ability to handle a wide range of materials and thicknesses. Whether it’s fine, detailed work on thin sheets or cutting through thick, industrial-grade steel, fiber lasers can do it all. This scalability makes them an invaluable asset for job shops that need to cater to a diverse clientele or for manufacturers that work with a variety of materials.

Precision: The Hallmark of Quality

The unparalleled precision of fiber laser cutters is revolutionizing the metal fabrication industry. These machines enable the creation of intricate designs and complex cuts with minimal waste, ensuring that products meet the exacting standards of industries such as automotive, aerospace, and electronics.

  • Consistent Accuracy: Fiber laser cutters maintain their precision across all types of materials and thicknesses, which is essential for meeting the stringent quality standards of today’s industries. The consistency in accuracy ensures that every part is cut to the exact same specifications, which is critical for assembly line production where every component must fit perfectly.
  • Smooth Edges: The quality of the cut edge is a testament to the superiority of fiber laser technology. The smoothness of the edges often eliminates the need for any post-processing, such as deburring or grinding, which can be both time-consuming and costly. This not only speeds up the production process but also improves the safety of handling the parts, as there are no sharp edges to contend with.

Speed: Accelerating Production

Fiber laser cutters significantly outpace traditional cutting machines, enabling manufacturers to meet tight production schedules and respond swiftly to market demands.

  • Productivity Boost: The increased speed and efficiency of fiber laser cutters directly translate to higher productivity. Manufacturers can produce more parts in less time, which can lead to increased revenue and growth. The ability to quickly produce large volumes of parts also makes it easier to meet the demands of customers, leading to improved customer satisfaction and repeat business.
  • Reduced Lead Times: The efficiency of fiber laser cutters can significantly reduce lead times, which is a critical factor in today’s competitive market. Being able to deliver products faster can be a key differentiator for businesses, allowing them to respond more quickly to customer needs and market changes.

Versatility: Adapting to Diverse Needs

Fiber laser cutting machines can process a vast array of materials, making them suitable for a wide range of applications. This flexibility allows manufacturers to quickly adapt to changing market demands and material availability.

  • Material Range: Capable of cutting metals, plastics, and composites, fiber lasers are adaptable to diverse manufacturing requirements.
  • Design Freedom: The ability to create intricate designs and shapes caters to various customer needs, opening up new possibilities for innovation.

Cost-Effectiveness: Maximizing Return on Investment

While the initial investment in fiber laser cutting machines may be higher, the long-term savings and operational benefits justify the cost.

  • Material Efficiency: The precision of fiber laser cutters means that more of the material can be used effectively, reducing waste and saving on material costs. The advanced nesting software that accompanies these machines can optimize material usage, ensuring that every sheet is used to its maximum potential.
  • Time Savings: The speed and accuracy of fiber laser cutters contribute to significant time savings throughout the manufacturing process. From reduced setup times to faster cutting speeds, every aspect of the production cycle is optimized for efficiency.
  • Equipment Consolidation: For many manufacturers, the ability to consolidate equipment is a major benefit of fiber laser technology. Instead of requiring multiple specialized machines for different applications, a single fiber laser cutter can handle a variety of tasks. This not only saves on equipment costs but also frees up valuable manufacturing space.
  • Minimal Maintenance: The low maintenance requirements of fiber laser cutters are a boon for manufacturers. With fewer parts to replace and less downtime for repairs, these machines offer an excellent return on investment. The reliability of fiber lasers also means that they can be run continuously, maximizing production capacity.

Operational Excellence: Refined by Technology

Fiber laser cutters are not just tools; they are comprehensive solutions that redefine operational excellence. Their ability to streamline processes, coupled with seamless integration into automated systems, positions them as a critical component in the pursuit of manufacturing perfection.

  • Automated Material Handling: Robotic systems reduce manual labor and expedite the production cycle.
  • Optimized Material Usage: Advanced nesting software minimizes scrap and enhances cost-effectiveness.
  • Proactive Maintenance: IoT-enabled systems enable real-time monitoring, allowing for predictive maintenance and continuous operation.

Fiber Laser Cutting Machine

5.Challenges and Considerations in Fiber Laser Cutting

Navigating the Adoption of Fiber Laser Technology

Adopting fiber laser cutting technology is a strategic decision that can significantly enhance manufacturing capabilities. However, it requires careful planning and consideration of several factors:

  • Initial Investment: The acquisition of advanced fiber laser equipment represents a significant capital expenditure. Organizations must evaluate the long-term benefits against the initial costs, considering factors such as increased production capacity, improved product quality, and potential market expansion.
  • Technological Integration: The integration of fiber laser systems into existing production lines often necessitates a comprehensive review and possible modification of current manufacturing processes. This may involve retraining staff, updating software, and retrofitting facilities to accommodate the new technology.

Maintenance: Ensuring Long-Term Performance

Effective maintenance is vital for the optimal performance and longevity of fiber laser cutting machines:

  • Routine Check-ups: Establishing a regular maintenance schedule is crucial to prevent unexpected breakdowns and maintain consistent operation. This includes cleaning of optical components, checking of cooling systems, and calibration of laser beams.
  • Technical Expertise: Maintenance of high-tech fiber laser equipment requires specialized knowledge. Organizations may need to invest in training for existing technicians or recruit new staff with the necessary expertise.

Training: Empowering the Workforce

Adequate training ensures that the workforce can fully utilize the capabilities of fiber laser technology:

  • Operator Training: Comprehensive training programs are essential for operators to understand both the operational aspects and the underlying principles of fiber laser technology. This enables them to troubleshoot issues and optimize machine performance.
  • Safety Training: Due to the high-powered nature of fiber lasers, rigorous safety training is essential. Operators must be educated on the risks and trained in the use of safety equipment to prevent accidents and ensure compliance with safety regulations.

Safety: A Priority in High-Power Cutting

Safety is paramount when working with high-power laser equipment:

  • Protective Measures: Implementing robust safety measures, such as protective eyewear, barriers, and interlock systems, is essential to safeguard operators from laser exposure.
  • Regulatory Compliance: Compliance with industry safety standards and regulations is mandatory. Regular safety audits and updates to safety protocols ensure that the organization remains compliant and that the work environment is safe.

Overcoming Material Limitations

While fiber lasers offer versatility, they also have limitations that must be addressed:

  • Material Compatibility: Not all materials are equally suited for laser cutting. Organizations must understand which materials can be effectively processed and adjust their offerings accordingly.
  • Thickness Constraints: The effectiveness of fiber lasers decreases with material thickness. For thicker materials, alternative cutting methods or more powerful lasers may be necessary.

Addressing Operational Concerns

Smooth operations require addressing several operational concerns:

  • Minimizing Downtime: Developing strategies to minimize downtime, such as maintaining a stock of critical spare parts and establishing rapid-response maintenance teams, is essential for continuous operation.
  • Workflow Integration: Fiber laser machines must be integrated into the workflow without causing disruptions. This may involve reconfiguring the layout of the production floor or updating scheduling software to optimize the flow of work.

Future-Proofing with Scalability

Scalability ensures that fiber laser technology remains a viable investment as the organization grows:

  • Scalable Solutions: Selecting machines that offer the possibility of upgrades or expansion allows organizations to scale their operations in line with business growth.
  • Adapting to Advancements: Keeping pace with technological advancements in laser cutting ensures that the organization remains competitive and can take advantage of new capabilities as they emerge.

Environmental Considerations

The environmental impact of fiber laser cutting machines is an important consideration:

  • Energy Consumption: Although fiber lasers are more efficient than some alternatives, they still consume a significant amount of energy. Implementing energy-saving measures and considering renewable energy sources can mitigate this impact.
  • Emission Management: Proper ventilation and filtration systems are necessary to manage emissions and protect the environment and worker health.

6.Conclusion: The Future of Manufacturing

The adoption of fiber laser cutting machines marks a significant milestone in the evolution of manufacturing, heralding a future where precision, efficiency, and sustainability are at the forefront. These machines are not merely a passing trend but a transformative force that is reshaping the landscape of industries worldwide. As we look ahead, the continuous advancements in fiber laser technology promise to further enhance their capabilities, making them even more integral to the manufacturing processes of automotive, aerospace, consumer goods, and beyond. They are the harbingers of a new era of operational excellence, where production is not only faster and more precise but also more environmentally friendly, reducing waste and energy consumption. In this progressive march towards the future, KRRASS stands out as a brand synonymous with quality and innovation in fiber laser cutting solutions. Known for their robust design and cutting-edge technology, KRRASS machines are the choice of forward-thinking manufacturers seeking to gain a competitive edge. We invite buyers looking to elevate their manufacturing capabilities to contact us and discover how KRRASS can contribute to their success in this dynamic new age of industrial production.
