Sheet Metal Bending Machine With PA-15Tx Controller (3-6 Axis)
Sheet Metal Bending Machine 3-6 Axis
PBA Series Sheet Metal Bending Machine, it’s an affordable Sheet Metal Bending Machine with an impressive number of features and options. Competitive pricing with advanced DELEM DA-53Tx or DA-58Tx 2D capable graphical controls. Advanced Series is your first choice in Y1/Y2 machine technology.
Simple and solid press brake
Work area can be customized and all types of tool clamping can be installed
Tailored-made sheet metal press brake
- Controller: PA-15Tx - Germany
- Electrics: Schneider Electric - France
- Main Motor: INOVANCE
- Servo Motor: INOVANCE
- Foot Switch: KACON - South Korea
- Hydraulic System: Bosch Rexroth - Germany
- Oil Pump: First - USA
- Sealing Ring: PARKER - America
- High Efficiency Motor - Class IE3
- Tube Connector: EMB - Germany
- Backgauge: Hiwin - Taiwan
- Grating Ruler: GIVI
Standard Equipment
Introduction to Configuration
FEA & Stress Analysis
Stress Analysis & Finite Element Analysis
The CAE software SOLIDWORKS used as the method to analyze the linear static construction, stress and deformation for press break and laser cutting machine frames. So for complicated structures, highly complex loading’s, transient modelling and combination of the above, FEA makes sense.

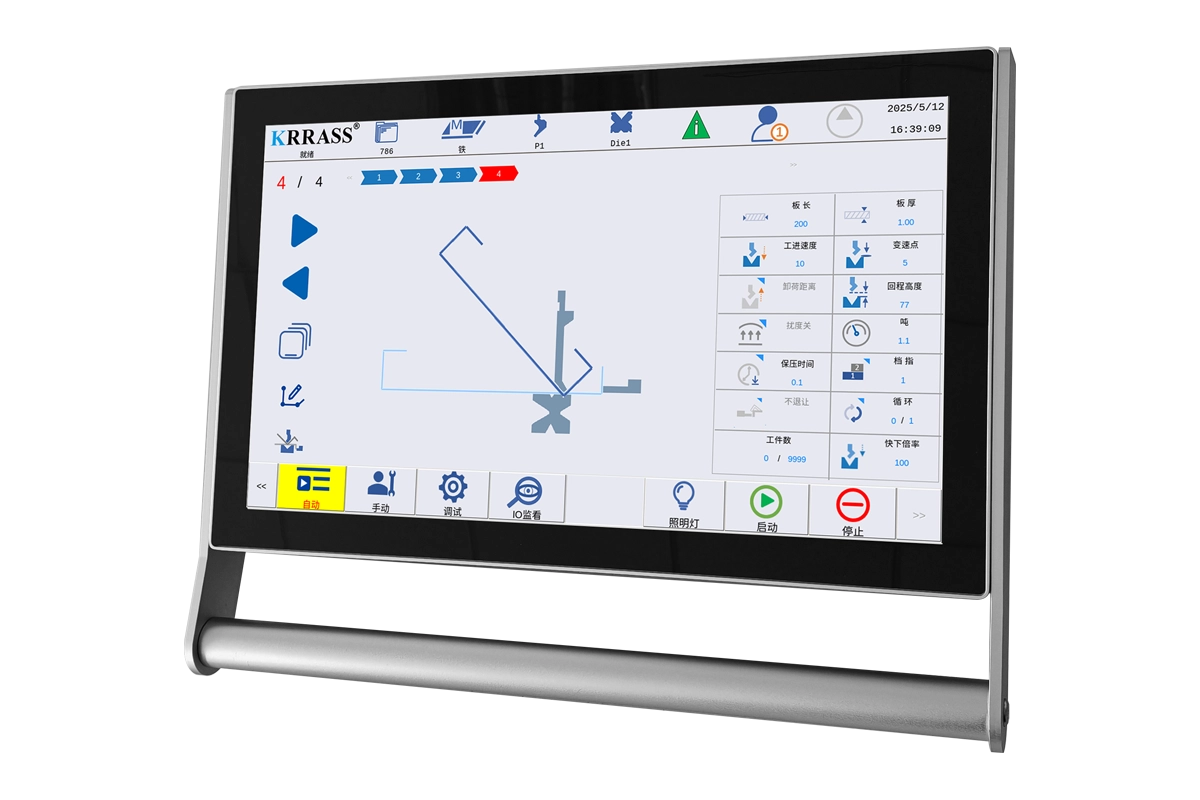

Germany PA CNC Control System
PA-15Tx Control
- 2D graphics quick programming, supports automatic layout sorting and manual sorting
- 15-inch touch controller, standard 4 axes, supports up to 16 axes
- Importing optional molds and product 2D drawings
- Supports network port and 485 interface configuration ，4GB RAM,supports 9999+ programs
- Optional remote support
- Modular product design,simple and intuitive operation
- Bilateral angle programming,position programming,and arc programming meet diverse bending requirements
- Intelligent XR yielding ensures safe and efficient processing
- Profile-3D T offline software
Manual Upper Tool Clamping
KRRASS Sheet Metal Bending Machine use all Raw material is provided by qualified suppliers and chemical composition corresponds to international standards. Therefore, raw material yield and tensile strength are guaranteed, are standardized with a 8.4 x 3.5 mm safety groove, which keeps the tool from falling out.
Advantage:
- Safe and fast tool change
- Can be used without modifying Europe type punches
- Front clamp - vertical tool change
- Rear clamp - horizontal tool change
KRRASS® BGA-2 BackGauge
Sheet Metal Bending Machine 2-Axis CNC BackGauge with X, R-Axis
- Hiwin Ball screws and linear guide on X, R-axis
- Axis X speed 500 mm/s
- Manual Z1, Z2-axis with HIWIN linear guide
- Mechanical accuracy ± 0.01 mm
- Fingers with double stop and micrometric adjustment
Proportional Valve
The German Rexroth fully closed-loop electro-hydraulic servo high-frequency synchronous control system is adopted to ensure that the machine tool has high stability and high precision in the process of high-speed operation.
Advantage:
- The frequency response (response frequency) is higher and can be as high as 200Hz.
- It can continuously and proportionally control the pressure and flow of the hydraulic system, control the position, speed, and force, and reduce the impact of pressure changes.
- Closed-loop control, signal feedback.
- Original German imported products, longer service life.
KRRASS® family Electric Crowning
- Very precise bending angles
- Europe type dies with 60 mm and 90 mm
- Base can be clamped as well as single dies with 13 mm tang
- Electric crowning with a controller
- Precise positioning and alignment of the crowning table
- Easy and fast usage
Italy DSP Laser Protection (Optional)
DSP® laser protection will be necessary if you have a high requirement for the safety.
Advantage:
- Laser protection, Multi beam Receiver
- Pretective areas, Front, center and rear
- The safety level is CAT.4 and SIL3
- Detection Case protection degree: IP 65
- Laser classification: class 1 M
- Response time: 5 ms
- Change Speed Point : 5mm + Stopping Space
- The maximum protective distance is up to 15M
- LED indicators show various states
German Siemens Main Motor
The German famous brand motor increases the service life of the machine and keeps the machine working in a low-noise environment.
Hybrid Servo ECO Function
KRRASS® New Hybrid Servo ECO Function (Optional)
KRRASS® promotes a friendly environmental policy, and as such all our equipment features the Hybrid ECO Function. Our hybrid servo-drive positioning system provides accuracy at any position.
Advantage:
- Operating cost is min due to low energy consumption. Thus, it gives advantages to the user with high efficiency & low operation cost.
- High dynamic for a higher productivity of the machine.
- Compliance with EU Directives.
- Lower energy for a green Machine.
- Lowered sound pressure level at 50 dB.
- The servo-motor, with closed loop speed control.
- Energy efficiency of up to 35 % compared to conventional systems.
Punches & Dies
Sheet Metal Press Brake punches and dies will be one of the most important topics we discuss before you place the order. Any bending shape will be completed by a suitable set of punch and die. We can provide appropriate toolings according to different bending requirements of customers.
Sheet Metal Bending Machine Technical Parameter
| Model | Bending Pressure (kn) | Bending Length (mm) | Column Distance (mm) | Throat Depth (mm) | Slider Stroke (mm) | Max. Opening Height (mm) | Y1,Y2-axis Down Speed (mm/sec) | Y1,Y2-axis Back Stroke Speed (mm/sec) | X-axis Max.Distance (mm) | Main Motor (kw) |
|---|---|---|---|---|---|---|---|---|---|---|
| 50T/1600 | 500 | 1600 | 1250 | 205 | 160 | 540 | 230 | 140 | 600 | 7.5 |
| 80T/2500 | 800 | 2500 | 2000 | 350 | 170 | 540 | 230 | 140 | 600 | 8.5 |
| 110T/2500 | 1100 | 2500 | 2000 | 410 | 200 | 570 | 220 | 140 | 600 | 12.4 |
| 110T/3200 | 1100 | 3200 | 2700 | 410 | 200 | 570 | 220 | 140 | 600 | 12.4 |
| 110T/4000 | 1100 | 4000 | 3500 | 410 | 200 | 570 | 220 | 140 | 600 | 12.4 |
| 135T/2500 | 1350 | 2500 | 2000 | 410 | 200 | 570 | 220 | 140 | 600 | 17.8 |
| 135T/3200 | 1350 | 3200 | 2700 | 410 | 200 | 570 | 200 | 140 | 600 | 17.8 |
| 135T/4000 | 1350 | 4000 | 3500 | 410 | 200 | 570 | 200 | 140 | 600 | 17.8 |
| 175T/3200 | 1750 | 3200 | 2700 | 410 | 200 | 570 | 200 | 140 | 600 | 21.4 |
| 175T/4000 | 1750 | 4000 | 3500 | 410 | 200 | 570 | 200 | 140 | 600 | 21.4 |
| 175T/5000 | 1600 | 5000 | 4100 | 410 | 200 | 570 | 200 | 90 | 600 | 21.4 |
| 175T/6000 | 1600 | 6000 | 5100 | 410 | 200 | 570 | 200 | 90 | 600 | 21.4 |
| 210T/3200 | 2100 | 3200 | 2700 | 410 | 200 | 570 | 200 | 140 | 600 | 25.1 |
| 210T/4000 | 2100 | 4000 | 3500 | 410 | 200 | 570 | 200 | 140 | 600 | 25.1 |
| 210T/5000 | 2100 | 5000 | 4100 | 410 | 200 | 570 | 160 | 90 | 600 | 25.1 |
| 210T/6000 | 2100 | 6000 | 5100 | 410 | 200 | 570 | 160 | 90 | 600 | 25.1 |
| 250T/3200 | 2500 | 3200 | 2700 | 410 | 250 | 620 | 160 | 140 | 600 | 25.1 |
| 250T/4000 | 2500 | 4000 | 3500 | 410 | 250 | 620 | 160 | 140 | 600 | 25.1 |
| 250T/5000 | 2500 | 5000 | 4100 | 410 | 250 | 620 | 130 | 90 | 600 | 25.1 |
| 250T/6000 | 2500 | 6000 | 5100 | 410 | 250 | 620 | 130 | 90 | 600 | 25.1 |
| 320T/3200 | 3200 | 3200 | 2700 | 450 | 300 | 670 | 150 | 130 | 600 | 25.1 |
| 320T/4000 | 3200 | 4000 | 3500 | 450 | 300 | 670 | 150 | 130 | 600 | 25.1 |
| 320T/5000 | 3200 | 5000 | 4100 | 450 | 300 | 670 | 130 | 90 | 600 | 25.1 |
| 320T/6000 | 3200 | 6000 | 5100 | 450 | 300 | 670 | 130 | 90 | 600 | 25.1 |
| 400T/3200 | 4000 | 3200 | 2700 | 500 | 300 | 670 | 150 | 130 | 600 | 31.2 |
| 400T/4000 | 4000 | 4000 | 3500 | 500 | 300 | 670 | 150 | 130 | 600 | 31.2 |
| 400T/5000 | 4000 | 5000 | 4100 | 500 | 300 | 670 | 130 | 90 | 600 | 31.2 |
| 400T/6000 | 5000 | 6000 | 5100 | 500 | 300 | 670 | 130 | 90 | 600 | 31.2 |
