Shearing Machine Setup: Achieving Optimal Performance

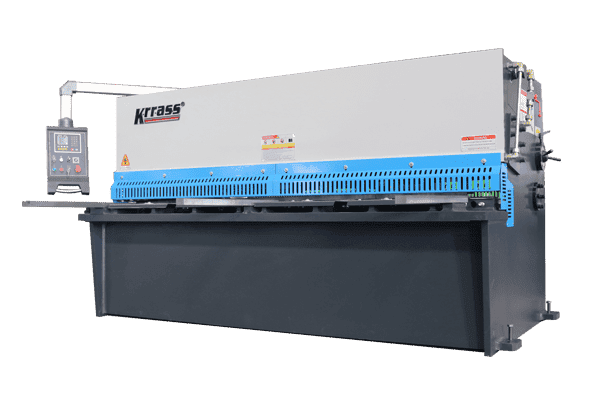

KRRASS QC12K Swing Beam Shearing Machine

Shearing machines play a critical role in various industries, from metal fabrication to textile manufacturing. These machines are designed to cut large sheets of material into smaller, more manageable pieces with precision and efficiency. However, to ensure optimal performance and prolong the lifespan of the equipment, proper setup and maintenance are essential. In this blog post, we will explore the key steps involved in setting up a shearing machine for optimal performance.

1. Equipment Inspection and Maintenance: Prolonging the Life of Shearing Machines

Maintaining shearing machines is not just about preserving the equipment; it’s about ensuring the safety of operators and the efficiency of the production process. Here’s an expanded look at the key components of equipment inspection and maintenance.

Thorough Inspection

A meticulous inspection is the first line of defense in preventing equipment failure and ensuring the longevity of shearing machines. This process should be as detailed as possible, encompassing every aspect of the machine:

  • Internal Components: Check for signs of wear or damage to internal gears and mechanisms.
  • Hydraulic Lines: Inspect for any potential leaks or weak points that could lead to pressure loss or contamination of the hydraulic fluid.
  • Electrical Connections: Ensure all wiring is intact, properly insulated, and free from corrosion to prevent electrical failures and potential safety hazards.

Using a comprehensive checklist can help maintain consistency in inspections and ensure that no critical element is overlooked. This checklist should be tailored to the specific model of the shearing machine and updated regularly to reflect any changes in safety standards or operational procedures.

Wear and Tear

The cutting edge of the blades is where the shearing machine meets the material, making it a critical point of focus. Regular inspections can identify the need for blade sharpening or replacement before they become a problem. Additionally:

  • Back Gauge Alignment: Ensure the back gauge is precisely aligned to maintain consistent cut lengths and angles.
  • Squaring Arm Condition: Verify that the squaring arm is in good condition and properly calibrated to support the material during the cutting process.

Addressing these areas promptly can prevent the gradual decline in cut quality and accuracy, which can lead to wasted materials and increased operational costs.

Regular Maintenance

Developing a routine maintenance schedule is essential for the smooth operation of shearing machines. This includes:

  • Fluid Levels: Regularly check and top up hydraulic fluid levels to ensure smooth operation and prevent overheating.
  • Hose Inspection: Look for signs of wear or damage on hoses, which could lead to leaks and system failure.
  • Pressure Settings: Confirm that the hydraulic system’s pressure settings are within the manufacturer’s recommended range to ensure optimal performance and safety.

Using high-quality lubricants and following the manufacturer’s guidelines for filter replacement can significantly extend the life of the machine and reduce the likelihood of unexpected downtime.

Preventive Maintenance Schedule

A well-planned preventive maintenance schedule is a proactive approach to machine care. It should include:

  • Regular Checks: Outline the frequency of inspections for different machine components.
  • Replacement Timelines: Establish clear timelines for part replacements based on usage and wear.
  • Adaptability: Adjust the schedule as needed based on the operational intensity and any issues that arise during routine inspections.

This dynamic schedule can help anticipate and prevent potential problems before they occur, ensuring continuous operation and productivity.

Maintenance Records

Keeping detailed records of all maintenance activities is crucial for several reasons:

  • Troubleshooting: Detailed records can help quickly identify recurring issues or patterns that may indicate a deeper problem with the machine.
  • Compliance: Accurate maintenance logs are often required to comply with safety regulations and warranty conditions.
  • Historical Data: Over time, these records provide valuable historical data that can inform decisions about equipment upgrades or replacements.

2. Blade Selection and Installation: Maximizing Shearing Machine Performance

The selection and installation of blades are critical factors that determine the efficiency and quality of cuts in shearing machine operations. Here’s an expanded discussion on each point to ensure optimal performance and safety.

Material Considerations

When selecting blades for shearing machines, it’s essential to consider the type of material you’ll be working with. Harder materials, such as stainless steel or titanium, require blades crafted from materials with higher hardness ratings to withstand the stress of cutting without wearing down quickly. Conversely, softer materials like aluminum or copper are best paired with blades that have a higher toughness rating to resist chipping and maintain a sharp edge over time. It’s crucial to:

  • Match Blade to Material: Select a blade material that complements the material to be cut.
  • Consider Material Thickness: Factor in the thickness of the material, as it impacts the blade choice.
  • Balance Hardness and Toughness: Find blades that offer the right mix of hardness for durability and toughness for resilience.

Blade Geometry

The geometry of the blade, including the rake angle, clearance, and edge radius, plays a significant role in the cutting process. The rake angle affects how the material engages with the blade, influencing the force required for cutting and the machine’s energy consumption. Clearance between the blades ensures a clean cut without excessive wear, and the edge radius can affect the sharpness and durability of the blade. Operators should:

  • Optimize Rake Angle: Adjust the rake angle for the type of material and desired cut quality.
  • Maintain Proper Clearance: Regularly check and adjust clearance to prevent material jamming.
  • Monitor Edge Radius: Keep the edge radius consistent to ensure uniform cutting performance.

Installation Precision

Precise installation of blades is paramount for achieving accurate cuts. Using precision tools, operators should measure and adjust the blade alignment, ensuring that the blade gap is uniform across the entire length of the cut. An uneven blade gap can lead to material deformation, such as folding or bowing, which compromises the quality of the final product. Steps include:

  • Use Calibrated Tools: Employ precision instruments for measuring blade alignment.
  • Check Alignment Regularly: Incorporate alignment checks into the maintenance routine.
  • Adjust as Necessary: Make fine adjustments to the blade gap to maintain consistency.

Blade Maintenance

A well-maintained blade is key to the smooth operation of shearing machines. Implementing a regular blade sharpening schedule is crucial to keep the cutting edge sharp and efficient. Dull blades not only require more force to cut, which can strain the machine, but they also produce poor-quality cuts that can reject the material. Maintenance should involve:

  • Scheduled Sharpening: Plan and execute blade sharpening on a regular basis.
  • Inspect Blades Often: Look for signs of dulling or damage that could affect performance.
  • Replace When Needed: Don’t hesitate to replace blades that are beyond sharpening.

Safety Measures

Safety is of utmost importance when handling blades for shearing machines. Operators must always adhere to safety protocols, including using proper lifting techniques and protective equipment to prevent injuries. Before performing any blade maintenance, it’s essential to power off the machine and apply lockout/tagout procedures to prevent accidental activation. Safety measures include:

  • Training on Protocols: Ensure all operators are trained on safe blade handling practices.
  • Use of PPE: Mandate the use of gloves, safety glasses, and other protective gear during blade changes.
  • Lockout/Tagout: Strictly follow lockout/tagout procedures to secure the machine during maintenance.

Shearing Machine

3. Blade Clearance Adjustment

Blade clearance refers to the gap between the upper and lower blades of the shearing machine. Proper blade clearance adjustment is essential for achieving clean, precise cuts without damaging the material. The optimal clearance depends on factors such as material thickness and type.

To adjust the blade clearance, refer to the machine’s manual for specific instructions. Use feeler gauges to measure the clearance between the blades accurately. Make small adjustments as needed until the desired clearance is achieved. Avoid setting the clearance too tight, as this can cause excessive wear on the blades and compromise cutting quality.

Furthermore, regularly check and adjust the blade clearance as needed, especially when switching between different materials or thicknesses. Changes in material properties can affect the optimal clearance settings, so it’s essential to monitor and adjust accordingly to maintain consistent cutting performance.

Consider implementing advanced blade clearance monitoring systems that provide real-time feedback on cutting performance and blade wear. These systems can help optimize cutting parameters and extend blade life by detecting and addressing clearance issues before they affect cutting quality. Work with equipment manufacturers or specialized vendors to explore available options and select the best solution for your application.



4. Material Handling and Feeding: Key to Precision and Efficiency

Efficient material handling and feeding are crucial for the success of any shearing machine operation. This section will explore the essential steps and considerations necessary for effective material management, ensuring optimal performance and high-quality cuts.

Ensuring Material Quality

Cleanliness and Flatness

Before introducing materials to the shearing machine, it’s vital to ensure they are clean, flat, and devoid of debris or contaminants. Small particles can damage the blades and compromise cut quality. It’s important to:

  • Inspect for Cleanliness: Regular checks to ensure materials are free from debris.
  • Flatten Surfaces: Address any warping or unevenness to maintain cutting precision.

Material Inspection

A thorough inspection of materials before processing is essential to identify defects or imperfections that could impact the quality of the cut. This includes:

  • Surface Irregularities: Checking for scratches or damage.
  • Integrity Assurance: Ensuring the material’s condition won’t affect the final product’s quality.

Safe and Efficient Loading

Using Appropriate Lifting Equipment

Employing the right lifting equipment, like cranes or forklifts, is critical for safe material loading onto the shearing machine. This helps to:

  • Reduce Injury Risks: Minimizing manual lifting to prevent accidents.
  • Ensure Consistent Handling: Using mechanical aids for uniform material management.

Consistent Loading Pace

Maintaining a steady pace during material feeding is key to avoiding jams or misalignments. Operators should:

  • Avoid Rushing: Ensuring a controlled loading process for accuracy.
  • Follow Procedures: Adhering to established guidelines to prevent overloading.

Automation and Mechanization

Streamlining Material Handling Processes

Automation can significantly enhance material handling efficiency. Consider:

  • Automated Feeding Systems: Reducing manual labor and minimizing errors.
  • Process Optimization: Implementing systems for more consistent performance.

Investing in Technology

Advanced technologies can further optimize material feeding and processing. Look into:

  • Robotic Systems: For precision handling and improved cycle times.
  • Computerized Controls: Enhancing accuracy and productivity.

Maintenance and Training

Regular Equipment Inspections

Ensuring the proper functioning of material handling equipment is essential. This involves:

  • Conveyor Belt Checks: Maintaining equipment for reliable operation.
  • Component Replacement: Addressing wear and tear promptly to avoid downtime.

Operator Training

Comprehensive training is necessary for safe and effective material handling. Focus on:

  • Safety Protocols: Emphasizing the use of PPE and adherence to safety guidelines.
  • Technique Training: Educating on best practices for material management.
Hydraulic Shearing Machine
Hydraulic Shearing Machine

5. Operator Training and Safety: Ensuring Safe and Efficient Operation

Operators are the backbone of any shearing machine operation, and their training and safety are paramount to the success of the entire process. In this section, we’ll delve into the critical aspects of operator training and safety to ensure smooth and efficient machine operation while prioritizing the well-being of personnel.

Comprehensive Training Programs

Understanding Machine Controls

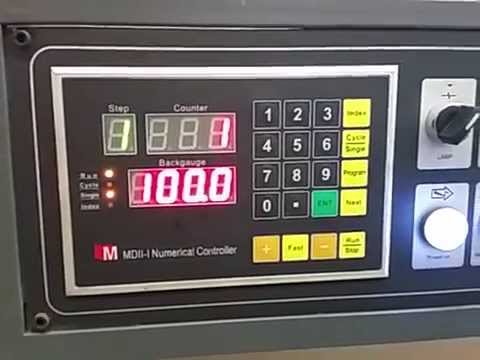

Operators must have a thorough understanding of the shearing machine controls, including start/stop buttons, blade adjustment mechanisms, and emergency shutdown procedures. Training sessions should cover the functions of each control and how to operate them safely.

  • Start/Stop Buttons: Familiarity with the machine’s primary operation controls.
  • Blade Adjustment Mechanisms: Knowledge of how to adjust the blade for different materials.
  • Emergency Shutdown: Procedures to follow in case of an emergency to minimize risk.

Material Handling Techniques

Proper material handling is essential to prevent accidents and damage to the equipment. Training should focus on techniques for safely loading materials onto the machine, including the use of lifting equipment and positioning guides.

  • Safe Loading: Methods to load materials without causing harm or machine damage.
  • Lifting Equipment: Utilization of mechanical aids to handle heavy materials.
  • Positioning Guides: Use of guides to ensure materials are aligned correctly before cutting.

Routine Maintenance Tasks

Operators should be trained to perform routine maintenance tasks, such as blade sharpening, lubrication, and inspection of critical components. This ensures that the machine operates at peak efficiency and reduces the risk of unexpected breakdowns.

  • Blade Sharpening: Keeping the cutting edge sharp for optimal performance.
  • Lubrication: Regular lubrication to reduce wear and tear on moving parts.
  • Inspection: Checking for signs of wear or damage to prevent malfunctions.

Emphasizing Safety Protocols

Personal Protective Equipment (PPE)

Operators must wear appropriate PPE, including safety glasses, gloves, and hearing protection, to prevent injuries from flying debris, sharp edges, and noise exposure. Training programs should emphasize the importance of wearing PPE at all times while operating the shearing machine.

  • Safety Glasses: Protection against flying particles and sparks.
  • Gloves: Guarding hands against cuts and abrasions.
  • Hearing Protection: Preserving hearing in high-noise environments.

Safety Inspections

Regular safety inspections should be conducted to identify and address any potential hazards or risks associated with the shearing machine. Inspections should include checking for loose bolts, damaged blades, and worn-out parts that may affect performance.

  • Bolt Tightening: Ensuring all bolts are secure to maintain machine integrity.
  • Blade Condition: Regular checks to identify any damage or need for replacement.
  • Wear and Tear: Monitoring parts for signs of wear that could lead to breakdowns.

Emergency Procedures

Operators should be trained on emergency procedures, including how to quickly shut down the machine in case of an emergency, and how to respond to accidents or injuries. Emergency stop buttons and safety guards should be in place and functioning correctly at all times.

  • Machine Shutdown: Steps to safely and quickly stop machine operation.
  • Accident Response: Protocols for addressing injuries and preventing further harm.
  • Safety Guards: Regular checks to ensure guards are in place and effective.

Continuous Improvement and Feedback

Ongoing Training Programs

Investing in ongoing training and development programs for operators can improve productivity and efficiency. Regular refresher courses and updates on safety protocols ensure that operators stay up-to-date with the latest best practices.

  • Refresher Courses: Keeping skills sharp with periodic training updates.
  • Safety Protocol Updates: Staying informed on the latest safety measures and regulations.
  • Best Practices: Learning and applying industry standards for optimal operation.

Encouraging Feedback

Operators should be encouraged to provide feedback and suggestions for process improvements. Their insights can help identify areas for optimization and enhance overall efficiency. Creating a culture of continuous improvement fosters a safer and more productive work environment.

  • Feedback Channels: Establishing clear avenues for operators to share their insights.
  • Process Optimization: Implementing changes based on operator suggestions.
  • Safety Culture: Promoting a workplace where safety and improvement are valued.

6. Performance Monitoring and Optimization

Once the shearing machine is set up and operational, it is essential to monitor its performance regularly. Keep track of key metrics such as cutting speed, accuracy, and blade wear. Periodically inspect the blades for signs of wear and adjust the clearance as needed to maintain optimal cutting quality.

Pay attention to any unusual noises, vibrations, or performance issues that may indicate underlying problems with the machine. Address these issues promptly to prevent further damage and downtime. Regular maintenance and performance monitoring are critical for maximizing the lifespan and efficiency of the shearing machine.

Implementing advanced monitoring and diagnostic systems can provide valuable insights into machine performance and help identify potential issues before they escalate. These systems collect data on various parameters, such as blade temperature, hydraulic pressure, and motor load, allowing operators to monitor trends and detect anomalies. Utilize this data to fine-tune machine settings, optimize cutting parameters, and proactively address maintenance needs.

conclusion

In summary, proper setup and maintenance are the cornerstones for optimal performance and extended service life of your shearing machine. By strictly following the steps outlined in this blog post, you can ensure that your equipment runs smoothly and consistently delivers high-quality cuts. By prioritizing equipment inspections, blade selection, material handling, operator training, and performance monitoring, you can maximize efficiency and shear life, ultimately achieving optimal performance.

In this regard, it is worth mentioning that KRRASS is the leading manufacturer of hydraulic shears in China. With a commitment to quality and innovation, they provide reliable and high-performance shears that meet the needs of every industry.
