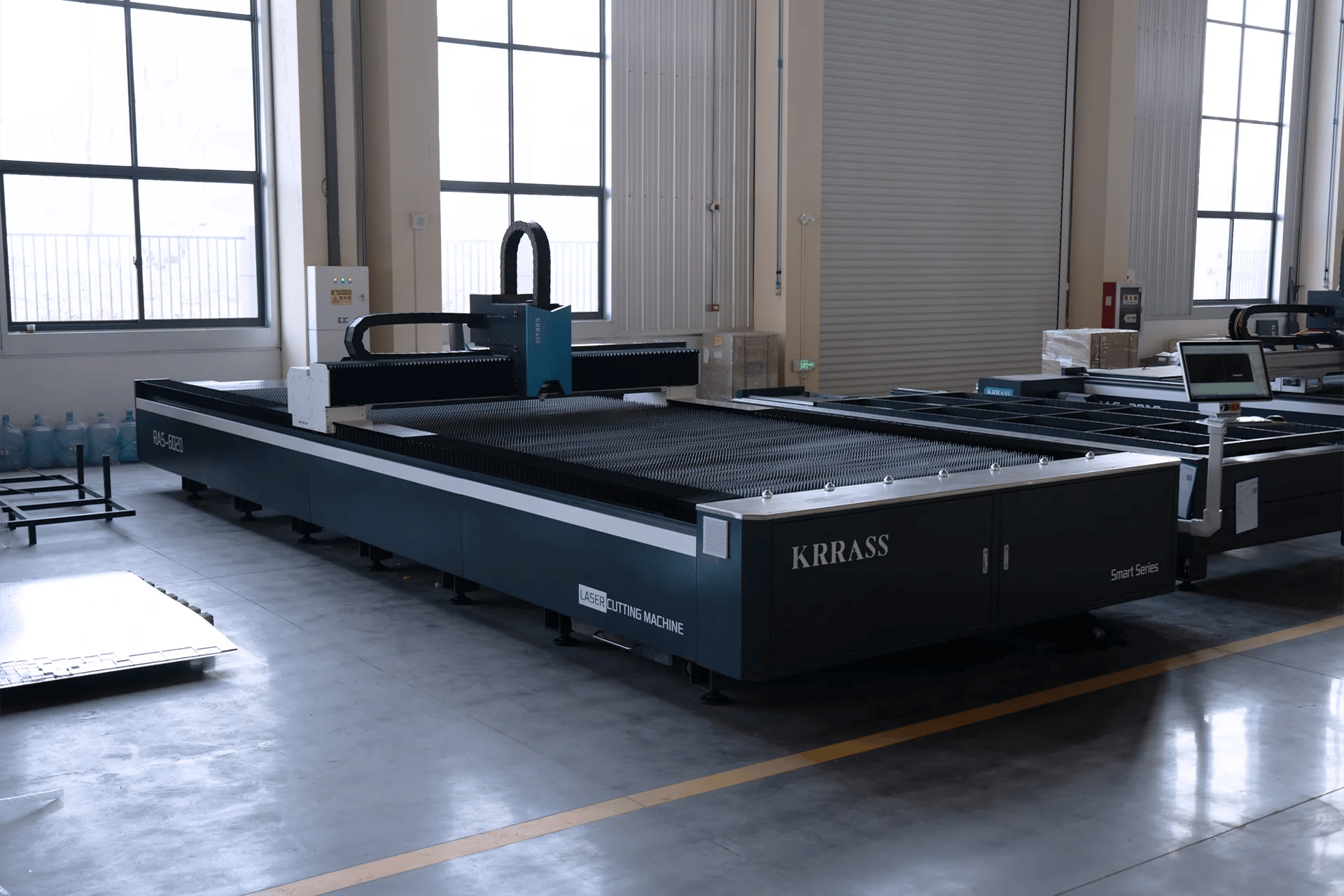

High-Performance 3kW Fiber Laser Cutter for Sheet Metal
Original price was: $26,000.00.$23,450.00Current price is: $23,450.00.
Model: RAS-6020-Smart 3000W
Category: Fiber Laser Cutting Machine
Brand Name: KRRASS
Laser Source: Max China
Laser Head: BLT310
Control system: FSCUT2000E
Working Area: 6000mm * 2000mm
HS Code: 8456110090
Application: Sheet metal fabrication, automotive parts manufacturing, electrical cabinet production, commercial kitchenware equipment, aerospace components processing, precision carbon steel cutting, stainless steel fabrication, aluminum alloy processing, brass and copper metalworking.
Technologyies
| Laser Source: | Max China MFSC 3000W |
| Laser Head: | BLT310 |
| Control System: | FSCUT2000E |
| Working Area: | 6000mm * 2000mm |
| Operating Voltage: | 380V 50Hz |
| Power: | 3000W |
| Length* Width* Height: | 7500mm * 2765mm * 1900mm |
Configurations
Main Feature
The RAS-6020 Smart 3kW Fiber Laser Cutter by KRRASS delivers unmatched speed, precision, and efficiency for metal fabrication. It effortlessly processes carbon steel, stainless steel, aluminum, brass, and various alloys, ensuring flawless edges and industrial-grade reliability. While our RAS series scales up to 40kW, this robust 3000W model is the ultimate "sweet spot" for maximizing productivity. Backed by KRRASS’s top-tier global support, it empowers your production line to tackle demanding projects with ease.

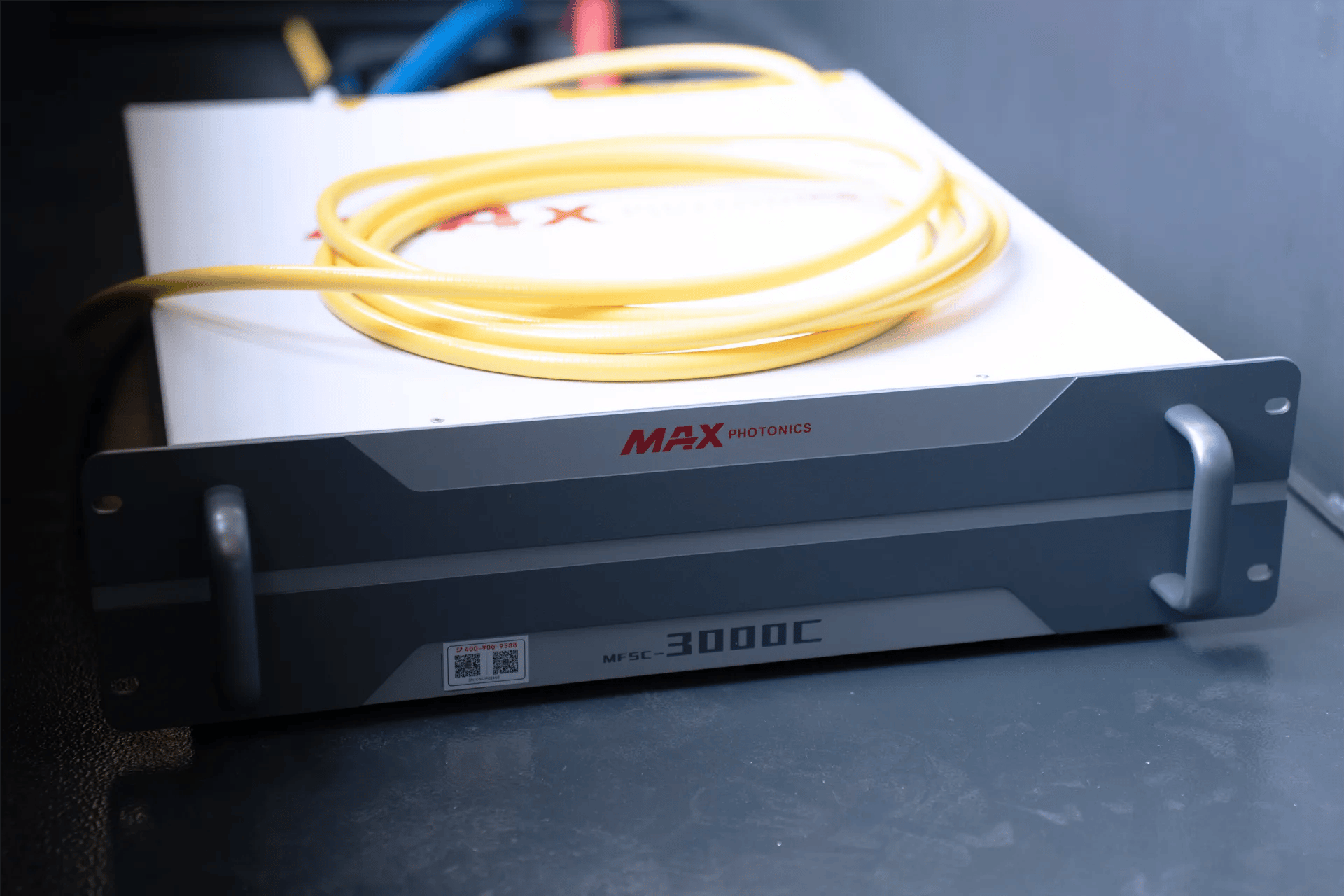

Max China MFSC 3000W Laser Source
Powering this 3kW fiber laser cutter is the highly reliable MAX MFSC 3000W Single-Module Fiber Laser. Renowned for its exceptional beam quality and high stability, this compact, water-cooled unit ensures peak continuous performance. Featuring seamlessly adjustable power and standard QBH fiber transmission, it perfectly integrates with our CNC system. This robust laser source guarantees superior cutting precision across demanding sectors, including automotive, aerospace, and advanced metal fabrication.

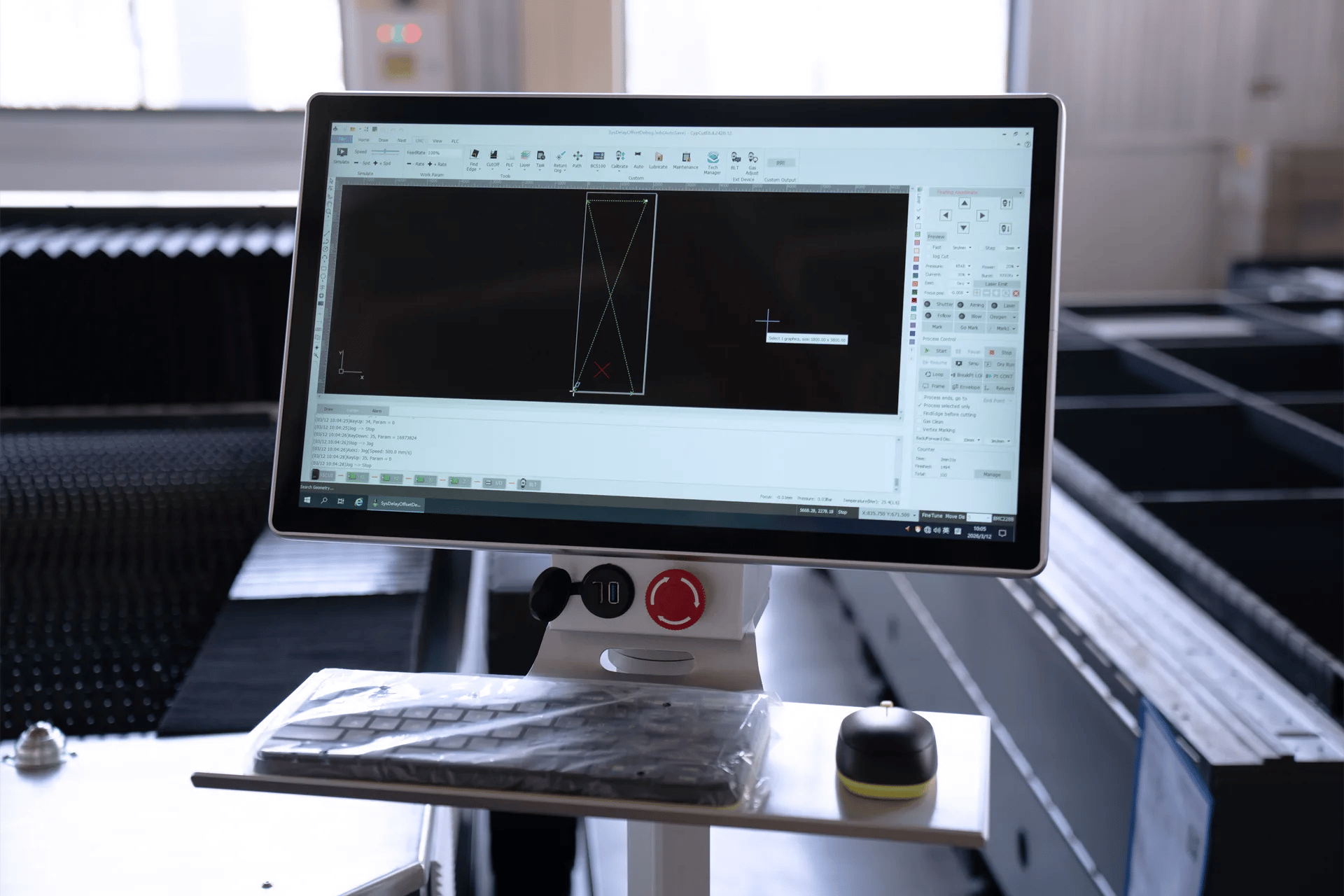

Bus Control System FSCUT2000E
Equipped with the industry-leading BOCHU FSCUT2000E control system, this 3kW fiber laser cutter utilizes EtherCAT bus technology to guarantee lightning-fast, real-time data transmission and rock-solid stability. The highly intuitive, feature-rich interface significantly simplifies complex operations. It empowers even entry-level operators to consistently produce flawless, high-precision metal parts with minimal training.

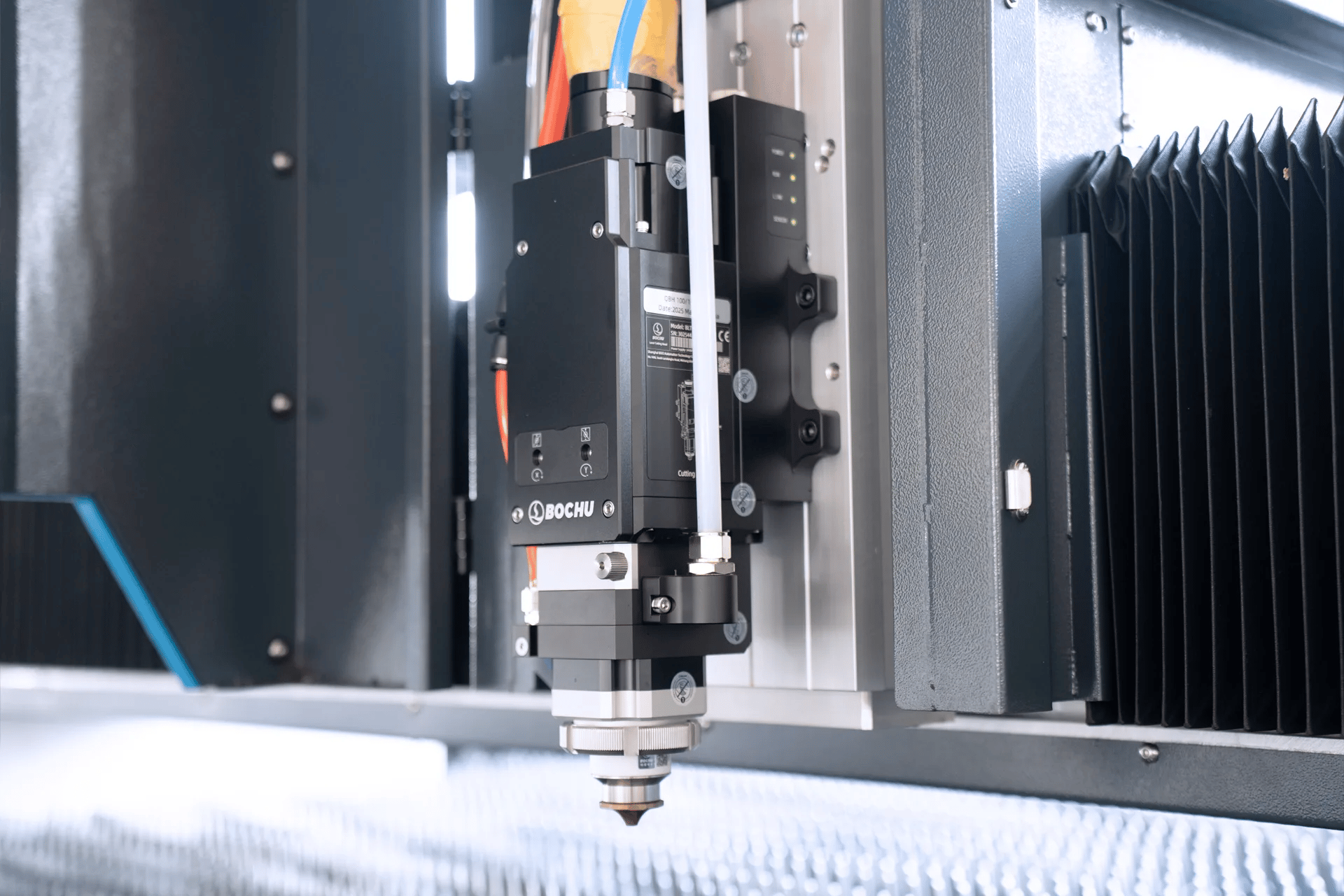

BOCHU BLT310 Smart Cutting Heads
Engineered for maximum precision, the BOCHU BLT310 is an advanced, high-performance cutting head. Despite its exceptionally compact and lightweight profile, it houses a sophisticated array of intelligent sensors. This design enables real-time, closed-loop monitoring of the entire process, instantly delivering rapid diagnostics and active warnings to prevent downtime and maintain consistent edge quality.

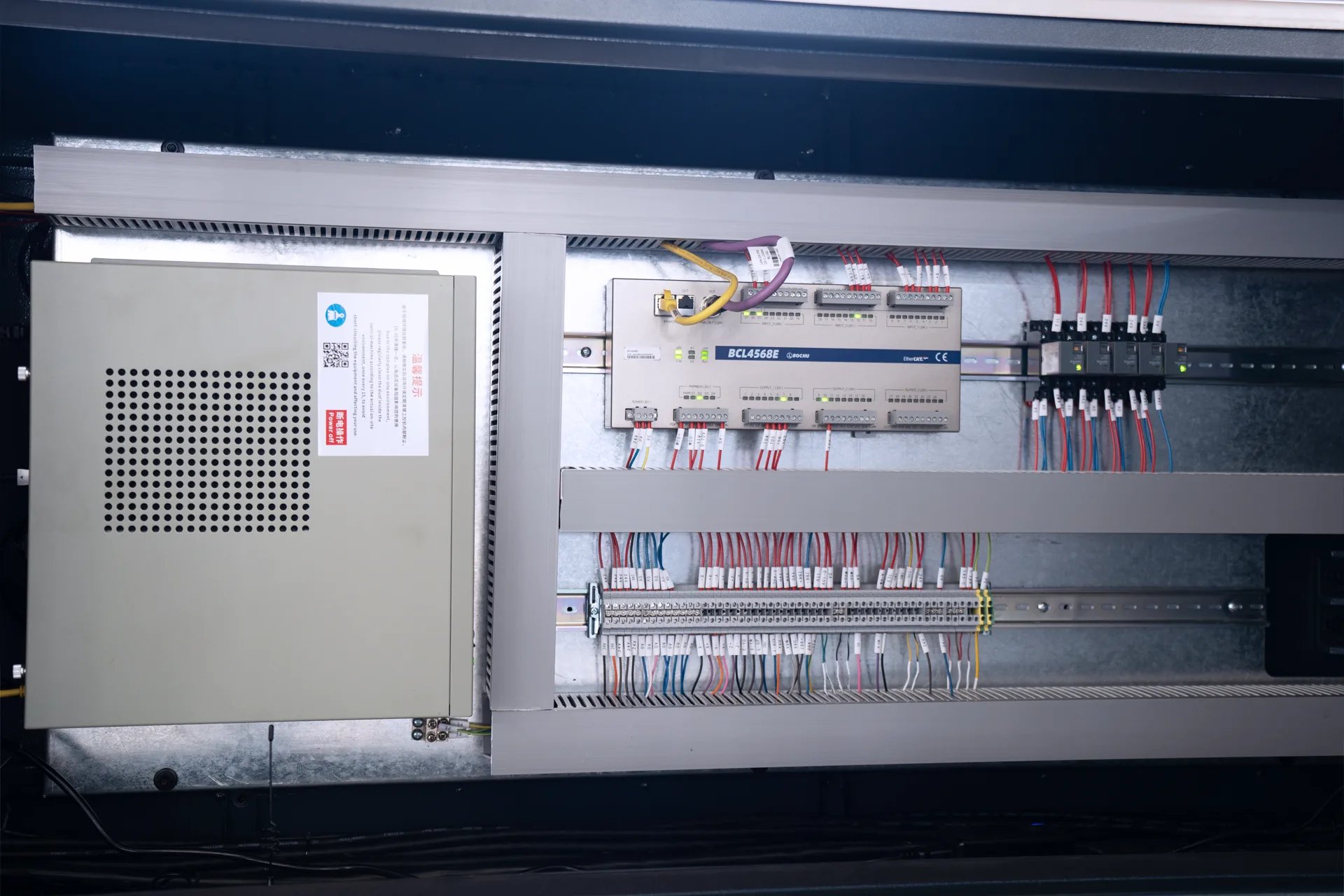

EtherCAT Controller FSCUT2000E
Perfectly tailored for 1.5kW to 3kW power applications, the FSCUT2000E EtherCAT controller seamlessly synchronizes the machine's motion, laser output, and cutting gases. This high-efficiency system is an industry favorite for fabricating sheet metal, commercial kitchenware, and precision lighting fixtures. Paired with the robust BCL4568E terminal board, it ensures extremely stable and reliable signal processing during complex operations.

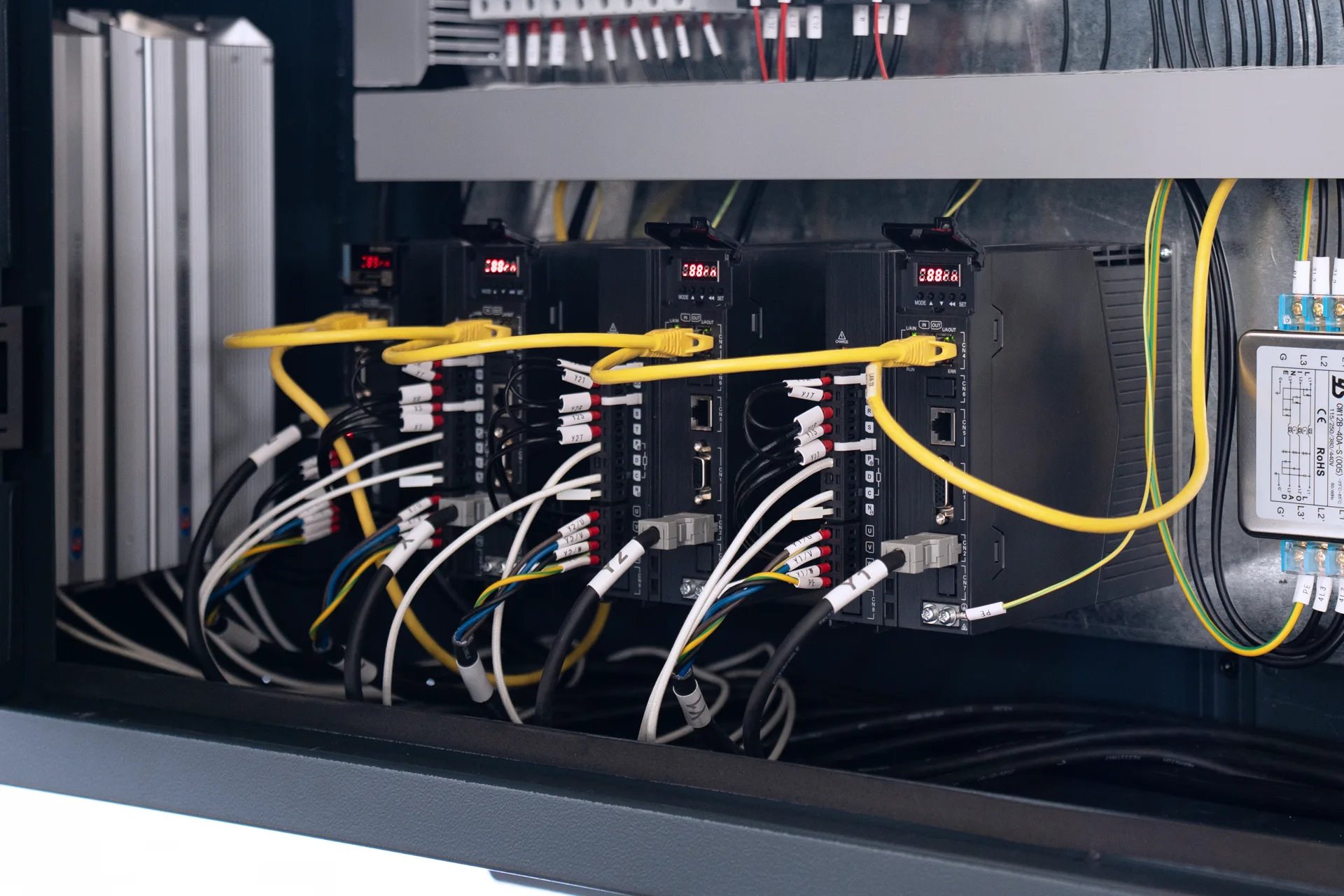

High Speed Servo Motor And Drive
Driven by premium INOVANCE high-speed servo motors and drives, the motion system guarantees precise control and rapid acceleration, drastically enhancing overall efficiency. These high-dynamic components offer exceptional responsiveness and unmatched stability, ensuring continuous industrial performance with minimal mechanical downtime. Furthermore, advanced closed-loop feedback mechanisms provide real-time positioning, making the machine perfectly suited for executing highly complex metal fabrication tasks with pinpoint accuracy.

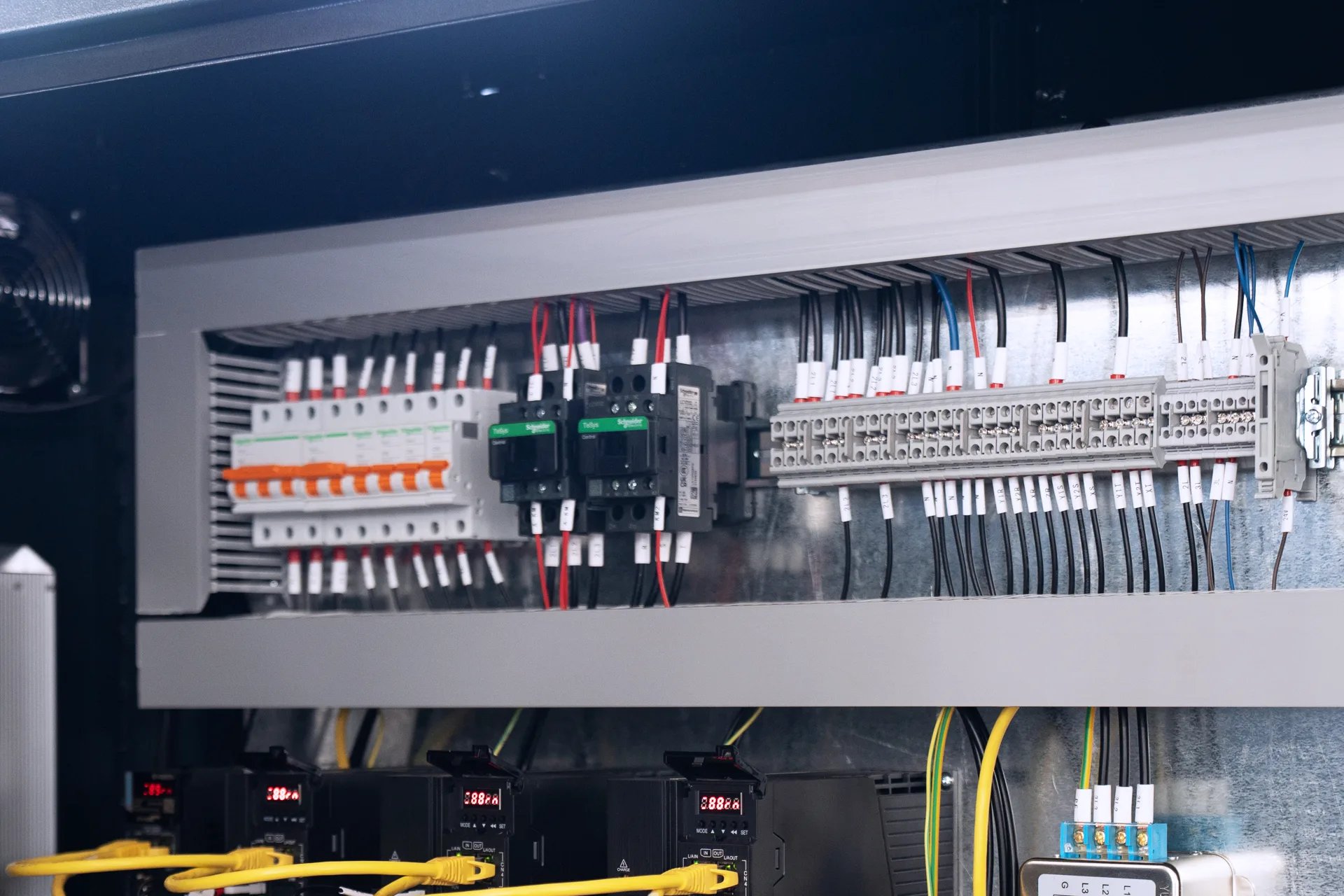

Genuine Schneider Electrical System
To guarantee maximum safety and uninterrupted operation, the electrical cabinet is fully equipped with genuine Schneider components. These premium parts deliver rock-solid stability, protecting the equipment's core systems and ensuring continuous operation even when the local power supply is inconsistent. Beyond exceptional durability, utilizing a universally recognized brand offers a massive advantage for global manufacturers. Should you ever require a replacement part, you can easily source it locally anywhere in the world. This universal availability drastically reduces potential downtime and keeps your production firmly on track.

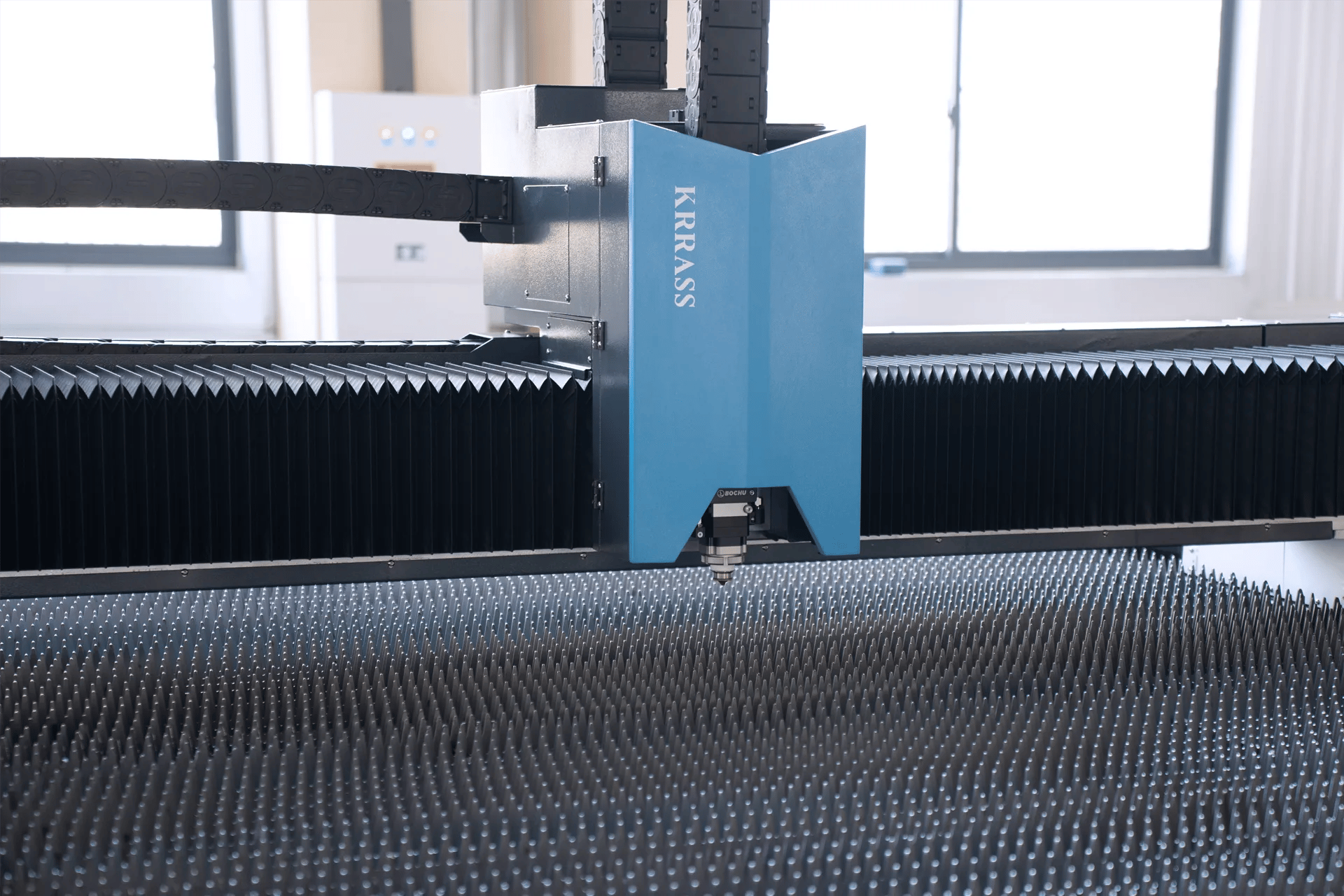

Fifth-Generation Aviation Aluminum Alloy Beam
The transverse beam is engineered from high-strength aviation-grade aluminum, processed with advanced T6 heat treatment for maximum structural integrity. This meticulous solution treatment significantly enhances the beam’s strength-to-weight ratio and plasticity. By optimizing and reducing the overall weight, the beam enables higher acceleration and rapid movement speeds, ensuring superior dynamic performance during high-speed cutting operations without compromising stability.

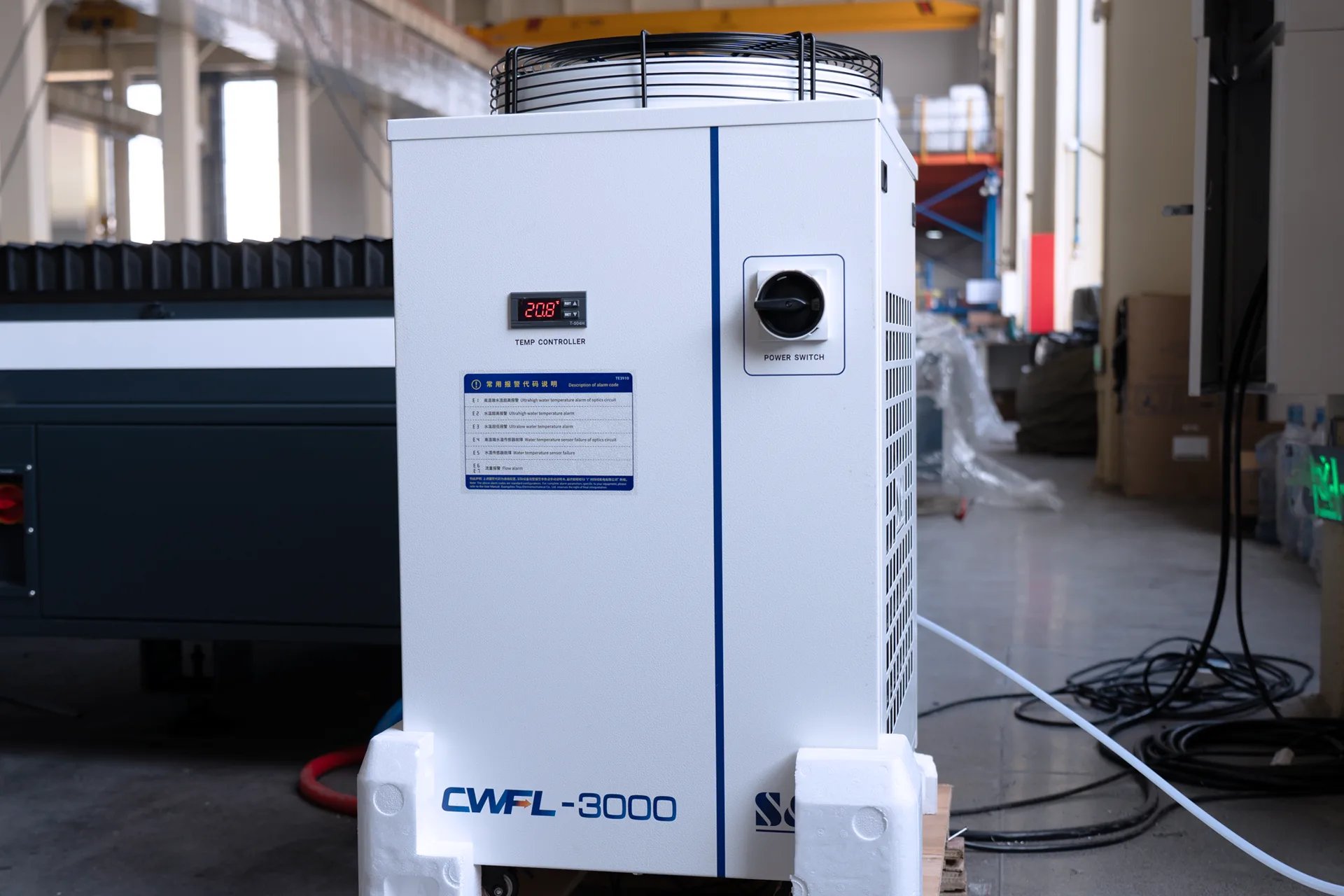

Advanced Industrial Water Cooling System
To maintain peak efficiency, our dual-circuit water cooling system precisely regulates the temperature of both the laser source and cutting optics. Actively preventing heat buildup during high-intensity operations ensures stable laser output and protects sensitive components from thermal stress. This consistent thermal management is vital for flawless cutting quality and extending the machine's longevity. Equipped with intelligent temperature control and automatic alarms, it provides a reliable cooling solution for continuous, 24/7 industrial production without the risk of overheating.
3kW Fiber Laser Cutter Material Thickness
| Thickness（mm） | Speed（m/min） | Focus position | Cutting height（mm） | Gas | Nozzle type | Pressure（bar） | Cutting effect | |
|---|---|---|---|---|---|---|---|---|
| Carbon steel (Q235B) | 1 | 59 | 0 | 0.5 | N2 | Single：1.0 | 12~16 | Bright surace |
| 2 | 28 | -1~-1.5 | 0.5 | Single：2.0 | 12~16 | |||
| 3 | 4 | 4.5~5.5 | 0.8 | O2 | Double：1.2 | 0.6~0.9 | ||
| 4 | 3.5 | 4.5~5.5 | 0.8 | Double：1.2 | 0.6~0.9 | |||
| 6 | 2.7 | 4.5~5.5 | 0.8 | Double：1.2 | 0.6~0.9 | |||
| 8 | 2.2 | 4.5~5.5 | 1.5 | Double：4.0 | 0.6~0.9 | |||
| 10 | 1.5 | 2~3 | 1.5 | Double：4.0 | 0.6~0.9 | Matte surface | ||
| 12 | 1 | 2~3 | 1.5 | Double：4.0 | 0.6~0.9 | |||
| 14 | 0.95 | 2~3 | 1.5 | Double：4.0 | 0.6~0.9 | |||
| 16 | 0.85 | 2.5~3.5 | 1.5 | Double：4.0 | 0.6~0.9 | |||
| 18 | 0.72 | 2.5~3.5 | 1.5 | Double：4.0 | 0.6~0.9 | |||
| 20 | 0.65 | 2.5~3.5 | 1.5 | Double：4.0 | 0.6~0.9 | |||
| 22 | 0.55 | 2.5~3.5 | 1.5 | Double：4.0 | 0.6~0.9 | |||
| 25 | 0.5 | 2.5~4 | 1.5 | Double：4.0 | 0.6~0.9 | |||
| Stainless steel (SUS304) | 1 | 0 | 0.5 | N2 | Single：1.0 | 12~16 | No slag | |
| 2 | 0~-0.5 | 0.5 | Single：2.0 | 12~16 | ||||
| 3 | 12 | -1~-1.5 | 0.5 | Single：2.0 | 12~16 | |||
| 4 | 4.3 | -3.5~-4 | 0.5 | Single：3.5 | 12~16 | |||
| 6 | 1.8 | -5~-6 | 0.5 | Single：3.5 | 16~18 | |||
| 8 | 1.2 | -6.5~-7 | 0.5 | Single：3.5 | 16~18 | |||
| 10 | 0.9 | -7.5~-8.5 | 0.5 | Single：3.5 | 16~18 | A small amount of slag | ||
| 12 | 0.4 | -9~-10 | 0.5 | Single：4.0 | 16~20 | A small amount of dross | ||
| Aluminum (6061) | 1 | 37~40 | 0 | 0.5 | Air | Single：1.0/1.2/1.5 | 12~16 | |
| 2 | 20~22 | 0~-0.5 | 0.5 | Single：1.5/2.0 | 12~16 | |||
| 3 | 8~9 | 0~-0.5 | 0.5 | Single：2.0/2.5/3.0 | 12~16 | |||
| 4 | 5~5.2 | -1~-1.5 | 0.5 | Single：3.0 | 12~16 | |||
| 6 | 2.2~2.5 | -2~-3 | 0.5 | Single：3.5/4.0 | 12~16 | |||
| 8 | 1~1.2 | -3~-4 | 0.5 | Single：4.0 | 16~18 | |||
| 10 | 0.5~0.6 | -5~-5.5 | 0.5 | Single：4.0 | 16~18 | |||
| Brass | 1 | 15~17 | 0 | 1.5 | Air | Single：1.0/1.2/1.5 | 12~16 | |
| 2 | 18~20 | 0~-0.5 | 2.5 | Single：1.5/2.0 | 12~16 | |||
| 3 | 7~7.5 | 0~-0.5 | 3.5 | Single：2.0/2.5/3.0 | 12~16 | |||
| 4 | 4~4.5 | -1~-1.5 | 4.5 | Single：3.0 | 12~16 | |||
| 6 | 2.0~2.2 | -2~-3 | 5.5 | Single：3.5/4.0 | 12~16 | |||
| 8 | 0.9~1.1 | -3~-4 | 6.5 | Single：4.0 | 16~18 | |||
| 10 | 0.5~0.6 | -5~-5.5 | 7.5 | Single：4.0 | 16~18 |
What is this Machine Used for?
Warranty
30-DAY MONEY BACK GUARANTEE
You should feel completely satisfied with your KRRASS Fiber Laser Cutting Machine purchase, and your peace of mind is a significant part of that process. We want you to feel the same confidence in your new KRRASS machine that we do, which is why every Press Brake purchase includes our Hassle-Free KRRASS 30-Day Return option in order to fully experience and evaluate their new KRRASS machine. It allows you to return or exchange your KRRASS purchase, for any reason, within 30 days of initial purchase. Refunds are simple and are issued once the original machine and all accompanying accessories have been returned. The refund or exchange will be issued minus the 15% restocking fee for items & accessories, 25% KRRASS Fiber Laser Cutting Machine Series customization fee, and shipping or handling costs are not included. Click here for details
2-YEAR LIMITED MACHINE WARRANTY
2 years Bumper to Bumper machine warranty for all machine mechanical and electrical components. (Except consumables parts) The Company represents and warrants that the KRRASS All Series of products will perform according to the warranty policy stated above from date of invoice. Products will be free from defects in materials and workmanship under normal use and service for the stated period. KRRASS has the responsibility to offer a timely solution and/or repair if deemed inoperable or defective by KRRASS Repair & Support Specialists. Clients are obligated to show proof of any such claims of machine parts or operational defects. Click here for details
