Press Brake Forming: Understanding Material Springback

Press Brake Forming: Understanding Material Springback

In the realm of press brake operations, mastering the art of sheet metal bending requires more than just precision and technique. Engineers and operators must grasp the intricate phenomenon known as material springback. Contrary to initial assumptions, the angle at which metal is bent doesn't permanently hold; instead, it tends to subtly revert to its original form, a behavior aptly termed springback. This inherent property of sheet metal, while sometimes seen as an obstacle, can be effectively managed once understood.

Table of contetns

I.Deciphering Springback

II.Unraveling the  Springback Mechanism

III.Introducing Springforward

IV.Quantifying Springback

V.Harnessing Springback

VI.Conclusion: Mastering Springback

I.Deciphering Springback

Springback elucidates how sheet metal endeavors to regain its original shape post-bending. The process of forming sheet metal involves a blend of elastic-plastic bending and stretching, both contributing to the springback effect. It's not an isolated occurrence confined to sheet metal alone but extends to wires, rods, bars, and other thin metal forms.

II.Unraveling the  Springback Mechanism

The rationale behind springback is rooted in the inherent elasticity of materials, including metal renowned for its rigidity. Upon subjecting the metal to plastic deformation during bending, an elastic rebound occurs upon load removal, prompting the metal to revert towards its initial state.

Two primary factors drive this phenomenon. Firstly, the molecular density on the inside of the bend surpasses that of the outer surface, leading to disparate stress distributions. Secondly, the tensile forces outweigh the compressive forces on the stretched side of the metal, further accentuating its propensity to spring back.

III.Introducing Springforward

Amidst the tug-of-war between springback and the desired angle, arises the concept of springforward. This transient bending after springback counteracts its effects, aiding in achieving the intended angle. While not entirely nullifying springback, springforward serves to moderate the extent of metal rebound. The equilibrium between these forces culminates in a process termed coining, once a conventional method of compensating for springback, now overshadowed by more sophisticated techniques.Press Brake

IV.Quantifying Springback

Measuring springback typically entails assessing the variance between the bent angle and the actual angle achieved. This disparity is then divided by the tooling angle to ascertain the springback factor, often denoted as "Ks". A factor of 1 indicates no springback, while 0 signifies total rebound. Advanced formulations consider variables such as yield stress and elasticity to refine springback predictions.

V.Harnessing Springback

While springback presents challenges, astute companies leverage it to their advantage. Anticipating and mitigating springback allows operators to exert greater control over metal forming processes. Springback compensation emerges as a pivotal strategy, enabling operators to preemptively bend the metal to counteract springback effects, thereby streamlining production and minimizing corrective efforts.

VI.Conclusion: Mastering Springback

In the realm of press brake forming, understanding material springback is paramount. It's not merely an impediment but an intrinsic characteristic that can be harnessed with knowledge and skill. By comprehending the underlying mechanics and employing strategic interventions like springback compensation, operators can navigate the nuances of metal bending with precision, ensuring products are crafted to perfection, devoid of deformations.

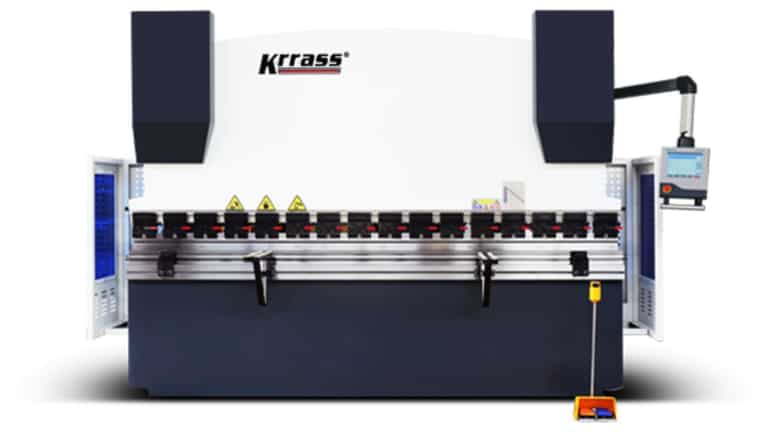

KRRASS offers a wide range of Press Brake, if you would like to know about any of our machines please contact us.
