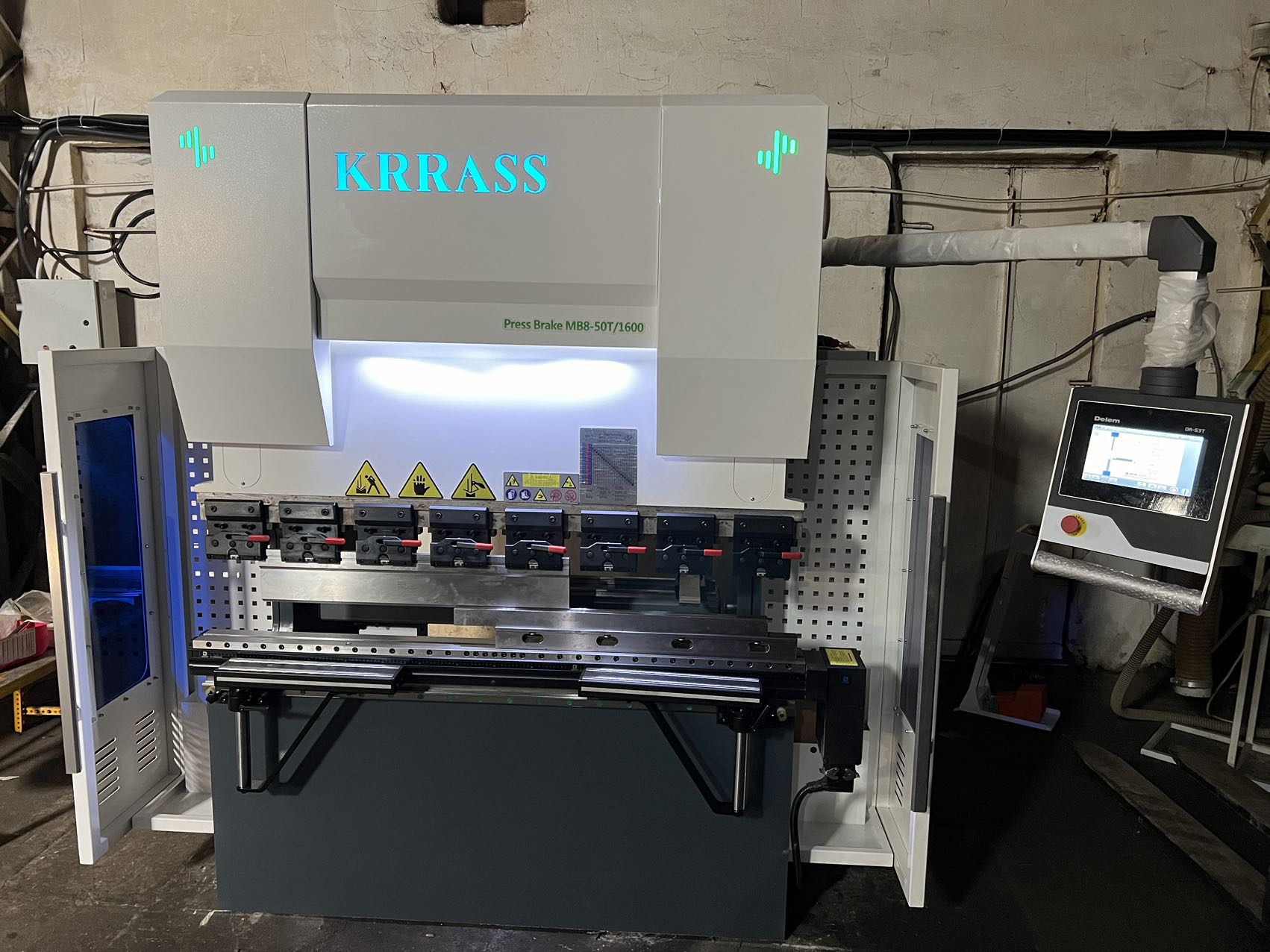

MB8 Series Sheet Metal Press Brake, it’s an affordable Sheet Metal Press Brake with an impressive number of features and options. Competitive pricing with advanced DELEM DA-53T or DA-58T 2D capable graphical controls. Advanced Series is your first choice in Y1/Y2 machine technology.
Simple and solid press brake
Work area can be customized and all types of tool clamping can be installed
Tailored-made sheet metal press brake
FEA & Stress Analysis
The CAE software SOLIDWORKS used as the method to analyze the linear static construction, stress and deformation for press break and laser cutting machine frames. So for complicated structures, highly complex loading’s, transient modelling and combination of the above, FEA makes sense.
DELEM CNC Control System
DELEM CNC Control System
KRRASS CNC press brake use all Raw material is provided by qualified suppliers and chemical composition corresponds to international standards. Therefore, raw material yield and tensile strength are guaranteed, are standardized with a 8.4 x 3.5 mm safety groove, which keeps the tool from falling out.
Advantage:
KRRASS® BGA-2 BackGauge
The German Rexroth fully closed-loop electro-hydraulic servo high-frequency synchronous control system is adopted to ensure that the machine tool has high stability and high precision in the process of high-speed operation.
Advantage:
DSP® laser protection will be necessary if you have a high requirement for the safety.
Advantage:
The German famous brand motor increases the service life of the machine and keeps the machine working in a low-noise environment.
Hybrid Servo ECO Function
KRRASS® promotes a friendly environmental policy, and as such all our equipment features the Hybrid ECO Function. Our hybrid servo-drive positioning system provides accuracy at any position.
Advantage:
Sheet Metal Press Brake punches and dies will be one of the most important topics we discuss before you place the order. Any bending shape will be completed by a suitable set of punch and die. We can provide appropriate toolings according to different bending requirements of customers.
Model | Bending Pressure (kn) | Bending Length (mm) | Column Distance (mm) | Throat Depth (mm) | Slider Stroke (mm) | Max. Opening Height (mm) | Y1,Y2-axis Down Speed (mm/sec) | Y1,Y2-axis Back Stroke Speed (mm/sec) | X-axis Max.Distance (mm) | Main Motor (kw) |
---|---|---|---|---|---|---|---|---|---|---|
50T1600 | 500 | 1600 | 1250 | 205 | 160 | 540 | 230 | 140 | 600 | 4 |
80T/2500 | 800 | 2500 | 2000 | 350 | 170 | 570 | 230 | 140 | 600 | 7.5 |
100T/2500 | 100 | 2500 | 2000 | 410 | 200 | 570 | 220 | 140 | 600 | 7.5 |
100T/3200 | 1000 | 3200 | 2700 | 410 | 200 | 570 | 220 | 140 | 600 | 7.5 |
100T/4000 | 1000 | 4000 | 3500 | 410 | 200 | 570 | 220 | 140 | 600 | 7.5 |
110T/3200 | 1100 | 3200 | 2700 | 410 | 200 | 570 | 220 | 140 | 600 | 7.5 |
110T/4000 | 1100 | 4000 | 3500 | 410 | 200 | 570 | 220 | 140 | 600 | 7.5 |
125T/3200 | 1250 | 3200 | 2700 | 410 | 200 | 570 | 200 | 140 | 600 | 11 |
125T/4000 | 1250 | 4000 | 3500 | 410 | 200 | 570 | 200 | 140 | 600 | 11 |
135T/3200 | 1350 | 3200 | 2700 | 410 | 200 | 570 | 200 | 140 | 600 | 11 |
135T/4000 | 1350 | 4000 | 3500 | 410 | 200 | 570 | 200 | 140 | 600 | 11 |
160T/3200 | 1600 | 3200 | 2700 | 410 | 200 | 570 | 200 | 140 | 600 | 11 |
160T/4000 | 1600 | 4000 | 3500 | 410 | 200 | 570 | 200 | 140 | 600 | 11 |
160T/5000 | 1600 | 5000 | 4100 | 410 | 200 | 570 | 160 | 90 | 600 | 11 |
160T/6000 | 1600 | 6000 | 5100 | 410 | 200 | 570 | 160 | 90 | 600 | 15 |
175T/3200 | 1750 | 3200 | 2700 | 410 | 200 | 570 | 160 | 140 | 600 | 11 |
175T/4000 | 1750 | 4000 | 3500 | 410 | 200 | 570 | 160 | 140 | 600 | 11 |
175T/5000 | 1600 | 5000 | 4100 | 410 | 200 | 570 | 160 | 90 | 600 | 11 |
175T/6000 | 1600 | 6000 | 5100 | 410 | 200 | 570 | 160 | 90 | 600 | 15 |
200T/3200 | 2000 | 3200 | 2700 | 410 | 200 | 570 | 160 | 140 | 600 | 15 |
200T/4000 | 2000 | 4000 | 3500 | 410 | 200 | 570 | 160 | 140 | 600 | 15 |
200T/5000 | 2000 | 5000 | 4100 | 410 | 200 | 570 | 160 | 90 | 600 | 15 |
200T/6000 | 2000 | 6000 | 5100 | 410 | 200 | 570 | 160 | 90 | 600 | 15 |
210T/3200 | 2100 | 3200 | 2700 | 410 | 200 | 570 | 160 | 140 | 600 | 15 |
210T/4000 | 2100 | 4000 | 3500 | 410 | 200 | 570 | 160 | 140 | 600 | 15 |
210T/5000 | 2100 | 5000 | 4100 | 410 | 200 | 570 | 130 | 90 | 600 | 15 |
210T/6000 | 2100 | 6000 | 5100 | 410 | 200 | 570 | 130 | 90 | 600 | 15 |
250T/3200 | 2500 | 3200 | 2700 | 410 | 250 | 420 | 160 | 140 | 600 | 18.5 |
250T/4000 | 2500 | 4000 | 3500 | 410 | 250 | 620 | 160 | 140 | 600 | 18.5 |
250T/5000 | 2500 | 5000 | 4100 | 410 | 250 | 620 | 130 | 90 | 600 | 18.5 |
250T/6000 | 2500 | 6000 | 5100 | 410 | 250 | 620 | 130 | 90 | 600 | 18.5 |
320T/3200 | 3200 | 3200 | 2700 | 450 | 300 | 670 | 150 | 130 | 600 | 22 |
320T/4000 | 3200 | 4000 | 3500 | 450 | 300 | 670 | 150 | 130 | 600 | 22 |
320T/5000 | 3200 | 5000 | 4100 | 450 | 300 | 670 | 130 | 90 | 600 | 22 |
320T/6000 | 3200 | 6000 | 5100 | 450 | 300 | 670 | 130 | 90 | 600 | 22 |
400T/3200 | 4000 | 3200 | 2700 | 500 | 300 | 670 | 150 | 130 | 600 | 30 |
400T/4000 | 4000 | 4000 | 3500 | 500 | 300 | 670 | 150 | 130 | 600 | 30 |
400T/5000 | 4000 | 5000 | 4100 | 500 | 300 | 670 | 130 | 90 | 600 | 30 |
400T/6000 | 5000 | 6000 | 5100 | 500 | 300 | 670 | 130 | 90 | 600 | 30 |
500T/4000 | 5000 | 4000 | 3500 | 500 | 300 | 670 | 150 | 130 | 600 | 30 |
500T/5000 | 5000 | 5000 | 4100 | 500 | 300 | 670 | 130 | 90 | 600 | 30 |
500T/6000 | 5000 | 6000 | 5100 | 500 | 300 | 670 | 130 | 90 | 600 | 30 |
