Plate Rolling Machine Tips for Beginners

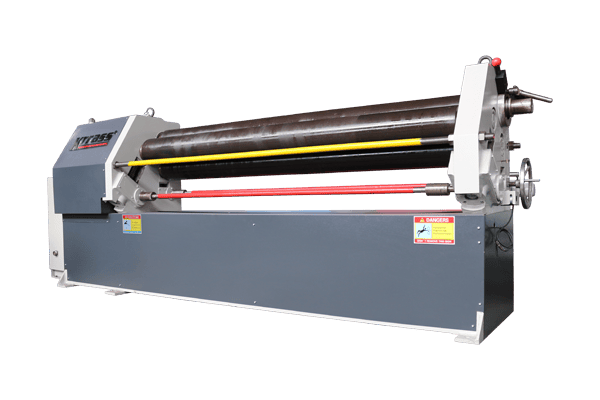

W11F Asymmetric 3-Rollers Plate Bending Machine

Plate rolling machines are essential tools in various industries, including manufacturing, construction, and metalworking. These machines allow you to bend and shape metal plates into cylindrical or conical forms, which are crucial for creating tanks, pipes, and other curved structures. For beginners, operating a plate rolling machine can be daunting. However, with the right knowledge and tips, you can master the basics and ensure safety and precision in your work. This blog provides comprehensive tips for beginners using plate rolling machines.

Understanding Plate Rolling Machines

Plate rolling machines are essential tools in the metalworking industry, widely used for shaping metal plates into various curved forms, such as cylinders and cones. These machines work by passing a metal plate through a series of rolls that apply controlled pressure, bending the metal incrementally until the desired shape is achieved. The machines’ versatility and precision make them indispensable in industries ranging from shipbuilding to manufacturing large storage tanks and pipes. To fully appreciate their functionality, it’s important to understand the different types of plate rolling machines and their specific applications.

Basic Configuration and Operation

Plate rolling machines generally consist of either three or four rolls, arranged in configurations that allow for the metal plate to be manipulated into a curved form. The rolls are typically made from hardened steel to withstand the high pressures involved in the bending process. The rolls are arranged in either a triangular (three-roll) or rectangular (four-roll) pattern, and they work together to bend the metal plate as it passes through. The metal plate is fed into the machine and clamped between the rolls. By adjusting the position of the rolls and the applied pressure, the operator can control the curvature of the plate. This process can be repeated multiple times, gradually increasing the bend until the desired shape is achieved. Modern plate rolling machines often come equipped with digital controls, allowing for precise adjustments and repeatability in production.

Types of Plate Rolling Machines

Three-Roll Machines

Three-roll plate rolling machines are the most common type found in the industry. They come in two main variations: asymmetrical and symmetrical, each suited for different applications.

Asymmetrical Three-Roll Machines:

Asymmetrical machines have rolls that are positioned differently from symmetrical machines, with one roll typically placed lower than the others. This configuration is particularly advantageous when working with thinner plates. The asymmetrical arrangement allows for better control and ease of use when bending thin metal sheets, making it easier to initiate the bend and produce consistent results. Asymmetrical three-roll machines are often used in applications where precision and ease of handling are critical, such as in the production of metal components for the automotive and aerospace industries.

Symmetrical Three-Roll Machines:

Symmetrical machines, on the other hand, have their rolls arranged in an equidistant triangular pattern. This setup provides a more balanced and even distribution of pressure, making symmetrical machines suitable for bending thicker plates. The symmetrical configuration ensures that the force applied to the metal plate is uniform, resulting in more consistent bends and reducing the risk of defects. These machines are commonly used in heavy-duty applications, such as in the fabrication of large industrial components, pressure vessels, and ship hulls.

Four-Roll Machines

Four-roll plate rolling machines are known for their greater precision and ease of operation compared to three-roll machines. The four-roll configuration includes an additional roll that helps to better grip and manipulate the metal plate, making the bending process more efficient and accurate. This additional roll is typically positioned above or below the central roll, providing additional support and control. Four-roll machines offer several advantages, especially for beginners or operators looking for high precision in their work. The ability to pre-bend the leading and trailing edges of the plate within the machine eliminates the need for additional processing steps, enhancing productivity. Moreover, the four-roll design allows for automated rolling processes, reducing the need for manual intervention and minimizing the risk of human error. These machines are particularly well-suited for complex shapes and larger-scale production runs, making them ideal for industries requiring high-quality, precise metalwork.

Conclusion

Understanding the basics of plate rolling machines is crucial for selecting the right equipment for your metalworking needs. Whether opting for the versatility of a three-roll machine or the precision and ease of use offered by a four-roll machine, knowing the capabilities and applications of each type will help in achieving optimal results. By mastering the operation and potential of these machines, operators can efficiently produce high-quality metal components that meet the stringent demands of various industrial applications.

W11 3-Rolls Plate Roller Machine

Essential Tips for Beginners

When beginning to operate plate rolling machines, understanding and implementing best practices is crucial for ensuring both safety and the quality of your work. Below are some essential tips that will help beginners navigate the complexities of using plate rolling machines effectively.

1. Safety First

Safety is paramount when working with heavy machinery like plate rolling machines. Adhering to safety protocols not only protects you but also ensures the longevity and proper functioning of the machine.

  • Wear Appropriate Personal Protective Equipment (PPE): Always wear safety goggles to protect your eyes from metal shards and debris. Gloves are essential to protect your hands from sharp edges and the heat generated during the rolling process. Steel-toed boots provide crucial protection against heavy falling objects.
  • Ensure Proper Machine Maintenance: Regularly inspect the machine for any signs of wear or damage. Look for cracks, deformations, or unusual sounds during operation. Make sure all safety guards and emergency stop devices are in place and functioning correctly. Proper lubrication of moving parts and checking for loose bolts can prevent mechanical failures.
  • Keep the Work Area Clean: A tidy workspace reduces the risk of accidents. Ensure the area around the machine is free of clutter, such as scrap metal or tools, that could cause tripping or other hazards. Good housekeeping practices also include proper disposal of metal shavings and regular cleaning of the machine and surrounding areas.
  • Follow Operating Procedures: Always adhere to the manufacturer’s guidelines and instructions for operating the machine. This includes understanding the machine’s load limits and not exceeding them, as well as properly securing the metal plate before operation. Regular training and safety drills can also keep you prepared for any emergencies.

2. Understand the Material

Different metals have unique properties, such as thickness, hardness, and tensile strength, which significantly affect the bending process.

  • Thickness and Hardness: Thicker and harder materials require more force to bend. For instance, stainless steel is harder to bend than aluminum due to its higher tensile strength. Understanding these differences is crucial for setting the appropriate roll pressure and speed.
  • Material Grades: Different grades of metal behave differently under stress. For example, high-strength steel might require preheating to avoid cracking during bending. Knowing the specific grade of the metal you’re working with can help you adjust the machine settings accordingly.
  • Temperature Sensitivity: Some metals become more pliable at higher temperatures. Preheating can sometimes make the bending process easier and result in a smoother finish. However, excessive heat can also weaken the metal, so it’s essential to find the right balance.

3. Choose the Right Machine for Your Needs

Selecting the appropriate plate rolling machine is critical for achieving optimal results in your specific application.

  • Three-Roll Machines: These are ideal for simpler tasks and thinner plates. Asymmetrical three-roll machines are excellent for light-duty operations and can produce precise bends with minimal setup. Symmetrical three-roll machines are better suited for thicker materials and provide more uniform pressure distribution.
  • Four-Roll Machines: These machines offer enhanced precision and are easier to operate, making them ideal for complex projects and thicker plates. They allow for automated processes and are equipped with additional features like hydraulic adjustments and digital controls, which provide superior accuracy and repeatability.

4. Proper Machine Setup

Setting up the plate rolling machine correctly is vital for achieving accurate and consistent results.

  • Calibrate the Rolls: Proper alignment and calibration of the rolls are essential. Misalignment can lead to uneven bends and potentially damage the metal plate. Use precise measuring tools to ensure the rolls are correctly positioned.
  • Adjust the Roll Pressure: Start with a lower pressure and gradually increase it based on the material’s thickness and hardness. This gradual approach helps in avoiding over-bending and material damage.
  • Position the Plate Correctly: Ensure the plate is aligned with the centerline of the machine. Incorrect positioning can result in asymmetrical bends and inconsistent results. Use alignment marks and guides to help with positioning.

5. Gradual Bending

Achieving the desired bend should be done progressively rather than in a single pass.

  • Multiple Passes: Use multiple passes through the machine to gradually increase the bend. This approach gives you better control over the process and reduces the risk of cracking or deforming the plate.
  • Incremental Adjustments: Make small adjustments to the roll pressure and position with each pass. This helps in maintaining the integrity of the metal and achieving a smooth, consistent bend.

6. Monitor the Bending Process

Constant monitoring of the bending process is essential for ensuring accuracy and quality.

  • Alignment and Curvature: Regularly check the alignment and curvature of the plate during the bending process. If you notice any discrepancies, stop the machine and make the necessary adjustments immediately.
  • Real-Time Adjustments: Modern machines often come with digital displays and controls that allow for real-time monitoring and adjustments. Use these features to track the progress and make fine-tune corrections as needed.

7. Use Templates and Gauges

Templates and gauges are invaluable tools for achieving precise bends and ensuring consistency.

  • Creating Templates: Create templates for the desired shapes before starting the bending process. These can be used as references to ensure the metal plate matches the required dimensions.
  • Using Gauges: Gauges help measure the curvature and angle of the bends. Regularly checking these measurements against the template ensures consistency and accuracy, especially when working on multiple plates.

8. Mastering the Pre-Bend

The pre-bend is a crucial step for achieving a seamless and professional finish.

  • Initial Bending: Practice the initial bending of the plate’s edges to match the rest of the plate. This step is vital for ensuring the edges do not flare out or create gaps when forming a full cylinder.
  • Consistency: Ensure the pre-bends on both edges are symmetrical. Inconsistent pre-bending can lead to misaligned edges and an uneven final product.

9. Handle Residual Stress

Residual stress is a common issue when bending metal plates, often causing the material to spring back after bending.

  • Over-Bending: Slightly over-bend the plate beyond the desired angle to compensate for the spring-back effect. This helps in achieving the precise final shape.
  • Stress Relief Techniques: In some cases, stress-relief techniques such as controlled cooling or annealing may be necessary to reduce residual stress and prevent deformation.

10. Maintenance and Troubleshooting

Regular maintenance is crucial for the longevity and optimal performance of your plate rolling machine.

  • Routine Cleaning: Keep the machine clean and free from debris. Regularly remove metal shavings and dust that can interfere with the machine’s operation.
  • Lubrication: Lubricate moving parts to reduce friction and prevent wear. Follow the manufacturer’s recommendations for the type and frequency of lubrication.
  • Component Inspection: Regularly inspect and replace worn components, such as bearings, seals, and rolls. Promptly addressing these issues can prevent more significant problems and downtime.
  • Troubleshooting Techniques: Familiarize yourself with common issues and their solutions. Knowing how to quickly identify and address problems, such as misalignment or uneven pressure, can save time and ensure continuous operation.

W11F Asymmetric 3-Rollers Plate Bending Machine

Advanced Tips for Improved Efficiency

Once you’ve mastered the basics of operating plate rolling machines, you can start exploring more advanced techniques to enhance your efficiency and precision. Implementing these advanced tips will help you achieve superior results and streamline your workflow.

1. Utilize CNC Controls

Computer Numerical Control (CNC) systems are a game-changer for plate rolling machines, offering unparalleled accuracy and efficiency. If your machine is equipped with CNC controls, it’s worth investing the time to learn how to program and operate it effectively.

  • Precision and Repeatability: CNC systems allow you to program exact specifications for each bend, ensuring that every plate is rolled to the same high standard. This level of precision is particularly beneficial for projects that require tight tolerances and consistent quality.
  • Automation: CNC controls enable automated processes, reducing the need for manual adjustments and significantly speeding up production times. By automating repetitive tasks, you can focus on more complex aspects of the project.
  • Error Reduction: With CNC systems, the risk of human error is minimized. The machine follows the programmed instructions precisely, which helps in maintaining the integrity of the metal and achieving consistent results.

2. Experiment with Different Roll Configurations

Exploring different roll configurations can greatly influence the outcomes of your bending projects. Adjusting the setup based on the specific requirements of each task can lead to improved results.

  • Roll Positioning: Varying the distance between the rolls can change the bending radius and curvature. For instance, bringing the rolls closer together can produce tighter bends, while spacing them further apart can create broader curves. Experimenting with these adjustments can help you understand how different configurations affect the metal and allow you to achieve the desired shapes more efficiently.
  • Material-Specific Configurations: Different materials respond differently to various roll setups. For example, harder materials might benefit from a configuration that distributes pressure more evenly to prevent cracking, while softer materials might need a setup that allows for more gradual bending to avoid deformation.
  • Customization: Some advanced machines allow for customization of roll configurations beyond simple adjustments. Learning how to utilize these features can enable you to tackle more complex bending tasks with greater ease and precision.

3. Implement Quality Control Measures

Quality control is essential for ensuring that your finished products meet the required standards and specifications. Establishing rigorous quality control measures can help maintain consistency and accuracy in your work.

  • Pre-Bending Inspections: Inspect each plate before bending to identify any defects or inconsistencies in the material. This initial check can prevent problems during the bending process and ensure a higher quality finish.
  • Post-Bending Inspections: After bending, use precision measuring tools to check the dimensions and curvature of the plate. Compare these measurements against the project specifications to ensure accuracy.
  • Documentation: Maintain detailed records of each project, including the settings used, material specifications, and any issues encountered. This documentation can serve as a valuable reference for future projects and help in troubleshooting any recurring problems.
  • Continuous Improvement: Use the data collected from your quality control measures to identify areas for improvement. Implementing small adjustments based on this feedback can lead to significant enhancements in your overall process.

4. Training and Skill Development

Continuous training and skill development are crucial for staying competitive and efficient in the field of plate rolling.

  • Workshops and Courses: Attend workshops and training courses offered by manufacturers or industry organizations. These programs often provide hands-on experience with the latest machines and techniques, keeping you up-to-date with industry advancements.
  • Mentorship: Seek guidance from experienced operators who can share their knowledge and insights. Mentors can provide practical advice, help you troubleshoot problems, and offer tips on improving your techniques.
  • Industry Trends: Stay informed about the latest trends and innovations in plate rolling technology. Reading industry publications, participating in online forums, and attending trade shows can provide valuable insights and help you stay ahead of the curve.

By integrating these advanced tips into your workflow, you can enhance your efficiency and precision, ultimately producing higher quality work. Continuous learning and adaptation are key to mastering the use of plate rolling machines and achieving excellence in your projects.

KRRASS four-roll plate rolling machine partial

Conclusion

Operating a plate rolling machine can be challenging for beginners, but with the right knowledge and practice, you can achieve excellent results. Prioritize safety, understand your materials, choose the right machine, and follow proper setup and operating procedures. Use gradual bending, constant monitoring, and templates and gauges for precise results. As you gain experience, utilize CNC controls and experiment with roll configurations to improve efficiency and precision. For top-tier equipment, consider KRRASS, the leading manufacturer of plate bending machines in China, known for technical innovation, excellent customer service, and a global footprint.
