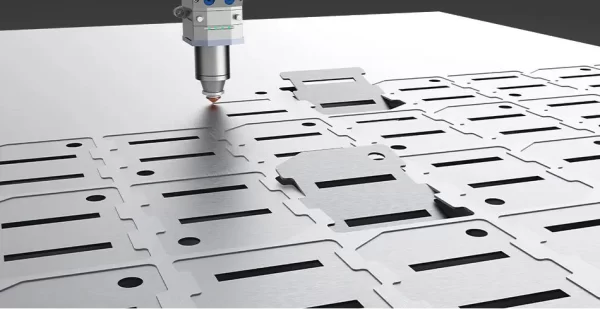

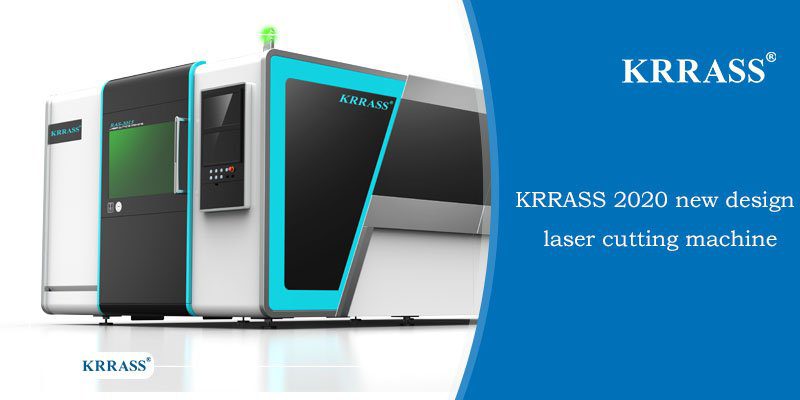

Incredibly fast and flexible, the KRRASS Genius 3000W Fiber Laser Cutting Machine is ideal for ultra-high speed cutting of thin sheet materials.the Genius has the ability to cut a wide range of ferrous and non-ferrous metals while maintaining low cost operation.
User friendly FAGOR 8060 CNC control unit For 3000W Laser Cutting Machine.
Unique features:
Maximum simultaneous positioning speed: 160m/min.
Acceleration speed: 25 m/ s2 (2.5G).
Precision: ± 0.05 mm.
Energy efficiency: greatly reduced power consumption.
IPG YLS-3000w Resonator
- Advanced PRECITEC cutting head (with air cross blast).
- Fully enclosed and cabined to ensure maximum operator protection.
- Effective high to low pressure gas exchange system.
- Automatic time and unit cost calculation function.
- Network connection from external.
- Smoke extraction (included in series models).
- Collection of work pieces and trimmings.
- Dual proportional valve control system for different gas pressures and special system for high pressure cutting.
Standard Equipment:
- FAGOR 8060 CNC Controller
- IPG YLS-3000W Ytterbium Laser Resonator
- Automatic Double Pallet Changer(Shuttle Table)
- Precision Rack & Pinion Drive System (Made in Germany)
- Radan or Lantek CAD/CAM system
- Light source
- Chiller
- 3 lower protective lenses
- 3 Ceramic Nozzle Adapters
- Auto-calibrated nozzle system
- Lens with 5.9” Focus Length
- Smart Slag Collection System/ Chip Conveyor
- Fiber Beam Transmission System (Fiber Cable)
- Operates with both N2 and O2 (cutting) gases
- Home Position Alignment System
- Auxiliary Gas Selector
- Auto Reflection Warning
- Working Lights
- 5 Nozzles each of the Following: (1.0mm, 1.2mm,1.5mm, 2.0mm , 2.5mm , 3.0mm)
