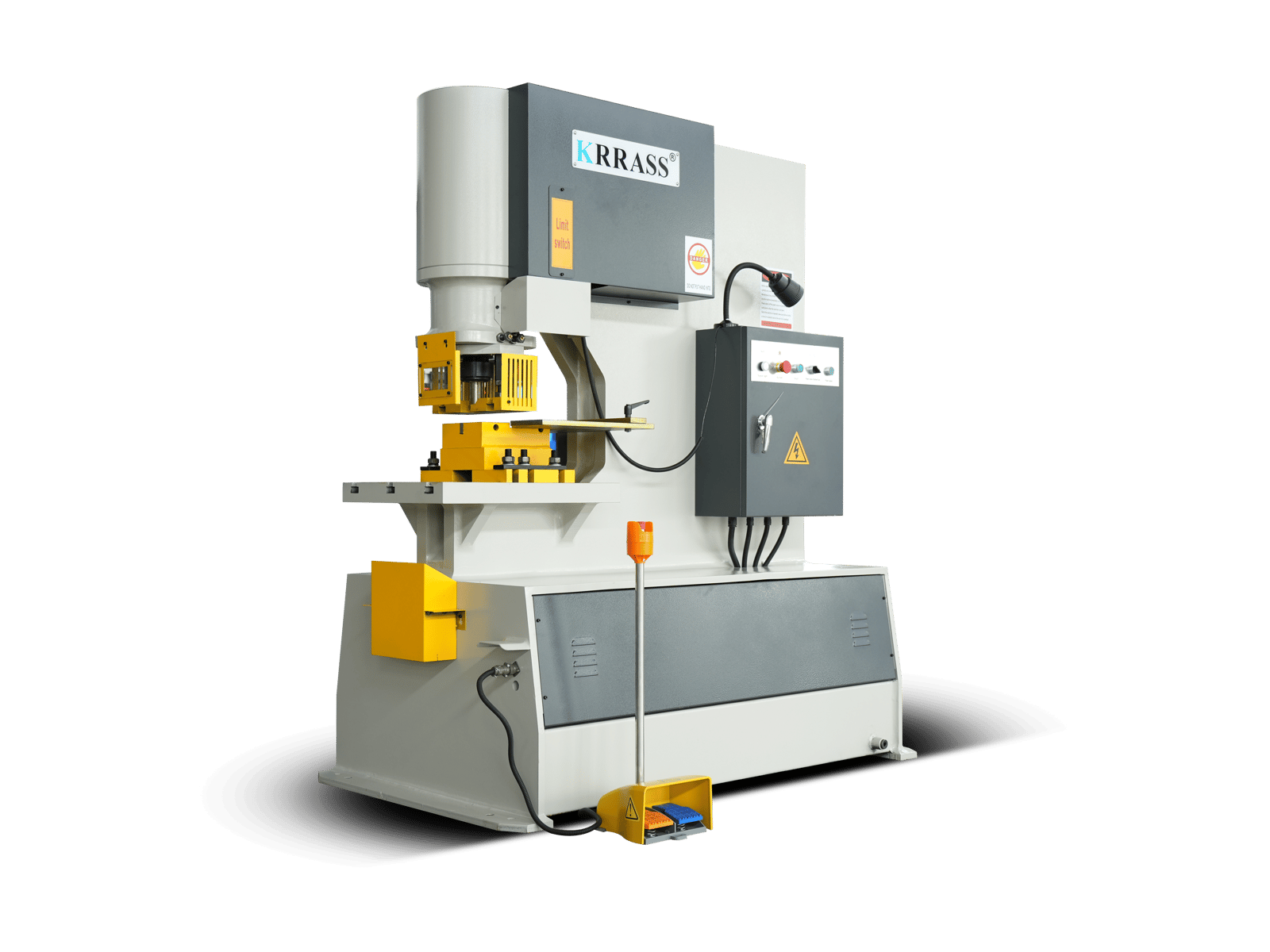

Hydraulic Punching Machine

KRRASS Hydraulic Punching machines ranging from 35 to 200 tons of punching capacities, combined with different throat depths to choose from, provides a complete range of models to meet our customer’s wide range of requirements.

Hydraulic Ironworker Machine

Top performances allow to accurately and cost-efficiently cut pieces in high volumes.

KRRASS has entirely designed the proportional oil hydraulic circuit. It is optimized for every guillotine shear size, with high-quality and reliable parts.

Hydraulic Punching machines is available in a wide range of models and powers. Ironworker machines can customize parameters to the highest levels in the category.

Standard Equipment

Features

Punching station

All metal punching operations of the ironworker machine are processed using hydraulic power, thus allowing the machine to punch very efficiently and silently. Punching is silent, powerful, and efficient. The device can either be used to hit thick metal or thin materials layered together. The waste materials come off together and in layers. The punching table consists of two parts: the first is the punching flange, and the second is the holder. There are different holders for different materials. The holder is a device that prevents the fabric from coming back with the punch after cutting.

Punching station

Optional Equipment

Technical Parameters of Punching Machine

Model Unit Q35YS-16 Q35YS-20 Q35YS-25 Q35YS-30 Q35YS-40 Q35YS-50
Pressure T 60 90 120 160 200 250
Plate Strength N/mm² ≤450 ≤450 ≤450 ≤450 ≤450 ≤450
Slider Stroke mm 80 80 90 100 110 200
Punching Stroke Times T/min 10-20 12-22 8-18 6-16 6-16 6-16
Punching Plate Thickness mm 16 20 25 30 35 40
Max Hole Diameter mm 25 30 35 38 40 45
Throat Depth mm 300 335 480 600 535 600
Main Motor kw 5.5 7.5 11 15 18.5 18.5
Outline Dimension mm 1400X700X1700 1600X800X1800 1800X960X2000 2000X1050X2450 2200X1050X2450 2600X1440X2500

Use case of Punching Machine

5 /5
Based on 5 ratings

Reviewed by 5 users

    • 3 weeks ago

    This punching machine was completed on time and within budget, which was greatly appreciated. Thank you for your team’s hard work and dedication to excellence.

    • 1 month ago

    Krrass’s ironworker machine is a top-notch piece of equipment that delivers exceptional performance and reliability. Its efficiency makes it a valuable investment for any metalworking shop Great ironworker machine

    • 1 month ago

    Krrass ironworker is a powerful tool and efficient.

  • Highly recommend

    • 3 months ago

    Krrass this punching machine’s versatility is worth mentioning. It can handle a wide range of materials, making it suitable for various punching applications.

  • Q35YS-25

    • 3 months ago

    compró la cizalla punzonadora MOD. Q35YS-25 , funciona tan lejos tan bueno .fácil de usar
