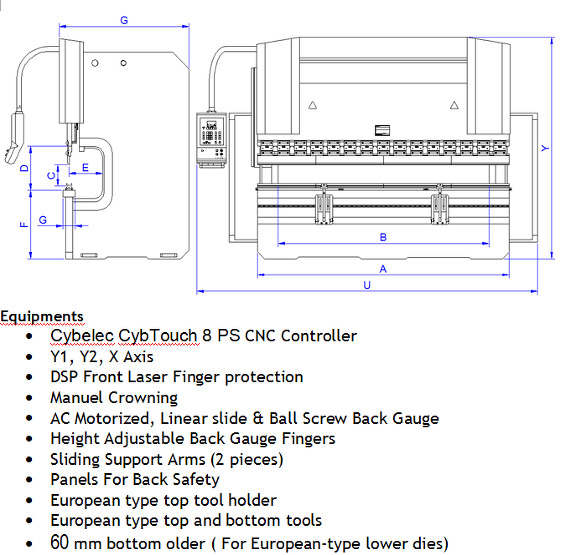

Hydraulic Press Brake structure description and components

  1. Synchronization system: This Hydraulic Press Brake machine is a mechanical synchronization mechanism composed of torsion shaft, swing arm, articulated bearing, etc. It has a simple structure, stable and reliable performance, and high synchronization accuracy. The mechanical stop is adjusted by the motor, and the numerical control system controls the value.
    Hydraulic Press Brake
  2. Stopper mechanism: The stopper of Hydraulic Press Brake is driven by a motor, and the two screws are moved synchronously through a chain operation. The numerical control system controls the size of the stopper.
  3. Slider part: It adopts hydraulic transmission. The slider part is composed of slider, oil cylinder and mechanical stopper fine-tuning structure. The left and right oil cylinders are fixed on the frame, the piston (rod) drives the slider to move up and down by hydraulic pressure, and the mechanical stop is controlled and adjusted by the numerical control system.
  4. Worktable part: Operated by the button box, the motor drives the material rack to move back and forth, and the distance controlled by the Hydraulic Press Brake CNC system. The minimum reading is 0.01 mm (there are limit switches on the front and rear positions).
