W12 4-Rolls Sheet Metal Plate Bending Machine

Unmatched capacity. Superlative precision. Optimal turnout.

Certificates For Banner

Experience Easy-To-Use bending Capabilities

Our top-of-the-art 4-Rolls Sheet Metal Bending Machine are accessible and energy efficient. Ensure the steel plate bending work of peace of mind and convenient operation. KRRASS’s linear guided machine tools provide multiple benefits to your manufacturing infrastructure: efficient and long-lasting performance, unmatched edge bending accuracy, reduced capital expenditure, and reduced ongoing operating and maintenance costs.

ADVANTAGES OF

Four Roll Design

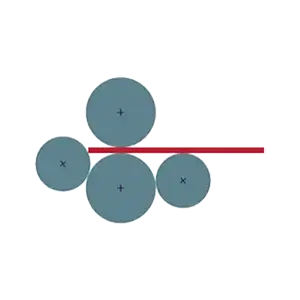

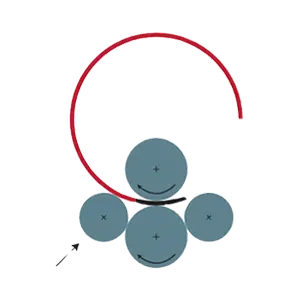

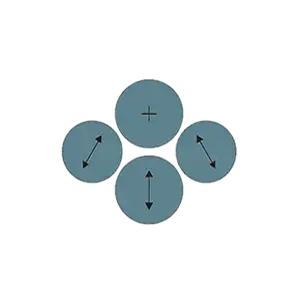

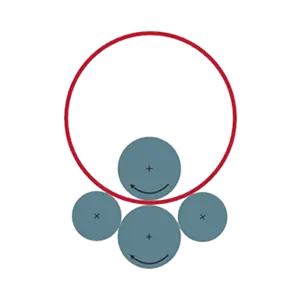

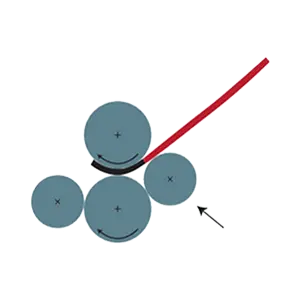

Roll Movement in Four Roll Design

  • These Plate Bending Machines have four rolls and liner guidance for the side rolls.

  • The Top roll remains fixed, the bottom roll moves vertically, and the two side rolls move in liner guide way to form the shell.

  • The top and bottom rolls are power driven by planetary gearboxes with hydraulic motors.

  • Thin Plates need closely spaced rolls to avoid driving slippage.

  • Location of the bottom roll directly below the top roll ensures very good grip on such jobs.

  • Due to the high productivity of low thickness shells, the four roll machines prove to be an attractive investment for mass production of pipes and shells.

  • Over and above the cones, other non-circular shapes like oil tankers & elliptical shells can be made.

  • This type of roll configuration also facilitates CNC operation.

  • 20-30% higher Investment for the same thickness capacity and span compared to similar three roll machine.

KRRASS’s 4-Rolls sheet metal plate bending machine delivers par performance and flexibility. They are also highly durable, accurate, and therefore ideal for medium-to-heavy-duty rolling.

The Advantage Of KRRASS Sheet Metal Plate Bending Machine

Plate Bending Machine factory real shot

16,000 square meters of manufacturing facility in Nanjing, China’s Engineering Hub that strategically allows us easy access to infrastructure facilities like transport, raw materials, skilled workforce, power supply etc.

Our manufacturing excellence is underpinned by continuous product development. We have been leading the industry since over 40 years in design, build quality, performance and value for money. All our designs have been developed in-house and are fully supported by us.

We have manufactured and commissioned over 2500 machines across China and overseas. The first machine we ever sold is still in operation and is proudly supported by us.

We enjoy loyalty of over 400 delighted clients. Beyond excellent performance of our machines, they also enjoy our on-demand service and our ever-ready inventory of a full set of spares for all machines we manufacture.

Enjoy the peace of mind that you are in good hands.

W12-Series Sheet Metal Plate Bending Machine Product Range

Model Max Bending Thickness (mm) Pre-bending Thickness (mm) Roller Working Length (mm) Plate Yeild Limit (Mpa) Top Roller Diameter (mm) Bottom Roller Diameter (mm) Side Roller Diameter (mm) Main Power (Kw) Length*Width*Height (L*W*H) (mm) Weight (Kg)
W12-4x2000 4 3.5 2050 245 160 140 120 3 4600*1100*1100 4300
W12-4x2500 4 3.5 2550 245 190 170 150 4 5150*1300*1400 5000
W12-4x3000 4 3.5 3100 245 210 190 170 5.5 5650*1420*1400 6300
W12-6x2000 6 5 2050 245 190 170 150 4 4650*1300*1400 4800
W12-6x2500 6 5 2550 245 210 190 170 5.5 5150*1420*1400 5800
W12-6x3000 6 5 3100 245 230 210 190 7.5 5860*1430*1400 7000
W12-8x2000 8 6.5 2050 245 210 190 170 5.5 4650*1420*1400 5600
W12-8x2500 8 6.5 2550 245 230 210 190 7.5 5250*1500*1400 6300
W12-8x3000 8 6.5 3100 245 270 250 210 11 5750*2130*2000 9500
W12-10x2000 10 8 2050 245 230 210 190 7.5 4700*1420*1400 5800
W12-10x2500 10 8 2550 245 270 250 210 11 5270*1420*1400 6500
W12-10x3000 10 8 3100 245 300 270 220 11 5700*1500*1500 8800
W12-12x2000 12 10 2050 245 270 250 210 11 4770*1520*2130 6500
W12-12x2500 12 10 2550 245 300 270 220 11 5200*1500*1500 8200
W12-12x3000 12 10 3100 245 330 300 240 11 5770*1900*1880 13500
W12-16x2000 16 13 2050 245 300 270 220 11 4700*1500*1500 7500
W12-16x2500 16 13 2550 245 330 300 240 11 5550*1840*1820 12000
W12-16x3000 16 13 3100 245 360 330 250 15 6300*2000*2050 17000
W12-20x2000 20 16 2050 245 330 300 240 11 4700*1900*2000 12000
W12-20x2500 20 16 2550 245 360 330 250 15 5800*2000*2050 15000
W12-20x3000 20 16 3100 245 390 360 300 18.5 6500*2250*2550 23000
W12-25x2000 25 20 2050 245 360 330 250 15 5300*2000*2050 14000
W12-25x2500 25 20 2550 245 390 360 300 18.5 6250*2160*2350 22500
W12-25x3000 25 20 3100 245 430 390 330 22 7000*2300*2500 30000
W12-30x2000 30 25 2050 245 390 360 300 18.5 5000*2160*2350 21000
W12-30x2500 30 25 2550 245 430 390 330 22 6500*2300*2500 27000
W12-30x3000 30 25 3100 245 460 420 360 30 7300*2600*2700 33000
W12-35x2000 35 28 2050 245 430 390 330 22 6000*2300*2500 25000
W12-35x2500 35 28 2550 245 460 420 360 30 6800*2600*2700 31000
W12-35x3000 35 28 3100 245 510 460 390 37 7600*2800*2900 38500
W12-40x2000 40 32 2050 245 460 420 360 30 6300*2600*2700 29000
W12-40x2500 40 32 2550 245 510 460 390 37 7100*2800*2900 35000
W12-40x3000 40 32 3100 245 550 510 420 45 8000*3100*3200 45000
W12-45x2000 45 36 2050 245 510 460 390 37 6600*2800*2900 33500
W12-45x2500 45 36 2550 245 550 510 420 45 7500*3100*3200 42000
W12-50x2000 50 40 2050 245 550 510 420 45 7000*3100*3200 38000
W12-50x3000 50 40 3100 245 610 560 480 55 8800*3600*3800 65000
W12-60x3000 60 48 3100 245 670 620 520 75 10000*4300*4600 90000

* All Sizes in mm.
* All capacities are as per 260 MPA.

We offer machines with fixed and variable speeds according to your application and feed requirements.

Build Quality & Benefits

Sturdy Steel Structure

KRRASSs’s sheet metal plate bending machine have a strong steel structure made from heavy metal plates. These frames are connected through a sturdy box design chassis and are equipped with interlocking and stiffening ribs. Rolling guides are machined together utilizing a single fixed reference point, which allows for parallel of all shafts and precision surfaces, as well as the machine’s life and critical precision characteristics.

Rolls Of Sheet Metal Plate Bending Machine

The rolls are the most important elements of our sheet metal plate bending machine. KRRASS designed the optimum diameter roll and used a forged carbon steel roll machined with a high-precision CNC lathe. Our rollers have a unique spline-based design, which effectively connects the rollers with the planetary gear system. This design reduces roll failure points compared to welded connections offered by other manufacturers.

Crowning Of Sheet Metal Plate Bending Machine

Our rolls are crowned to compensate for roll deflection during the bending process. Custom crown-machined rolls for different materials or thickness can be selected when ordering.

Hydraulic Gear System Of Sheet Metal Plate Bending Machine​

Hydraulic-Gear-System

Additional energy saving is ensured in our 4-Rolls sheet metal plate bending machine by a hydraulic system which can work at less than full capacity when jobs less than maximum thickness are rolled.

KRRASS Planetary driving system ™ used in our machines is efficient and eliminates energy wastage associated with heavy-transmission systems and yet achieves the goal of speed reduction by increasing the stages in gears and pinions.

Operational Benefits

Pre-Pinching (Pre-Bending)

Edge bending can be done before or after shell rolling depending on operator skill and choice. Thin plates can be rolled and edge-bent in a single pass.

Easy-Cone-Bending

Easy Cone Bending

The cone bending process with the W12 series is simple. The bottom rolls need to be inclined to achieve cone bending geometry. This is controlled and monitored by electronic microprocessor (on some models).

Our control system also ensures easy and accurate return to parallel setting after cone bending resulting into precision on repetitive jobs.

High Productivity
  • State-of-the-art in forming cylinders and cones.

  • Easy to install, extremely user-friendly and convenient to service.

  • Simple to learn and operate. No extensive operator training required.

  • Robust construction reduces wear & tear.

  • Readily available spare parts.

  • Tropicalized oil cooling system ensures non-stop operations in hot working conditions.

  • Easy to understand hydraulic and electrical system reduce unwanted down time.

Versatility

Other than cylinders and cones, other non-circular shapes like oil tankers and elliptical shells can be made using a PLC version.

Economy
  • Due to the exceptional build quality, failure-resistant linear guideway design, high operational precision, and a wide range of jobs that can accurately rolled, the F series machines prove to be the most attractive investment for any type of industry, regular production or a job shop.

  • Due to a variety of accessories that are available to enhance the machine capability, the investment is justified in more than one way. The energy saving features and negligible maintenance cost also promise a low running cost.

Additional Features Of Sheet Metal Plate Bending Machine

Alongside our excellent design and build quality, we provide the following additional features and accessories upon request from our client.

1

Surface-Hardened Rolls

Induction Hardened Rolls having Surface Hardness between 42 to 55 HRC for additional durability and longevity.

2

Complete Windmill Tower Manufacturing Package

Including central and side shell support, tilting conveyors, hardened rolls and PLC/CNC capabilities

3

Central & Side Shell Supports

Central & side shell supports provide ease of operation, operational cost saving and productivity while increasing safety of workers.

4

Hard Chrome Plated Rolls

Hard chrome plated rolls for special applications in Pharma and Dairy Industry.

5

Tilting Table

Tilting tables for support while feeding plates at specific angles. Specially useful for plates of larger lengths.

6

Conveyors

Powered Conveyors that provide ease of plate feeding in case of longer plate lengths, improved machine performance and longevity.

7

PLC Control

PLC Controllers provide precision, ease of operation, while identifying needs for preventive maintenance to increase machine life and optimize productivity.

FAQs For Sheet Metal Plate Bending Machine

All rolls are crowned (cambering) for compensating deflection.

Top roll is counter balanced automatically once the drop end is opened without any jacks or manual arrangement.

DRO (Digital Readout) is housed on the operating console which gives the position of the bottom rolls with respect to the top roll.

Cones can be bent up to the edge-bending capacity of the machine. The bottom rolls can be inclined for the required cone angle.

Some of the electrical bough outs are IP 55 like motors, switchgears etc. The electrical cabinet will be manufactured as per our standard practices and will meet IP 55 protection.

Forward and reverse to the main drive is provided. The bottom rolls can be moved up and down individually.

Hydraulic oil – Enklo 68 Planetary Gear box – EP 90

Operating console houses push buttons for all the operations of the machine. The console is movable so that the operator can keep it at any desired location.

Although the standard machine is not meant for hot rolling, occasional hot rolling can be done (a few jobs per month) provided that suitable precautions are taken.

A. Divide the Actual YP by 26. Find square root of this number. Multiply this value by actual plate thickness to get effective thickness.
