Product Picture |
 |
|
|
|
|
|
|
Model |

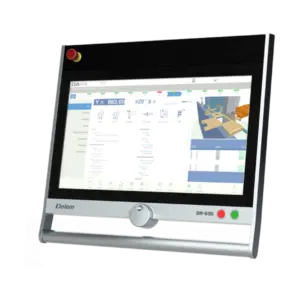

CNC control DA69S |

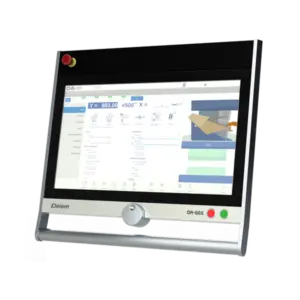

CNC control DA66S |

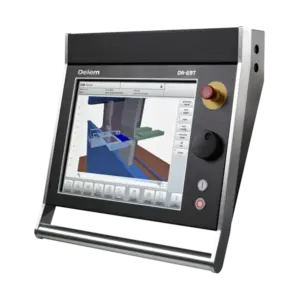

CNC control DA69T |

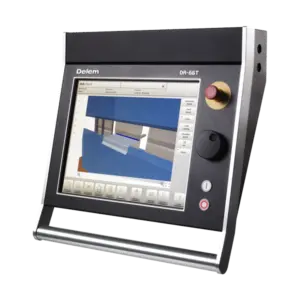

CNC control DA66T |

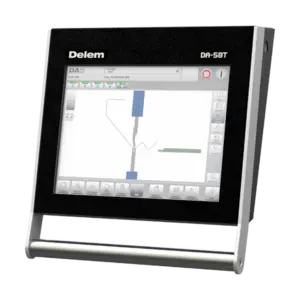

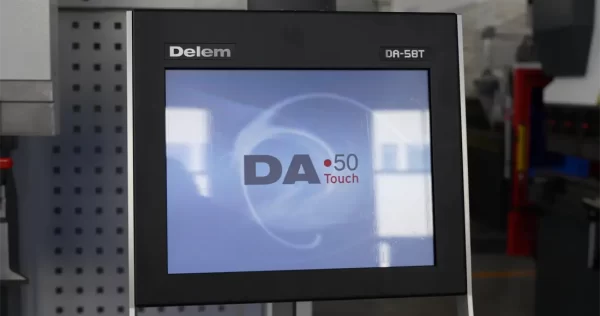

CNC control DA58T |

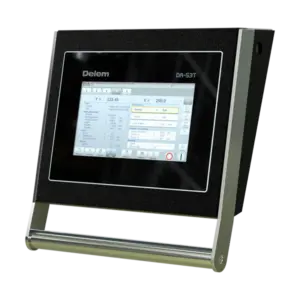

CNC control DA53T |
|
Screen Size |
3D graphics 24" touch screen |
2D graphics 24" touch screen |
3D graphics 17" touch screen |
2D graphics 17" touchscreen |
2D graphics 15" touchscreen |
2D graphics 10.1" touchscreen |
|
Basic Configuration | - Touchscreen 24” TFT screen
- Storage capacity: 4GB
- 3D representation simulation + production
- USB and Ethernet interface
- Internet, email and PDF viewer
| - Touchscreen 24'' TFT screen
- Storage capacity 4 GB
- 2D graphical process / 3D simulation
- USB and Ethernet interface
- Automatic collision detection
| - Touchscreen 17” TFT screen
- Storage capacity: 2GB
- 3D representation simulation + production
- USB and Ethernet interface
- Internet, email and PDF viewer
| - Touchscreen 17'' TFT screen
- Storage capacity 1 GB
- 2D graphical process / 3D simulation
- USB and Ethernet interface
- Automatic collision detection
| - Touchscreen 15'' TFT screen
- Storage capacity 1 GB
- 30 stamps, 60 dies
- Data backup/restore via USB
| - Touch screen 10.1'' TFT screen
- Storage capacity 64 MB
- 30 punches, 30 dies
- Data backup/restore via USB
|
|
Programming functions | - Alphanumeric product naming
- 2D/3D graphical programming
- 2D/3D product representation
- Graphic product and tool selection
- Search filters for products/tools
- Programmable material properties
- Flattening, radius programming
- Automatic calculation of a bending sequence in 2D and 3D
- Easy to swap/change the bending sequence
- Product counter
| - Alphanumeric product naming
- 2D graphical programming and representation
- Graphic product and tool selection
- Search filters for products/tools
- Programmable material properties
- Flattening, radius programming
- Automatic calculation of a bending sequence
- Easy to swap/change the bending sequence
- Product counter
| - Alphanumeric product naming
- 2D/3D graphical programming
- 2D/3D product representation
- Graphic product and tool selection
- Search filters for products/tools
- Programmable material properties
- Flattening, radius programming
- Automatic calculation of a bending sequence in 2D and 3D
- Easy to swap/change the bending sequence
- Product counter
| - Alphanumeric product naming
- 2D graphical programming and representation
- Graphic product and tool selection
- Search filters for products/tools
- Programmable material properties
- Flattening, radius programming
- Automatic calculation of a bending sequence
- Easy to swap/change the bending sequence
- Product counter
| - Alphanumeric product naming
- Graphical programming
- Graphic product and tool selection
- Search filters for products/tools
- Programmable material properties
- Flattening, radius programming
- Automatic calculation of a bending sequence
- Easy to swap/change the bending sequence
- Product counter
| - Alphanumeric product naming
- Graphical programming
- Graphic product and tool selection
- Programmable material properties
- Flattening, radius programming
- Product counter
|
|
Calculated functions | - 3D collision control
- Pressing force and bending tolerance
- Crowning adjustment
- Embossing force, flattening
- Bend tolerance table
- Angle correction learned from the database
- Unwind stretched length
| - Safety Zones tool
- Pressing force and bending tolerance
- Crowning adjustment
- Embossing force, flattening
- Bend tolerance table
- Angle correction learned from the database
- Development: stretched length
| - 3D collision control
- Pressing force and bending tolerance
- Crowning adjustment
- Embossing force, flattening
- Bend tolerance table
- Angle correction learned from the database
- Unwind stretched length
| - Safety Zones tool
- Pressing force and bending tolerance
- Crowning adjustment
- Embossing force, flattening
- Bend tolerance table
- Angle correction learned from the database
- Development: stretched length
| - Safety Zones tool
- Pressing force and bending tolerance
- Crowning adjustment
- Embossing force, flattening
- Bend tolerance table
- Angle correction learned from the database
- Development: stretched length
| - Safety Zones tool
- Pressing force and bending tolerance
- Crowning adjustment
- Embossing force, flattening
- Angle correction learned from the database
|
