When it comes to selecting the ideal DELEM controller for your press brake, you might be wondering whether the Delem 58T, DELEM DA66S, or perhaps the DELEM 69S is the best fit for your needs. In this article, we will delve into the distinctions between these popular controllers from the Dutch manufacturer. We’ll analyze them together and help you determine the most suitable system based on standard configurations and additional features. You can find press brakes equipped with DELEM controllers in our Otinus offerings.
As technology and science continually advance, numerical control systems have propelled press brakes to a higher level. With user-friendly operation and a comprehensive set of numerical control functions, DELEM has emerged as the preferred system for high-quality press brakes. The manufacturer offers a wide range of models, including DA-52S, DA-53T, as well as the focus of this article: DA-58T, DA-66S, and DA-69S. In the following sections, we will explore the differences and features of these three models in the order listed above.

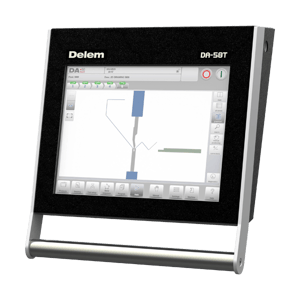

DA-58T DELEM Controller
The Delem DA-58T controller is a modern and comprehensive solution designed for 2D graphical control specifically tailored to press brakes. Its 15″ high-resolution color TFT screen, equipped with multitouch industrial technology, grants access to the reliable Delem user interface. This interface allows seamless navigation between programming and actual production.
With strategically placed buttons optimizing ergonomics in every aspect of machine regulation, improved ergonomics minimize test bending processes. Additionally, thanks to its ease of use and swift programming, programs are generated with a single click.
This solution prepares you for immediate part production, as it automatically calculates axis positions and simulates the bending sequence, incorporating both machine and tool dimensions in full scale. The DA-58T offers 2D programming with automatic bending sequence estimation and collision detection. In manufacturing mode, the DA-58T provides graphic simulation, offering guidance for press brake operation. Standard features include control over Y1, Y2, and X axes, while the backgauge is managed in R and Z axes, with crowning as a standard feature.

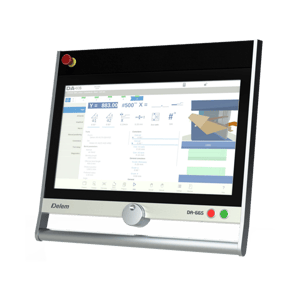

DA-66S DELEM Controller
The DA-66S offers 2D programming that includes automatic bend sequence calculation and collision detection. Full 3D machine set-up with multiple tool stations giving true feedback on the product feasibility and handling.
Highly effective control algorithms optimise the machine cycle and minimise set-up time. The required application configuration can easily be adapted using the modular concept and scaling functionality.
The proven real-time Linux operating system enables strong integration with the application and is a sturdy base for maximum reliability. Smooth start-ups are ensured, even after instant shut-off.
The OEM-panel located above the screen，reserved for machine functions and OEM-application switches， is integrated in the design and can be used depending on the required application.

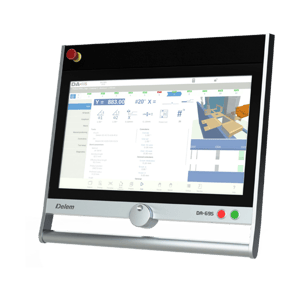

DA-69S DELEM Controller
The DA-69S offers 2D as well as 3D programming that includes automatic bendsequence calculation and collision detection. Full 3D machine set-up with multiple tool stations giving true feedback on the product feasibility and handling. The offline programming, as it comes with Profile-S 3D，increases efficiency and machine uptime. DXF import as well as 3D import are available to help convert designs as well as tooling.
Highly effective control algorithms optimise the machine cycle and minimise set-up time. The required application configuration can easily be adapted using the modular concept and scaling functionality.
The proven real-time Linux operating system enables strong integration with the application and is a sturdy base for maximum reliability. Smooth start-ups are ensured, even after instant shut-off.
The OEM-panel located above the screen，reserved for machine functions and OEM-application switches，is integrated in the design and can be used depending on the required application.
Evaluating the key specifications
| Model | DA-58T | DA66T | DA-69T |
|---|---|---|---|
| Screen specification | 15” touch screen | 17” infrared touch screen | 17” infrared touch screen |
| Programming mode | Manual programming and 2D graphics programming | 2D graphics programming and 3D graphics display | 3D graphics programming and 3D graphics display |
| Tool fast clamping function | No support | Support | Support |
| Web settings | Optional extras | Complete suite of applications for Windows | Complete suite of applications for Windows |
| Number of steering axes | 4+1 axes control | 8+1 axes control | 8+1 axes control |
| Angle detection | None | Sensor interface with an angle detection function | Sensor interface with an angle detection function |
| Compatibility | None | DELEM Modusys compatibility | DELEM Modusys compatibility |
| Panel personalisation | The panel cannot be personalised | OEM panels personalisation | OEM panels personalisation |
| Offline software | Profile-58TL – the USB interface can use any memory and a dedicated code. | Profile-TL – USB interface requires a configured memory. | Profile-T3D – USB interface requires a configured memory. |
| Price evaluation | Reasonable price – general functions | High efficiency and higher cost | Higher price but increased functionality |
Choosing the Best Fit for You
Once you’ve specified your press brake’s working area and pressing force, essential for handling the most demanding parts, it’s essential to consider a control system that won’t limit your capabilities. Below, we compare the advantages and disadvantages of the listed Delem controllers. Each of these controllers allows unrestricted bending with Otinus press brakes.
- The DA-58T controller offers essential press brake functions and is suitable for most basic applications. While it provides important features, it may not offer panel layout customization to match your preferences. If you’re confident about the parts you’ll produce and don’t plan to manufacture highly complex components, this model is an excellent choice.
- For those needing to handle more complex parts, including oblique bending (requiring X1 and X2 axis movement), choosing one of the remaining models is advisable. The DA-66T strikes a balance between price and capabilities, offering control over the backgauge in eight or more axes. This controller provides operators with virtually limitless possibilities. Moreover, 3D visualization of parts and their placement simplifies the manufacturing of even intricate components.
- The DA-69T, designed for the most demanding users, allows 3D control of every part using only the controller. Its extensive memory stores programs in organized folders. The Profile-T3D offline software can import DXF files with part drawings, automatically generating programs for operators, streamlining their work. This solution proves its worth in companies producing numerous individual parts, where each day may bring entirely different components to manufacture.
In Conclusion
We trust that we’ve addressed your inquiries about Delem controllers and their practical applications for our press brakes. Should you have any further questions, please don’t hesitate to contact us, and one of our Otinus technical and sales advisors will assist you in finding the solution that best suits your needs. Our motto, “We serve You,” reflects our commitment to ensuring our clients’ satisfaction, a key to our mutual success.
