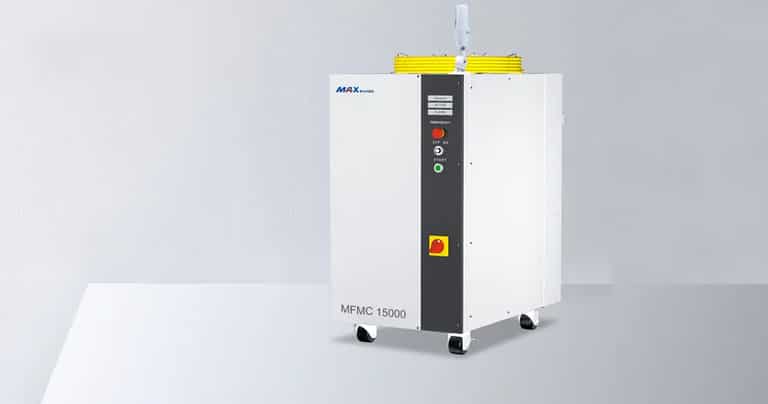

The 15000W(15KW) fiber laser cutting machine is a high-power fiber laser compatible with welding and cutting, used in hardware, medical, automobile, ship, aviation, engineering machinery and other fields.
Device Description
Laser Souce Brand: Max,Raycus,IPG,Gw.
The 15000W fiber laser cutting machine adopts modular design, compact structure, highly integrated system, free from maintenance, and high reliability. The laser power is continuously adjustable, with high electro-optical conversion efficiency, high beam quality, and high laser stability. It is an ideal laser source for thick plate laser cutting, laser welding, laser cladding, and surface heat treatment. It can cooperate with laser processing heads, galvanometers, etc. for system integration with robots, machine tools, etc., and is widely used in hardware, medical, automobile, ship, aviation, engineering machinery and other fields.
It has the following characteristics:
- High power and high quality laser output – High electro-optical conversion efficiency, flat-top distribution of spot energy, and high energy density
- Light spot energy distribution is uniform – Reduce welding spatter, thicker plate cutting ability is more stable
- Excellent performance, strong processing ability – The cutting effect is good, it can cut thicker plates, and the cutting efficiency of thin plates is higher
- Compact and maintenance-free – Modular design, highly integrated system, stable operation and fewer failures
- Wide range of applications – Compatible with welding and cutting, used in hardware, medical, automobile, ship, aviation, engineering machinery and other fields
Device parameters
| Model | MAX/RAYCUS/IPG-15000W |
|---|---|
| Optical properties | |
| Output power (W) | 15000 |
| Operating mode | Continuous / Modulation |
| Polarization state | Random |
| Power adjustment range (%) | 10~100 |
| Center wavelength (nm) | 1080(±10) |
| Spectral bandwidth 3dB (nm) | 5~8 |
| Short-term power stability (%) | ±1 |
| Beam Quality BPP (mm x mrad) | 3.5~4.5(100umQBH) |
| 5~6.5(150umQBH) | |
| 6.5~9(200umQBH) | |
| Laser on time (μs) | 150~200 |
| Laser off time (μs) | 150~200 |
| Modulation frequency (KHz) | 5 |
| Indicates red light power (μW) | 200 |
| Output cable parameters | |
| Output method | Standard LOE |
| Optical fiber cable length (m) | 20 |
| Output fiber core diameter (μm) | 100(150/200) |
| Optical fiber cable bending radius (mm) | 200 |
| Electrical parameters | |
| Working voltage (VAC) | 400（±40） |
| Rated power consumption (KW) | 20 |
| Other parameters | |
| Working environment temperature (°C) | 10~40 |
| Storage temperature (℃) | -10~60 |
| Working environment relative humidity (%) | 10~85 |
| Cooling method | Water cooling |
| Cooling medium | Distilled water (above 0°C)/ethylene glycol antifreeze (below 0°C) |
Cutting parameters
MAX/Raycus/IPG 15000W Multi-module continuous fiber laser (100μm)
| Material | Thickness (mm) | Speed (m/min) | Power (W) | Gas | Air pressure (bar) | Nozzle (mm) | Focus position (mm) | Cutting height (mm) |
|---|---|---|---|---|---|---|---|---|
| Carbon steel | 1 | 60-80 | 15000 | N2 / Air | 10 | 2.0 Single | 0 | 1 |
| 2 | 50-60 | 10 | 2.0 Single | 0 | 0.5 | |||
| 3 | 30-33 | 12 | 3.0 Single | 0 | 0.5 | |||
| 4 | 23-26 | 12 | 3.0 Single | 0 | 0.5 | |||
| 5 | 20-22 | 12 | 3.5 Single | 0 | 0.5 | |||
| 6 | 17-19 | 12 | 3.5 Single | 0 | 0.5 | |||
| 8 | 11-12 | 12 | 4.0 Single | -1 | 0.5 | |||
| 10 | 7-8 | 13 | 4.0 Single | -1 | 0.5 | |||
| 14 | 5-6 | 13 | 4.5 Single | -2 | 0.5 | |||
| 16 | 4.0-4.5 | 15 | 4.5 Single | -6 | 0.5 | |||
| 10 | 3-3.5 | 16 | 5.0 Single | -8 | 0.5 | |||
| 10 | 2.0-2.3 | 6000 | O2 | 0.6 | 1.2 Double | +8 | 0.5 | |
| 12 | 1.8-2.1 | 7500 | 0.6 | 1.2 Double | +8 | 0.5 | ||
| 14 | 1.7-1.9 | 8500 | 0.6 | 1.4 Double | +9 | 0.5 | ||
| 16 | 1.6-1.7 | 9500 | 0.6 | 1.4 Double | +10 | 0.5 | ||
| 20 | 1.4-1.6 | 15000 | 0.6 | 1.6 Double | +12 | 0.5 | ||
| 22 | 1.2-1.4 | 0.7 | 1.6 Double | +12 | 0.5 | |||
| 25 | 1.0-1.2 | 0.7 | 1.4 Single | 13 | 0.3 | |||
| 30 | 0.4-1 | 0.9 | 1.6 Single | +12 | 0.3 | |||
| 40 | 0.2-0.3 | 1.3 | 1.8 Single | +13 | 0.3 | |||
| 50 | 0.1-0.2 | 1.5 | 1.8 Single | +13 | 0.3 | |||
| Stainless steel | 1 | 60-80 | 15000 | N2 | 10 | 2.0 Single | 0 | 1 |
| 2 | 40-50 | 12 | 2.0 Single | 0 | 0.5 | |||
| 3 | 34-38 | 13 | 3.5 Single | 0 | 0.5 | |||
| 4 | 23-30 | 12 | 3.5 Single | -1 | 0.5 | |||
| 5 | 18-23 | 13 | 4.0 Single | -1 | 0.5 | |||
| 6 | 16-19 | 13 | 4.5 Single | -2 | 0.5 | |||
| 8 | 10-12 | 13 | 5.0 Single | -3 | 0.5 | |||
| 10 | 8-10 | 14 | 5.0 Single | -4 | 0.5 | |||
| 12 | 6-7 | 15 | 5.0 Single | -5 | 0.5 | |||
| 14 | 3.5-4.5 | 15 | 5.0 Single | -7 | 0.5 | |||
| 16 | 2.5-3.5 | 16 | 5.0 Single | -8 | 0.5 | |||
| 18 | 1.8-2.3 | 18 | 5.0 Single | -9 | 0.5 | |||
| 20 | 1.5-2.0 | 20 | 5.0 Single | -11 | 0.5 | |||
| 25 | 0.9-1.2 | 25 | 5.0 Single | -13 | 0.5 | |||
| 30 | 0.3-0.4 | 25 | 5.0 Single | -16 | 0.5 | |||
| 40 | 0.15-0.2 | 25 | 5.0 Single | +8 | 0.5 | |||
| 50 | 0.1-0.15 | 25 | 5.0 Single | +9 | 0.5 | |||
| Stainless steel (Air) | 1 | 60-80 | 15000 | Air | 10 | 3.0 Single | -1 | 1 |
| 2 | 40-60 | 12 | 3.0 Single | -1 | 0.5 | |||
| 3 | 30-35 | 13 | 3.5 Single | -1 | 0.5 | |||
| 4 | 25-28 | 14 | 3.5 Single | -2 | 0.5 | |||
| 5 | 22-25 | 16 | 4.0 Single | -4 | 0.5 | |||
| 6 | 18-20 | 16 | 4.5 Single | -4 | 0.5 | |||
| 8 | 10-12 | 16 | 4.5 Single | -4 | 0.5 | |||
| 10 | 8-9 | 16 | 4.5 Single | -5 | 0.5 | |||
| 12 | 6-7 | 18 | 4.5 Single | -6 | 0.5 | |||
| 14 | 4-4.2 | 18 | 5.0 Single | -8 | 0.5 | |||
| 16 | 2.5-3 | 20 | 5.0 Single | -10 | 0.5 | |||
| 18 | 2-2.3 | 20 | 5.0 Single | -10 | 0.5 | |||
| 20 | 1.8-2 | 25 | 5.0 Single | -15 | 0.5 | |||
| 25 | 1.2-1.4 | 25 | 6.0 Single | -19 | 0.5 | |||
| 30 | 0.8-1 | 25 | 6.0 Single | -21 | 0.5 | |||
| 35 | 0.4-0.6 | 25 | 6.0 Single | -24 | 0.5 | |||
| Aluminum alloy | 1 | 60-70 | 15000 | N2 | 10 | 3.0 Single | 0 | 0.6 |
| 2 | 40-50 | 12 | 3.0 Single | -1 | 0.5 | |||
| 3 | 34-40 | 14 | 3.0 Single | -1 | 0.5 | |||
| 4 | 21-26 | 14 | 3.5 Single | -2 | 0.5 | |||
| 5 | 16-20 | 14 | 3.5 Single | -3 | 0.5 | |||
| 6 | 13-15 | 14 | 4.0 Single | -4 | 0.5 | |||
| 8 | 9-11 | 16 | 4.0 Single | -6 | 0.5 | |||
| 10 | 6-8 | 16 | 4.5 Single | -7 | 0.5 | |||
| 12 | 2.5-4 | 16 | 4.5 Single | -9 | 0.5 | |||
| 14 | 2-3 | 16 | 5.0 Single | -9 | 0.5 | |||
| 16 | 1.5-2 | 18 | 5.0 Single | -10 | 0.5 | |||
| 18 | 1.3-1.8 | 18 | 5.0 Single | -11 | 0.5 | |||
| 20 | 0.8-1.3 | 20 | 5.0 Single | -13 | 0.3 | |||
| 25 | 0.5-0.7 | 25 | 5.0 Single | -14 | 0.5 | |||
| 30 | 0.4-0.5 | 25 | 5.0 Single | -17 | 0.5 | |||
| 40 | 0.2-0.3 | 25 | 5.0 Single | +8 | 0.5 | |||
| 50 | 0.1-0.2 | 25 | 5.0 Single | +9 | 0.5 | |||
| Brass | 1 | 50-60 | 15000 | N2 | 12 | 2.0 Single | 0 | 1 |
| 2 | 38-42 | 12 | 2.0 Single | -1 | 0.5 | |||
| 3 | 25-30 | 12 | 3.0 Single | -1 | 0.5 | |||
| 4 | 20-24 | 12 | 3.5 Single | -2 | 0.5 | |||
| 5 | 18-21 | 14 | 3.5 Single | -3 | 0.5 | |||
| 6 | 9-11 | 14 | 4.0 Single | -3 | 0.5 | |||
| 8 | 7-9 | 14 | 4.0 Single | -4 | 0.5 | |||
| 10 | 5-6 | 14 | 4.5 Single | -5 | 0.5 | |||
| 12 | 3-3.5 | 14 | 4.5 Single | -5 | 0.5 | |||
| 14 | 2.5-3.0 | 16 | 4.5 Single | -8 | 0.5 | |||
| 16 | 1.3-1.5 | 18 | 5.0 Single | -11 | 0.5 | |||
| 18 | 1.0-1.2 | 18 | 5.0 Single | -11 | 0.5 | |||
| 20 | 0.6-0.8 | 18 | 5.0 Single | -12 | 0.3 | |||
| Copper | 1 | 38-42 | 15000 | O2 | 10 | 2.0 Single | -0.5 | 0.6 |
| 2 | 28-32 | 10 | 2.0 Single | -1 | 0.5 | |||
| 3 | 20-24 | 10 | 3.0 Single | -2 | 0.5 | |||
| 4 | 14-16 | 12 | 3.5 Single | -3 | 0.5 | |||
| 5 | 8-10 | 12 | 3.5 Single | -4.5 | 0.5 | |||
| 6 | 6-7 | 13 | 4.0 Single | -5 | 0.5 | |||
| 8 | 2.5-3.5 | 13 | 4.0 Single | -6 | 0.5 | |||
| 10 | 1.5-2.0 | 14 | 4.0 Single | -8 | 0.5 |
Remarks: When carbon steel and stainless steel are cut with air or nitrogen, the efficiency and stability will be improved, and the phenomenon of slag hanging will easily occur due to the increase in thickness. The above data parameters are affected by the machine tool, system, cutting head, and air pressure during actual batch cutting Influenced by factors such as materials and materials, the data may change. The parameters marked in red in the table are proofing parameters, which are greatly affected by various factors in actual processing. They are only suitable for small batch production and are not recommended for mass production and processing. It is recommended to use higher power laser. Copper needs to be cut with high-pressure oxygen, and air or nitrogen can easily damage the laser.
