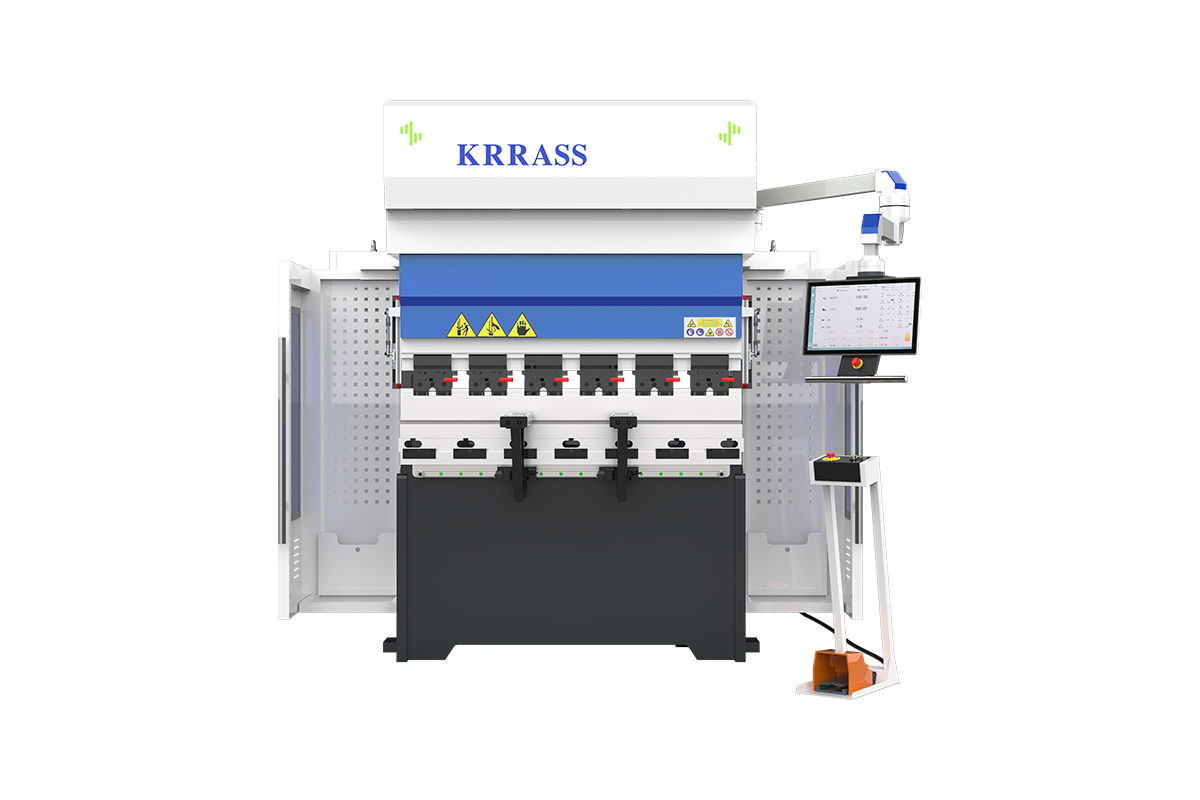

Electric Press Brake
The benchmark of precision bending
Our specialization in developing hybrid technology allows you to achieve energy savings between 55% and 78% compared to a conventional bending press brake. This EPP Series hybrid CNC press brake for sales reduces the need for hydraulic oil and energy consumption without impacting the bending performance.
Simple and solid press brake
Work area can be customized and all types of tool clamping can be installed
Tailored-made sheet metal press brake
Fully-electric press brake
for simple to complex sheet
metal bending.
Bending Force Range
44 to 276
tons for any application
Bed Length Range
4-17 feet
for all production requirements
Every detail covered
The innovative, modular design of the Hybrid CNC Press Brake Series has been achieved through adept engineering methods, collective industry experience, and high-standard manufacturing processes.
The result is a highly precise, reliable, and high-speed production system coupled with energy efficient and noise-reduced operation.
The benchmark of precision bending
Direct-drive technology for all-electric operation
The hybrid CNC press brake for sales patented Direct Drive Electric Motor maximizes efficiency, repeatability, and reliability as a result of its design, connecting the ball screw in direct synchronization with the torque motor.
Besides reducing maintenance costs significantly, the absence of gear boxes eliminates backlash.
Complete Process Control
The EPP Series hybrid CNC press brake for sales has an intuitive control interface, advanced functions, and a step-by-step guide designed to accommodate operators’ varying skill levels for fast and efficient loading, programming, and editing of jobs.
The state-of-the-art multi-touch control is ergonomically mounted on a moveable arm for ease of access and placement at various positions of the machine, based on the operator’s needs.
Electric Press Brake Technical Parameter
| Bending Pressure （KN） | Bending Length（mm） | Column Distance（mm) | Throat Depth（mm) | Slider Stroke（mm） | Max. Opening Height（mm） | Main Motor Power（kw) | Average Power（kw) | X-axis Max. Distance（mm） | R-axis Max. Distance（mm） | Maximum Speed（mm/s） | Weight （kg） | |||
| Drive in | Bending | Return | ||||||||||||
| EPP-35/1350✭ | 350 | 1350 | 1300 | 130 | 180 | 470 | 2×8.6 | 2.3 | 400 | 150 | 200 | 0-30 | 200 | 4000 |
| EPP-50/1650✭ | 500 | 1650 | 1300 | 210 | 180 | 470 | 2×16 | 2.4 | 400 | 150 | 200 | 0-30 | 200 | 5000 |
| EPP-70/2050✭ | 600 | 2050 | 1700 | 305 | 180 | 470 | 2×21 | 2.6 | 600 | 150 | 200 | 0-30 | 200 | 6250 |
| EPP-70/2500 | 700 | 2500 | 2000 | 305 | 180 | 470 | 2×21 | 2.7 | 600 | 150 | 200 | 0-30 | 200 | 6500 |
| EPP-100/2500 | 1000 | 2500 | 2000 | 400 | 250 | 470 | 2×30 | 2.7 | 600 | 150 | 200 | 0-30 | 200 | 8500 |
| EPP-100/3200 | 1000 | 3200 | 2700 | 400 | 250 | 470 | 2×30 | 2.7 | 600 | 150 | 200 | 0-30 | 200 | 8800 |
The model workbench with ★ in the upper right corner does not have a mechanical compensation device.
