In the field of metal processing equipment, the performance of the CNC system of Sheet Metal Press Brake directly determines the processing accuracy, production efficiency and operating experience. With the iterative upgrade of industrial automation technology, the new generation of CNC system E310P has achieved all-round breakthroughs in control accuracy, operation convenience and machine tool performance compared to the traditional model E21, bringing more efficient and intelligent solutions to the metal processing industry.
Table of Contents
1.Sheet Metal Press Brake micron-level precision leaps forward, reshaping processing standards
In the processing links such as sheet metal bending and forming, control accuracy is the core indicator to measure the performance of the equipment. The E310P CNC system is equipped with Y, X, and R axis servo control and C axis dual-mode compensation (hydraulic compensation/mechanical compensation), pushing the accuracy standard to a new height: the X-axis accuracy reaches 0.01mm, and the Y-axis accuracy is 0.05mm, which is 30 times higher than the X-axis 0.3mm accuracy of the E21. This high-precision control not only meets the stringent requirements for tiny tolerances in aerospace, precision instruments and other fields, but also significantly improves the economic benefits of enterprises by reducing scrap rates and rework costs. In addition, the four-axis linkage control capability of the E310P, combined with the precise positioning of the back stop by the servo system, shows excellent flexibility in the multi-angle bending and curved surface forming processing of complex workpieces, while the limited axis control capability of the E21 makes it difficult to cope with such complex tasks.
2.Sheet Metal Press Brake human-machine interaction upgrade to simplify operation process

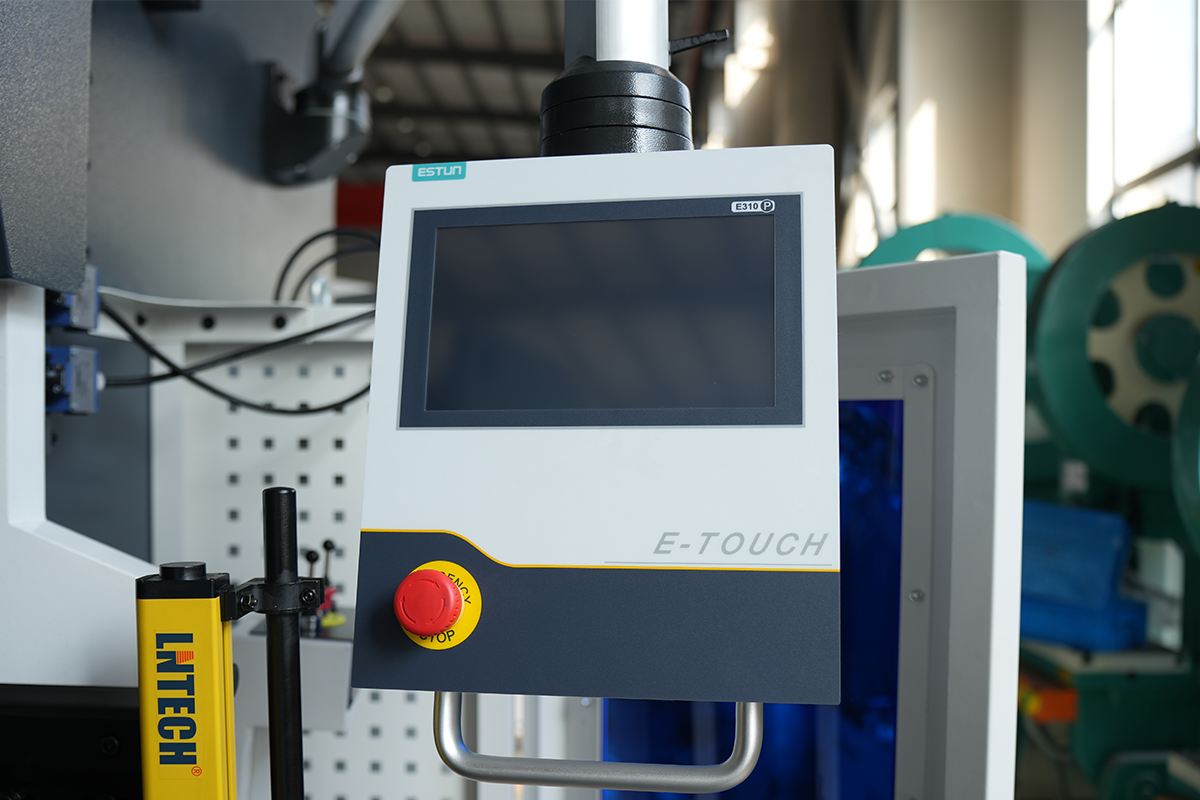

The E310P has achieved a leap from "traditional buttons" to "intelligent touch" in terms of operating experience. It is equipped with a full-touch color touch screen, and users can complete parameter settings, program editing and real-time monitoring through an intuitive graphical interface, which greatly simplifies the operating process. In contrast, the E21 uses a 160*160 dot matrix LCD display and physical buttons, the interface information is presented in a single manner, and parameter adjustments require repeated button confirmation, which has low operating efficiency. In terms of programming functions, the E310P has a rich built-in instruction library and intelligent programming wizard, supports complex trajectory generation and automatic optimization of process parameters, and can quickly respond to diversified processing needs; while the E21's program storage can only accommodate 40 programs, each with a maximum of 25 steps, which is difficult to support large-scale, multi-process production tasks, limiting the scalability of the equipment.
3.Sheet Metal Press Brake intelligent technology empowers and optimizes machine tool performance
The E310P introduces advanced servo-responsive hydraulic control technology, which effectively suppresses vibration and impact during equipment operation by dynamically adjusting the pressure and flow of the hydraulic system, greatly improving the stability of the machine tool. At the same time, its optimized parameter ratio and core configuration ensure that the system can maintain stable performance under high load and long-term operation, reducing downtime. It is worth mentioning that the E310P's integrated mechanical deflection automatic compensation mechanism can monitor the deformation of the slider in real time, and automatically calculate the compensation parameters through the CNC system to eliminate processing errors caused by deformation of the equipment structure. This intelligent function significantly improves processing consistency, while the E21 lacks an automatic compensation mechanism and needs to rely on manual measurement and manual adjustment, which is not only inefficient, but also easily affects product quality due to human errors.
From E21 to E310P, the upgrade of Sheet Metal NC Press Brake CNC system is not only an improvement in technical parameters, but also a microcosm of the transformation of the metal processing industry to intelligence and high precision. With higher control accuracy, more convenient operation experience and smarter performance optimization, E310P provides strong support for enterprises to improve production efficiency and reduce operating costs, and also points out the direction for the development of future CNC equipment. With the advancement of Industry 4.0, CNC systems with high precision and intelligent characteristics will become a key factor in the competition of the manufacturing industry, driving the industry to a higher quality development stage.
