What Is A Small Fiber Laser Cutting Machine?

When exploring the capabilities and advantages of a small fiber laser cutting machine, understanding its importance in precision cutting for various industries is crucial. This article aims to provide a comprehensive overview of what a small fiber laser cutting machine is, its key features, applications, and benefits. Whether you are in the jewelry, electronics, or medical device industry, this guide will help you recognize the value and efficiency these compact, high-precision machines offer, ensuring you make an informed purchasing decision.

What Is a Fiber Laser?

A fiber laser is a solid-state laser that utilizes an optical fiber as its gain medium. The central core of the fiber, which has the highest refractive index, is doped with the rare-earth element ytterbium (Yb). Both the 1.1 μm laser light and the pump light travel through this Yb-doped core.

How Fiber Lasers Work

1. Pump Light: The operation of a fiber laser begins with the introduction of external pump light into the fiber. This pump light, which typically comes from high-intensity diode lasers, is directed into the optical fiber where it is absorbed by the rare-earth dopants embedded in the core of the fiber. These dopants are usually elements such as ytterbium (Yb), neodymium (Nd), or erbium (Er), chosen for their ability to efficiently absorb pump light and convert it into laser light. The energy from the pump light excites the rare-earth ions, elevating them to higher energy states.

2. Laser Light Generation: Once the rare-earth ions in the fiber core are excited, they begin to release energy as they return to their lower energy states. This process involves the spontaneous emission of photons. The fiber is designed with specific optical properties, including a high refractive index in the core and a lower refractive index in the cladding, which allows these photons to travel through the fiber core and stimulate further emission. As the photons move along the fiber, they stimulate other excited ions to release additional photons in phase with the initial ones, creating a coherent beam of laser light. This amplification process is facilitated by the length of the fiber, which enhances the interaction between the light and the rare-earth ions.

3. Emission Wavelength: The wavelength of the laser light emitted by a fiber laser is determined by the specific rare-earth dopant used and the design of the fiber. Typically, for ytterbium-doped fiber lasers, the emission wavelength is around 1.1 μm (1100 nm). This wavelength is in the near-infrared spectrum and is well-suited for a variety of applications, including material processing, telecommunications, and medical procedures. The specific wavelength can be tuned or adjusted based on the requirements of the application by altering the doping concentration, fiber design, and optical components used in the laser system.

Advantages of Fiber Lasers:

• High Efficiency: Fiber lasers offer excellent electrical-to-optical conversion efficiency, reducing operational costs and improving energy usage.
• Compact Design: The fiber's small size and flexibility allow for more compact and robust laser systems.
• Long Life and Low Maintenance: Fiber lasers have fewer moving parts and are less prone to mechanical failure, resulting in lower maintenance requirements and longer operational lifespans.
• Beam Quality: The coherent and high-quality beam produced by fiber lasers ensures precise and accurate cutting, welding, and marking.

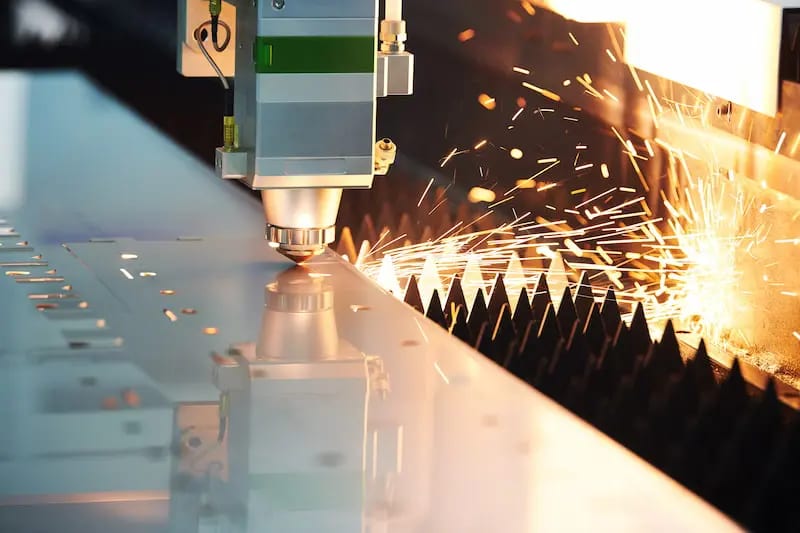

Definition of Small Fiber Laser Cutting Machine

A small fiber laser cutting machine is a compact and efficient tool designed for precision cutting of various materials, especially metals like stainless steel, aluminum, and copper. These machines utilize fiber laser technology, which involves directing a high-powered laser beam through a fiber optic cable to achieve precise cuts.

Due to their smaller size, they are ideal for workshops with limited space and are often used in industries requiring intricate and detailed work, such as jewelry making, electronics, and small-scale manufacturing. The compact design also makes them more affordable and accessible for businesses looking to enhance their cutting capabilities without significant investment in larger machinery.

Generally, a small fiber laser cutting machine is a production tool that can cut sheet metal up to 24 inches by 20 inches. It can cut many metals, including alloy, carbon, stainless steel, copper, aluminum, gold, silver, and titanium. Small fiber lasers are ideal for applications such as monograms, electrical boxes, fences and gates, jewelry, and automotive panels and components.

What is the Smallest Fibre laser?

Normally, the smallest Fibre Laser Cutter that is designed for cutting thinner sheets of metal of 0.2-5mm thickness and a 600 x 600 mm cutting bed. This ultra compact metal cutting fibre laser offers high precision with powers of 1.5-3kW.

Compact Design: Portable and space-saving, suitable for small workshops or on-site operations.
High Precision: Capable of producing fine and accurate markings.
Versatility: Used for marking, engraving, and light cutting on various materials such as metals, plastics, and ceramics.
Efficiency: Low maintenance with long operational life due to the robustness of fiber laser technology.

Handheld Fiber Laser Marking Machine:

Weighs around 10-15 kg (22-33 lbs) and can easily be carried and operated in different locations. It often comes with a power output of around 20W to 50W.

Application:

• Jewelry marking and engraving.
• Barcodes and serial number engraving on electronics.
• Engraving on tools and industrial components.

When I Need A Small Fiber Laser Cutting Machine

When considering a small fiber laser cutting machine, you may find it ideal for various specific needs and applications. Here are some scenarios where a small fiber laser cutting machine could be particularly beneficial:

1. Precision Work: If your projects require high precision and intricate details, a small fiber laser cutting machine is well-suited. Its ability to produce fine cuts with excellent accuracy makes it ideal for detailed work on small parts and components.

2. Limited Space: For workshops or production environments with limited space, a compact fiber laser cutting machine can provide the necessary cutting capabilities without taking up a large footprint. Its small size allows for more efficient use of available space.

3. Low to Medium Production Volumes: If your cutting needs involve lower production volumes or smaller batch sizes, a small fiber laser can be a cost-effective solution. It offers the flexibility to handle various materials with precision without the need for a large, industrial-scale machine.

4. Material Versatility: Small fiber lasers can handle a wide range of materials, including metals, plastics, and composites. If you need to cut different types of materials with high accuracy, a small fiber laser provides the versatility to meet these requirements.

5. Budget Constraints: If you have a limited budget but still need the advantages of fiber laser technology, a small fiber laser cutting machine offers a more affordable entry point. It delivers the benefits of fiber lasers—such as high efficiency, low maintenance, and precision—at a lower cost compared to larger, high-power machines.

6. Prototyping and R&D: For prototyping, research, and development tasks, a small fiber laser cutting machine can quickly and accurately create prototypes and experimental parts. Its precision and adaptability are valuable for iterative design and testing processes.

7. Customization and Small-Scale Production: If you specialize in custom or small-scale production runs, a small fiber laser cutting machine can efficiently handle personalized or one-off projects, providing high-quality results with minimal setup time.

What is the Minimum Hole Size for Fiber Laser?

The minimum hole size a fiber laser can produce varies with power and material. Generally, a 100W fiber laser can create holes as small as 0.5 mm, while a 300W laser can achieve about 0.2 mm, and a 500W laser can produce holes as small as 0.1 mm. Factors like material type, laser focus, and cutting speed influence the precision of the hole size.

What Factors Influencing Minimum Hole Size

1. Material Type: Different materials react differently to laser cutting. For instance, metals and plastics have distinct properties that require specific settings. Metals might need higher power and precise settings to cut small holes, while plastics and composites can often be cut with less power and may allow for smaller hole sizes with less difficulty.

2. Laser Focus: The precision of the laser’s optics and its focus are critical for producing very small holes. High-quality optics can focus the laser beam more accurately, allowing for finer details and smaller hole diameters. Proper alignment and focusing of the laser are essential for achieving the smallest possible holes.

3. Cutting Speed: Slower cutting speeds generally allow for more precision, making it easier to achieve smaller and more accurate holes, especially in thicker materials. Reducing the speed helps to maintain a steady, consistent cut, which is crucial for intricate details.

4. Beam Quality: The quality of the laser beam impacts the precision of the cutting process. Lasers with higher beam quality produce a more focused and consistent beam, which is necessary for creating finer and more precise holes. A well-collimated beam with a small diameter helps in achieving the desired hole size.

5. Assist Gas: The type and pressure of the assist gas used during cutting play a role in the final hole size, particularly for metal cutting. Different gases (e.g., oxygen, nitrogen) and their pressures can affect the cutting quality and edge precision, impacting the minimum hole size achievable.

Each of these factors must be carefully managed to optimize the fiber laser’s performance and achieve the desired hole size with high accuracy.

What Is the Minimum Radius for Fiber Optic

The minimum bend radius for fiber optic cables is crucial for maintaining signal quality and preventing damage to the fibers. The bend radius refers to the smallest radius the fiber optic cable can be bent without causing signal loss or physical damage. Here are general guidelines for the minimum bend radius:

Minimum Bend Radius

For Standard Fiber Optic Cables: The minimum bend radius is typically about 10 times the outer diameter of the cable. For instance, if the cable’s outer diameter is 5 mm, the minimum bend radius would be approximately 50 mm (2 inches). Exceeding this radius can lead to increased signal loss and potential damage to the fibers, affecting performance and reliability.

For Bend-Insensitive Fiber Optics: These specialized fibers are engineered to handle tighter bends without significant signal degradation. The minimum bend radius for bend-insensitive fibers is usually around 7.5 to 10 times the outer diameter of the cable. This design allows for greater flexibility during installation and helps to avoid issues associated with tight bends.

Factors Affecting Bend Radius

Cable Type: The type of fiber optic cable—whether single-mode or multi-mode—affects its bend radius requirements. Single-mode fibers often have different bend radius specifications compared to multi-mode fibers due to their varying core sizes and applications.

Fiber Construction: The construction of the cable, including whether it is loose tube or tight-buffered, influences its minimum bend radius. Bend-insensitive fibers have special coatings and constructions that allow them to bend more tightly without causing damage or significant signal loss. These innovations are designed to minimize the impact of bending on fiber performance.

Installation Conditions: Proper installation practices are crucial to maintaining the integrity and performance of fiber optic cables. Avoiding sharp bends, excessive pulling, and ensuring that cables are routed properly can prevent damage and ensure optimal performance. Installation guidelines provided by manufacturers should be followed to avoid bending the cables beyond their minimum bend radius.

Adhering to these specifications and guidelines is essential for ensuring the reliable operation of fiber optic systems, reducing signal attenuation, and extending the lifespan of the cables.

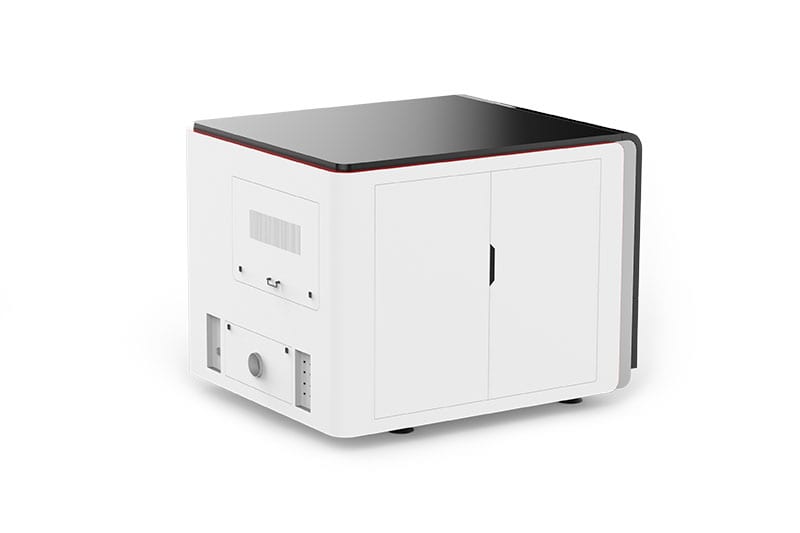

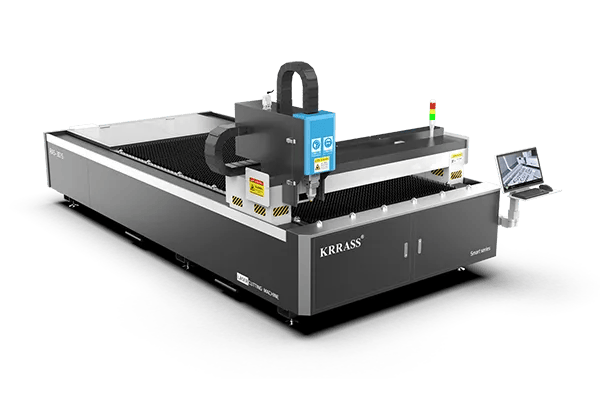

Features of Small Fiber Metal Laser Cutting Machine

High-precision laser cutting machine, mainly used in electronics, hardware, glasses and other industries;

The whole machine adopts high-end manufacturing technology to ensure 20 years of use without deformation;

Precision collimator assisted installation to improve the accuracy of the machine;

1. Imported grinding screw drive system;
2. Japan Yasakawa servo motor, higher transmission speed and accuracy;
3. Enclosed shield design to ensure personnel safety.

Application Materials

Laser Power: 500W-1500W (Optional) Professional cutting of 0.5 ~ 15mm carbon steel plate, 0.5 ~ 8mm stainless steel, galvanized sheet, electrolytic plate, 0.5-5mm aluminum alloy, 0.5-5mm brass and copper and other metal materials.

Advantage of Small Protable Fiber Laser Cutting Machine

1.Processes ferrous and non-ferrous materials, including copper and brass
fiber laser source is virtually maintenance-free

2.Full enclosed protection and isolated work area completely isolate smoke and laser radiation. Safer, and minimized pollution.

3.Adopted carbon structural steel with good toughness, ductility, welding performance and thermal processing;

Stress annealing and vibration aging treatment eliminate the stress in welding and processing of machine bed, the machine bed precision is long-lasting.

Excellent mesh three-dimensional machine bed structure, strict heat treatment process and sophisticated processing level ensure the high-performance processing characteristics of the equipment;

What Is the Power of a Small Fiber Laser Cutting Machine?

Small laser cutting machines typically have lower power outputs compared to larger industrial machines, but they are still quite effective for a variety of applications. The power of a small laser cutting machine generally ranges from 20W to 500W, depending on the specific model and intended use. Here’s a breakdown of common power ranges and their typical applications:

Low Power (20W to 100W):

• Applications: Engraving, marking, and cutting thin materials.
• Materials: Paper, cardboard, plastics, thin wood, leather, and some thin metals.
• Examples: Small desktop laser engravers and portable laser marking machines.

Medium Power (100W to 300W):

• Applications: Cutting and engraving a wider range of materials, including thicker plastics and wood, and thin metals.
• Materials: Acrylic, MDF, plywood, and thin sheet metal (e.g., up to 2-3 mm stainless steel).
• Examples: Small workshop laser cutters used for signage, prototyping, and crafts.

High Power (300W to 500W):

• Applications: More demanding cutting tasks, capable of handling thicker materials and more extensive metal cutting.
• Materials: Thicker acrylic, wood, and metals up to 5-8 mm (e.g., mild steel, aluminum).
• Examples: Compact laser cutting machines for small manufacturing operations and more advanced hobbyist projects.

Typical Features:

• Compact Size: Designed to fit in smaller workspaces.
• Versatility: Capable of performing both cutting and engraving tasks.
• Ease of Use: Often equipped with user-friendly interfaces and software.

Small laser cutting machines are ideal for small businesses, hobbyists, and educational purposes, providing a good balance between power, precision, and affordability.

How Thick Can a 100-watt Laser Cut?

A 100-watt laser cutting machine can effectively cut various materials to different thicknesses. It can handle wood, acrylic, and plastics up to 10-15 mm (0.4-0.6 inches) thick. For leather, it can cut up to 3-4 mm (0.1-0.2 inches), and for thin metals like stainless or mild steel, it typically cuts up to 1-2 mm (0.04-0.08 inches). The exact cutting thickness depends on factors such as material type, cutting speed, and laser focus.

How Thick Can a 300-watt Laser Cut?

A 300-watt laser cutting machine can cut a wider range of materials to greater thicknesses compared to lower-powered lasers. It can handle wood, acrylic, and plastics up to 20-25 mm (0.8-1 inch) thick. For leather, it can cut up to 6-8 mm (0.24-0.31 inches), and for metals like stainless or mild steel, it typically cuts up to 5-8 mm (0.2-0.31 inches). The exact cutting thickness depends on factors such as material type, cutting speed, and laser focus.

How Thick Can a 500-watt Laser Cut?

A 500-watt laser cutting machine can cut through thicker materials with greater efficiency. It can handle wood, acrylic, and plastics up to 25-30 mm (1-1.2 inches) thick. For leather, it can cut up to 10 mm (0.4 inches), and for metals like stainless or mild steel, it typically cuts up to 10-12 mm (0.4-0.5 inches). The actual cutting thickness may vary depending on material type, cutting speed, and laser focus.

Why Are Fiber Lasers so Expensive?

Fiber lasers are generally more expensive than other laser technologies, such as CO2 lasers, due to several key factors:

1. Advanced Technology: Fiber lasers incorporate cutting-edge technology and complex components. They use an optical fiber doped with rare-earth elements, such as ytterbium, as the gain medium. The precision required in manufacturing and aligning these components, along with the sophisticated electronics and cooling systems, results in higher production costs.

2. Superior Performance: Fiber lasers are renowned for their exceptional performance, including high speed, precision, and the ability to mark a wide range of materials with high quality. Their ability to produce fine details and operate at high speeds makes them ideal for demanding applications, which contributes to their higher price.

3. Durability and Reliability: One of the significant advantages of fiber lasers is their impressive lifespan, often exceeding 100,000 hours of operation. This durability means they require less frequent maintenance and have lower operational costs over time, making them a valuable long-term investment despite the higher initial cost.

4. Compact Design: Fiber lasers are designed to be compact and efficient while delivering high power. This compactness requires advanced engineering and specialized materials to ensure optimal performance and reliability. The complexity of the design and the precision engineering involved add to the overall cost of the laser system.

Overall, the high price of fiber lasers reflects their advanced technology, superior performance, long-term reliability, and compact design, making them a worthwhile investment for many industrial and commercial applications.

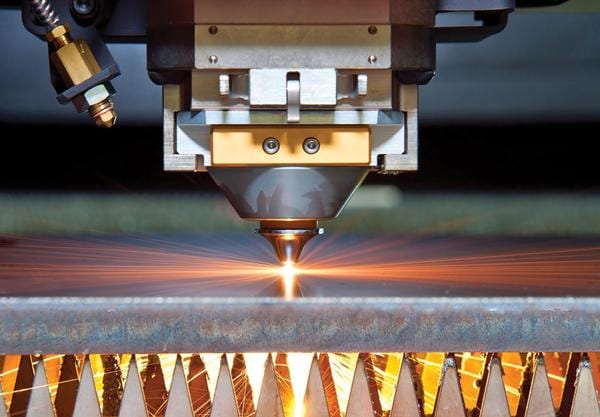

How To Choose A Small Fiber Laser Cutting Machine

Material Compatibility: Identify the primary metals you intend to cut. Fiber lasers are predominantly suited for metals; however, some models offer limited capabilities for specific non-metals.

Laser Power: Laser power directly correlates with the thickness of metal the machine can effectively cut. Higher laser power enables processing of thicker materials but also influences the initial investment cost.

Work Area Size: Consider the maximum dimensions of the metal sheets you plan to work with. Choose a machine with a work area that comfortably accommodates your project requirements.

Cutting Speed and Precision: Evaluate the desired cutting speed and level of precision needed for your projects. Fiber lasers generally offer exceptional cutting speeds and precision; however, specific models may cater to varying levels of detail.

Automation and Software: Explore features that enhance productivity and ease of use. Automation options such as automatic nesting (optimizing material usage) and user-friendly software interfaces can significantly reduce setup and operation times.

Maintenance and Reliability: Assess the maintenance requirements of different models. Fiber lasers typically require less frequent maintenance compared to CO2 lasers.

Cooling and Extraction: A proper cooling and exhaust system is vital for safe and efficient operation. Ensure the machine effectively removes fumes and debris during the cutting process.

Budget: Carefully consider your budget and the initial investment required for each machine. While fiber laser technology generally carries a higher upfront cost compared to other cutting methods, the long-term benefits like faster processing times, lower maintenance requirements, and increased productivity can outweigh the initial investment.

Who Make the Best Small Fiber Lasers

Here's a table summarizing some of the top manufacturers of small fiber laser cutters:

This table provides an overview of each manufacturer, their strengths, and some popular models they offer in the small fiber laser cutting machine category.

Conclusion

In summary, a small fiber laser cutting machine is a versatile and efficient tool designed for precision cutting in compact environments. Ideal for applications that require high accuracy and intricate detailing, these machines are available from leading manufacturers such as TRUMPF, AMADA, Bystronic, and others. Each offers various models that cater to different needs, from small-scale production to custom work. By investing in a small fiber laser cutter, businesses can benefit from advanced technology, superior performance, and long-term reliability, making it an excellent choice for those seeking quality and precision in their cutting operations.
