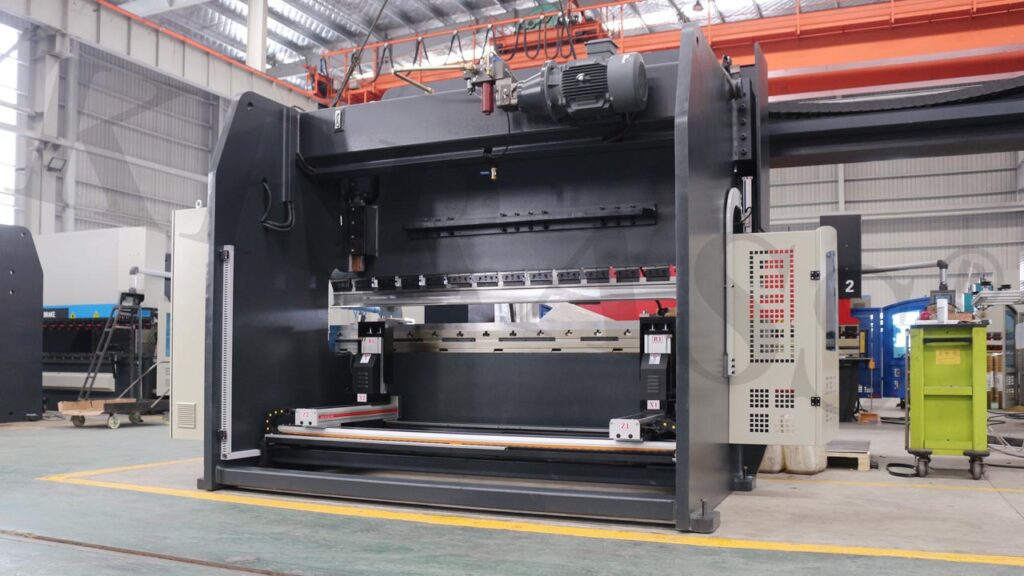

8 Axis Sheet Metal Bending Machine MB8-200T3200 With DA66T control system and 6 Axis Backgauge

Top range “Made for Europe” with UL and CE standard safety guards from 40 to 6000 tons & from 1,5 meter to 12 meterKRRASS® EURO-PRO B Series 160 ton CNC press brake machine features an automatic CNC crowning system for improved quality, a servo driven back gauge system for increased speeds, and a DELEM DA66T 3D capable graphical control unit to simulate bending sequences and collision points.

KRRASS® CNC press brake machines comply with the strictest EU regulations with reference to safety. The devices installed guarantee thorough safety of the operator without reducing the pace of work.

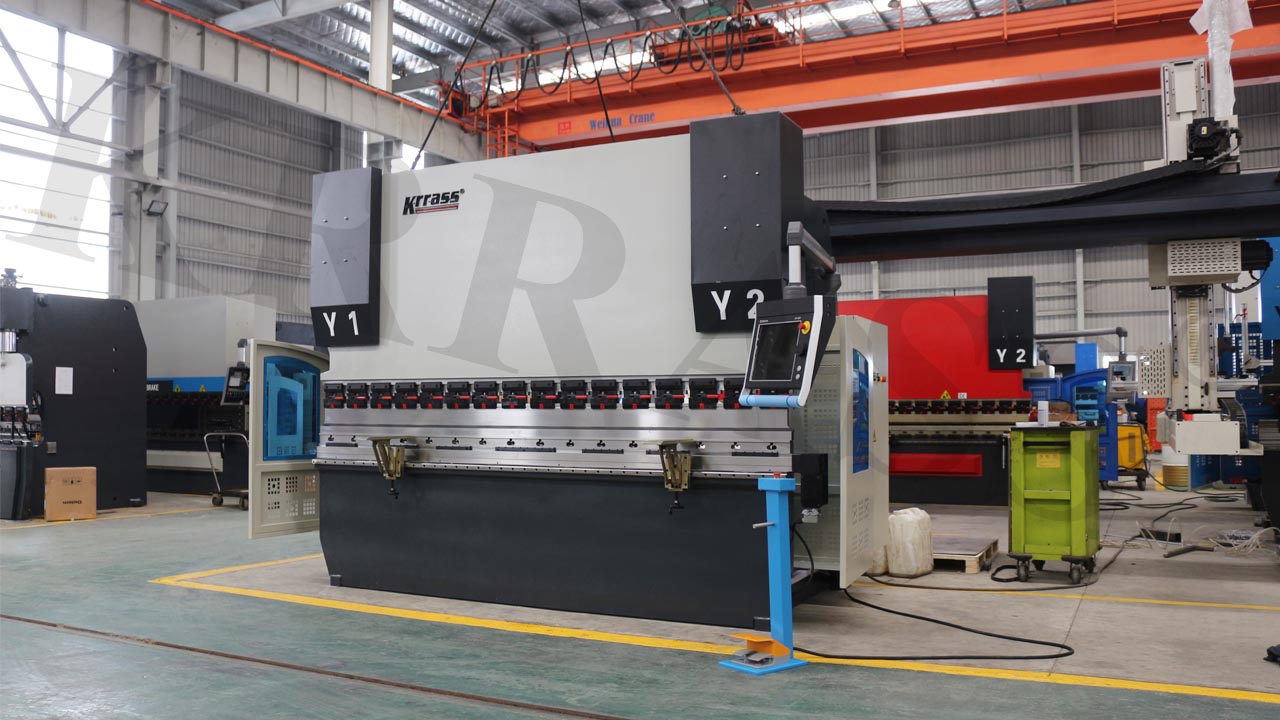

CNC Press Brake DA66T 8+1 Axis
The most advanced laser systems
Safety PLCs able to manage and monitor the action of the proportional valves
Visible dual beam linked to the upper tool: should it be is interrupted, it blocks the movement of the press brake
Easy adjustment by means of a grading scale
Constant monitoring of parameters related to safety

  • CONTROL FEATURES:
  • KRRASS Delem DA-66T Multi-Axis Control (Y1,Y2,X,R,Z1,Z2-Axis)
  • DELEM Offline Capable
  • Programmable Forming Speeds
  • Programmable Ram Opening
  • Programmable Reversal
  • Programmable Tonnage Displayed Through CRT
  • Control Diagnostics
  • Graphic Programming
  • ROLLERICLAMPING SYSTEMS ROL200-System for Punches
  • BACK GAGE FEATURES:

X-Axis

  • Max Distance: 600mm
  • Travel: 600mm
  • Max Speed: 350mm/s
  • R-Axis
  • Travel: 200mm/s
  • Max Speed: 300mm/s
  • Back Gage Finger Supports
  • EQUIPPED WITH:

BGA-6 for CNC Programmable Back Gauge Controlling (X1,X2, R1,R2 , Z1, Z2)
DELEM Profile-T 3D Offline Programming Software
Full Tonnage Throughout Stroke
Electric Foot Switch
Pedestal Palm Button Station
Programming Modes: Flange, Position, Profile
