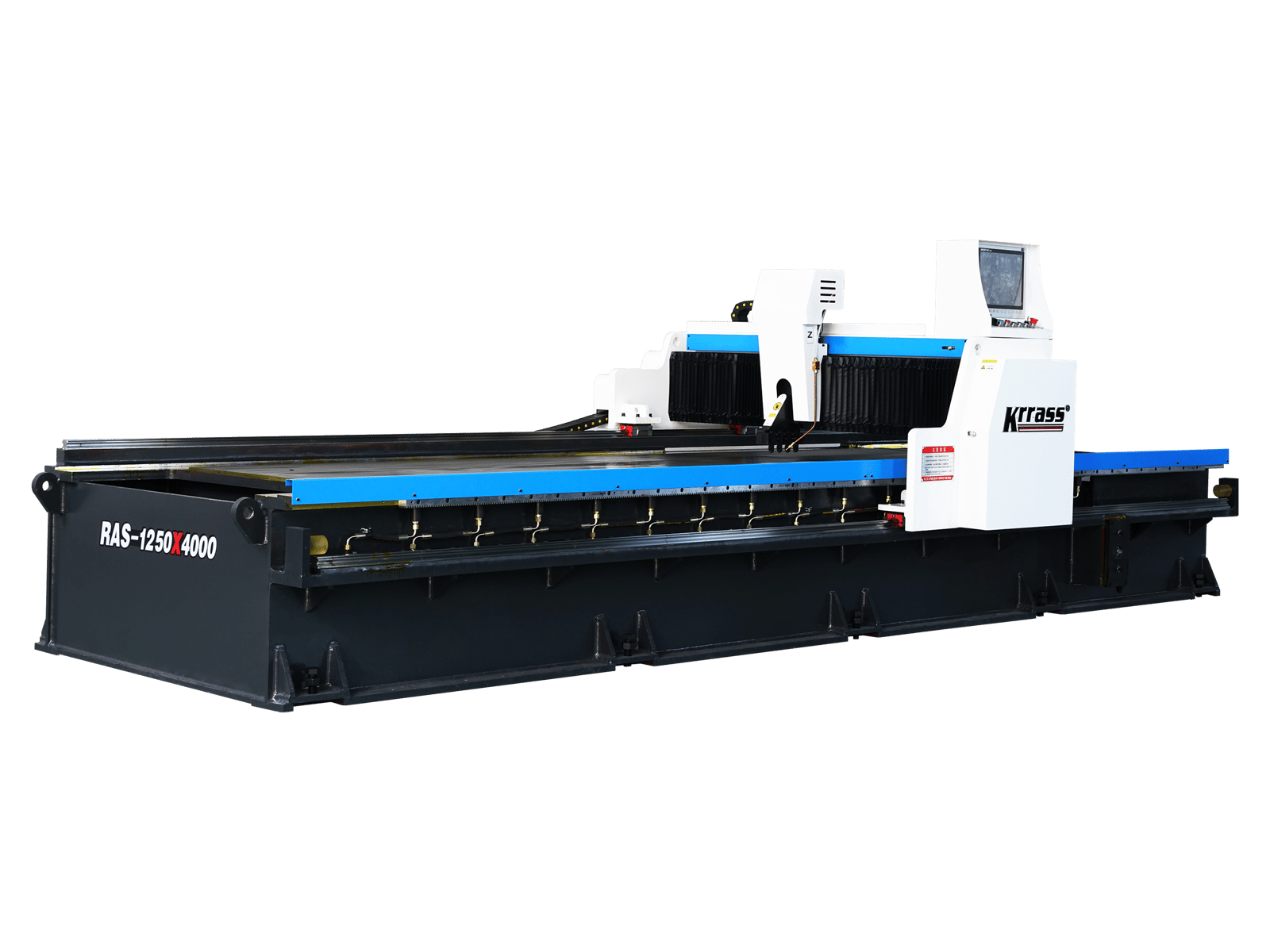

Horizontal V Groover
Wide-table CNC V grooving machine for sharp bends, clean decorative panels, and accurate sheet metal pre-bending work.
Grooving Precision
For Production
Core horizontal V grooving machine parameters for sheet range, groove depth, positioning accuracy, and cutting speed.
Plate Thickness
Processes common sheet metal thickness from 0.5mm to 6mm.
Maximum Depth
Stable programmed groove depth for decorative panels and sharp bends.
Positioning Accuracy
Accurate X/Y positioning supports repeatable groove spacing.
Grooving Speed
Adjustable grooving speed supports both precision and production efficiency.
Easycat EK15 CNC Control System
Easycat EK15 CNC Control System
The Easycat EK15 CNC control system features a 15 inch CNC touch display with a 0.5 microsecond acceleration and deceleration response time. Its fallback function, PLC interrupt function with a fixed 10 ms scan time, and collision avoidance help operators maintain responsive, reliable control during daily production.
Stable Accurate Quiet
A frame-structured base and beam pair with a 60mm high-strength steel worktable. The Q345 steel plate frame keeps the machine rigid, durable, and stable for accurate horizontal V grooving.
60mm Worktable
Low-alloy high-strength structural steel support
Q345 Steel Frame
Firm, durable body with strong overall rigidity
Precision Core Components
PLC control, HIWIN screw and guide transmission, servo drive, and Zhuolan reducer components work together to keep grooving movement accurate, smooth, and repeatable.
Mitsubishi PLC control provides reliable logic processing for clamping, tool movement, and coordinated machine operation.
HIWIN ball screw and linear guide parts support smooth carriage travel, stable load capacity, and accurate groove positioning.
Servo motor drive gives the tool holder responsive axis control for programmed groove depth, spacing, and repeat production.
Zhuolan automation transmission reducers help deliver stable torque, controlled motion, and consistent tool movement.
Stable Clamping For Grooving
The independent hydraulic station supplies steady power to the sheet clamps, helping them grip the metal plate firmly before and during V-groove cutting.
Independent Power
A dedicated hydraulic unit provides stable pressure for the clamping system.
Firm Sheet Holding
Hydraulic clamps help secure the plate and reduce movement during grooving.
Consistent Pressure
The optimized hydraulic circuit supports reliable clamping across different sheet sizes.
Power Supply for Sheet Clamps
Upgrade Options
Add four-side sheet planing capability for metal panels that need cleaner edge preparation before bending, welding, or decorative finishing.
Grooving Sample Gallery
Preset sample cards for previewing the finished groove quality, decorative edges, and sharp bending results produced by the horizontal V groover.
Specifications
Horizontal V grooving machine table sizes, groove capacity, axis accuracy, and hydraulic configuration at a glance
Ready to
Master Your
Production?
Share your sheet size, material, groove depth, bend angle, and production goals. Our engineering team will recommend a horizontal V groover configuration for your workshop.
