Tube&Plate Sheet Metal Laser Cutting Machine

Tube&Plate Sheet Metal Laser Cutting Machine 1000W-6000W

Certificates For Banner

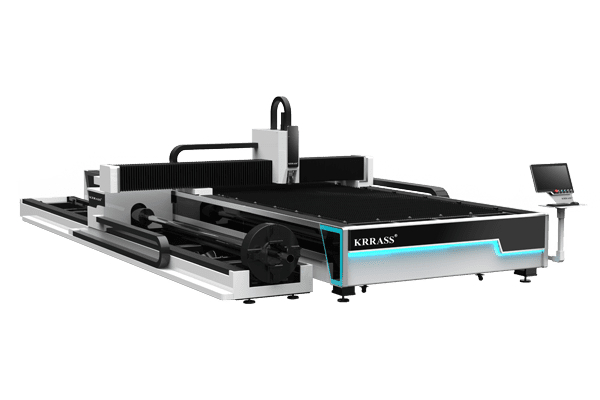

Tube&Plate Sheet Metal Laser Cutting Machine 1000W-6000W

RAS-B tube and plate sheet metal laser cutting machine is for high-speed, high-quality cutting of various types of sheet metal and cutting of different cross-section metal pipes and profiles specially designed. This series of devices are for small and medium enterprises specially designed. Reliable components from the world’s leading companies, excellent design solutions, and assembly quality make this model a sharp contrast with competitor manufacturers of similar equipment. This model laser cutting machine can be equipped with different power laser sources; the power range is 500 W to 6 KW.

Tube&Plate Sheet Metal Laser Cutting Machine
High Precision Welding Bed

Integrated bed with sheet production line, self-sufficiency, shorter delivery, various working size optional

Auto Oil-filling

Intelligent system for auto oil filling, oil cut-off avoided

Cost-Effective

Low waste of raw materials, low investment with a short payoff period

Introduction to Configuration

The Pipe Clamping Range is Wide

The pipe clamping range of the laser cutting machine is vast, the Round tube is φ10-φ10, and the square tube side length is 10 * 10mm-220mm * 220mm. Support the cutting of various shapes of pipe materials, such as I-beam, channel steel, angle steel, elliptical pipe, waste pipe, multi-deformed pipe, Etc.

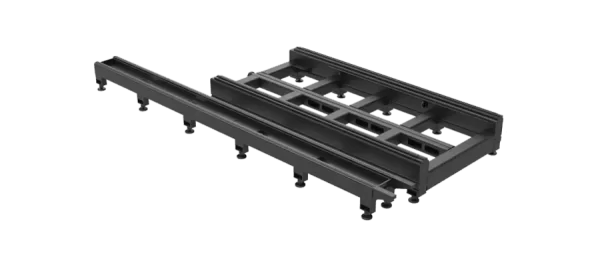

Integrated Machine Bed

The unique industrial structure design gives sheet metal laser cutting machines maximum stability, higher vibration resistance, and damping quality. The compact spacing of 650mm ensures the agility of the chuck and stability during high-speed driving.

Pneumatic roller support

When the Tube&Plate Sheet Metal Laser Cutting Machine works, it can fix the pipe and effectively solves the deformation problem in the cutting operation of the long line.

Tubepro tube cutting and Plate Cutter software

RAS-B tube and plate laser cutting machine equipped with FSCUT3000S pipe cutting system, and FSCUT2000 Plate Cutting System, which supports high-precision and high-efficiency cutting of square pipes, round pipes, racetrack-shaped and oval-shaped stretched lines, as well as angle steel and channel steel.

Tubepro tube cutting and Plate Cutter software

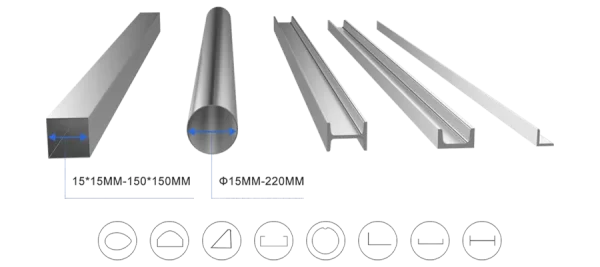

Wide Processing Range, Can Cut a Variety of Tubes

Tube and plate sheet metal laser cutting machine can process a wide range of tube sizes: round tube diameter ø15mm-ø220mm, square tube side length 15*15-150*150mm; With a 3D laser cutting head, it can easily cut H steel, I-beam, and angle steel, channel steel, and other profiles, as well as drop-shaped and concave shaped tubes.

Wide Processing Range, Can Cut a Variety of Tubes

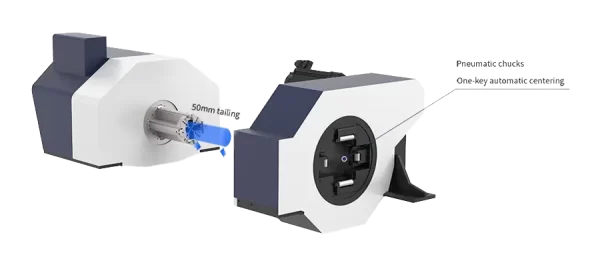

Double Pneumatic Chucks, Ultra-short Tailing

The front and rear of laser cutting machine chucks are featured by automatic centering and dual-driven rotation, keeping them synchronous. The front chuck is full-stroke, and cutting tailing is further shortened to 50mm by front chuck avoidance cutting.

Application Materials of laser cutting machine

RAS-6000 sheet metal laser cutting machine can cut carbon steel, stainless steel, aluminum alloy, galvanized sheet, titanium alloy, manganese alloy, Etc. The device is widely used in metal tube processing, auto parts manufacturing, electrical manufacturing, elevator manufacturing, petroleum machinery, food machinery, and decorative advertisements.

Automatic Loading Equipment(Optional)

  • Tubes are usually loaded to material laying area by transmission mechanism of which limiting device can make tubes in order.
  • Tubes are clamped by 6 loading rollers that need no reset in a loading cycle, resulting in less waiting time and high cutting efficiency.

Parameter of laser cutting machine

Model RAS-3015B/RAS-4015B/RAS-4020B/RAS-6015B/RAS-6020BFiber Laser Cutting Machine
Working Area(mm) 3050 * 1530/4050 * 1530 /4050*2030/ 6050* 1530/6050* 2030
Laser Power(kw) 1KW,1.5KW,2KW,3KW,4KW,6KW
Round Tube Processing Dim. Φ20-Φ219mm
Square Tube Processing Dim. 20*20mm-150*150mm
Max Single Tube Loading Weight 100kg
Max Bundle Loading Weight 1000kg
Chuck Rotating Speed 90r/min
Max. Moving Speed 90m/min
Max. Acc. Speed 0.8G
Positioning Accuracy ±0.05mm/m
Repositioning Accuracy ±0.03mm
Maximum Speed(m/min) 80
X/Y Axis positioning accuracy(mm/m) ±0.05
X/Y Axis repeated positioning accuracy(mm) ± 0.02

What is the Maximum Cutting Thickness?

Material 1KW 1.5KW 2KW 3KW 4KW 6KW 8kw 12000W
Carbon Steel(mm) 0.4-12 0.4-16 0.4-18 0.4-20 0.4-25 0.4-25 0.4-25 0.4-45
Stainless Steel(mm) 0.4-5 0.4-6 0.4-8 0.4-12 0.4-12 0.4-20 0.4-28 0.4-40
Aluminum (mm) 0.4-3 0.4-5 0.4-6 0.4-8 0.4-12 0.4-16 0.4-18 0.4-22
Brass (mm) 0.4-3 0.4-5 0.4-6 0.4-6 0.4-8 0.4-14 0.4-16 0.4-20
5 /5
Based on 5 ratings

Reviewed by 5 users

  • fiber laser cutting machine

    • 3 months ago

    ho comprato un set RAS-6020B FIBRA LASER TAGLIO MACCHINA, Fantastico servizio ingegnere online e l’installazione è molto dettagliata!

    • 4 months ago

    Máquina perfecta 4020 RAS-6000W máquina de corte por láser de fibra, ingenieros fantásticos servicio en línea, ¡buen trabajo!

    • 5 months ago

    Boa qualidade, serviço profissional

  • Boa máquina

    • 6 months ago

    O engenheiro veio rapidamente à minha fábrica e ajudou-me a instalar a máquina, que agora está a funcionar corretamente

  • Niezły KRRASS

    • 6 months ago

    Fantastyczna obsługa online inżynierów i instalacja jest bardzo szczegółowa!
