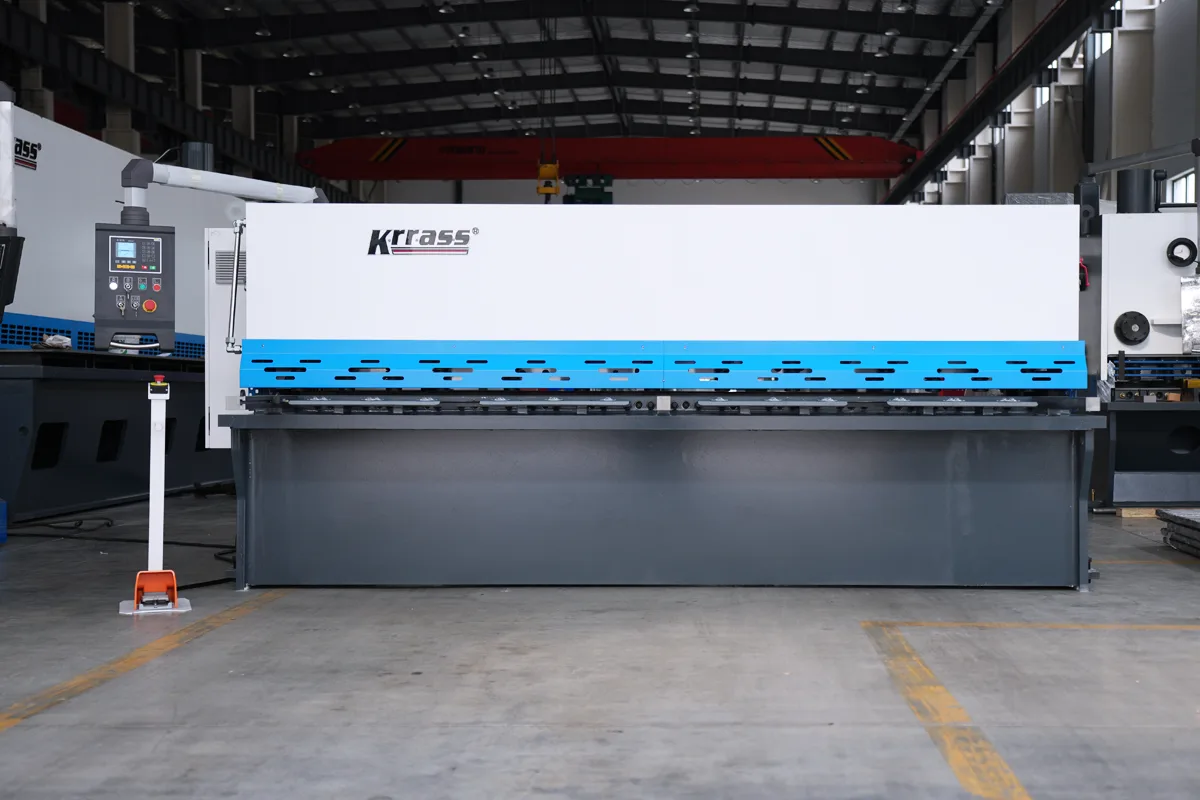

QC12K-6X3200 With ESTUN E21S Hydraulic Shearing Machine
QC12K-6X3200 Hydraulic Shearing Machine, 6MM Swing Beam Shearing Machine,3.2Metal Cutting Machine.
Engineering details
Configuration
Explore the key specifications, components, and available options designed to support different materials, processes, and production requirements.
Technologyies
| Max Cutting Thickness: | 6mm |
| Max Cutting Length: | 3200mm |
| Main Motor: | 7.5KW |
| Operating Voltage: | 380V 50Hz |
| CNC System: | E21S |
| Length * Width * Height: | 3840mm * 1610mm * 1620mm |
Configurations
Main Feature
The Swing Beam Hydraulic Shearing Machine adopts high technology standards, design, and a user-friendly interface. We have reduced the cutting angle to achieve straight precision and minimum twist tolerance. QC12K Hydraulic Shearing Machine provides perfection with high-standard safety and efficient solutions that strengthen your skills and add value to your company.

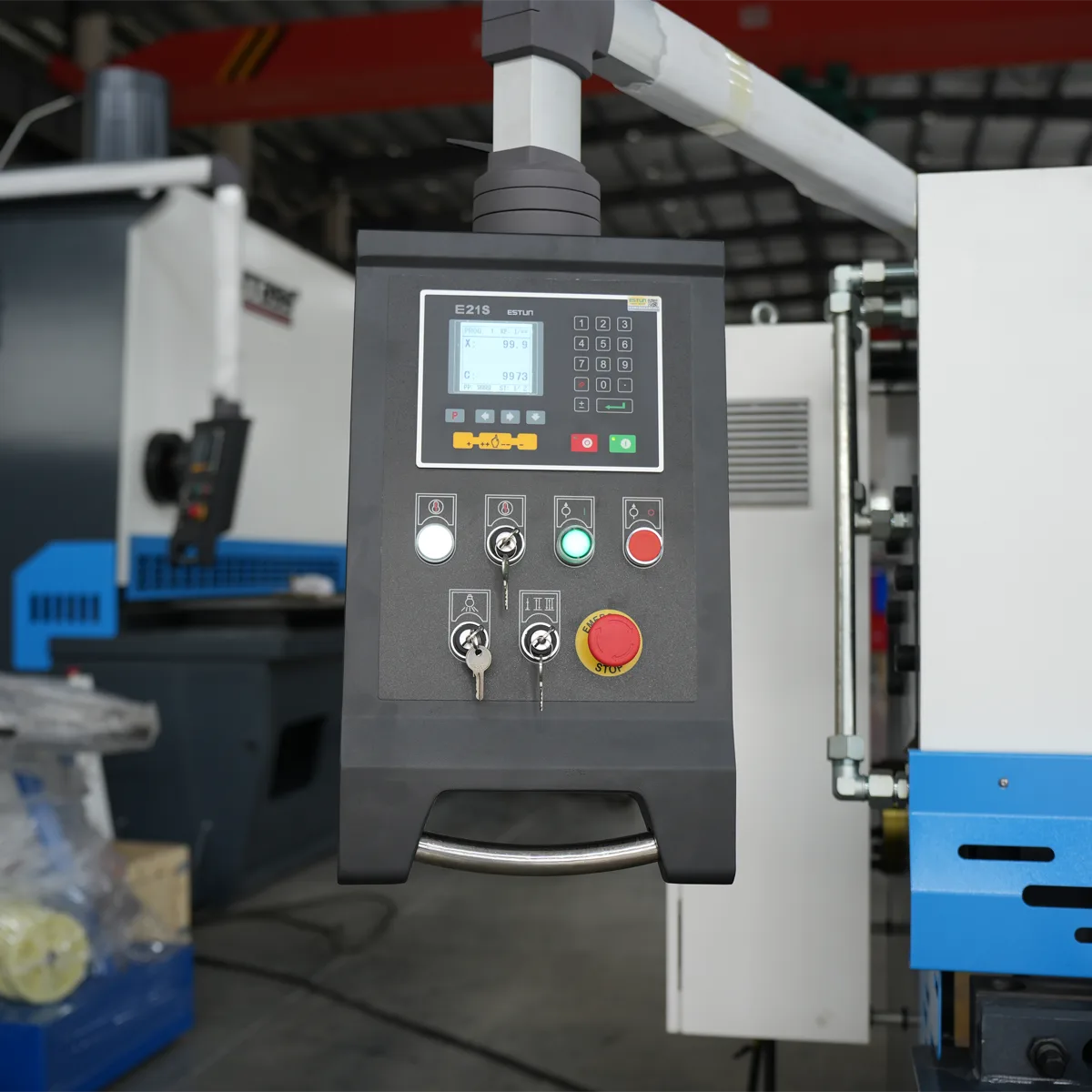

ESTUN E21S Control
- High-definition hydraulic display
- Control common motors and frequency converters
- X-axis intelligent positioning
- Multi-step programming, 40 programs, each program 25 steps
- Built-in time relay function
- One-button function switching
- Unilateral positioning function
- A key backup and restore of parameters
- Chinese and English
- Metric system
Schneider Electric
High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement anywhere in the word.

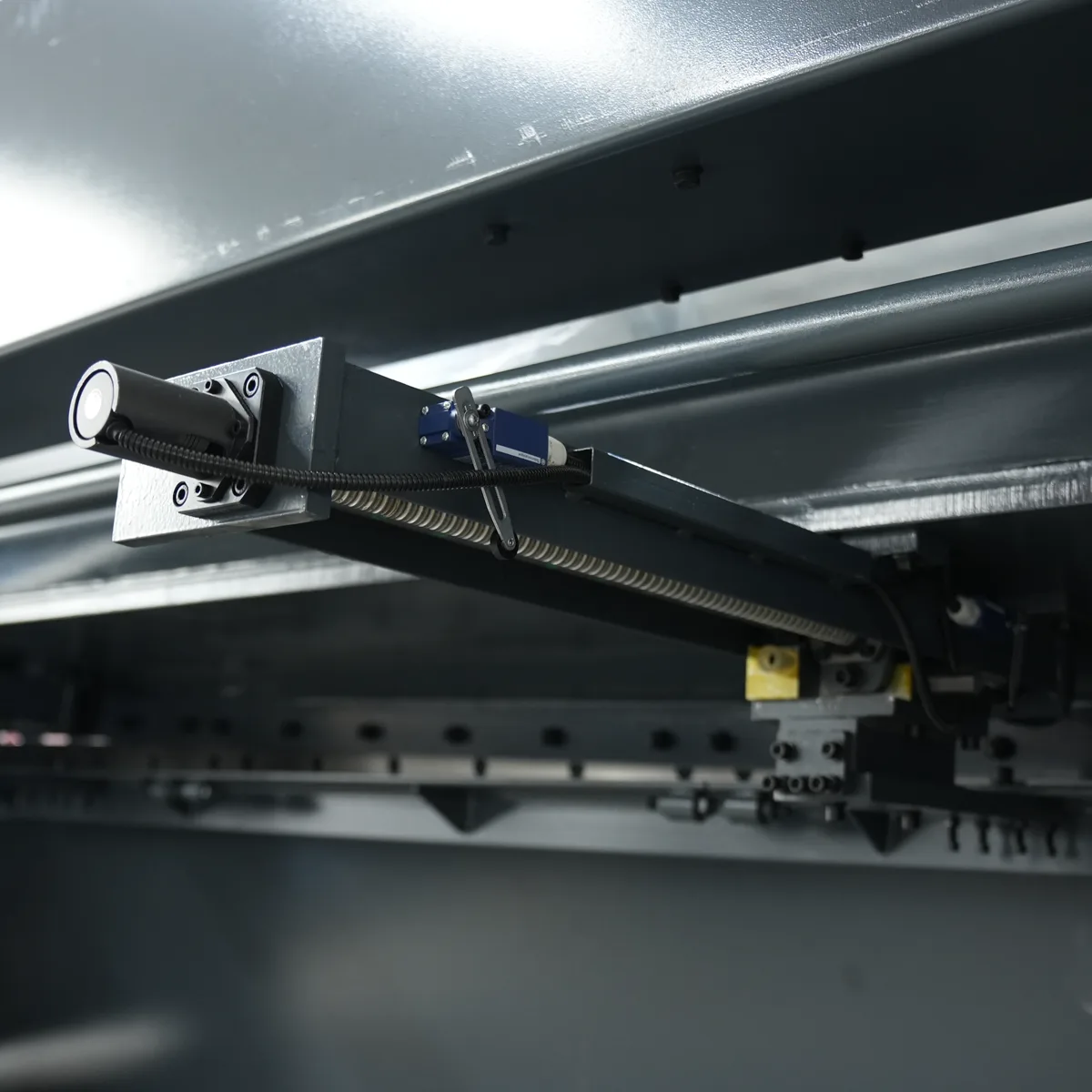

X-axis Motor and Screw
X axis back gauge clearance are controlled by E21s which ensures a higher cutting accuracy, Backgauge with Optional ball screw and line guide rail.

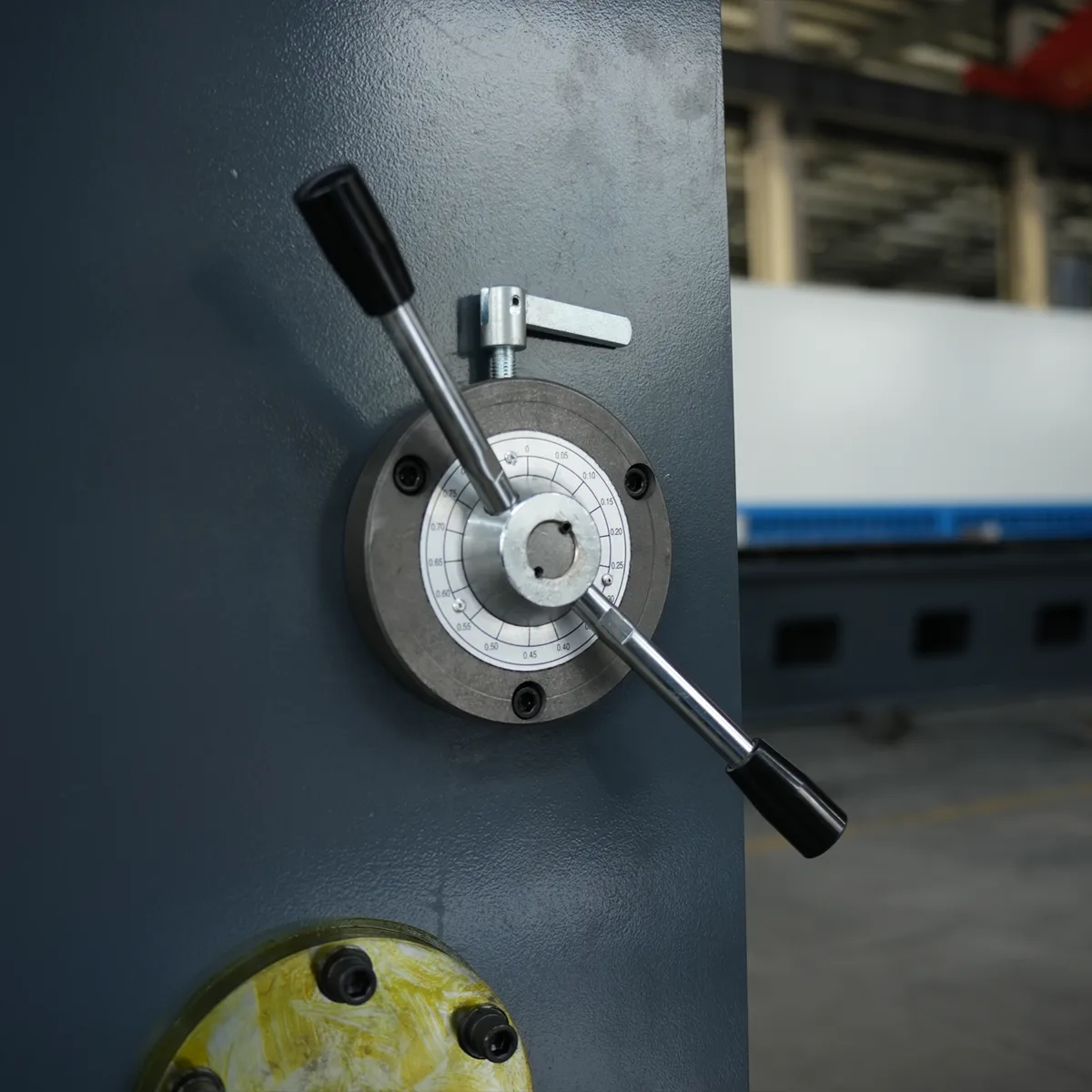

Blade Clearance Adiustment
Adjust the cutting blades gap by moto!according the cutting thickness of themetal sheet can get better cutting performance.
German Siemens Main Motor
The German famous brand motor increases the service life of the machine and keeps the machine working in a low-noise environment.
FIRST Hydraulic Valve
The world famous brand FIRST, Is a professional hydraulic valve supplier.
The EMB oil pipe joint has a beautiful structure and reduces the possibility of oil leakage.
FIRST Hydraulic Oil Pump
The oil pump is highly regarded for its exceptional performance, known for its quiet operation and remarkable longevity, making it a reliable choice for various applications.
Front Material Support
The front material rack can effectively help you reduce the work pressure when you are cutting larger metal sheets, making it easier for you to support and move the sheets.
South Korea KACON Foot Switch
South Korea brand foot switch is movableand can stop the Hydraulic Shearing Machine anytime by theemergency button.
