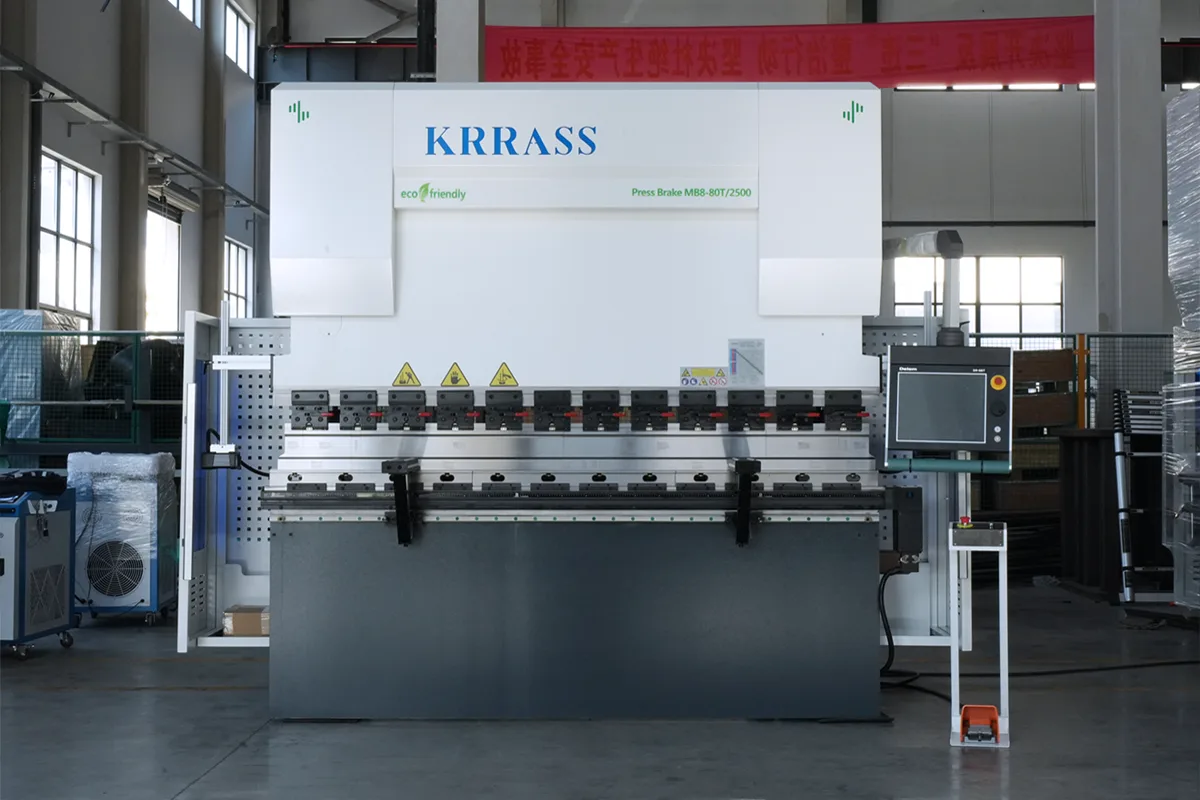

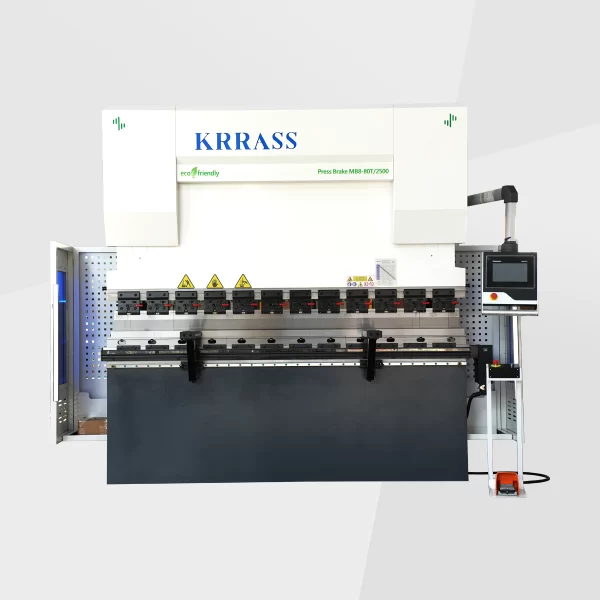

MB8-80T2500 DELEM DA66T 6+1 Axis CNC Press Brake,Sheet Metal Bending Machine

Original price was: $32,399.00.Current price is: $29,199.00.

Model: MB8-80T2500

Category: CNC Press Brake

Brand Name: KRRASS

Bending Pressure: 800KN

Bending Length: 2500Mm

Controller: DELEM DA-66T

HS Code: 8462299000

Application: 2024 new design CNC Press Brake, loaded with DELEM DA66T 3D controller, 7-axis control, Y1, Y2, X, R, Z1, Z2, W axis.

Technologyies

Bending Pressure:800KN
Bending Length:2500mm
CNC Control Axes:Y1+Y2+X+R+Z1+Z2+W Crowning
Main Motor:7.5KW
Operating Voltage:380V 50Hz
CNC System:DA-66T
Length* Width* Height:3220mm * 1780mm * 2650mm

Configurations

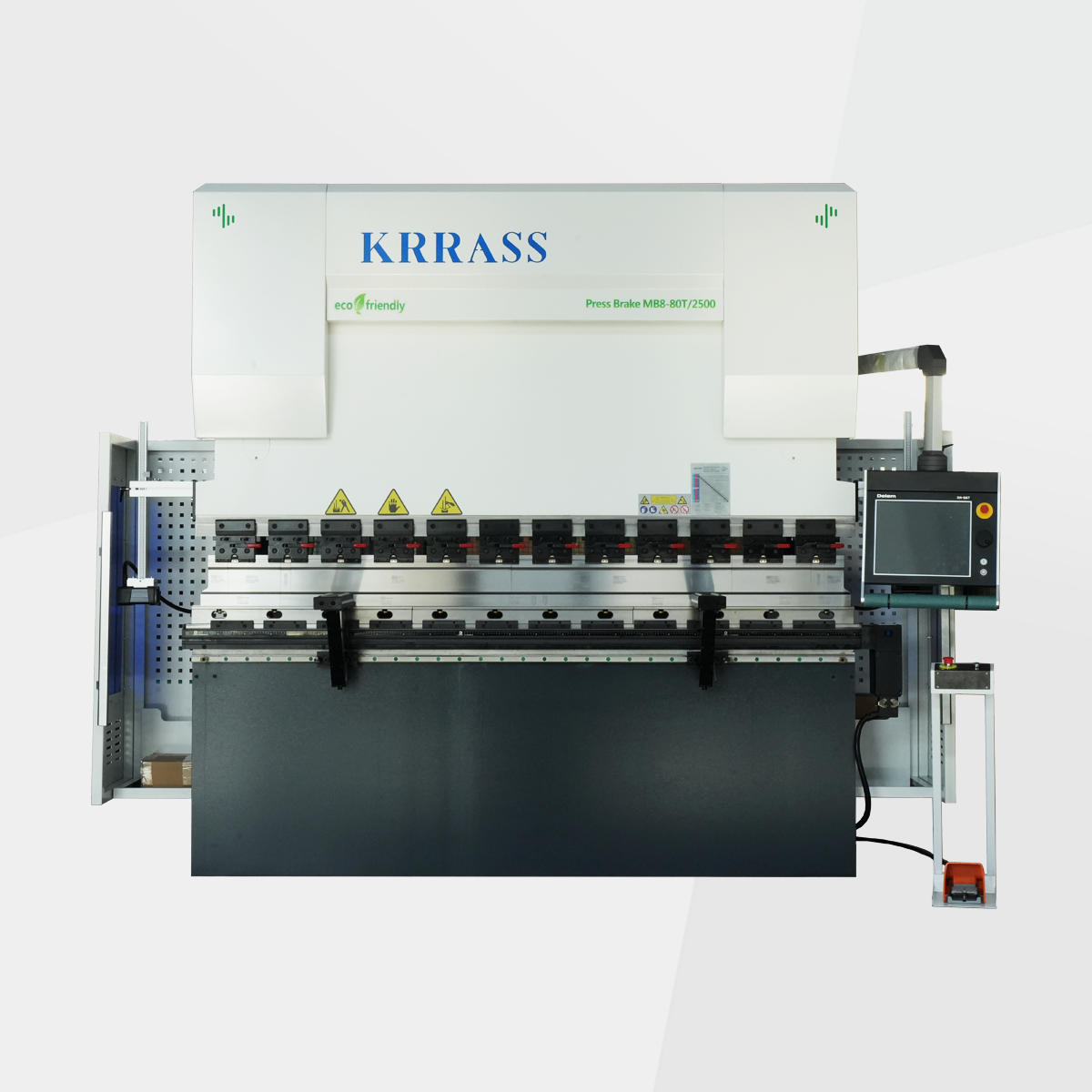

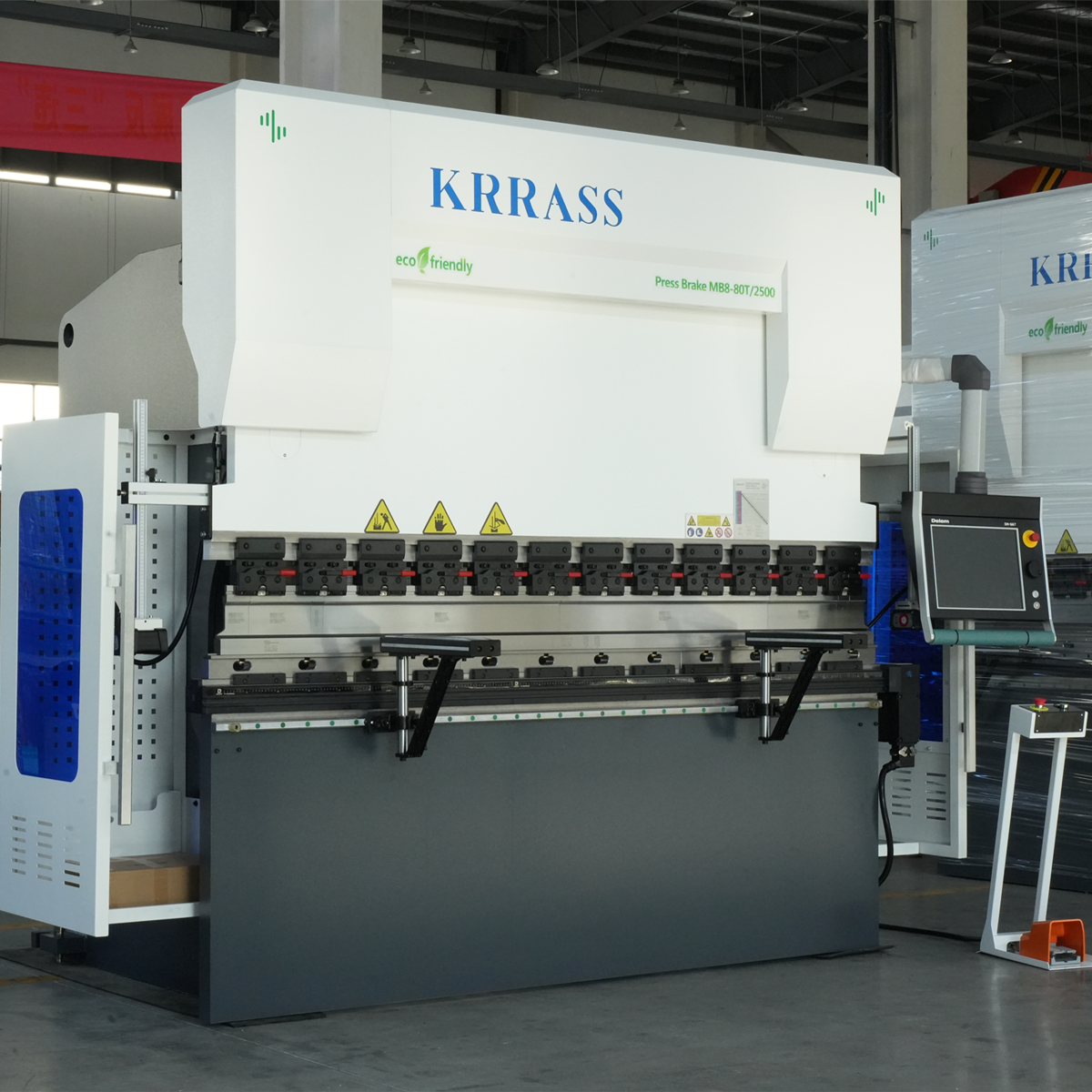

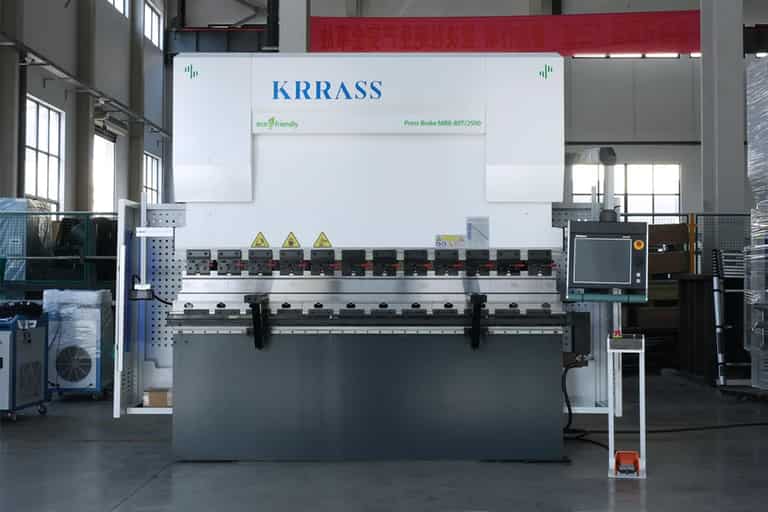

Overall appearance

Hydraulic Press Brake with DA-66T 3D Controller with its easy-to-use control unit, rigid body frame, flawless design, high efficiency, multiple tool usage solutions, top CE safety standards, and a suitable price range make it the best-in-class world leader. It is ideal for bend-sensitive, energy-efficient solutions.

  • Simple and solid Hydraulic Press Brake
  • Work area can be customized and all types of tool clamping can be installed
  • Tailored-made Hydraulic Press Brake
MB8-80T2500 with DA66T delem-da-66t-control

DELEM DA-66T Control

  • 2D graphical touch screen programming mode
  • 17″ high resolution colour TFT
  • 3D graphics acceleration
  • Colour LCD display
  • 1280 x 1024 pixels, 16 bit colour
  • Full touch screen control (IR-touch)
  • Sensor bending & correction interface Profile-TL offline software
  • Full Windows application suite
MB8-80T2500 with DA66T MSD laser safety protection

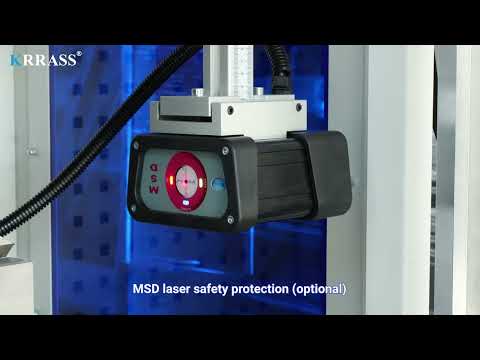

Italy MSD laser safety protection (optional)

The MSD laser protection avoids the danger of the press brake operator due to the rapid movement of the upper beam of the machine tool. The MSD can be installed on the upper or lower beam workbench. The occurrence of accidents in the production process is minimized to ensure the safe and orderly production.

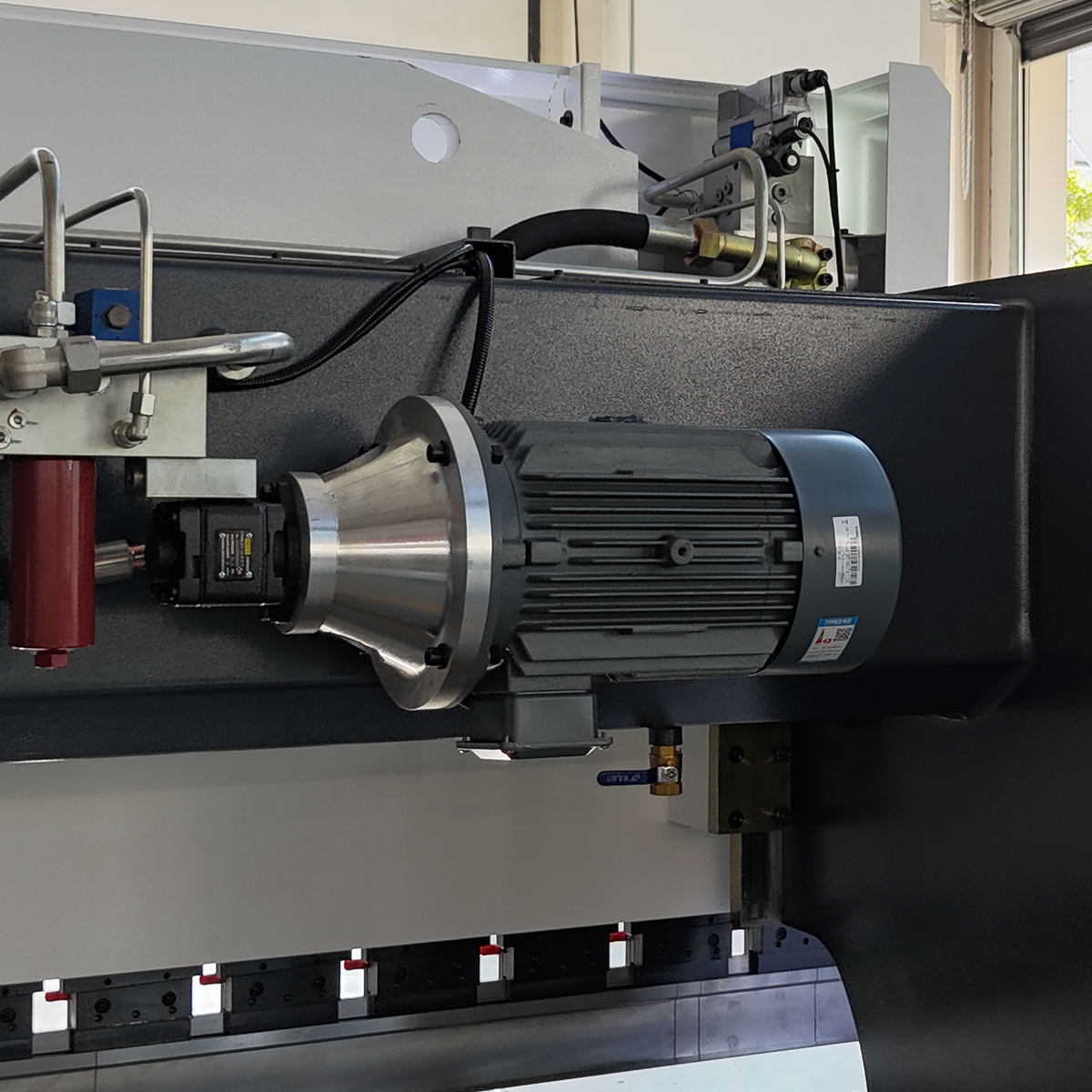

MB8-80T2500 with DA66T German Siemens main motor

German Siemens main motor

The German famous brand motor increases the service life of the machine and keeps the machine working in a low-noise environment.

MB8-80T2500 with DA66T Rexroth Proportional Valve

Rexroth Proportional Valve

The German Rexroth fully closed-loop electro-hydraulic servo high-frequency synchronous control system is adopted to ensure that the machine tool has high stability and high precision in the process of high-speed operation.

MB8-80T2500 with DA66T Schneider Electric

Schneider Electric

High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement anywhere in the word.

Taiwan Shilin inverter ensures the positioning accuracy of the X-axis and Y-axis.

MB8-80T2500 with DA66T Segmented Bending Toolings

Segmented Bending Toolings

High-precision quick mold change device

The upper mold is divided into different gold sizes and can also be cut according to customer requirements.

The lower mold adopts a multi-V square mold, which can adapt to customers’ bending of materials with different thicknesses. The mold can also be modified according to customer requirements. To meet the best needs of customers.

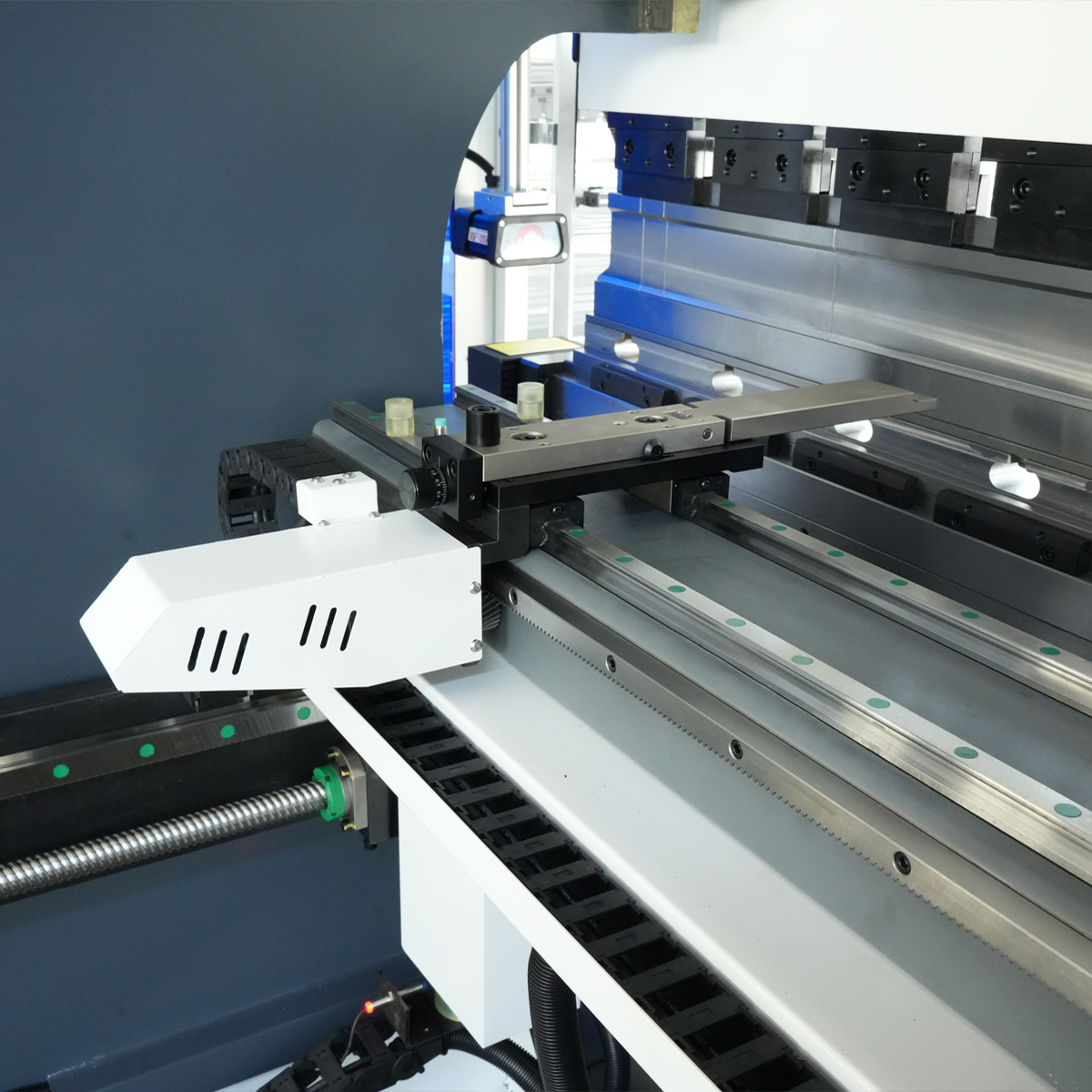

MB8-80T2500 with DA66T CNC BackGauge

Sheet Metal Press Brake 4-Axis CNC BackGauge with X, R, Z1, Z2-Axis

  • Hiwin Ball screws and linear guide on X, R-axis
  • Axis X speed 500 mm/s
  • Automatic Z1, Z2-axis with HIWIN linear guide
  • Mechanical accuracy ± 0.01 mm
  • Fingers with double stop and micrometric adjustment
MB8-80T2500 with DA66T Fagor Grating Ruler

Fagor Grating Ruler

Slider position signal is feedbacked to controller by Spain FAGOR Grating ruler , then the CNC controller adjusts the amount of fuel tank by changing the synchronous valve opening size.

MB8-80T2500 with DA66T Pedal Switch

Pedal Switch

South Korea brand foot switch ismovableand can stop the machineanytime by theemergency button.

MB8-80T2500 with DA66T Electric Crowning System

Electric Crowning System

  • Very precise bending angles
  • Europe type dies with 60 mm and 90 mm
  • Base can be clamped as well as single dies with 13 mm tang
  • Electric crowning with a controller
  • Precise positioning and alignment of the crowning table
  • Easy and fast usage
MB8-80T-2500-DA66T-Thickness of workbench

Thickness of workbench(70mm)

MB8-80T-2500-DA66T-Thickness of side panel

Thickness of side panel(40mm)

MB8-80T-2500-DA66T-Thickness of slider

Thickness of slider(50mm)

Tooling (Optional)

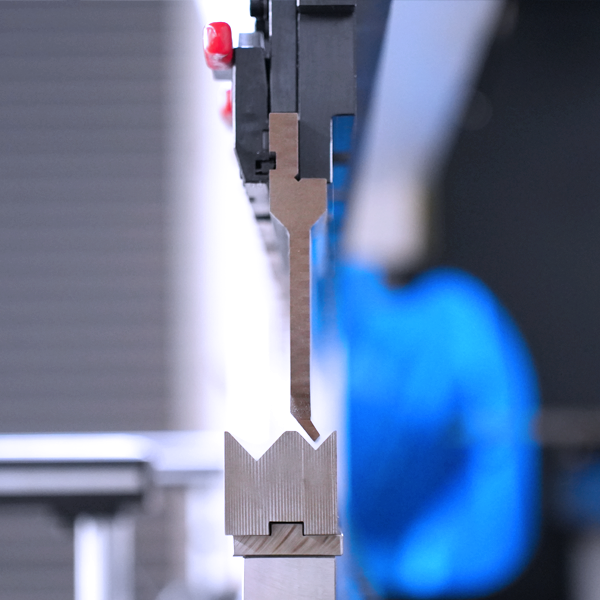

non-Standard tooling
Standard tooling
Top tooling
Non-Standard tooling
Gooseneck tooling
Gooseneck tooling
Double-V Concentric Mold
Double-V Concentric Mold
Four-V Concentric Mold
Four-V Concentric Mold
Multi-V mold
Multi-V Mold

Warranty

30-DAY MONEY BACK GUARANTEE

You should feel completely satisfied with your KRRASS Press Brake purchase, and your peace of mind is a significant part of that process. We want you to feel the same confidence in your new KRRASS machine that we do, which is why every Press Brake purchase includes our Hassle-Free KRRASS 30-Day Return option in order to fully experience and evaluate their new KRRASS machine. It allows you to return or exchange your KRRASS purchase, for any reason, within 30 days of initial purchase. Refunds are simple and are issued once the original machine and all accompanying accessories have been returned. The refund or exchange will be issued minus the 15% restocking fee for items & accessories, 25% KRRASS Press Brake Machine Series customization fee, and shipping or handling costs are not included. Click here for details

krrass-30day-guarantee
krrass-2year-warranty

2-YEAR LIMITED MACHINE WARRANTY

2 years Bumper to Bumper machine warranty for all machine mechanical and electrical components. (Except consumables parts) The Company represents and warrants that the KRRASS All Series of products will perform according to the warranty policy stated above from date of invoice. Products will be free from defects in materials and workmanship under normal use and service for the stated period. KRRASS has the responsibility to offer a timely solution and/or repair if deemed inoperable or defective by KRRASS Repair & Support Specialists. Clients are obligated to show proof of any such claims of machine parts or operational defects. Click here for details
