Sale!

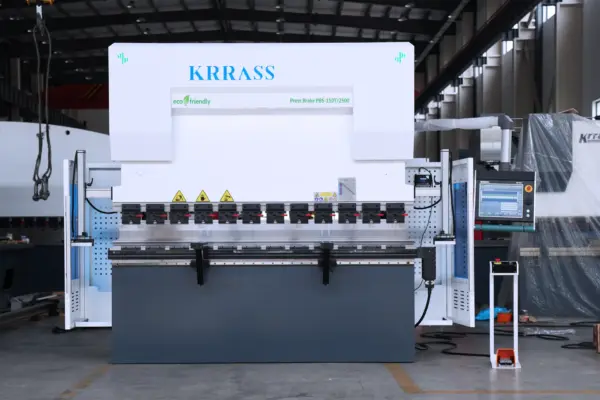

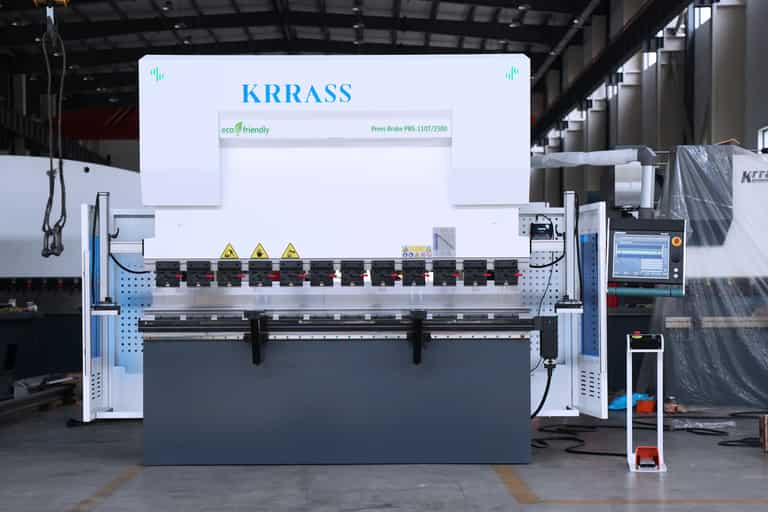

DELEM DA66T Press Brake Machine
DELEM DA66T Press Brake Machine Price, PBS-110T2500 DA66T 6+1 Axis - delem da 66t control
DELEM DA66T Press Brake Machine Price, PBS-110T2500 DA66T 6+1 Axis - estun servo main motor
DELEM DA66T Press Brake Machine Price, PBS-110T2500 DA66T 6+1 Axis - back finger stoper

DELEM DA66T Press Brake Machine Price, PBS-110T2500 DA66T 6+1 Axis

Original price was: $36,720.00.Current price is: $33,520.00.

Model: PBS-110T2500

Axis: 6+1 Axis

Category: CNC Press Brake

Brand Name: KRRASS

Bending Pressure: 1100KN

Bending Length: 2500mm

Controller: DELEM DA-66T

HS Code: 8462299000

Application: DELEM DA66T Press Brake Machine Price, PBS-110T2500 DA66T 6+1 Axis

Technologyies

Bending Pressure: 1100KN
Bending Length: 2500mm
CNC Control Axes: Y1+Y2+X+R+Z1+Z2+W Crowning
Main Motor: 8.7KW
Operating Voltage: 380V 50Hz
CNC System: DA-66T
Length* Width* Height: 3240mm * 1780mm * 2680mm

Configurations

DELEM DA66T Press Brake Machine Price

Main Feature

The Press Brake Machine Price is very satisfactory, It has an easy to use control unit, rigid body frame, flawless design, high efficiency, multiple tool usage solutions, top CE safety standards, and a suitable price range make it the best-in-class world leader. It is ideal for bend-sensitive, energy-efficient solutions.

  • Simple and solid Hydraulic Press Brake
  • Work area can be customized and all types of tool clamping can be installed
  • Tailored-made Hydraulic Press Brake
DELEM DA66T Press Brake Machine Price, PBS-110T2500 DA66T 6+1 Axis - delem da 66t control

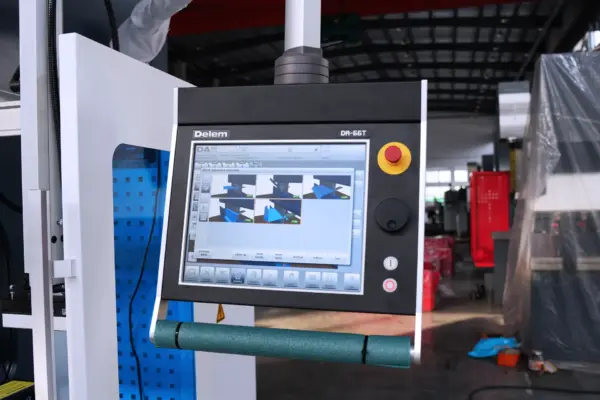

DELEM DA-66T Control

  • 2D graphical touch screen programming mode
  • 17″ high resolution colour TFT
  • 3D graphics acceleration
  • Colour LCD display
  • 1280 x 1024 pixels, 16 bit colour
  • Full touch screen control (IR-touch)
  • Sensor bending & correction interface Profile-TL offline software
  • Full Windows application suite
DELEM DA66T Press Brake Machine Price, PBS-110T2500 DA66T 6+1 Axis - electric crowning system

Electric Crowning System

Low worktable has an automatic crowning compensation uint; compensation amount is automatically set up by CNC system, with guarantee a same bending angel on full length.

The worktable adopts the particular design, reducing the crowning distortion amount of lower tool effectively.

DELEM DA66T Press Brake Machine Price, PBS-110T2500 DA66T 6+1 Axis - fagor grating ruler

Fagor Grating Ruler

Fagor grating ruler can accurately measure the small deformation caused by bending force of machine tool,then feedback compensation, to ensure the bending accuracy of plates of any thickness and materia.

DELEM DA66T Press Brake Machine Price, PBS-110T2500 DA66T 6+1 Axis - schneider electric 1

Schneider Electric

High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement anywhere in the word.

DELEM DA66T Press Brake Machine Price, PBS-110T2500 DA66T 6+1 Axis - estun servo main motor

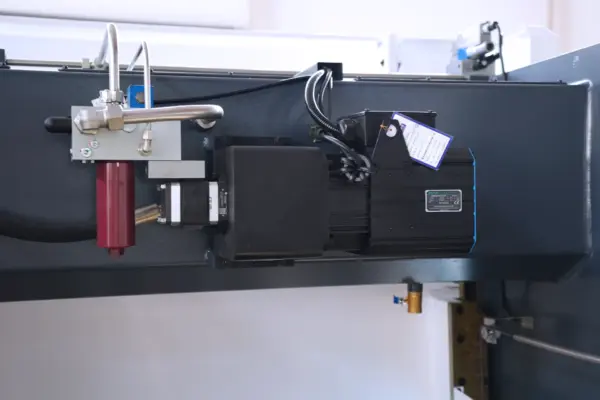

Estun Servo Main Motor

The Estun servo main motor greatly reduces the power consumption when the press brake is working, increases the service life of the machine, and keeps the machine working in a lower noise environment, which is green and environmentally friendly.

DELEM DA66T Press Brake Machine Price, PBS-110T2500 DA66T 6+1 Axis - rexroth proportional valve

Rexroth Proportional Valve

The German Rexroth fully closed-loop electro-hydraulic servo high-frequency synchronous control system is adopted to ensure that the CNC press brake machine tool has high stability and high precision in the process of high-speed operation.

DELEM DA66T Press Brake Machine Price, PBS-110T2500 DA66T 6+1 Axis - x axis ball screw linear guide

X-axis Ball Screw Linear Guide

  • Precision: Ball screws offer enhanced precision, reduced energy consumption, and lower maintenance requirements.
  • Responsiveness: Ball screws deliver exceptionally smooth motion.
  • Friction: Ball screws rely on recirculating balls to reduce friction instead of lubricants.
DELEM DA66T Press Brake Machine Price, PBS-110T2500 DA66T 6+1 Axis - back finger stoper

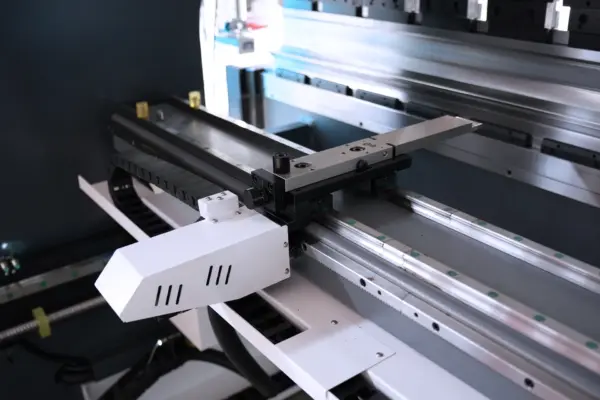

Back Finger Stoper

High-precision backstop means that customers can input the size into the system according to the product’s dimensions, and it can be positioned accurately with an accuracy of 0.01mm.

X axis adopts ball screw and linear quide, ensure high synchronization accuracy and very long life. Widened and extended custom stop fingers, Finger support frame with double linear guide, Meet your reguirements.

DELEM DA66T Press Brake Machine Price, PBS-110T2500 DA66T 6+1 Axis - precision quick clamping device

Precision Quick Clamping Device

It is convenient to quickly clamp the upper die, reduce labor intensity and improve production efficiency. The utility model has the advantages of high precision, easy clamping, no loosening, no tool dropping, etc.

DELEM DA66T Press Brake Machine Price, PBS-110T2500 DA66T 6+1 Axis - laser safety protection system

Laser Safety Protection System (optional)

Equipped with laser safety protection system to ensure efficient production and the personal safety of operators.

DELEM DA66T Press Brake Machine Price, PBS-110T2500 DA66T 6+1 Axis - front material support

Front Material Support

The front material support can be lifted and lowered freely. When you need to bend larger metal sheets, it can effectively assist in reducing your workload.

DELEM DA66T Press Brake Machine Price, PBS-110T2500 DA66T 6+1 Axis - south korea kacon foot switch

South Korea KACON Foot Switch

South Korea brand foot switch is movableand can stop the Press Brake Machine anytime by theemergency button.

DELEM DA66T Press Brake Machine Price, PBS-110T2500 DA66T 6+1 Axis - thickness of workbench 80mm

Thickness of workbench (80mm)

DELEM DA66T Press Brake Machine Price, PBS-110T2500 DA66T 6+1 Axis - thickness of side panel 50mm

Thickness of side panel (50mm)

DELEM DA66T Press Brake Machine Price, PBS-110T2500 DA66T 6+1 Axis - thickness of slider 60mm

Thickness of slider (60mm)

Tooling (Optional)

Standard tooling

Standard tooling

Top tooling

Non-Standard tooling

Gooseneck tooling

Gooseneck tooling

Double-V Concentric Mold

Double-V Concentric Mold

Four-V Concentric Mold

Four-V Concentric Mold

Multi-V mold

Multi-V Mold

Warranty

30-DAY MONEY BACK GUARANTEE

You should feel completely satisfied with your KRRASS Press Brake purchase, and your peace of mind is a significant part of that process. We want you to feel the same confidence in your new KRRASS machine that we do, which is why every Press Brake purchase includes our Hassle-Free KRRASS 30-Day Return option in order to fully experience and evaluate their new KRRASS machine. It allows you to return or exchange your KRRASS purchase, for any reason, within 30 days of initial purchase. Refunds are simple and are issued once the original machine and all accompanying accessories have been returned. The refund or exchange will be issued minus the 15% restocking fee for items & accessories, 25% KRRASS Press Brake Machine Series customization fee, and shipping or handling costs are not included. Click here for details

DELEM DA66T Press Brake Machine Price, PBS-110T2500 DA66T 6+1 Axis - krrass 30day guarantee
krrass-2year-warranty
2-YEAR LIMITED MACHINE WARRANTY

2 years Bumper to Bumper machine warranty for all machine mechanical and electrical components. (Except consumables parts) The Company represents and warrants that the KRRASS All Series of products will perform according to the warranty policy stated above from date of invoice. Products will be free from defects in materials and workmanship under normal use and service for the stated period. KRRASS has the responsibility to offer a timely solution and/or repair if deemed inoperable or defective by KRRASS Repair & Support Specialists. Clients are obligated to show proof of any such claims of machine parts or operational defects. Click here for details
