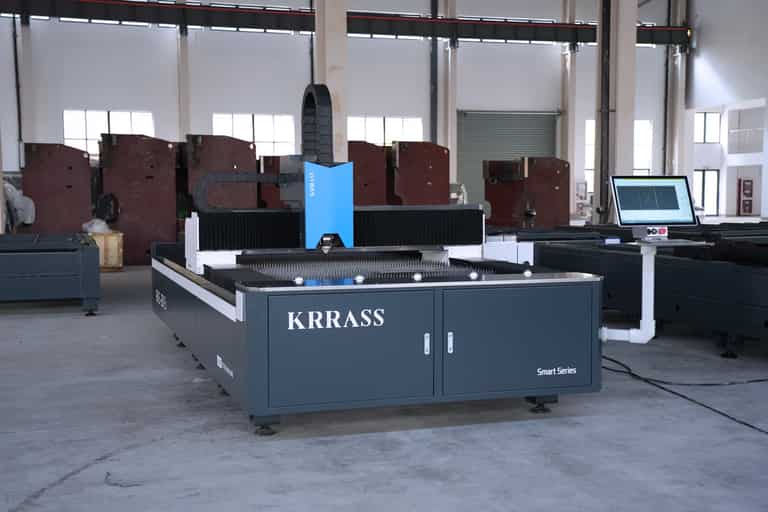

China Laser Cutting Machine Price, 3000W Sheet Metal Laser Cutting Machine For Sale

Technologyies

Laser Source:	Max China MFSC 3000W
Laser Head:	BLT310
Control System:	FSCUT2000E
Working Area:	3000mm * 1500mm
Operating Voltage:	380V 50Hz
Power:	3000W
Length* Width* Height:	4500mm * 2265mm * 1900mm

Configurations

Main Feature

When evaluating china laser cutting machine price, the RAS-3015 Smart 3000W Sheet Metal Laser Cutting Machine by KRRASS stands out as an exceptional choice for metal fabrication. Capable of cutting a wide range of materials including steel, aluminum, titanium, various alloys, brass, copper, and iron, this machine offers versatility with laser power options ranging from 1500W to 40KW. The affordable 3000W CNC laser cutting machine not only delivers outstanding performance but also comes with top-tier service and support, making it a leading option in the market.

Max China MFSC 3000W Laser Source

The MFSC 3000W Single Module CW Fiber Laser, built on a modular design, offers exceptional beam quality and high stability. Its compact, water-cooled structure ensures optimal performance. The laser power is continuously adjustable, and the beam is transmitted via fiber and a QBH connector, making it ideal for applications such as laser cutting, welding, and more. This laser is highly suitable for system integration with robots or machine tools and is widely used in industries such as laser cutting, welding, 3D printing, electronics, automotive parts, and aerospace.

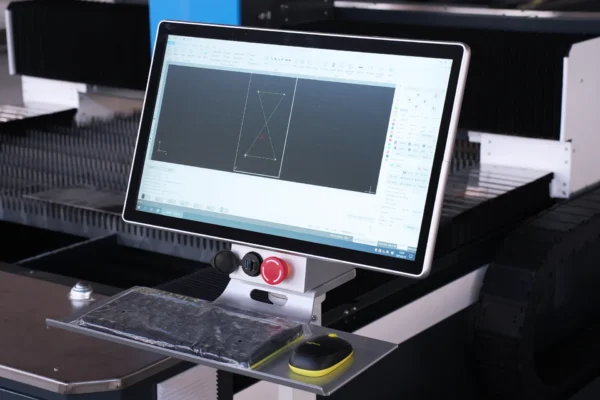

Bus Control System FSCUT2000E

It supports data transmission via the EtherCAT bus, ensuring fast speed and high stability. The system is user-friendly and feature-rich, allowing even beginners to easily cut high-quality samples.

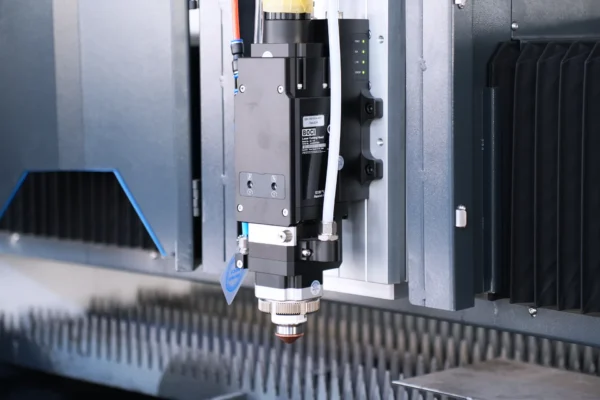

BOCHU BLT310 Smart Cutting Heads

BOCHU BLT310 cutting heads are quite cost-effective smart cutting heads designed for the laser cutting. Being impact and lightweight, it still integrates multiple sets of intelligent sensors, which ensure real-time closed-loop monitoring to give rapid diagnosis and instant warning.

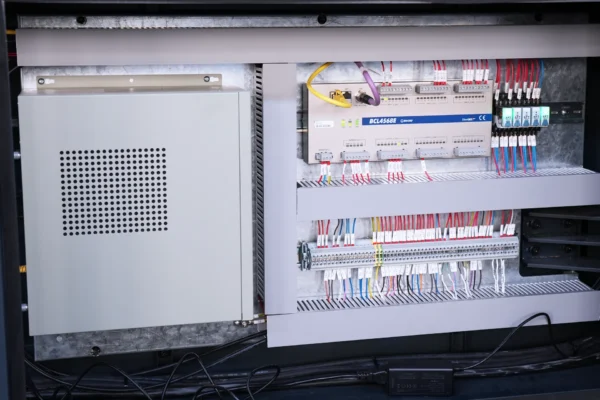

EtherCAT Controller FSCUT2000E

FSCUT2000E is a cost-effective laser control system applies to 1.5-3kW power cutting, realizes control of motion, laser, and cutting gas, common used in sheet metal, kitchen ware, and light fixture.

Terminal board model: BCL4568E

High Speed Servo Motor And Drive

High-speed servo motors and drives in the Industrial laser cutting machine provide precise control and rapid movement, enhancing accuracy and efficiency. They offer high responsiveness, stability, and reliability, ensuring consistent performance and reduced downtime. Feedback systems enable real-time monitoring for precise operations, making them ideal for complex cutting tasks.

Schneider Electric

High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement anywhere in the word.

The Fifth-generation Aviation Aluminum Alloy Beam

The T6 heat treatment process processes the laser cutter machine’s full beam to make the shaft obtain the highest strength. Solution treatment improves the strength and plasticity of the beam, optimizes and reduces its weight, and speeds up the movement.

Water Cooler

A water cooler in the Laser Cutting Machine for Metal Sheets regulates the temperature of the laser and components, preventing overheating and ensuring optimal performance and longevity.

3000W Sheet Metal Laser Cutting Machine Material Thickness

3000W Fiber laser cutting machine Cutting parameters, IPG, Raycus, Max data table

	Thickness（mm）	Speed（m/min）	Focus position	Cutting height（mm）	Gas	Nozzle type	Pressure（bar）	Cutting effect
Carbon steel (Q235B)	1	59	0	0.5	N2	Single：1.0	12~16	Bright surace
	2	28	-1~-1.5	0.5		Single：2.0	12~16
	3	4	4.5~5.5	0.8	O2	Double：1.2	0.6~0.9
	4	3.5	4.5~5.5	0.8		Double：1.2	0.6~0.9
	6	2.7	4.5~5.5	0.8		Double：1.2	0.6~0.9
	8	2.2	4.5~5.5	1.5		Double：4.0	0.6~0.9
	10	1.5	2~3	1.5		Double：4.0	0.6~0.9	Matte surface
	12	1	2~3	1.5		Double：4.0	0.6~0.9
	14	0.95	2~3	1.5		Double：4.0	0.6~0.9
	16	0.85	2.5~3.5	1.5		Double：4.0	0.6~0.9
	18	0.72	2.5~3.5	1.5		Double：4.0	0.6~0.9
	20	0.65	2.5~3.5	1.5		Double：4.0	0.6~0.9
	22	0.55	2.5~3.5	1.5		Double：4.0	0.6~0.9
	25	0.5	2.5~4	1.5		Double：4.0	0.6~0.9
Stainless steel (SUS304)	1		0	0.5	N2	Single：1.0	12~16	No slag
	2		0~-0.5	0.5		Single：2.0	12~16
	3	12	-1~-1.5	0.5		Single：2.0	12~16
	4	4.3	-3.5~-4	0.5		Single：3.5	12~16
	6	1.8	-5~-6	0.5		Single：3.5	16~18
	8	1.2	-6.5~-7	0.5		Single：3.5	16~18
	10	0.9	-7.5~-8.5	0.5		Single：3.5	16~18	A small amount of slag
	12	0.4	-9~-10	0.5		Single：4.0	16~20	A small amount of dross
Aluminum (6061)	1	37~40	0	0.5	Air	Single：1.0/1.2/1.5	12~16
	2	20~22	0~-0.5	0.5		Single：1.5/2.0	12~16
	3	8~9	0~-0.5	0.5		Single：2.0/2.5/3.0	12~16
	4	5~5.2	-1~-1.5	0.5		Single：3.0	12~16
	6	2.2~2.5	-2~-3	0.5		Single：3.5/4.0	12~16
	8	1~1.2	-3~-4	0.5		Single：4.0	16~18
	10	0.5~0.6	-5~-5.5	0.5		Single：4.0	16~18
Brass	1	15~17	0	1.5	Air	Single：1.0/1.2/1.5	12~16
	2	18~20	0~-0.5	2.5		Single：1.5/2.0	12~16
	3	7~7.5	0~-0.5	3.5		Single：2.0/2.5/3.0	12~16
	4	4~4.5	-1~-1.5	4.5		Single：3.0	12~16
	6	2.0~2.2	-2~-3	5.5		Single：3.5/4.0	12~16
	8	0.9~1.1	-3~-4	6.5		Single：4.0	16~18
	10	0.5~0.6	-5~-5.5	7.5		Single：4.0	16~18

What is this Machine Used for?
