Sale!

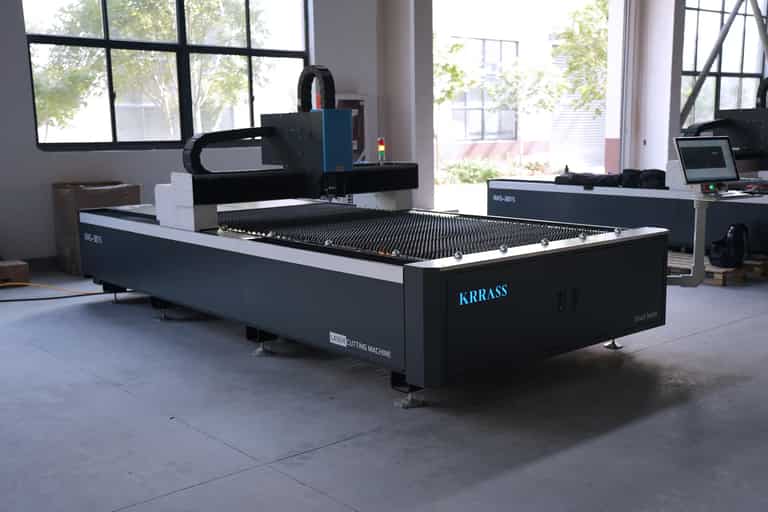

3000W Fiber Laser Cutting Machine, 3KW Fiber Laser Cutting Machine for Metal

Original price was: $24,200.00.Current price is: $22,000.00.

Model: RAS-3015-Smart 3000W

Category: Fiber Laser Cutting Machine

Brand Name: KRRASS

Laser Source: Max China

Laser Head: BLT310

Control system: FSCUT2000E

Working Area: 3000mm * 1500mm

HS Code: 8456110090

Application: 3000W Fiber Laser Cutting Machine, 3KW Fiber Laser Cutting Machine for Metal

Technologyies

Laser Source: Max China MFSC 3000W
Laser Head: BLT310
Control system: FSCUT2000E
Working Area: 3000mm * 1500mm
Operating Voltage: 380V 50Hz
Power: 3000W
Length* Width* Height: 4500mm * 2265mm * 1900mm

Configurations

Main Feature

KRRASS’s RAS-3015 Smart 3000W Fiber Laser Cutting Machine is for metal fabrication, including steel designed, aluminum, titanium, alloy, brass, copper, and iron, with different laser powers (1500W, 2000W, 3000W, 4000W, 6000W, 12000W, 20KW, 30KW, 40KW). The affordable 1500W fiber laser cutting machine is for sale at a low price, with the best fiber laser-cutting system service and support.

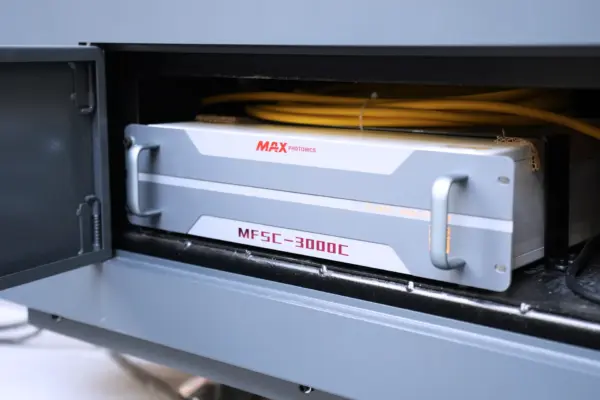

Max China MFSC 3000W Laser Source

MFSC 3000W Single Module CW Fiber Laser, based on modular design,has excellent beam quality and high stability, which structure is compact and water-cooling. The laser can be adjusted continuously, and the beam is transmitted be fiber and QBH connector, which is ideal for laser cutting, laser welding, etc . The laser is very suitable for system intergration with robot or machine tool, and is widely used for laser cutting, welding, 3D printing, electronics, automobile parts,aerospace, etc.

Bus Control System FSCUT2000E

It enables data transmission via EtherCAT bus and features fast speed and stability. This system is easy to be operated and rich in functions. Even green hands can cut high-quality samples.

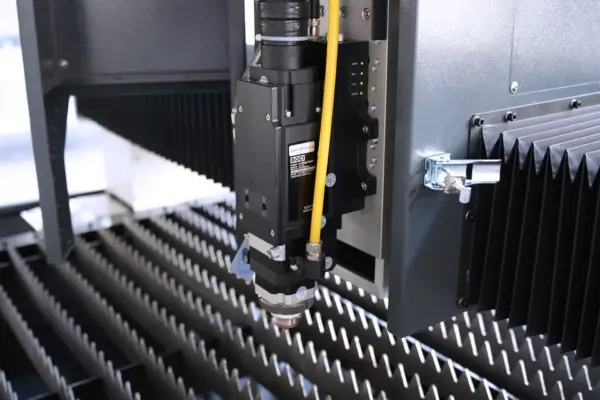

BOCHU BLT310 Smart Cutting Heads

BOCHU BLT310 cutting heads are quite cost-effective smart cutting heads designed for the laser cutting. Being impact and lightweight, it still integrates multiple sets of intelligent sensors, which ensure real-time closed-loop monitoring to give rapid diagnosis and instant warning.

EtherCAT Controller FSCUT2000E

FSCUT2000E is a cost-effective laser control system applies to 1.5-3kW power cutting, realizes control of motion, laser, and cutting gas, common used in sheet metal, kitchen ware, and light fixture.

Terminal board model: BCL4568E

High Speed Servo Motor And Drive

High-speed servo motors and drives in laser cutting machines provide precise control and rapid movement, enhancing accuracy and efficiency. They offer high responsiveness, stability, and reliability, ensuring consistent performance and reduced downtime. Feedback systems enable real-time monitoring for precise operations, making them ideal for complex cutting tasks.

Schneider Electric

High quality electric parts can perform well even the electricity is not stable and customers can easily get the replacement anywhere in the word.

The Fifth-generation Aviation Aluminum Alloy Beam

The T6 heat treatment process processes the laser cutter machine’s full beam to make the shaft obtain the highest strength. Solution treatment improves the strength and plasticity of the beam, optimizes and reduces its weight, and speeds up the movement.

Water Cooler

A water cooler in the 3000W Fiber Laser Cutting Machine regulates the temperature of the laser and components, preventing overheating and ensuring optimal performance and longevity.

3000W Fiber Laser Cutting Machine Material Thickness

Thickness(mm) Speed(m/min) Focus position Cutting height(mm) Gas  Nozzle type Pressure(bar) Cutting effect
Carbon steel (Q235B) 1 59 0  0.5

N2

Single:1.0 12~16 Bright surace
2 28  -1~-1.5  0.5 Single:2.0 12~16
3 4  4.5~5.5 0.8

O2

 Double:1.2 0.6~0.9
4 3.5  4.5~5.5 0.8  Double:1.2 0.6~0.9
6 2.7  4.5~5.5 0.8  Double:1.2 0.6~0.9
8 2.2  4.5~5.5 1.5  Double:4.0 0.6~0.9
10 1.5  2~3 1.5  Double:4.0 0.6~0.9 Matte surface
12 1  2~3 1.5  Double:4.0 0.6~0.9
14 0.95  2~3 1.5  Double:4.0 0.6~0.9
16 0.85  2.5~3.5 1.5  Double:4.0 0.6~0.9
18 0.72  2.5~3.5 1.5  Double:4.0 0.6~0.9
20 0.65 2.5~3.5 1.5  Double:4.0 0.6~0.9
22 0.55  2.5~3.5 1.5  Double:4.0 0.6~0.9
25 0.5 2.5~4 1.5  Double:4.0 0.6~0.9
Stainless steel (SUS304) 1   0 0.5

N2

Single:1.0 12~16 No slag
2    0~-0.5 0.5 Single:2.0 12~16
3 12  -1~-1.5 0.5 Single:2.0 12~16
4 4.3 -3.5~-4 0.5  Single:3.5 12~16
6 1.8 -5~-6 0.5  Single:3.5  16~18
8 1.2 -6.5~-7 0.5  Single:3.5  16~18
10 0.9 -7.5~-8.5 0.5  Single:3.5  16~18 A small amount of slag
12 0.4  -9~-10 0.5 Single:4.0 16~20 A small amount of dross
Aluminum (6061) 1  37~40 0 0.5  Air  Single:1.0/1.2/1.5 12~16
2 20~22 0~-0.5 0.5  Single:1.5/2.0 12~16
3 8~9 0~-0.5 0.5 Single:2.0/2.5/3.0 12~16
4  5~5.2  -1~-1.5 0.5 Single:3.0 12~16
6 2.2~2.5  -2~-3 0.5 Single:3.5/4.0 12~16
8  1~1.2  -3~-4 0.5  Single:4.0  16~18
10  0.5~0.6  -5~-5.5 0.5  Single:4.0  16~18
Brass 1 15~17 0 1.5  Air  Single:1.0/1.2/1.5 12~16
2  18~20  0~-0.5 2.5  Single:1.5/2.0 12~16
3  7~7.5  0~-0.5 3.5 Single:2.0/2.5/3.0 12~16
4 4~4.5  -1~-1.5 4.5 Single:3.0 12~16
6  2.0~2.2  -2~-3 5.5  Single:3.5/4.0 12~16
8  0.9~1.1  -3~-4 6.5  Single:4.0   16~18
10 0.5~0.6 -5~-5.5 7.5  Single:4.0   16~18

What is this Machine Used for?

Warranty

30-DAY MONEY BACK GUARANTEE

You should feel completely satisfied with your KRRASS Fiber Laser Cutting Machine purchase, and your peace of mind is a significant part of that process. We want you to feel the same confidence in your new KRRASS machine that we do, which is why every Press Brake purchase includes our Hassle-Free KRRASS 30-Day Return option in order to fully experience and evaluate their new KRRASS machine. It allows you to return or exchange your KRRASS purchase, for any reason, within 30 days of initial purchase. Refunds are simple and are issued once the original machine and all accompanying accessories have been returned. The refund or exchange will be issued minus the 15% restocking fee for items & accessories, 25% KRRASS Fiber Laser Cutting Machine Series customization fee, and shipping or handling costs are not included. Click here for details

3000W Fiber Laser Cutting Machine, 3KW Fiber Laser Cutting Machine for Metal - krrass 30day guarantee
krrass-2year-warranty
2-YEAR LIMITED MACHINE WARRANTY

2 years Bumper to Bumper machine warranty for all machine mechanical and electrical components. (Except consumables parts) The Company represents and warrants that the KRRASS All Series of products will perform according to the warranty policy stated above from date of invoice. Products will be free from defects in materials and workmanship under normal use and service for the stated period. KRRASS has the responsibility to offer a timely solution and/or repair if deemed inoperable or defective by KRRASS Repair & Support Specialists. Clients are obligated to show proof of any such claims of machine parts or operational defects. Click here for details
