CNC Press Brake with DA69T

High Standard CNC Press Brake 6-8 Axis

Certificates For Banner

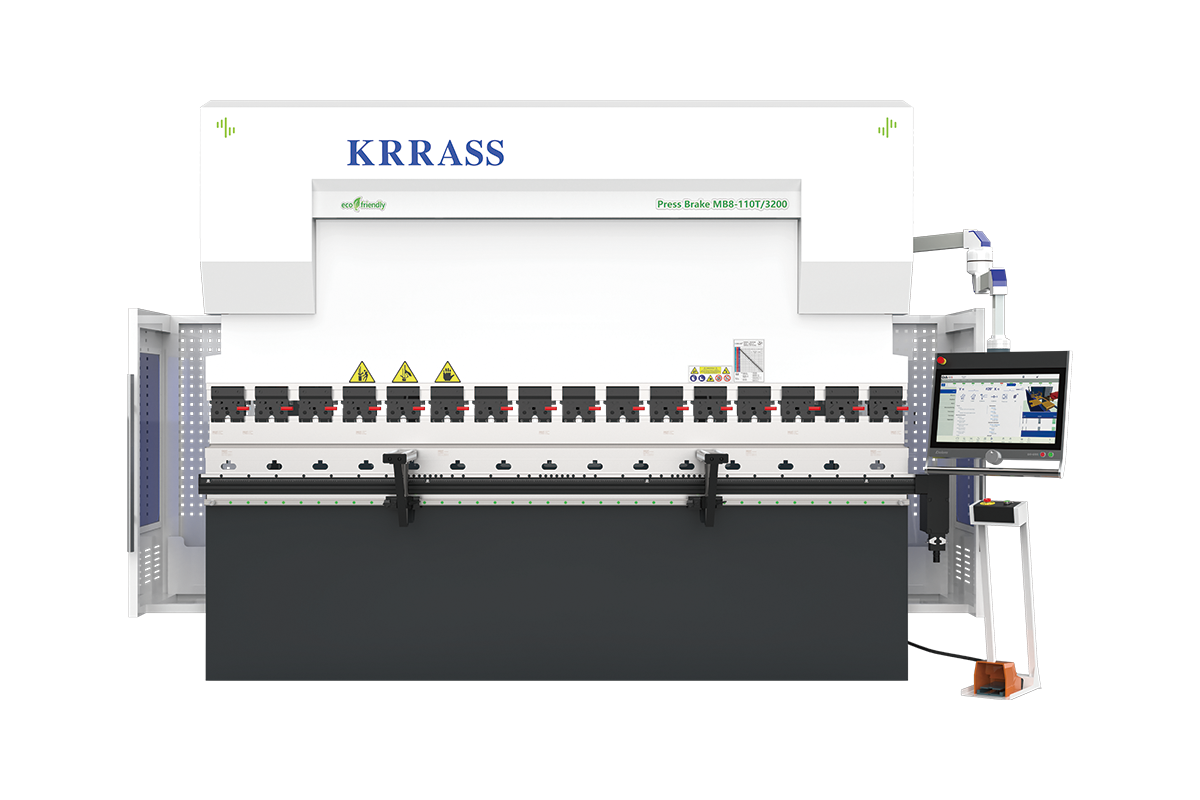

High Standard CNC Press Brake 6-8 Axis

MB8 Series High Standard CNC Press Brake is an affordable CNC press brake with impressive features and options. Paired with an advanced Delem DA-66T or Delem DA-69T control system supporting 3D graphic controls and at a competitive price, the High Standard Series is your first choice for Y1/Y2 machine technology.

CNC Press Brake with DA69T

Simple and solid press brake

Work area can be customized and all types of tool clamping can be installed

Tailored-made sheet metal press brake

Standard Equipment

REQUEST INFORMATION
  • Controller: DELEM DA-66T
  • Electrics: Schneider Electric - France
  • Main Motor: Siemens Motor - Germany
  • Servo Motor: ESTUN
  • Foot Switch: KACON - South Korea
  • Hydraulic System: Bosch Rexroth - Germany
  • Oil Pump: Sunny - USA
  • Sealing Ring: PARKER - America
  • High Efficiency Motor - Class IE3
  • Tube Connector: EMB - Germany
  • Backgauge: Hiwin - Taiwan
  • Grating Ruler: Fagor

Introduction to Configuration

FEA & Stress Analysis

Stress Analysis & Finite Element Analysis

The CAE software SOLIDWORKS used as the method to analyze the linear static construction, stress and deformation for press break and laser cutting machine frames. So for complicated structures, highly complex loading’s, transient modelling and combination of the above.

solid body

DELEM CNC Control System

DELEM DA-66T Control

  • 2D graphical touch screen programming mode
  • 17" high resolution colour TFT
  • 3D graphics acceleration
  • Colour LCD display
  • 1280 x 1024 pixels, 16 bit colour
  • Full touch screen control (IR-touch)
  • Sensor bending & correction interface Profile-TL offline software
  • Full Windows application suite
Operation Manual
DELEM DA-66T Control

DELEM CNC Control System

DELEM DA-69T Control

  • 3D and 2D graphical touch screen programming mode
  • 3D visualisation in simulation and production
  • 17" high resolution colour TFT
  • 1280 x 1024 pixels, 32 bit colour
  • 3D graphics acceleration
  • Full touch screen control (IR-touch)
  • Sensor bending & correction interface
  • Profile-T3D offline software
Operation Manual
DELEM DA-69T Control

Manual Upper Tool Clamping:

KRRASS CNC press brake use all Raw material is provided by qualified suppliers and chemical composition corresponds to international standards. Therefore, raw material yield and tensile strength are guaranteed, are standardized with a 8.4 x 3.5 mm safety groove, which keeps the tool from falling out.

Advantage:

  • Safe and fast tool change
  • Can be used without modifying Europe type punches
  • Front clamp - vertical tool change
  • Rear clamp - horizontal tool change
Read More
Manual Upper Tool Clamping

KRRASS® BGA-6 BackGauge

Press Brake 6-Axis CNC BackGauge with X1, X2, R1, R2, Z1, Z2-Axis

  • Ball screws and linear guide on X, R-axis.
  • Mechanical accuracy ± 0.03 mm.
  • Mechanical accuracy ± 0.03 mm.
  • Axes Z1‐Z2 speed 1000 mm/s.
  • Axis X1-X2 speed 500 mm/s.
  • Axis R1-R2 speed 500 mm/s.
  • Load capacity – 300 kg per support.
Read More
BGA-6 BackGauge

Proportional Valve

The German Rexroth fully closed-loop electro-hydraulic servo high-frequency synchronous control system is adopted to ensure that the machine tool has high stability and high precision in the process of high-speed operation.

Advantage:

  • The frequency response (response frequency) is higher and can be as high as 200Hz.
  • It can continuously and proportionally control the pressure and flow of the hydraulic system, control the position, speed, and force, and reduce the impact of pressure changes.
  • Closed-loop control, signal feedback.
  • Original German imported products, longer service life.
Rexroth Proportional Valve

KRRASS® family Electric Crowning

  • Very precise bending angles
  • Europe type dies with 60 mm and 90 mm
  • Base can be clamped as well as single dies with 13 mm tang
  • Electric crowning with a controller
  • Precise positioning and alignment of the crowning table
  • Easy and fast usage
Read More
Electric Crowning

Italy DSP Laser Protection (Optional)

DSP® laser protection will be necessary if you have a high requirement for the safety.

Advantage:

  • Laser protection, Multi beam Receiver
  • Pretective areas, Front, center and rear
  • The safety level is CAT.4 and SIL3
  • Detection Case protection degree: IP 65
  • Laser classification: class 1 M
  • Response time: 5 ms
  • Change Speed Point : 5mm + Stopping Space
  • The maximum protective distance is up to 15M
  • LED indicators show various states
Read More
DSP Laser Protection

German Siemens Main Motor

The German famous brand motor increases the service life of the machine and keeps the machine working in a low-noise environment.

Siemens Main Motor

Hybrid Servo ECO Function

KRRASS® New Hybrid Servo ECO Function (Optional)

KRRASS® promotes a friendly environmental policy, and as such all our equipment features the Hybrid ECO Function. Our hybrid servo-drive positioning system provides accuracy at any position.

Read More
Hybrid Servo ECO Function

Advantage:

  • High dynamic for a higher productivity of the machine.
  • Compliance with EU Directives.
  • Lower energy for a green Machine.
  • Lowered sound pressure level at 50 dB.
  • The servo-motor, with closed loop speed control.
  • Energy efficiency of up to 35 % compared to conventional systems.
  • Operating cost is min due to low energy consumption. Thus, it gives advantages to the user with high efficiency & low operation cost.

Laser Check Angle Measurement System

The iMeasure Laser angle measurement system with Data-M Engineering for an accurate bend angle after only one bending operation.

The iMeasure are fully-automatic laser-assisted bend angle measurement systems for CNC press brakes. Irrespective of the properties or thickness of the material, the LaserCheck enables an exact determination of the bending angle with an accuracy of better than 0.1°. This represents precision which has never been available before.

  • A laser beam is projected on the sheet metal surface
  • The camera detects the laser beam
  • The angle between the beam and the camera axis determines the bend angle
  • Force reduction + calculation of the springback
  • Automatic angle correction
Read More
iMeasure Laser angle measurement system

Front Sheet Follower Supports System

The hydraulic press brakes with Sheet supports follower system for bending long and thin sheets,It basically consists of a pair of sheet supports placed on the front of the machine at the height of the bending line (bottom tool). Supports are controlled by the CNC, following and supporting the sheet during the bending process.

  • Automatic bending follower supports
  • AP1 - AP2 CNC-controlled interpolated axes
  • Ecommended for heavy parts or large thin plate
  • Bend as closed as 70°
  • Load capacity – 180 kg per support
  • Brush and support shaft dim 350x900 up to 1200 mm
Read More

Punches&Dies

Sheet Metal Press Brake punches and dies will be one of the most important topics we discuss before you place the order. Any bending shape will be completed by a suitable set of punch and die. We can provide appropriate toolings according to different bending requirements of customers.

Read More
Punches & Dies

Bending Offline Software

Indispensable Tool To Increase Profitability

DELEM DA-Offline software maximises machine efficiency and production output of press brakes. The Profile-T3D software facilitates offline programming and simulation the bending process.

Profile T3D Offline Programming

The Bending offline software is an indispensable tool to increase the profitability of any CNC press brake machine. The offline software Profile T3D enables in a quick, easy and efficient way, importing and unfolding 3D files, finding automatically solutions for tooling and bend sequences and simulating dynamically in 3D for checking collisions.

Play Video about Profile T3D Offline Programming Video Poster
Read More
More Videos

CNC Press Brake Technical Parameter

Model Bending Pressure (kn) Bending Length (mm)  Column Distance (mm) Throat Depth (mm) Slider Stroke (mm) Max. Opening Height (mm) Y1,Y2-axis Down Speed (mm/sec) Y1,Y2-axis Back Stroke Speed (mm/sec) X-axis Max.Distance (mm)  Main Motor (kw)
50T1600 500 1600 1250 205 160 540 230 140 600 4
80T/2500 800 2500 2000 350 170 570 230 140 600 7.5
100T/2500 100 2500 2000 410 200 570 220 140 600 7.5
100T/3200 1000 3200 2700 410 200 570 220 140 600 7.5
100T/4000 1000 4000 3500 410 200 570 220 140 600 7.5
110T/3200 1100 3200 2700 410 200 570 220 140 600 7.5
110T/4000 1100 4000 3500 410 200 570 220 140 600 7.5
125T/3200 1250 3200 2700 410 200 570 200 140 600 11
125T/4000 1250 4000 3500 410 200 570 200 140 600 11
135T/3200 1350 3200 2700 410 200 570 200 140 600 11
135T/4000 1350 4000 3500 410 200 570 200 140 600 11
160T/3200 1600 3200 2700 410 200 570 200 140 600 11
160T/4000 1600 4000 3500 410 200 570 200 140 600 11
160T/5000 1600 5000 4100 410 200 570 160 90 600 11
160T/6000 1600 6000 5100 410 200 570 160 90 600 15
175T/3200 1750 3200 2700 410 200 570 160 140 600 11
175T/4000 1750 4000 3500 410 200 570 160 140 600 11
175T/5000 1600 5000 4100 410 200 570 160 90 600 11
175T/6000 1600 6000 5100 410 200 570 160 90 600 15
200T/3200 2000 3200 2700 410 200 570 160 140 600 15
200T/4000 2000 4000 3500 410 200 570 160 140 600 15
200T/5000 2000 5000 4100 410 200 570 160 90 600 15
200T/6000 2000 6000 5100 410 200 570 160 90 600 15
210T/3200 2100 3200 2700 410 200 570 160 140 600 15
210T/4000 2100 4000 3500 410 200 570 160 140 600 15
210T/5000 2100 5000 4100 410 200 570 130 90 600 15
210T/6000 2100 6000 5100 410 200 570 130 90 600 15
250T/3200 2500 3200 2700 410 250 420 160 140 600 18.5
250T/4000 2500 4000 3500 410 250 620 160 140 600 18.5
250T/5000 2500 5000 4100 410 250 620 130 90 600 18.5
250T/6000 2500 6000 5100 410 250 620 130 90 600 18.5
320T/3200 3200 3200 2700 450 300 670 150 130 600 22
320T/4000 3200 4000 3500 450 300 670 150 130 600 22
320T/5000 3200 5000 4100 450 300 670 130 90 600 22
320T/6000 3200 6000 5100 450 300 670 130 90 600 22
400T/3200 4000 3200 2700 500 300 670 150 130 600 30
400T/4000 4000 4000 3500 500 300 670 150 130 600 30
400T/5000 4000 5000 4100 500 300 670 130 90 600 30
400T/6000 5000 6000 5100 500 300 670 130 90 600 30
500T/4000 5000 4000 3500 500 300 670 150 130 600 30
500T/5000 5000 5000 4100 500 300 670 130 90 600 30
500T/6000 5000 6000 5100 500 300 670 130 90 600 30
