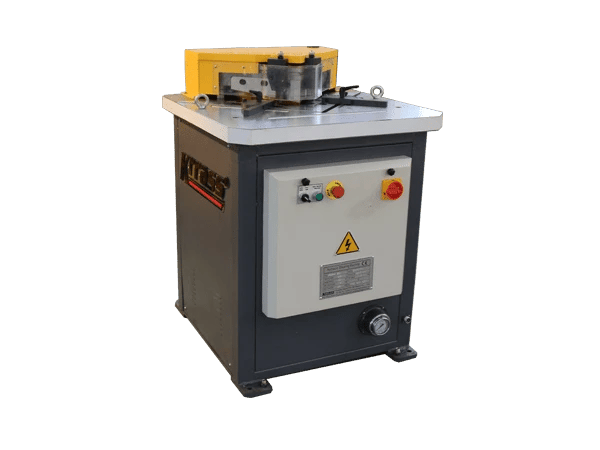

Machine à encocher à angle fixe
High Standard Fixed Angle Notching Machine
Our hydraulic fixed angle notching is a fixed and angle adjustment machine à encocher. It has a strong and durable body structure and a steel-construction table. The machine allows precise and quick adjustment of the desired cutting angle within 30 to 140 degrees with the help of a function mounted on the machine table. This machine is machined with T-slots on the top surface, which can be used to precisely adjust the angle and depth of the cut corners. Automatic cutting gap adjustment can be adjusted according to the type and thickness of the material, thus providing high cutting quality and precision.
Extrémité manuelle standard

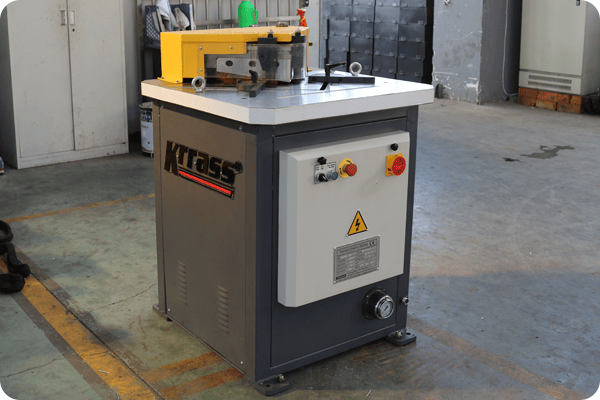

Panneau de commande optionnel avec affichage numérique
Tailored-made Notching Machine
General Features
- The biggest notcher size is 250×250 mm
- QF28Y variable rake hydraulic corner notchers have a strong frame with is statically and dynamically rigid steel table and top beam material
- The hydraulic notcher has compact structure, small volume and convenient operation
- The QF28Y Hydraulic notcher can cut up to 6 mm
- Le notching angle fixes in 90° with high notching speed

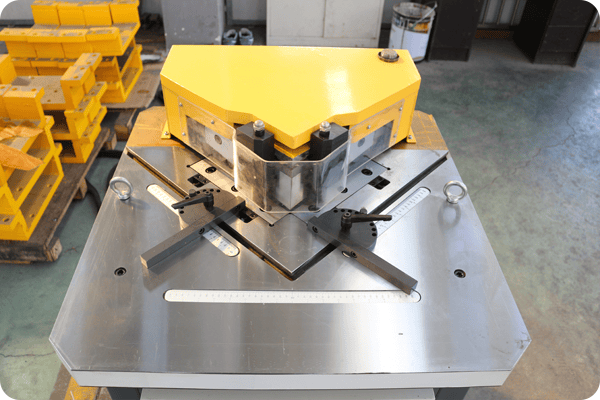

- T slot top table realizes precise cuttings and there is no need for alignment for different sheet thicknesses by means of automatic blade gap adjustment
- QF28Y series perform frequent cutting repeatability via 4 hydraulic hold-down cylinders
- Optional Equipment: Automatic feeding system
Paramètre technique
| Modèle | Max.Plate Thickness (mm) | Max.Plate Length (mm) | Cutting Angle Range (°) | Travel Times (N/min) | Worktable Height (mm) | Motor Power (KW) | Outline Dimensions (mm) | Weithe (kg) | |||
| CS | SS | L | W | H | |||||||
| 4X250 | 0.5-4 | 0.5-2 | 250 | 90° | 35 | 850 | 4 | 910 | 760 | 1050 | 680 |
| 6X250 | 0.5-6 | 0.5-3 | 250 | 90° | 35 | 850 | 4 | 910 | 810 | 1050 | 710 |
