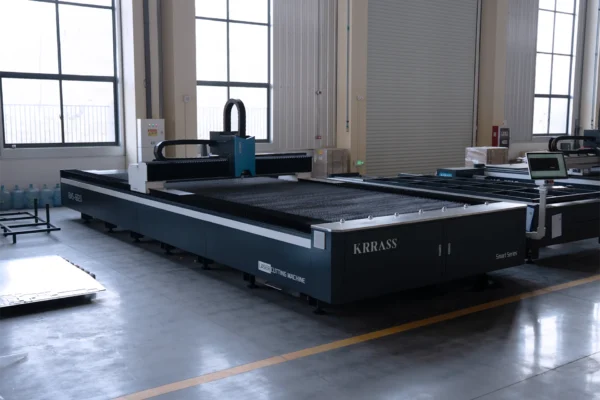

High-Performance 3kW Fiber Laser Cutter for Sheet Metal

Têtes de coupe intelligentes BOCHU BLT310

High-Performance 3kW Fiber Laser Cutter for Sheet Metal

Name: High Precision 3kW Fiber Laser Cutter - KRRASS
Brand: KRRASS
SKU: RAS-6020-SMART-3000W
Price: 23450.00 USD
Availability: InStock

Le prix initial était : $26,000.00.Le prix actuel est : $23,450.00.

Modèle: RAS-6020-Smart 3000W

Catégorie: Machine de découpe laser à fibre

Nom de marque : KRRASS

Source laser : Max China

Tête laser : BLT310

Système de contrôle : FSCUT2000E

Zone de travail : 6000mm * 2000mm

Code SH: 8456110090

Application: Sheet metal fabrication, automotive parts manufacturing, electrical cabinet production, commercial kitchenware equipment, aerospace components processing, precision carbon steel cutting, stainless steel fabrication, aluminum alloy processing, brass and copper metalworking.

Obtenir un devis

Technologies

Source laser :	Max China MFSC 3000W
Tête laser :	BLT310
Système de contrôle :	FSCUT2000E
Zone de travail :	6000mm * 2000mm
Tension de fonctionnement :	380 V 50 Hz
Pouvoir:	3000W
Longueur* Largeur* Hauteur :	7500mm * 2765mm * 1900mm

Configurations

Fonctionnalité principale

The RAS-6020 Smart 3kW Fiber Laser Cutter by KRRASS delivers unmatched speed, precision, and efficiency for metal fabrication. It effortlessly processes carbon steel, stainless steel, aluminum, brass, and various alloys, ensuring flawless edges and industrial-grade reliability. While our RAS series scales up to 40kW, this robust 3000W model is the ultimate "sweet spot" for maximizing productivity. Backed by KRRASS’s top-tier global support, it empowers your production line to tackle demanding projects with ease.

Source laser Max China MFSC 3000W

Powering this 3kW fiber laser cutter is the highly reliable MAX MFSC 3000W Single-Module Fiber Laser. Renowned for its exceptional beam quality and high stability, this compact, water-cooled unit ensures peak continuous performance. Featuring seamlessly adjustable power and standard QBH fiber transmission, it perfectly integrates with our CNC system. This robust laser source guarantees superior cutting precision across demanding sectors, including automotive, aerospace, and advanced metal fabrication.

Système de contrôle de bus FSCUT2000E

Equipped with the industry-leading BOCHU FSCUT2000E control system, this 3kW fiber laser cutter utilizes EtherCAT bus technology to guarantee lightning-fast, real-time data transmission and rock-solid stability. The highly intuitive, feature-rich interface significantly simplifies complex operations. It empowers even entry-level operators to consistently produce flawless, high-precision metal parts with minimal training.

Têtes de coupe intelligentes BOCHU BLT310

Engineered for maximum precision, the BOCHU BLT310 is an advanced, high-performance cutting head. Despite its exceptionally compact and lightweight profile, it houses a sophisticated array of intelligent sensors. This design enables real-time, closed-loop monitoring of the entire process, instantly delivering rapid diagnostics and active warnings to prevent downtime and maintain consistent edge quality.

Contrôleur EtherCAT FSCUT2000E

Perfectly tailored for 1.5kW to 3kW power applications, the FSCUT2000E EtherCAT controller seamlessly synchronizes the machine's motion, laser output, and cutting gases. This high-efficiency system is an industry favorite for fabricating sheet metal, commercial kitchenware, and precision lighting fixtures. Paired with the robust BCL4568E terminal board, it ensures extremely stable and reliable signal processing during complex operations.

Servomoteur et entraînement à grande vitesse

Driven by premium INOVANCE high-speed servo motors and drives, the motion system guarantees precise control and rapid acceleration, drastically enhancing overall efficiency. These high-dynamic components offer exceptional responsiveness and unmatched stability, ensuring continuous industrial performance with minimal mechanical downtime. Furthermore, advanced closed-loop feedback mechanisms provide real-time positioning, making the machine perfectly suited for executing highly complex metal fabrication tasks with pinpoint accuracy.

Genuine Schneider Electrical System

To guarantee maximum safety and uninterrupted operation, the electrical cabinet is fully equipped with genuine Schneider components. These premium parts deliver rock-solid stability, protecting the equipment's core systems and ensuring continuous operation even when the local power supply is inconsistent. Beyond exceptional durability, utilizing a universally recognized brand offers a massive advantage for global manufacturers. Should you ever require a replacement part, you can easily source it locally anywhere in the world. This universal availability drastically reduces potential downtime and keeps your production firmly on track.

Fifth-Generation Aviation Aluminum Alloy Beam

The transverse beam is engineered from high-strength aviation-grade aluminum, processed with advanced T6 heat treatment for maximum structural integrity. This meticulous solution treatment significantly enhances the beam’s strength-to-weight ratio and plasticity. By optimizing and reducing the overall weight, the beam enables higher acceleration and rapid movement speeds, ensuring superior dynamic performance during high-speed cutting operations without compromising stability.

Advanced Industrial Water Cooling System

To maintain peak efficiency, our dual-circuit water cooling system precisely regulates the temperature of both the laser source and cutting optics. Actively preventing heat buildup during high-intensity operations ensures stable laser output and protects sensitive components from thermal stress. This consistent thermal management is vital for flawless cutting quality and extending the machine's longevity. Equipped with intelligent temperature control and automatic alarms, it provides a reliable cooling solution for continuous, 24/7 industrial production without the risk of overheating.

3kW Fiber Laser Cutter Material Thickness

	Épaisseur (mm)	Vitesse (m/min)	Position de focalisation	Hauteur de coupe (mm)	Gaz	Type de buse	Pression (bar)	Effet de coupe
Acier au carbone (Q235B)	1	59	0	0.5	N₂	Simple : 1.0	12~16	surface brillante
	2	28	-1~-1.5	0.5	N₂	Single : 2.0	12~16
	3	4	4.5~5.5	0.8	O₂	Double : 1,2	0.6~0.9
	4	3.5	4.5~5.5	0.8		Double : 1,2	0.6~0.9
	6	2.7	4.5~5.5	0.8		Double : 1,2	0.6~0.9
	8	2.2	4.5~5.5	1.5		Double : 4.0	0.6~0.9
	10	1.5	2~3	1.5		Double : 4.0	0.6~0.9	Surface mate
	12	1	2~3	1.5		Double : 4.0	0.6~0.9
	14	0.95	2~3	1.5		Double : 4.0	0.6~0.9
	16	0.85	2.5~3.5	1.5		Double : 4.0	0.6~0.9
	18	0.72	2.5~3.5	1.5		Double : 4.0	0.6~0.9
	20	0.65	2.5~3.5	1.5		Double : 4.0	0.6~0.9
	22	0.55	2.5~3.5	1.5		Double : 4.0	0.6~0.9
	25	0.5	2.5~4	1.5		Double : 4.0	0.6~0.9
Acier inoxydable (SUS304)	1		0	0.5	N₂	Simple : 1.0	12~16	Pas de scories
	2		0~-0.5	0.5		Single : 2.0	12~16
	3	12	-1~-1.5	0.5		Single : 2.0	12~16
	4	4.3	-3.5~-4	0.5		Simple : 3,5	12~16
	6	1.8	-5~-6	0.5		Simple : 3,5	16~18
	8	1.2	-6.5~-7	0.5		Simple : 3,5	16~18
	10	0.9	-7.5~-8.5	0.5		Simple : 3,5	16~18	Une petite quantité de scories
	12	0.4	-9~-10	0.5		Single : 4.0	16~20	Une petite quantité de scories
Aluminium (6061)	1	37~40	0	0.5	Air	Simple : 1.0/1.2/1.5	12~16
	2	20~22	0~-0.5	0.5		Simple : 1,5/2,0	12~16
	3	8~9	0~-0.5	0.5		Simple : 2.0/2.5/3.0	12~16
	4	5~5.2	-1~-1.5	0.5		Single : 3.0	12~16
	6	2.2~2.5	-2~-3	0.5		Simple : 3,5/4,0	12~16
	8	1~1.2	-3~-4	0.5		Single : 4.0	16~18
	10	0.5~0.6	-5~-5.5	0.5		Single : 4.0	16~18
Laiton	1	15~17	0	1.5	Air	Simple : 1.0/1.2/1.5	12~16
	2	18~20	0~-0.5	2.5		Simple : 1,5/2,0	12~16
	3	7~7.5	0~-0.5	3.5		Simple : 2.0/2.5/3.0	12~16
	4	4~4.5	-1~-1.5	4.5		Single : 3.0	12~16
	6	2.0~2.2	-2~-3	5.5		Simple : 3,5/4,0	12~16
	8	0.9~1.1	-3~-4	6.5		Single : 4.0	16~18
	10	0.5~0.6	-5~-5.5	7.5		Single : 4.0	16~18
