KRRASS – synonymous with quality, reliability, and flexibility. Our latest innovation, the Hybrid PBE Series CNC press brake, combines cutting-edge technology with years of our expertise. Boasting a dynamic hybrid-servo drive system and user-friendly control, the Hybrid PBE is a top-level machine that excels in precision and quiet operation. Equipped with advanced safety features, it stands out in creating intricate parts. Elevate your fabrication with KRRASS Hybrid PBE – precision redefined.
Simple and solid press brake
Work area can be customized and all types of tool clamping can be installed
Tailored-made sheet metal press brake
FEA & Stress Analysis
The CAE software SOLIDWORKS used as the method to analyze the linear static construction, stress and deformation for press break and laser cutting machine frames. So for complicated structures, highly complex loading’s, transient modelling and combination of the above, FEA makes sense.
DELEM CNC Control System
KRRASS CNC press brake use all Raw material is provided by qualified suppliers and chemical composition corresponds to international standards. Therefore, raw material yield and tensile strength are guaranteed, are standardized with a 8.4 x 3.5 mm safety groove, which keeps the tool from falling out.
Advantage:

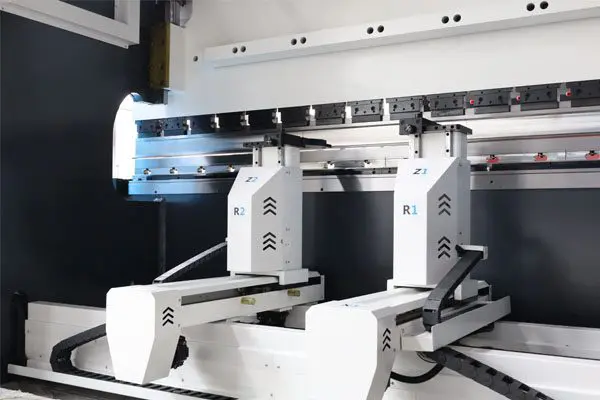

KRRASS® BGA-6 BackGauge
DSP® laser protection will be necessary if you have a high requirement for the safety.
Advantage:
New Generation Technology

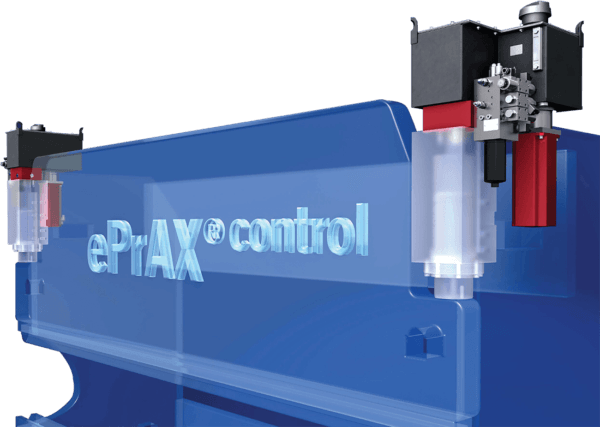

The ePrAX® control hybrid system is an innovative servo drive for press brakes, and thanks to the brushless motor, we can precisely control the movement of the ram using a minimum amount of oil and energy.
Improving energy efficiency of up to 73 % compared to conventional systems.
Advantage:

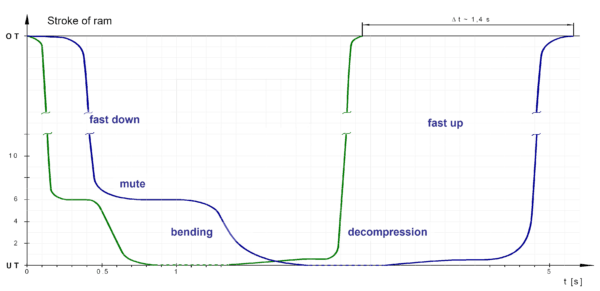

It bends and bends and bends…
Speed | More than 40% Oil Save
Quality | Higher Operation Speeds
Save time and costs…
DELEM DA-Offline software maximises machine efficiency and production output of press brakes. The Profile-T3D software facilitates offline programming and simulation the bending process.
The Bending offline software is an indispensable tool to increase the profitability of any CNC press brake machine. The offline software Profile T3D enables in a quick, easy and efficient way, importing and unfolding 3D files, finding automatically solutions for tooling and bend sequences and simulating dynamically in 3D for checking collisions.
Thanks to the advanced KRRASS® CNC and interconnecting ad-hoc software tools like the “Smart Factory” make it possible for companies to enter industry 4.0 that is revolutionizing the reality of companies.you can extract data and share information at company level: bending programs, sensors, production statistics.
Sheet Metal Press Brake punches and dies will be one of the most important topics we discuss before you place the order. Any bending shape will be completed by a suitable set of punch and die. We can provide appropriate toolings according to different bending requirements of customers.
A bar graph displaying how many message were displayed over the time. Only the message that were active while the DA-Control was stared are indicated. The following categories of messages are indicted:
This block displays a bar graph indicating for each product the amount that has produced per day. When the mouse cursor is moved onto one of these bars, the product ID and the amount for that date is displayed.
| Model | Bending Pressure（KN） | Bending Length（mm） | Column Distance（mm） | Throat Depth（mm） | Slider Stroke（mm） | Max. Opening Height（mm） | Main Motor Power（kw） | X-Axis Max Stroke （mm） | R-Axis Max Stroke（mm） | Max Speed（mm/s） | Weight（kg） | ||
| Drive In | Pressing | Return stroke | |||||||||||
| PBE-50/1600 | 500 | 1600 | 1200 | 240 | 200 | 540 | 2X4.4 | 450 | 140 | 300 | 0-20 | 250 | 4300 |
| PBE-80/2500 | 800 | 2500 | 2000 | 410 | 200 | 570 | 2X4.4 | 450 | 200 | 300 | 0-20 | 250 | 6100 |
| PBE-110/2500 | 1100 | 2500 | 2000 | 410 | 200 | 570 | 2X4.4 | 600 | 200 | 300 | 0-15 | 220 | 7900 |
| PBE-110/3200 | 1100 | 3200 | 2700 | 410 | 200 | 570 | 2X4.4 | 600 | 200 | 300 | 0-15 | 220 | 9000 |
| PBE-110/4000 | 1100 | 4000 | 3500 | 410 | 200 | 570 | 2X4.4 | 600 | 200 | 300 | 0-15 | 220 | 10900 |
| PBE-135/2500 | 1300 | 2500 | 2000 | 410 | 200 | 570 | 2X4.4 | 600 | 200 | 300 | 0-15 | 220 | 7900 |
| PBE-135/3200 | 1300 | 3200 | 2700 | 410 | 200 | 570 | 2X4.4 | 600 | 200 | 300 | 0-15 | 220 | 9000 |
| PBE-135/4000 | 1300 | 4000 | 3500 | 410 | 200 | 570 | 2X4.4 | 600 | 200 | 300 | 0-15 | 220 | 11300 |
| PBE-135/5000 | 1300 | 5000 | 4500 | 410 | 200 | 570 | 2X4.4 | 600 | 200 | 200 | 0-15 | 160 | 15200 |
| PBE-135/6000 | 1300 | 6000 | 5500 | 410 | 200 | 570 | 2X4.4 | 600 | 200 | 200 | 0-15 | 160 | 17700 |
| PBE-175/2500 | 1700 | 2500 | 2000 | 410 | 200 | 570 | 2X4.4 | 600 | 200 | 300 | 0-15 | 200 | 8800 |
| PBE-175/3200 | 1700 | 3200 | 2700 | 410 | 200 | 570 | 2X4.4 | 600 | 200 | 300 | 0-15 | 200 | 10100 |
| PBE-175/4000 | 1700 | 4000 | 3500 | 410 | 200 | 570 | 2X4.4 | 600 | 200 | 300 | 0-15 | 200 | 12100 |
| PBE-175/5000 | 1700 | 5000 | 4500 | 410 | 200 | 570 | 2X5.5 | 600 | 200 | 180 | 0-15 | 130 | 17000 |
| PBE-175/6000 | 1700 | 6000 | 5500 | 410 | 200 | 570 | 2X5.5 | 600 | 200 | 180 | 0-15 | 130 | 20000 |
| PBE-210/2500 | 2300 | 2500 | 2000 | 410 | 200 | 570 | 2X5.5 | 600 | 200 | 160 | 0-15 | 160 | 10500 |
| PBE-210/3200 | 2300 | 3200 | 2700 | 410 | 200 | 570 | 2X5.5 | 600 | 200 | 160 | 0-15 | 160 | 11800 |
| PBE-210/4000 | 2300 | 4000 | 3500 | 410 | 200 | 570 | 2X5.5 | 600 | 200 | 160 | 0-15 | 160 | 13700 |
| PBE-210/5000 | 2300 | 5000 | 4500 | 410 | 200 | 570 | 2X5.5 | 600 | 200 | 150 | 0-15 | 150 | 18600 |
| PBE-210/6000 | 2300 | 6000 | 5500 | 410 | 200 | 570 | 2X5.5 | 600 | 200 | 150 | 0-15 | 150 | 21600 |
| PBE-250/2500 | 2500 | 2500 | 2000 | 410 | 250 | 525 | 2X5.5 | 600 | 200 | 150 | 0-15 | 150 | 12100 |
| PBE-250/3200 | 2500 | 3200 | 2700 | 410 | 250 | 525 | 2X5.5 | 600 | 200 | 150 | 0-15 | 150 | 14000 |
| PBE-250/4000 | 2500 | 4000 | 3500 | 410 | 250 | 525 | 2X5.5 | 600 | 200 | 150 | 0-15 | 150 | 16000 |
| PBE-250/5000 | 2500 | 5000 | 4500 | 410 | 250 | 525 | 2X7.9 | 600 | 200 | 130 | 0-15 | 130 | 21200 |
| PBE-250/6000 | 2500 | 6000 | 5500 | 410 | 250 | 525 | 2X7.9 | 600 | 200 | 130 | 0-15 | 130 | 24600 |
| PBE-320/3200 | 3200 | 3200 | 2700 | 410 | 300 | 600 | 2X5.5 | 600 | 200 | 120 | 0-12 | 130 | 17700 |
| PBE-320/4000 | 3200 | 4000 | 3500 | 410 | 300 | 600 | 2X5.5 | 600 | 200 | 120 | 0-12 | 130 | 20300 |
| PBE-320/5000 | 3200 | 5000 | 4500 | 410 | 300 | 600 | 2X7.9 | 600 | 200 | 100 | 0-12 | 110 | 26100 |
| PBE-320/6000 | 3200 | 6000 | 5500 | 410 | 300 | 600 | 2X7.9 | 600 | 200 | 100 | 0-12 | 110 | 30400 |
